DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-19

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES.

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select."
4. Choose "from 2006 MY" under "MODEL YEAR".
5. Check that "Vehicle Information" contents are correct.
6. Choose "ABS/ASC/ASTC".
7. Select "Diagnostic Trouble Code"
8. If a DTC is set, it is shown.
9. Choose "Erase DTCs" to erase the DTC.

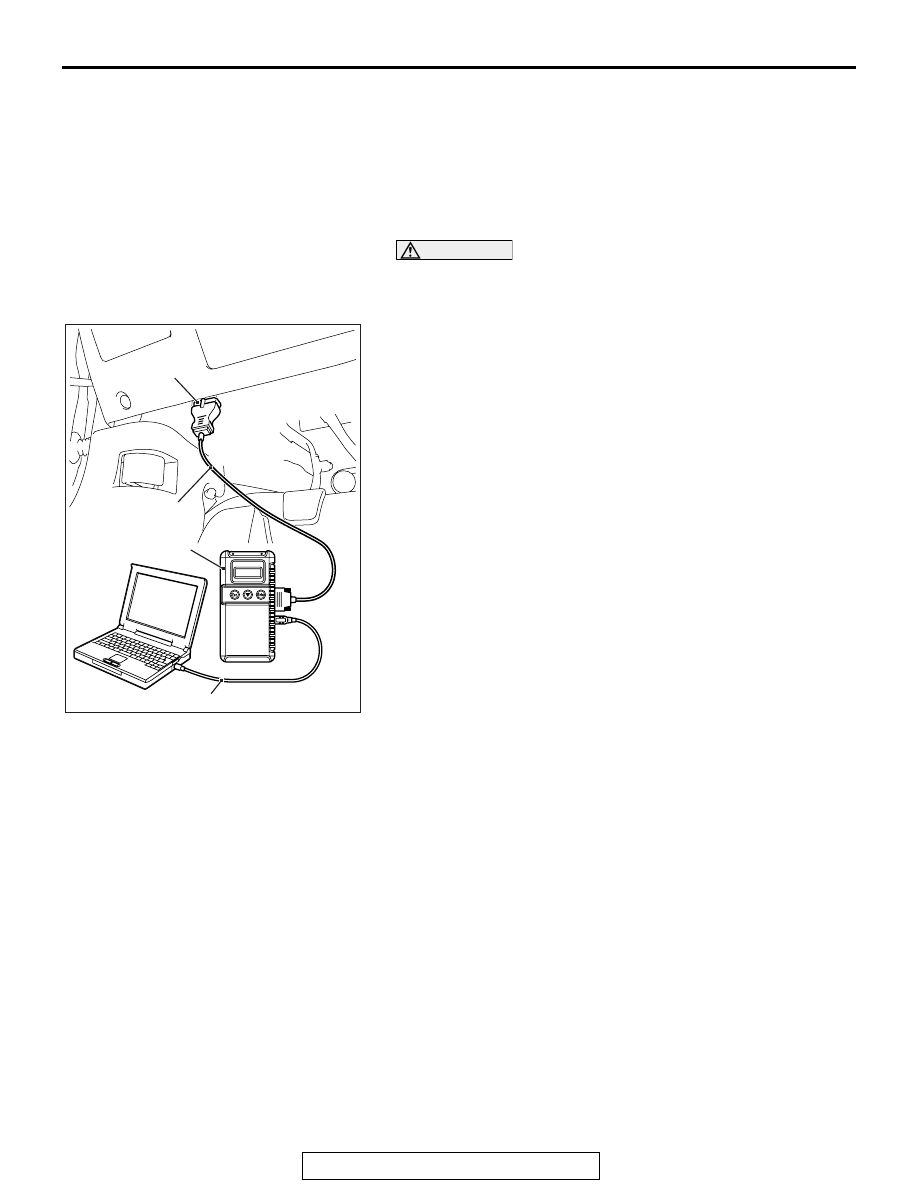

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-20

DIAGNOSTIC TROUBLE CODE CHART

M1355001100371

CAUTION

During diagnosis, a DTC code associated with another system may be set when the ignition switch is
turned on with connector(s) disconnected. On completion, confirm all systems for DTCs. If DTC
code(s) are set, erase them all.

DTC No.

Item

Reference page

C100A

Abnormality in FL wheel speed sensor circuit

P.35C-23

C1015

Abnormality in FR wheel speed sensor circuit

P.35C-28

C1020

Abnormality in RL wheel speed sensor circuit

P.35C-33

C102B

Abnormality in RR wheel speed sensor circuit

P.35C-38

C1011

Abnormality in FL wheel speed sensor signal

P.35C-43

C101C

Abnormality in FR wheel speed sensor signal

P.35C-49

C1027

Abnormality in RL wheel speed sensor signal

P.35C-55

C1032

Abnormality in RR wheel speed sensor signal

P.35C-62

C1014

Mutual monitoring of FL wheel speed sensor

P.35C-68

C101F

Mutual monitoring of FR wheel speed sensor

P.35C-72

C102A

Mutual monitoring of RL wheel speed sensor

P.35C-75

C1035

Mutual monitoring of RR wheel speed sensor

P.35C-79

C1041

Abnormality in periodical signal for FL wheel speed sensor

P.35C-82

C1042

Abnormality in periodical signal for FR wheel speed sensor

P.35C-85

C1043

Abnormality in periodical signal for RL wheel speed sensor

P.35C-87

C1044

Abnormality in periodical signal for RR wheel speed sensor

P.35C-90

C1046

FL wheel speed sensor control phase time exceeded

P.35C-92

C1047

FR wheel speed sensor control phase time exceeded

P.35C-98

C1048

RL wheel speed sensor control phase time exceeded

P.35C-104

C1049

RR wheel speed sensor control phase time exceeded

P.35C-110

C104B

Abnormality in FL wheel inlet valve system

P.35C-116

C104F

Abnormality in FR wheel inlet valve system

C1053

Abnormality in RL wheel inlet valve system

C1057

Abnormality in RR wheel inlet valve system

C105F

Abnormality in FL wheel outlet valve system

C1063

Abnormality in FR wheel outlet valve system

C1067

Abnormality in RL wheel outlet valve system

C105B

Abnormality in RR wheel outlet valve system

C1200

Abnormality in FL/RR wheel cut valve system

C1204

Abnormality in FR/RL wheel cut valve system

C1208

Abnormality in FL/RR wheel suction valve system

C120C

Abnormality in FR/RL wheel suction valve system

C2104

Faulty valve power supply circuit

P.35C-118

C1073

Faulty motor drive circuit

P.35C-122

DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-21

C2116

Abnormality in power supply voltage in pump motor

P.35C-126

C121D

Abnormality in brake fluid pressure sensor circuit

P.35C-130

C121E

Abnormality in brake fluid pressure sensor output signal

P.35C-132

C2000

Abnormality in wheel fluid pressure sensor circuit

P.35C-135

C2001

Abnormality in wheel fluid pressure sensor output signal

P.35C-136

C1000

Abnormality in stoplight switch circuit

P.35C-140

C123B

Prolonged operation of ASC

P.35C-146

C2200

Abnormality in ASC-ECU

P.35C-149

C2101

Abnormality in battery
voltage (high voltage)

18.0

± 1.0 V or more

P.35C-150

C1395

Brake fluid filling not completed

P.35C-156

C121C

Torque request signal rejection

P.35C-157

C1290

CAN time-out error

P.35C-159

C2203

VIN not recorded

P.35C-162

C2206

Re-execution of variant coding

P.35C-164

C1210

Abnormality in G and yaw
rate sensor

Abnormality in longitudinal
G-sensor output voltage

P.35C-167

C1242

Abnormality in G and yaw
rate sensor

Abnormality in longitudinal
G-sensor output signal

P.35C-169

C123C

Abnormality in G and yaw
rate sensor

Abnormality in lateral G sensor
output value (incorrect
installation)

P.35C-171

Abnormality in yaw rate sensor
output voltage

C2204

Internal abnormality in G and
yaw rate sensor

Abnormality in internal circuit

P.35C-174

Abnormality in lateral G-sensor
output voltage
Abnormality in yaw rate sensor
output voltage
Abnormality in G and yaw rate
sensor supply voltage

C2111

Brake fluid pressure sensor
power supply circuit

Low input

P.35C-176

C2112

Brake fluid pressure sensor
power supply circuit

High input

C2114

Abnormality in G and yaw
rate sensor operation voltage

Low voltage (below 6.5

± 0.5 V)

P.35C-178

C2115

Abnormality in G and yaw
rate sensor operation voltage

High voltage (18.0

± 1.0 V or

more)

C123A

Abnormality in sensor calibration

P.35C-182

C1219

Abnormality in steering wheel sensor signal

P.35C-184

DTC No.

Item

Reference page

DIAGNOSIS

TSB Revision

ACTIVE SKID CONTROL SYSTEM (ASC)

35C-22

NOTE:

*

: Only for vehicles with TC-SST

C121A

Abnormality in steering wheel
sensor initialization

Steering wheel sensor neutral
point not learned

P.35C-187

C2205

Internal abnormality in steering wheel sensor

P.35C-188

C1608

Implausible diagnosis data

P.35C-190

C2002

Abnormality in valve calibration

P.35C-196

U0001

Bus-off

P.35C-198

U0100

Engine time-out error

P.35C-199

U0101

*

TC-SST time-out error

U0126

Steering wheel sensor time-out error

U0141

ETACS time-out error

U0136

AWC time-out error

U0125

G and yaw rate sensor message time-out error/message error

P.35C-202

U0401

Engine malfunction detected

P.35C-205

U0428

Communication error in steering wheel sensor

P.35C-206

U0251

AWC time-out error

Local CAN

P.35C-208

U0440

Communication error in AWC Local CAN

U0435

AWC signal abnormality

Local CAN

U1003

G and yaw rate sensor bus-off

P.35C-210

U1415

Variant coding not completed

P.35C-213

U1417

Variant coding value invalid (includes faulty installation)

P.35C-215

DTC No.

Item

Reference page
