SRS AIR BAG DIAGNOSIS
TSB Revision
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
52B-203

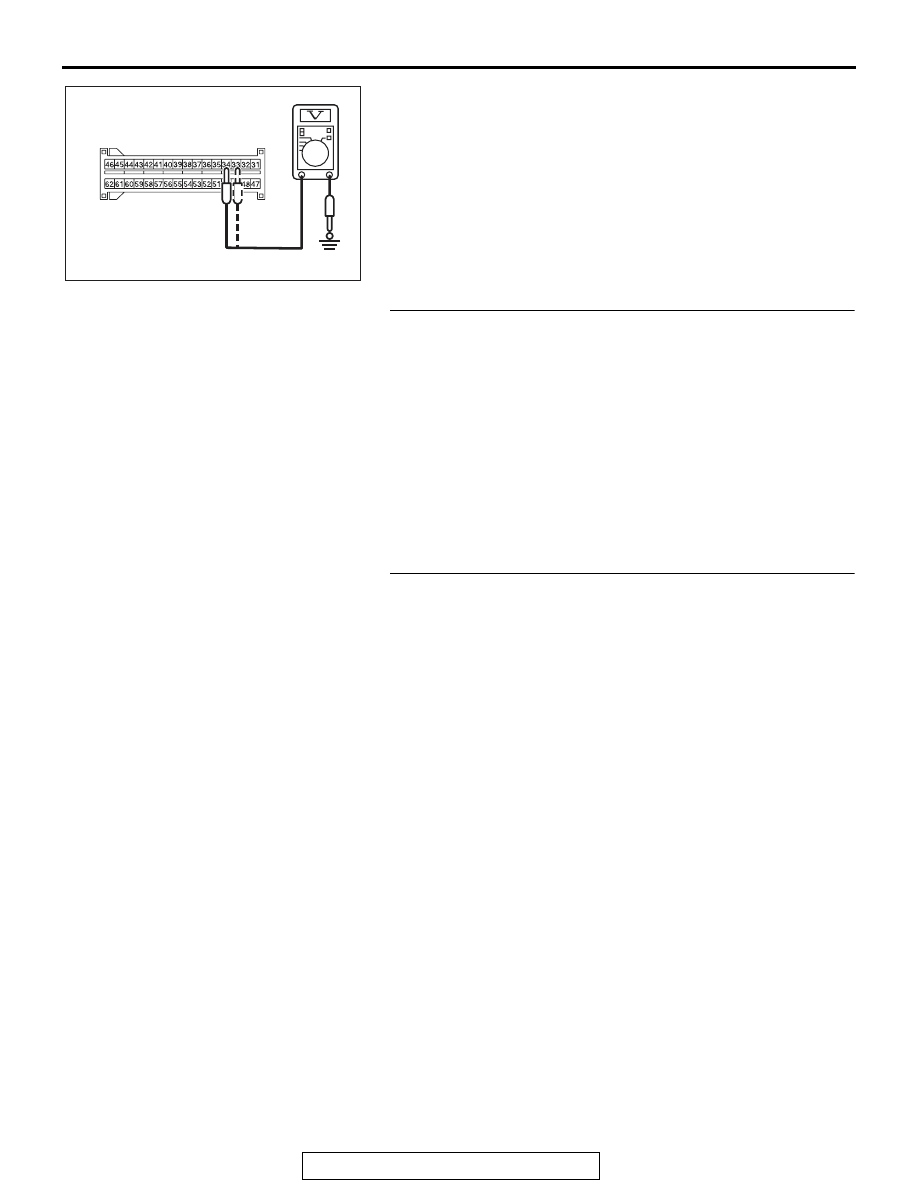

(7) Measure the voltage between C-36 harness side connector
terminals 33 and 34 and body ground.
Voltage should measure 0 volt.
Q: Is the measured voltage within the specified range?
YES : Erase the diagnostic trouble code memory, and check
the diagnostic trouble code. If DTC B1C2C sets,
replace the SRS-ECU (Refer to
P.52B-383
). Then go
to Step 6.
NO : Go to Step 5.

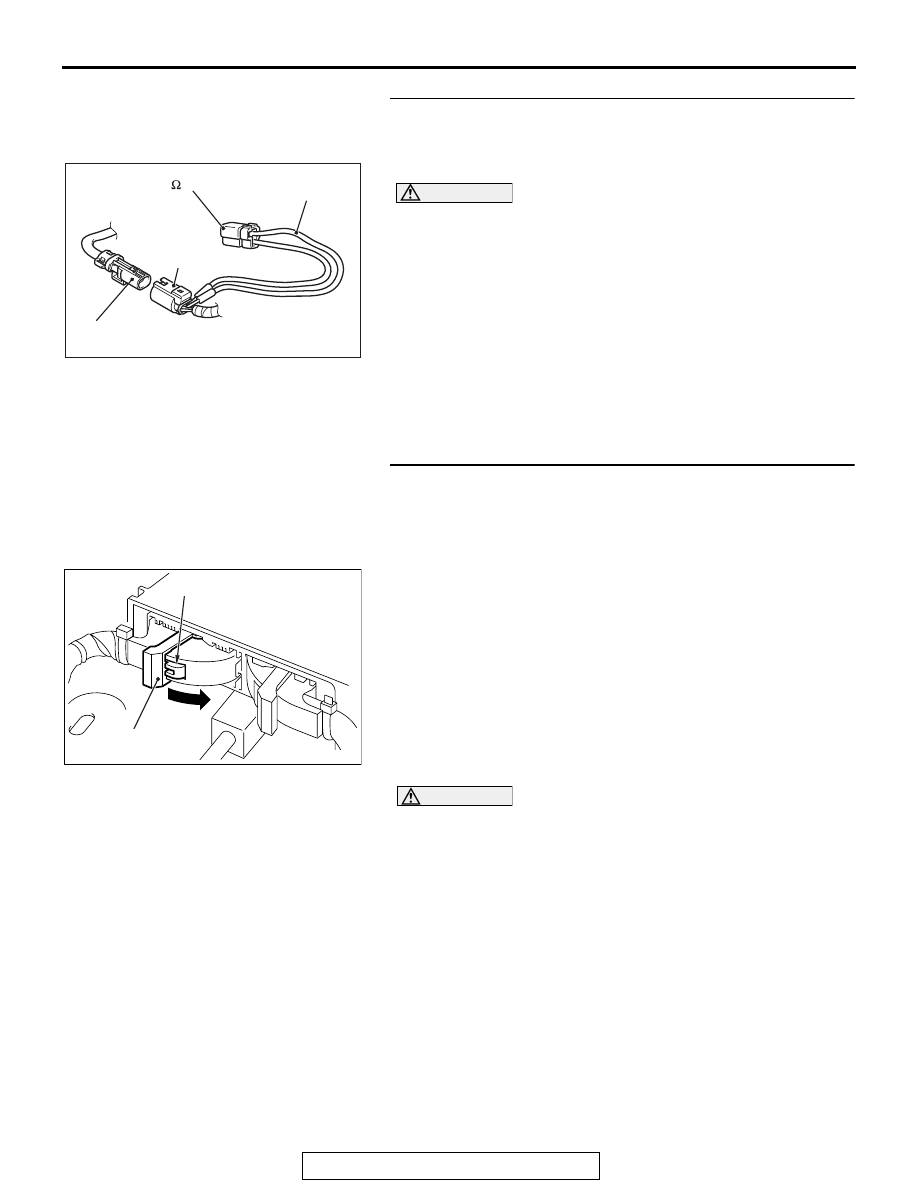

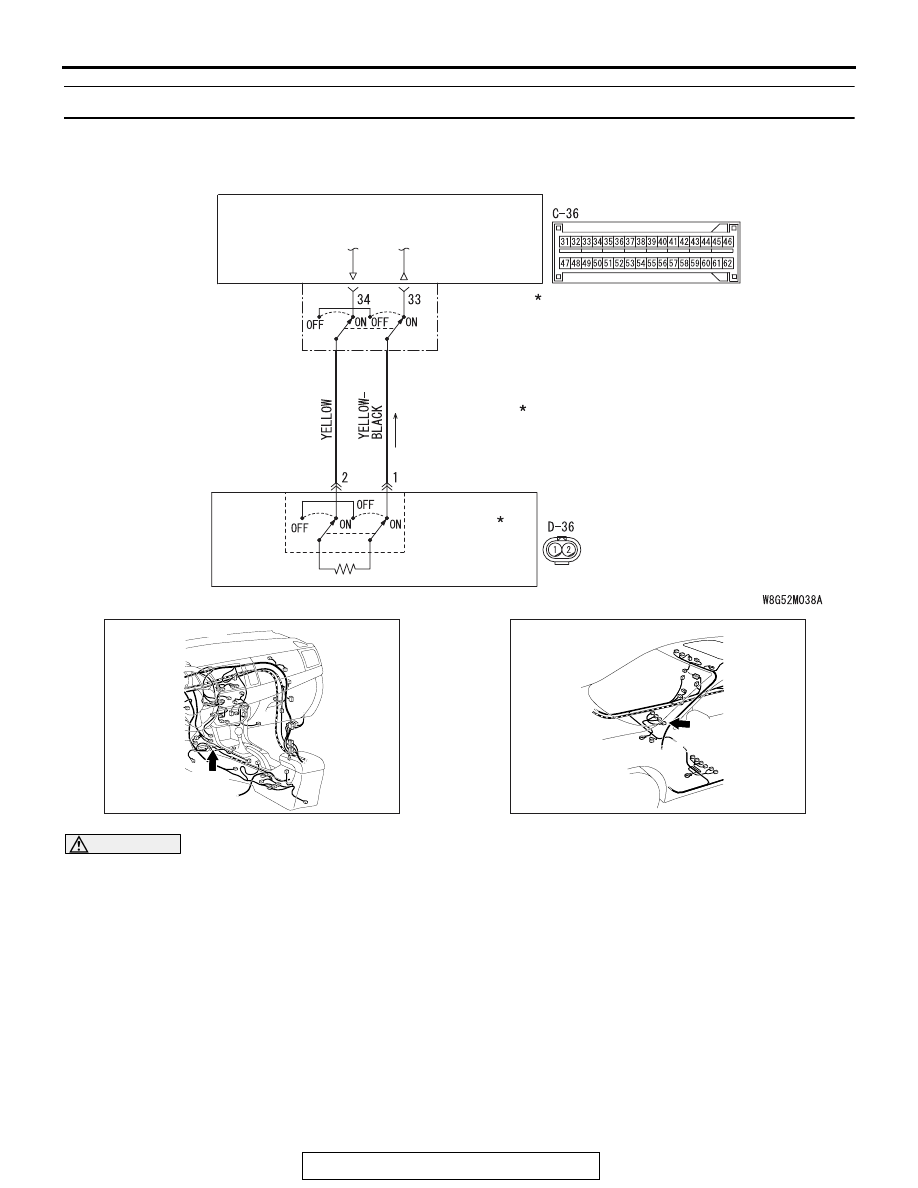

STEP 5. Check the harness wires for short circuit to power
supply between SRS-ECU connector C-36 (terminal No.33
and 34) and side-air bag module (RH) connector D-36
(terminal No.1 and 2).
Q: Are the harness wires between SRS-ECU connector
C-36 (terminal No.33 and 34) and side-air bag module
(RH) connector D-36 (terminal No.1 and 2) in good
condition?
YES : Go to Step 6.
NO : Replace the harness wires between SRS-ECU
connector C-36 and side-air bag module (RH)
connector D-36. Then go to Step 6.

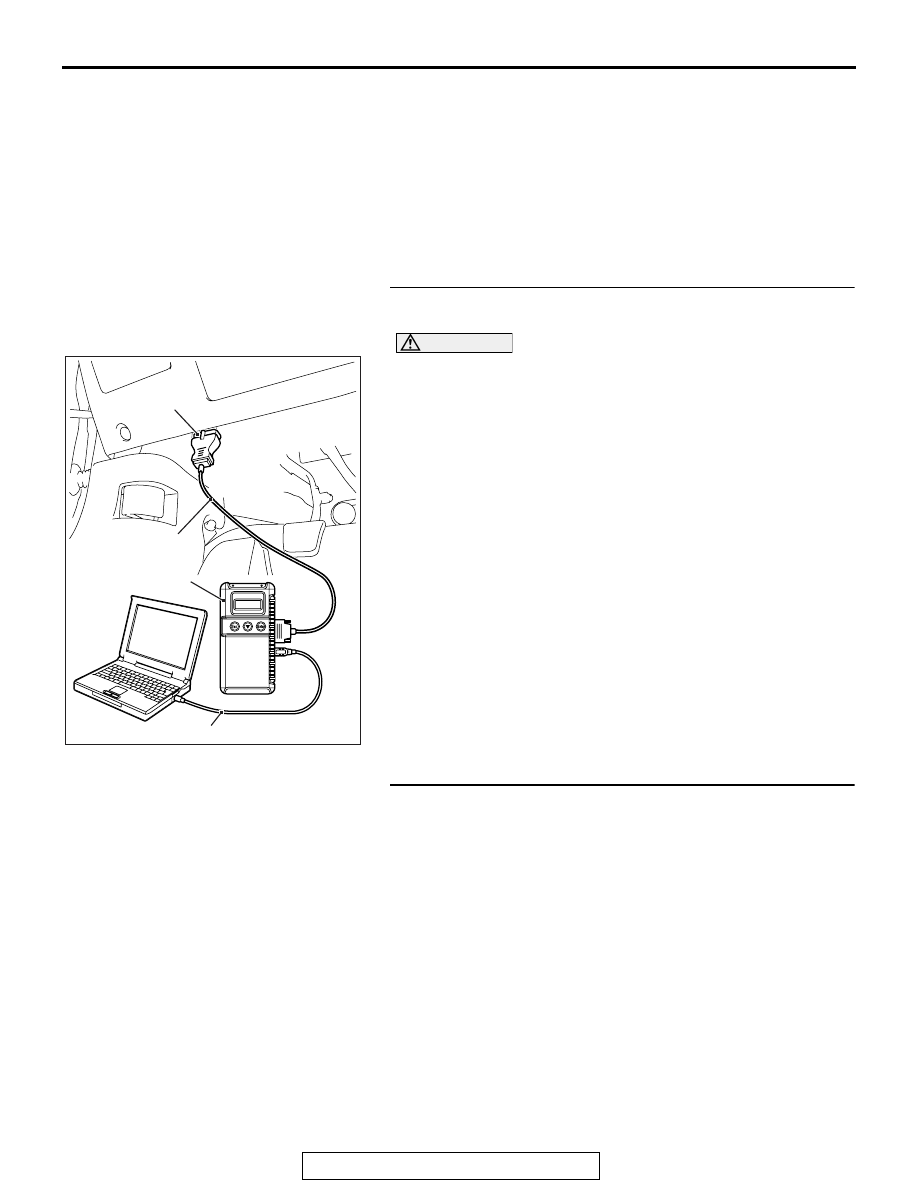

STEP 6. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC B1C2C set?
YES : Return to Step 1.
NO : The procedure is complete.
AC608813
C-36 Harness side
connector (front view)
BI
