SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-79

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-15

).

STEP 3. Check the passenger's (front) air bag module.
(1) Disconnect the negative battery terminal.
(2) Disconnect the passenger’s (front) air bag module

connector C-14.

(3) Disconnect the connector while sliding the C-14 wiring

harness side connector to the direction of the arrow.

(4) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a probe into the terminal from its front side
directly, as the connector contact pressure may be weak-
ened.
(5) Insert special tool MB991866 into the harness side

connector C-14 (terminal No.1 and 2 <1st squib> or
terminal No.3 and 4 <2nd squib>) by backprobing.

(6) Connect the negative battery terminal.

CAUTION

Always DTC B1B0E is set when checking DTC B1B09. This
is because the second side terminal is isolated when
checking it. DTC B1B0E is set but this is not a fault. In
addition, always DTC B1B0A is set when checking DTC
B1B0D because the first side terminal is isolated.
(7) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is the checked DTC set?

YES : Go to Step 4.
NO :  Replace the passenger's (front) air bag module (Refer

to

P.52B-393

). Then go to Step 6.

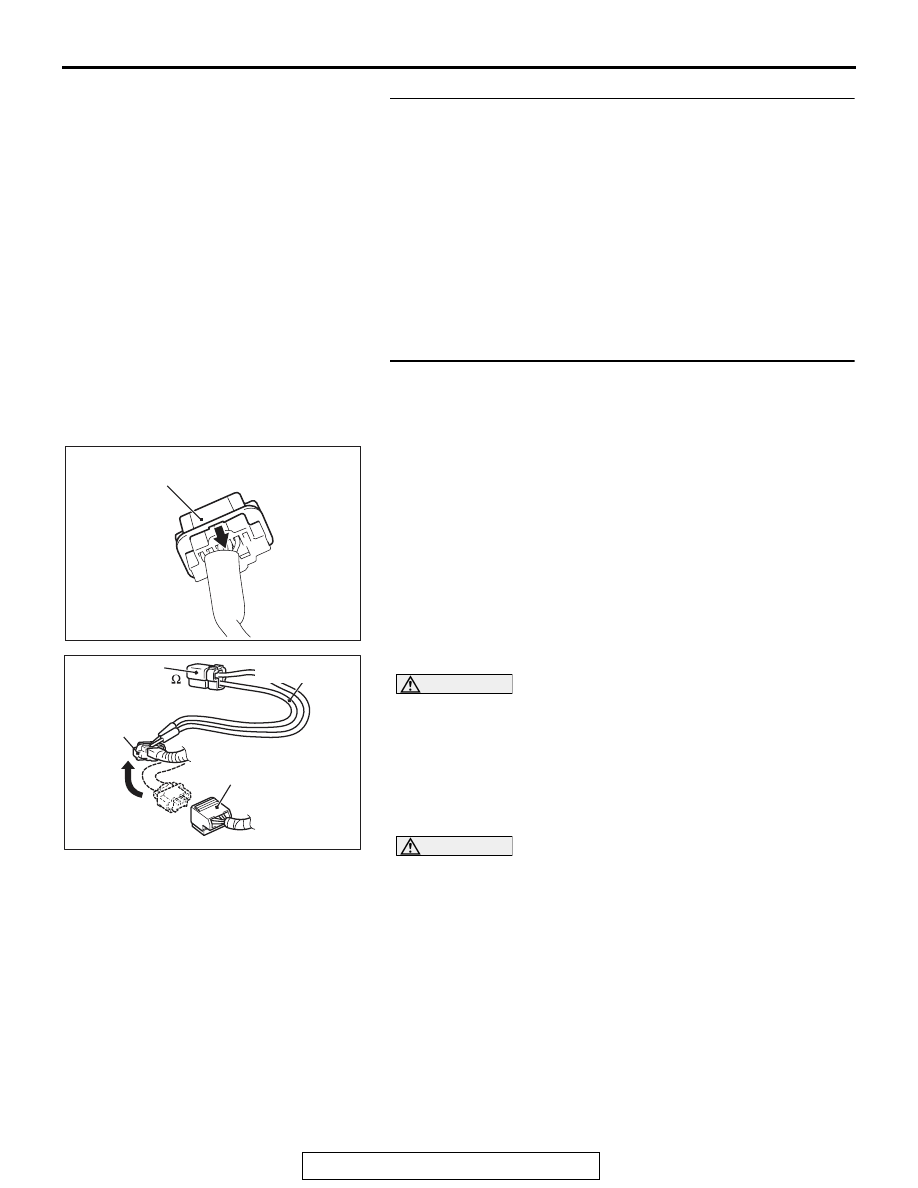

AC306561

Passenger's (front) air bag
module connector C-14

BI

AC306760AU

MB991865
(Dummy resistor: 3    )

MB991866
(Resistor harness)

C-14 Harness

side connector

C-14 Passenger's (front)

air bag module connector

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-80

STEP 4. Check the passenger’s (front) air bag module
circuit. Measure the voltage at the SRS-ECU connector
C-37.
(1) Disconnect the negative battery terminal.
(2) While pushing the part "A" indicated in the figure of the

harness side connector, turn the lock lever to the direction
of the arrow to release the lock lever, and disconnect the
C-37 SRS-ECU connector.

DANGER

To prevent the air bag from deploying unintentionally,
disconnect the passenger’s (front) air bag module
connector C-14 to short the squib circuit.

(3) Disconnect the passenger's (front) air bag module

connector C-14.

(4) Disconnect the connector while sliding the C-14 wiring

harness side connector to the direction of the arrow.

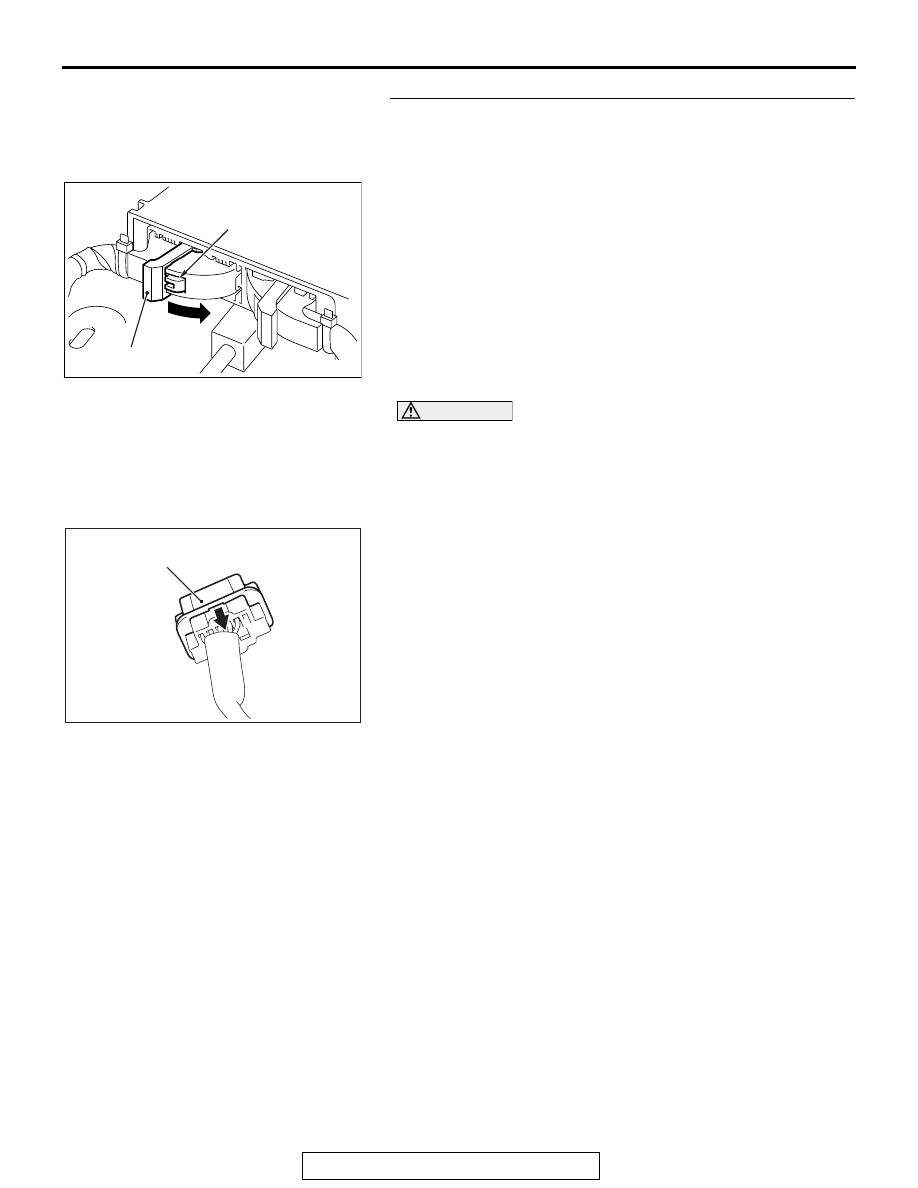

AC506734

A

AD

Lock lever

AC306561

Passenger's (front) air bag
module connector C-14

BI

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-81

CAUTION

Insert an insulator such as a cable tie to a depth of 4 mm
(0.16 inch) or more, otherwise the short spring will not be
released.
(5) Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch)

thick] between terminals 7 and 8 <1st squib> or 11 and 12
<2nd squib>, and the short spring to release the short
spring.

(6) Connect the negative battery terminal.
(7) Ignition switch: ON.

(8) Measure the voltage between C-37 harness side connector

terminals 7 and 8 <1st squib> or 11 and 12 <2nd squib>
and body ground.
Voltage should measure 0 volt.

Q: Is the measured voltage within the specified range?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1B09 <1st
squib> B1B0D <2nd squib> sets, replace the
SRS-ECU (Refer to

P.52B-383

). Then go to Step 6.

NO :  Go to Step 5.

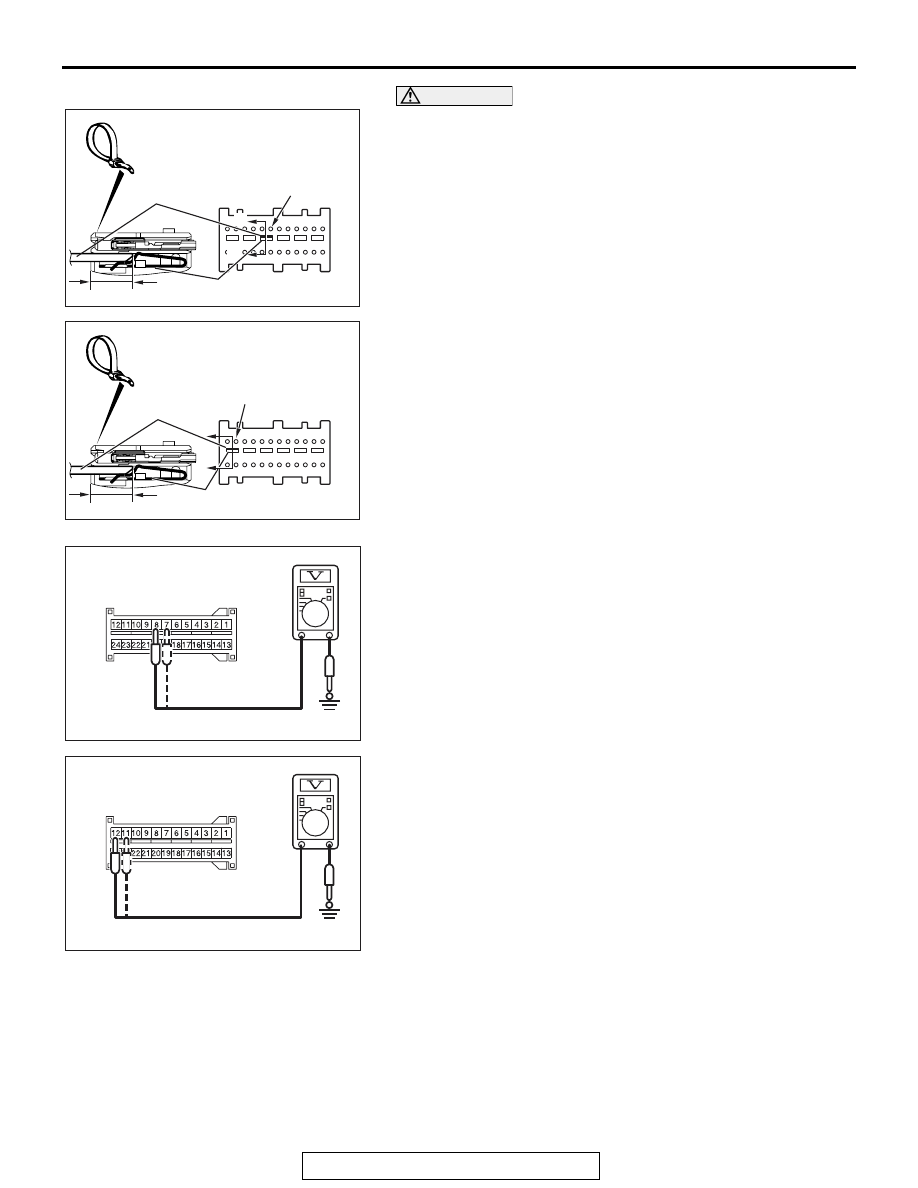

AC507302 BH

A

A

<1st Squib>

C-37 Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm (0.16 inch) or more

Terminal

AC507302 BI

A

A

<2nd Squib>

C-37 Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm (0.16 inch) or more

Terminal

AC608813

C-37 Harness side
connector (front view)

BB

<1st squib>

AC608813

C-37 Harness side
connector (front view)

BC

<2nd  squib>

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-82

STEP 5. Check the harness wires for short circuit to power
supply between SRS-ECU connector C-37 (terminal No.7
and 8 <1st squib> or terminal No.11 and 12 <2nd squib>)
and passenger's (front) air bag module connector C-14
(terminal No.2 and 1 <1st squib> terminal No.4 and 3 <2nd
squib>).
Q: Are the harness wires between SRS-ECU connector

C-37 (terminal No.7 and 8 <1st squib> or terminal No.11
and 12 <2nd squib>) and passenger's (front) air bag
module connector C-14 (terminal No.2 and 1 <1st squib>
terminal No.4 and 3 <2nd squib>) in good condition?
YES : Go to Step 6.
NO :  Replace the harness wires between SRS-ECU

connector C-37 and passenger's (front) air bag
module connector C-14. Then go to Step 6.

STEP 6. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC B1B09 <1st squib> B1B0D <2nd squib> set?

YES : Return to Step 1.
NO :  The procedure is complete.
