Mitsubishi Evolution X. Manual - part 646





SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-31

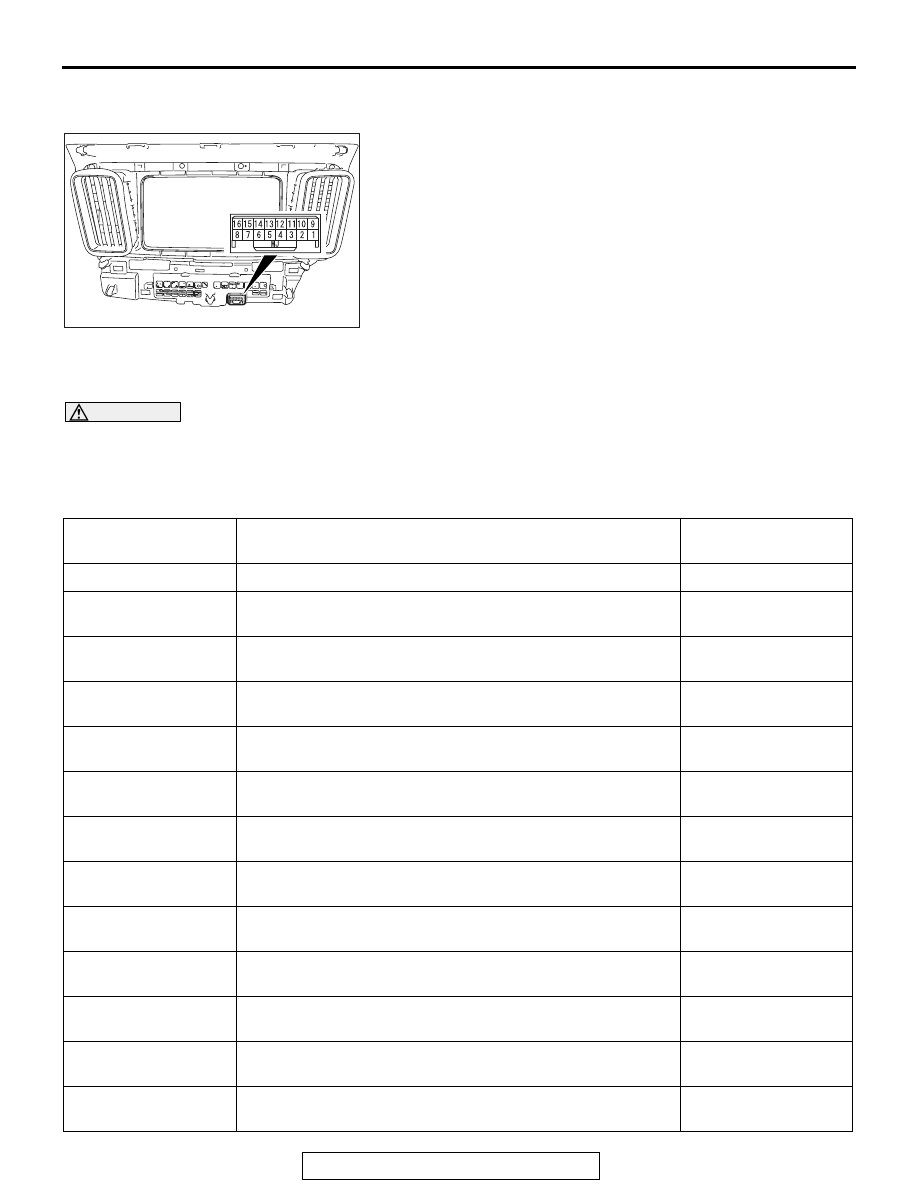

CONTINUITY CHECK

1. Remove the instrument center panel.
2. Connect the positive battery terminal with the instrument

center panel connector terminal No. 8. Then, check if the
passenger’s air bag OFF indicator light is illuminated when
the negative battery terminal and the instrument center
panel connector terminal No. 11 are connected.

3. If the passenger’s air bag OFF indicator light is illuminated, it

is judged good.

DIAGNOSTIC TROUBLE CODE CHART <SRS-ECU>

M1524003301606

CAUTION

During diagnosis, a DTC code associated with another system may be set when the ignition switch is
turned on with connector(s) disconnected. After completing the repair, confirm all systems for DTC
code(s). If DTC code(s) are set, erase them all.
Inspect according to the inspection chart that is appropriate for the DTC.

AC609727AB

Diagnostic trouble
Code No.

Inspection item

Reference page

B1206

Passenger's air bag OFF indicator light (open circuit)

P.52B-35

B1207

Passenger's air bag OFF indicator light (short circuit
between circuit terminal)

P.52B-38

B1B00

Driver's air bag module (1st squib) system (shorted to squib
circuit ground)

P.52B-42

B1B01

Driver's air bag module (1st squib) system (shorted to squib
circuit power supply)

P.52B-49

B1B02

Driver's air bag module (1st squib) system (squib circuit
open)

P.52B-56

B1B03

Driver's air bag module (1st squib) system (short circuit
between squib circuit terminals)

P.52B-63

B1B04

Driver's air bag module (2nd squib) system (shorted to
squib circuit ground)

P.52B-42

B1B05

Driver's air bag module (2nd squib) system (shorted to
squib circuit power supply)

P.52B-49

B1B06

Driver's air bag module (2nd squib) system (squib circuit
open)

P.52B-56

B1B07

Driver's air bag module (2nd squib) system (short circuit
between squib circuit terminals)

P.52B-63

B1B08

Passenger's (front) air bag module (1st squib) system
(shorted to squib circuit ground)

P.52B-71

B1B09

Passenger's (front) air bag module (1st squib) system
(shorted to squib circuit power supply)

P.52B-77

B1B0A

Passenger's (front) air bag module (1st squib) system
(squib circuit open)

P.52B-83

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-32

B1B0B

Passenger's (front) air bag module (1st squib) system (short
circuit between squib circuit terminals)

P.52B-88

B1B0C

Passenger's (front) air bag module (2nd squib) system
(shorted to squib circuit ground)

P.52B-71

B1B0D

Passenger's (front) air bag module (2nd squib) system
(shorted to squib circuit power supply)

P.52B-77

B1B0E

Passenger's (front) air bag module (2nd squib) system
(squib circuit open)

P.52B-83

B1B0F

Passenger's (front) air bag module (2nd squib) system
(short circuit between squib circuit terminals)

P.52B-88

B1B10

Driver’s knee air bag module (squib) system (shorted to
squib circuit ground)

P.52B-95

B1B11

Driver’s knee air bag module (squib) system (shorted to
squib circuit power supply)

P.52B-100

B1B12

Driver’s knee air bag module (squib) system (squib circuit
open)

P.52B-105

B1B13

Driver’s knee air bag module (squib) system (short circuit
between squib circuit terminals)

P.52B-110

B1B18

Curtain air bag module (LH) (squib) system (shorted to
squib circuit ground)

P.52B-116

B1B19

Curtain air bag module (LH) (squib) system (shorted to
squib circuit power supply)

P.52B-122

B1B1A

Curtain air bag module (LH) (squib) system (squib circuit
open)

P.52B-128

B1B1B

Curtain air bag module (LH) (squib) system (short circuit
between squib circuit terminals)

P.52B-134

B1B20

Curtain air bag module (RH) (squib) system (shorted to
squib circuit ground)

P.52B-140

B1B21

Curtain air bag module (RH) (squib) system (shorted to
squib circuit power supply)

P.52B-146

B1B22

Curtain air bag module (RH) (squib) system (squib circuit
open)

P.52B-152

B1B23

Curtain air bag module (RH) (squib) system (short circuit
between squib circuit terminals)

P.52B-158

B1B54

seat belt switch (RH) circuit (ground side) shorted

P.52B-164

B1B55

seat belt switch (RH) circuit (power supply side) shorted

P.52B-164

B1B56

seat belt switch (RH) circuit open

P.52B-164

B1B70

Malfunction of G-sensor inside front impact sensor (LH)

P.52B-169

B1B71

Malfunction of G-sensor inside front impact sensor (RH)

P.52B-169

B1B72

Malfunction of G-sensor inside side impact sensor (LH)

P.52B-170

B1B75

Malfunction of G-sensor inside side impact sensor (RH)

P.52B-170

B1BA3

Driver’s seat slide sensor malfunction (occupant
classification-ECU)

P.52B-172

Diagnostic trouble
Code No.

Inspection item

Reference page

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-33

B1BA5

SRS-ECU squib count mismatch

P.52B-174

B1BAA

Occupant classification-ECU configuration mismatch

P.52B-175

B1BC7

SRS-ECU (record data full) system

P.52B-177

B1C27

Side-air bag module (LH) (squib) system (shorted to squib
circuit ground)

P.52B-178

B1C28

Side-air bag module (LH) (squib) system (shorted to squib
circuit power supply)

P.52B-183

B1C29

Side-air bag module (LH) (squib) system (squib circuit
open)

P.52B-187

B1C2A

Side-air bag module (LH) (squib) system (short circuit
between squib circuit terminals)

P.52B-191

B1C2B

Side-air bag module (RH) (squib) system (shorted to squib
circuit ground)

P.52B-195

B1C2C

Side-air bag module (RH) (squib) system (shorted to squib
circuit power supply)

P.52B-200

B1C2D

Side-air bag module (RH) (squib) system (squib circuit
open)

P.52B-204

B1C2E

Side-air bag module (RH) (squib) system (short circuit
between squib circuit terminals)

P.52B-208

B1C38

Driver's pre-tensioner (squib) system (shorted to squib
circuit ground)

P.52B-212

B1C39

Driver's pre-tensioner (squib) system (shorted to squib
circuit power supply)

P.52B-218

B1C3A

Driver's pre-tensioner (squib) system (squib circuit open)

P.52B-222

B1C3B

Driver's pre-tensioner (squib) system (short circuit between
squib circuit terminals)

P.52B-228

B1C47

Front passenger's pre-tensioner (squib) system (shorted to
squib circuit ground)

P.52B-234

B1C48

Front passenger's pre-tensioner (squib) system (shorted to
squib circuit power supply)

P.52B-239

B1C49

Front passenger's pre-tensioner (squib) system (squib
circuit open)

P.52B-243

B1C4A

Front passenger's pre-tensioner (squib) system (short
circuit between squib circuit terminals)

P.52B-249

B210D

Battery abnormal low voltage

P.52B-255

B212C

Open circuit to IG1 power supply (fuse No. 12 circuit)

P.52B-260

B212D

Open circuit to IG1 power supply (fuse No. 18 circuit)

P.52B-260

B2207

Occupant restraint controller internal 1

P.52B-265

B2208

Occupant restraint controller internal 2

P.52B-265

B2209

Occupant restraint controller internal 3

P.52B-265

B220A

Occupant restraint controller internal 4

P.52B-265

B220B

Occupant restraint controller firing stored energy

P.52B-265

Diagnostic trouble
Code No.

Inspection item

Reference page

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-34

B220C

Occupant restraint controller accelerometer 1

P.52B-265

B220D

Occupant restraint controller accelerometer 2

P.52B-265

B223D

OCM (Occupant classification-ECU) DTC present

P.52B-267

U0019

Bus off (CAN-B)

P.52B-268

U0141

ETACS CAN timeout

P.52B-270

U0154

Occupant classification-ECU CAN timeout

P.52B-271

U0155

Combination meter CAN timeout

P.52B-273

U0164

A/C -ECU CAN timeout

P.52B-274

U0168

KOS -ECU or WCM CAN timeout

P.52B-276

U0170

Front impact sensor (LH) communication error

P.52B-277

U0171

Front impact sensor (RH) communication error

P.52B-281

U0172

Side impact sensor (LH) communication error

P.52B-284

U0175

Side impact sensor (RH) communication error

P.52B-287

U0184

Audio CAN timeout

P.52B-290

U0195

Satellite radio tuner CAN timeout

P.52B-291

U0197

Hands free Module CAN timeout

P.52B-293

U1414

Defective Coding Data

P.52B-294

U1415

Coding not completed/Data fail

P.52B-296

Diagnostic trouble
Code No.

Inspection item

Reference page
