GENERAL INFORMATION

TSB Revision

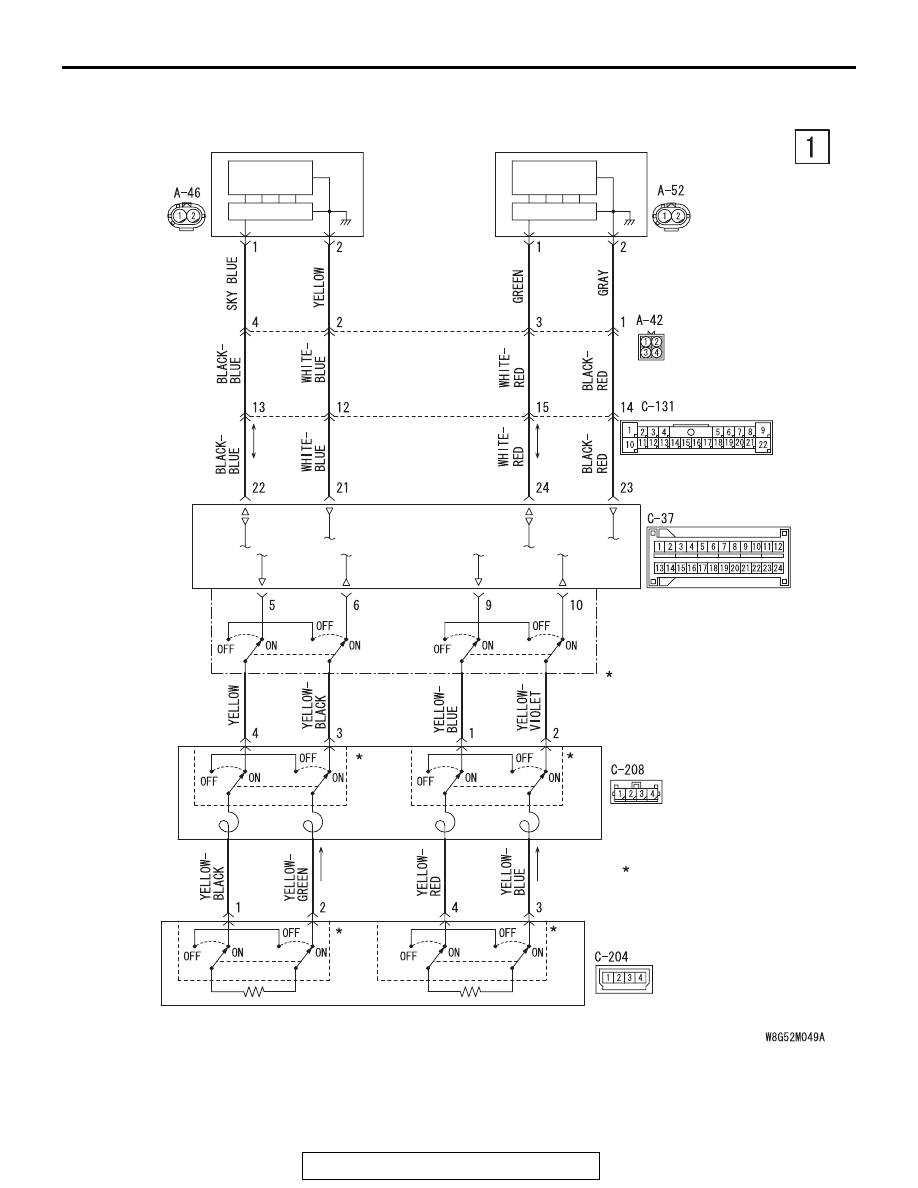

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-15

ACCELERO
METER

ACCELERO
METER

CPU

CPU

FRONT IMPACT
SENSOR (LH)

FRONT IMPACT
SENSOR (RH)

SRS-ECU

CLOCK SPRING

DRIVER'S AIR BAG
MODULE (SQUIB)

NOTE

: CONNECTOR LOCK SWITCH

CONNECTOR COUPLED : ON
CONNECTOR UNCOUPLED : OFF

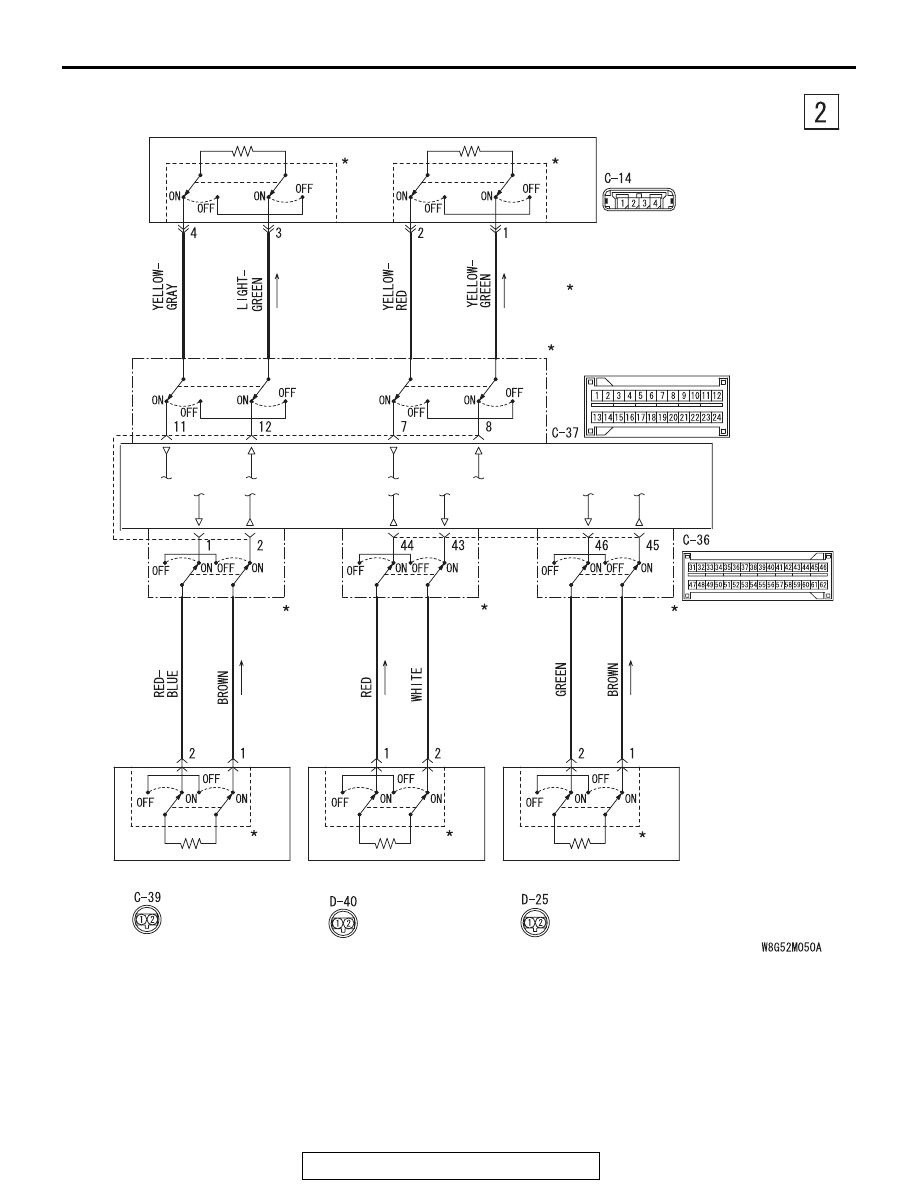

GENERAL INFORMATION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-16

PASSENGER'S (FRONT)
AIR BAG MODULE (SQUIB)

SRS-ECU

KNEE-AIR BAG
MODULE (SQUIB) (LH)

SEAT BELT
PRE-TENSIONER (RH)

SEAT BELT
PRE-TENSIONER (LH)

NOTE

: CONNECTOR LOCK SWITCH

CONNECTOR COUPLED : ON
CONNECTOR UNCOUPLED : OFF

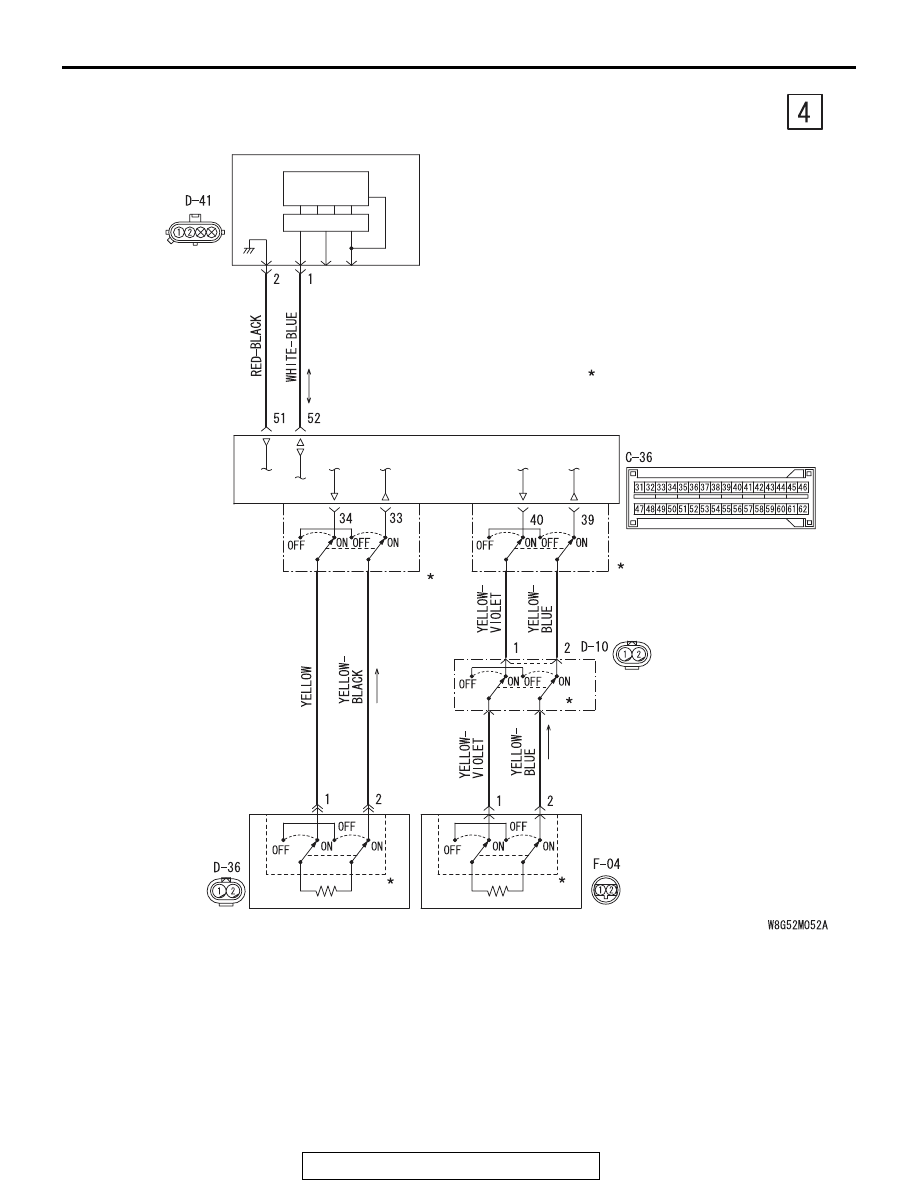

GENERAL INFORMATION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-17

SIDE IMPACT
SENSOR
(LH)

ACCELERO
METER

CPU

SIDE-AIR BAG MODULE
(SQUIB) (LH)

CURTAIN AIR BAG
MODULE (SQUIB) (LH)

NOTE

: CONNECTOR LOCK SWITCH

CONNECTOR COUPLED : ON
CONNECTOR UNCOUPLED : OFF

SRS-ECU

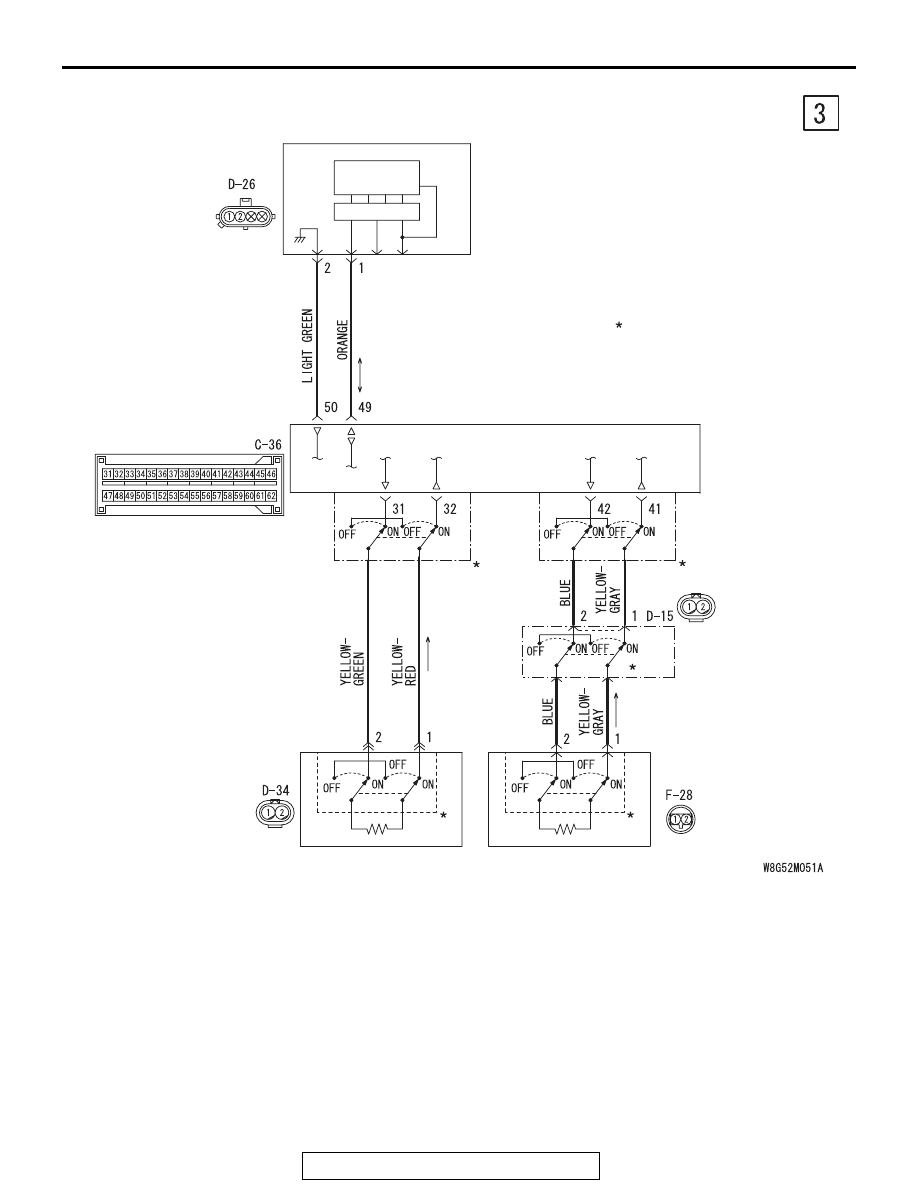

GENERAL INFORMATION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-18

CPU

SRS-ECU

SIDE-AIR BAG
 MODULE
(SQUIB) (RH)

CURTAIN AIR BAG
 MODULE
(SQUIB) (RH)

ACCELERO
METER

NOTE

: CONNECTOR LOCK SWITCH

CONNECTOR COUPLED : ON
CONNECTOR UNCOUPLED : OFF

SIDE IMPACT
SENSOR
(RH)
