DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-231

STEP 2. Check KOS-ECU connector C-05 and trunk lid
opener switch connector F-09 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Are KOS-ECU connector C-05 and trunk lid opener

switch connector F-09 in good condition?
YES : Go to Step 3.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the trunk lid opener switch works

normally.

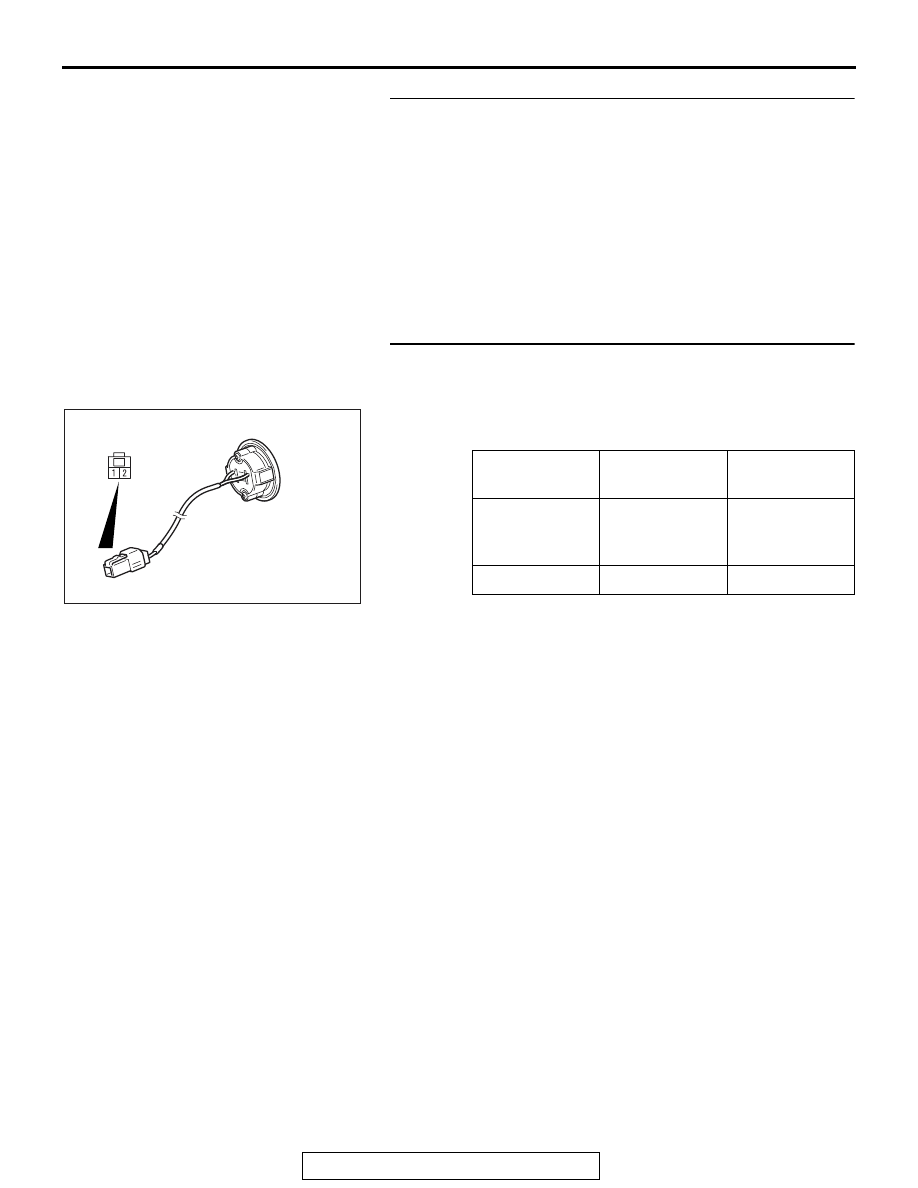

STEP 3. Check the trunk lid opener switch.
(1) Remove the trunk lid opener switch. Refer to GROUP 42A,

Trunk Lid

P.42A-147

.

(2) Check continuity when the trunk lid opener switch is

operated to "ON" or "OFF" position.

Q: Is the trunk lid opener switch normal?

YES : Go to Step 4.
NO :  Replace the trunk lid opener switch.

Switch
position

Terminal
number

Specified
condition

ON (Push)

1

− 2

Continuity
exists (2

Ω or

less)

OFF (Release)

1

− 2

Open circuit

AC607401AB

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-232

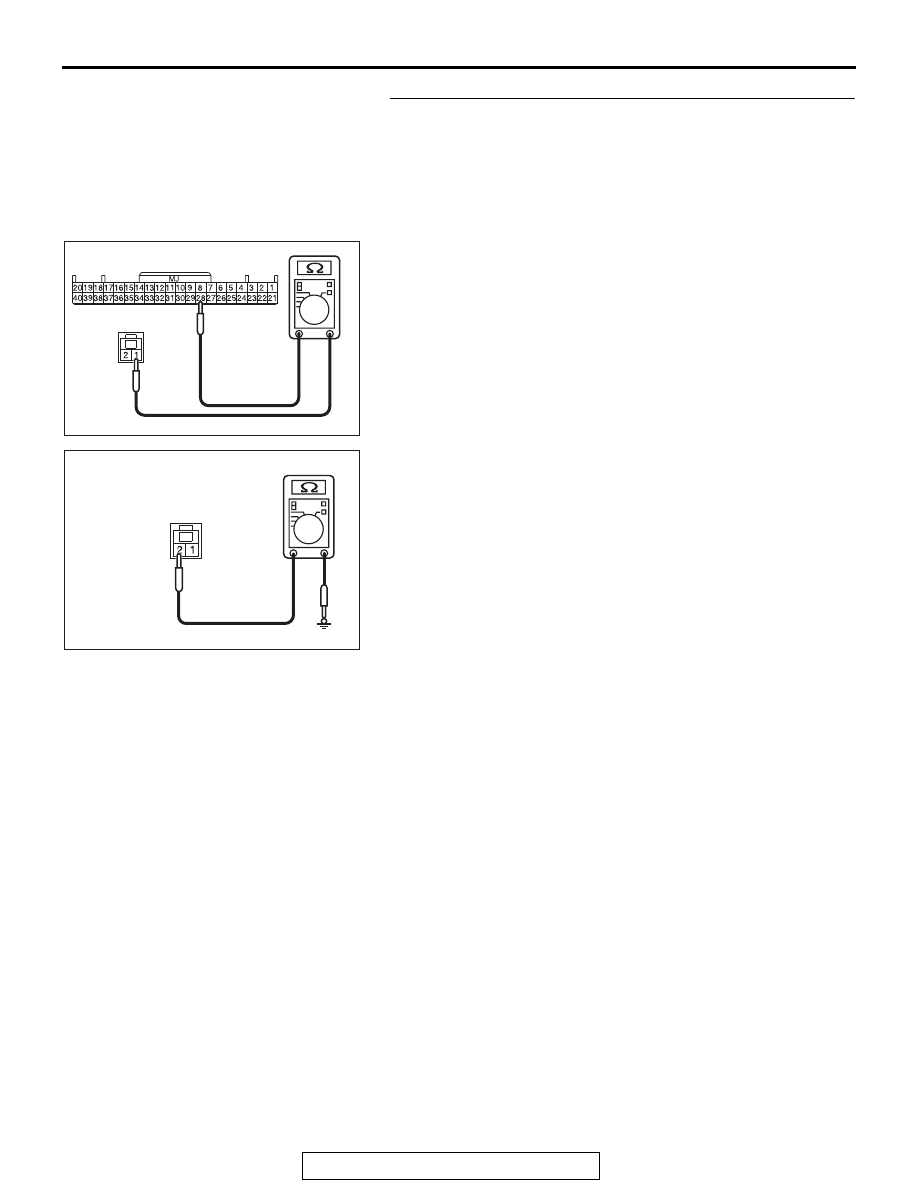

STEP 4. Check the wiring harness between the KOS-ECU
connector C-05 (terminal No. 28) and trunk lid opener
switch connector F-09 (terminal No. 1), and between trunk
lid opener switch connector F-09 (terminal No. 2) and
ground for open circuit.
(1) Disconnect KOS-ECU connector C-05 and trunk lid opener

switch connector F-09, and check the wiring harness.

(2) Check the wiring harness between KOS-ECU connector

C-05 (terminal No.28) and trunk lid opener switch connector
F-09 (terminal No.1).

OK: Continuity exists (2

Ω or less)

(3) Check the wiring harness between trunk lid opener switch

connector F-09 (terminal No.2) and ground.

OK: Continuity exists (2

Ω or less)

Q: Is the wiring harness between KOS-ECU connector C-05

(terminal No. 28) and trunk lid opener switch connector
F-09 (terminal No. 1), and between trunk lid opener
switch connector F-09 (terminal No. 2) and ground in
good condition?
YES  : Go to Step 5.
NO (KOS-ECU connector C-05 terminal No.28

− trunk lid

opener switch connector F-09 terminal No.1.) : Repair

the wiring harness between KOS-ECU connector
C-05 (terminal No.28) and trunk lid opener switch
connector F-09 (terminal No.1).

NO (trunk lid opener switch connector F-09 terminal
No.2

− ground.) : Repair the wiring harness between trunk

lid opener switch connector F-09 (terminal No.2) and
ground.

AC709707GY

Harness side: F-09

Harness side: C-05

AC209731

Connector F-09
(harness side)

AC208731CJ

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-233

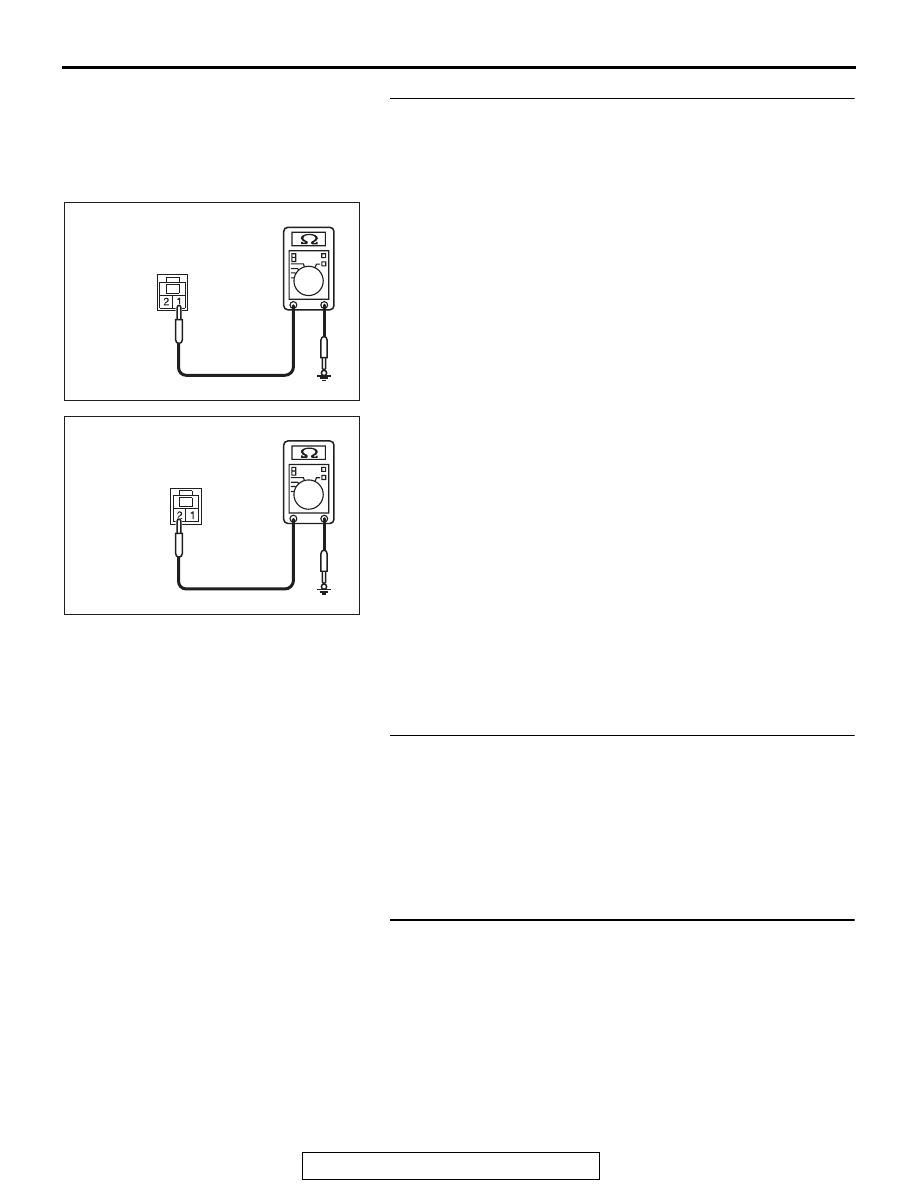

STEP 5. Check the wiring harness between the trunk lid
opener switch connector F-09 (terminal Nos. 1, 2) and the
ground for short circuit.
(1) Disconnect trunk lid opener switch connector F-09, and

check the wiring harness.

(2) Check the wiring harness between trunk lid opener switch

connector F-09 (terminal No. 1) and ground

OK: No continuity

(3) Check the wiring harness between trunk lid opener switch

connector F-09 (terminal No. 2) and ground

OK: No continuity

Q: Is the wiring harness between trunk lid opener switch

connector F-09 (terminal Nos. 1, 2) and the ground in
good condition?
YES  : Go to Step 6.
NO (trunk lid opener switch connector F-09 terminal
No.1

− ground.) : Repair the wiring harness between trunk

lid opener switch connector F-09 (terminal No.1) and
ground.

NO (trunk lid opener switch connector F-09 terminal
No.2

− ground.) : Repair the wiring harness between trunk

lid opener switch connector F-09 (terminal No.2) and
the ground.

STEP 6. KOS communication test
Using scan tool (M.U.T.-III), perform the antenna communica-
tion test to check that the exterior transmitter antenna (trunk lid
side) is normal (Refer to

P.42B-265

).

Q: Is the check result normal?

YES : Go to Step 7.
NO :  Perform troubleshooting for the diagnostic trouble

code No. B240C (Refer to

P.42B-84

).

STEP 7. Check of the troubles
Operate the trunk lid opener switch to check that the trunk lid
can be opened.
Q: Is the check result normal?

YES : The diagnosis is complete.
NO :  Replace KOS-ECU and register the ID codes (Refer

to

P.42B-12

).

AC209731

AC208731CR

Harness side: F-09

AC209731

AC208731CS

Harness side: F-09

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-234

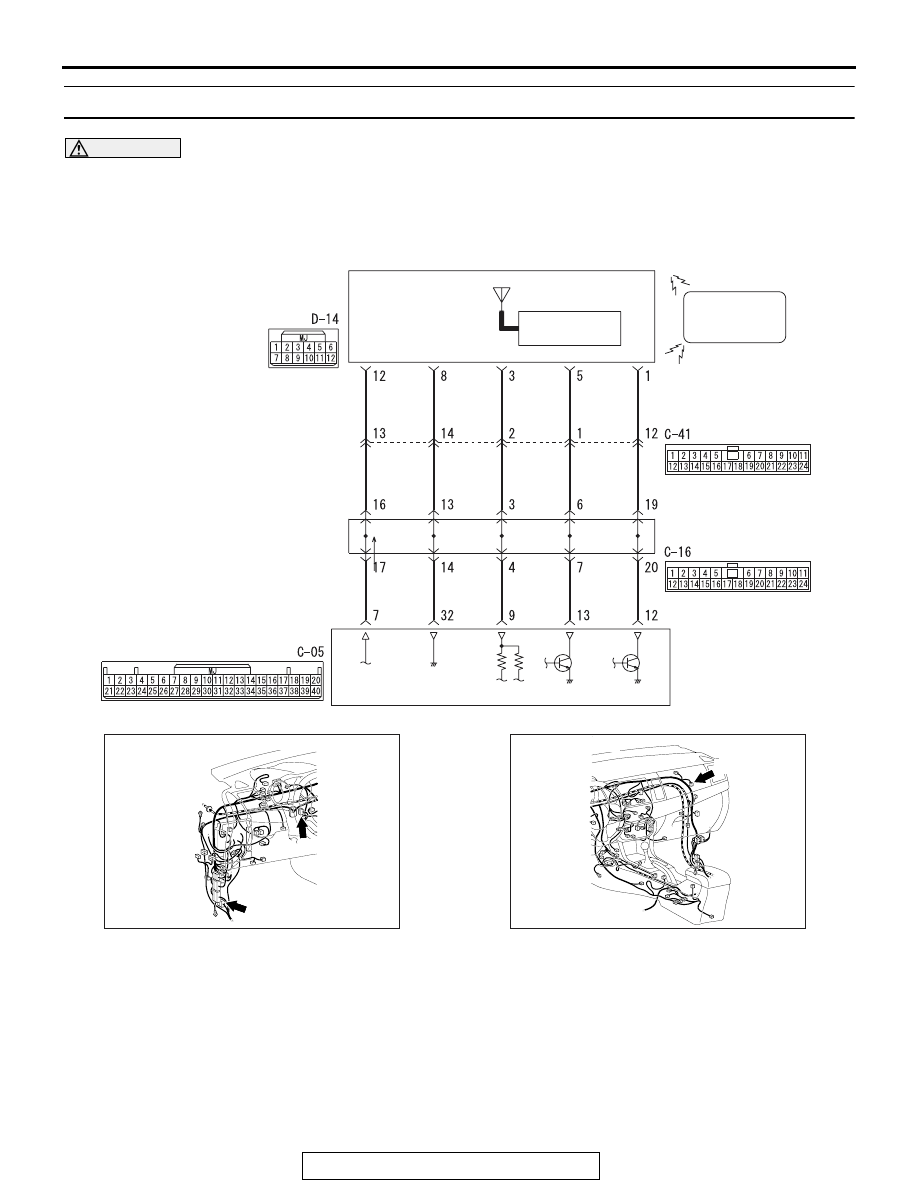

Inspection Procedure 14: Keyless entry system does not work.

CAUTION

Before replacing the ECU, ensure that the power
supply circuit, the ground circuit and the com-
munication circuit are normal.

AC709247

JOINT
CONNECTOR (6)

RECEIVER

KEYLESS
OPERATION
KEY

KOS-ECU

KOS-ECU System Input Signal

RECEIVER
ANTENNA
ASSEMBLY

AB

RED

RED

GREEN -RED

GREEN -RED

YELLOW

-GREEN

YELLOW

-GRAY

YELLOW

-GRAY

BROWN -WHITE

BROWN -WHITE

RED- WHITE

RED- WHITE

RED

GREEN -RED

BROWN -WHITE

RED- WHITE

AC708950AX

C-41

Connectors: C-05, C-41

C-05

AC708951AW

Connector: C-16

C-16 (B)
