SUNROOF

TSB Revision

BODY

42A-171

.

TECHNICAL DESCRIPTION (COMMENT)

The sunroof switch or the sunroof motor assembly
may be defective.

.

TROUBLESHOOTING HINTS

• The sunroof switch may be defective

• The sunroof motor assembly may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSTIC PROCEDURE

Required Special Tools:

• MB992006: Extra fine probe

• MB991223: Harness set

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect

scan tool (M.U.T.-III)

P.42B-10

."

(2) Turn the ignition switch to the "ON" position.
(3) Check whether the sunroof motor assembly related DTC is

set.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Diagnose the sunroof motor assembly. Refer to

P.42A-152

.

NO :  Go to Step 2.

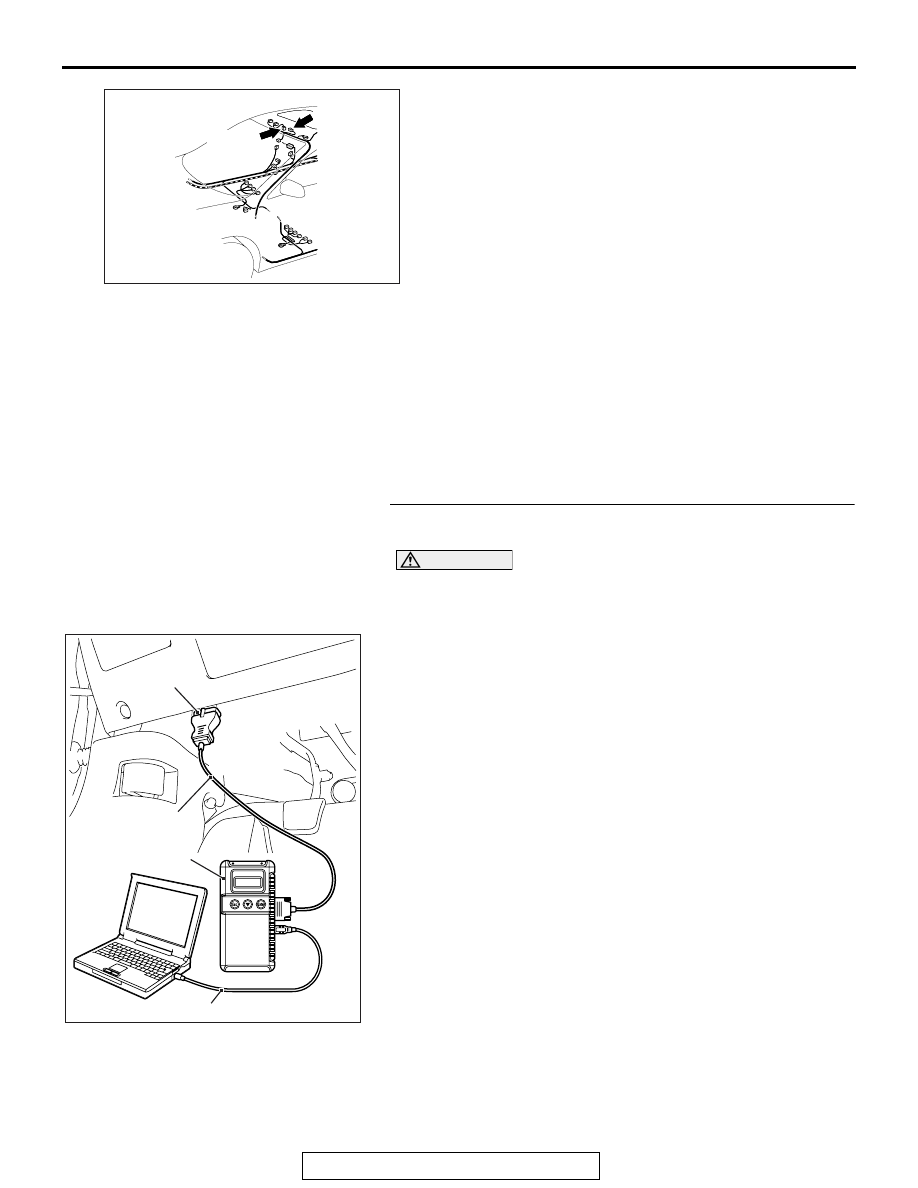

AC708954 AG

Connectors: D-05, D-06

D-05 (B)

D-06 (GR)

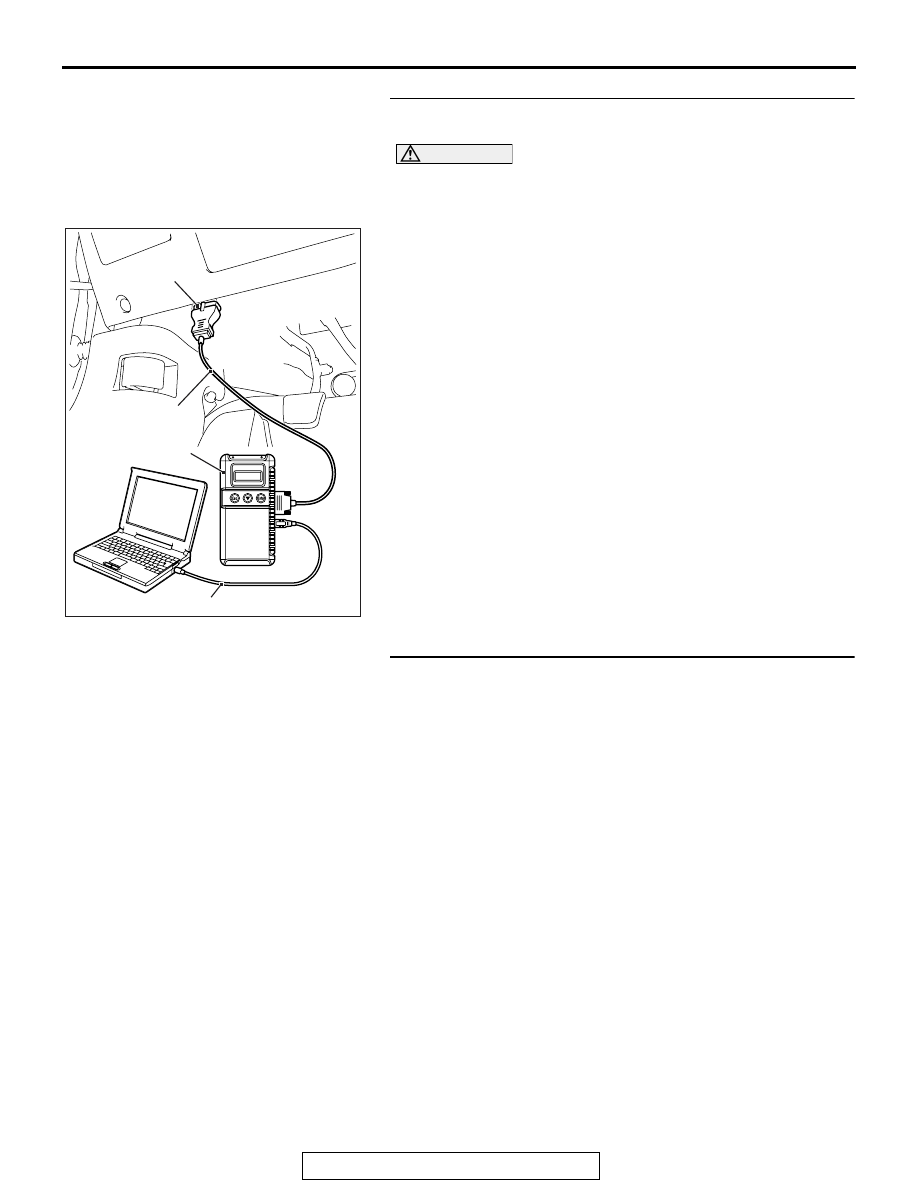

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

SUNROOF

TSB Revision

BODY

42A-172

STEP 2. Check sunroof switch connector D-05 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is sunroof switch connector D-05 in good condition?

YES : Go to Step 3.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the sunroof works normally.

STEP 3. Sunroof switch check
(1) Remove the sunroof switch. Refer to

P.42A-187

.

(2) Check continuity when the sunroof switch is operated to

"CLOSE/TILT-DOWN" position.

Q: Is the sunroof switch normal?

YES : Go to Step 4.
NO :  Replace the sunroof switch. Check that the sunroof

works normally.

STEP 4. Check sunroof motor assembly connector D-06
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is sunroof motor assembly connector D-06 in good

condition?
YES :
Go to Step 5.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the sunroof works normally.

STEP 5. Check the wiring harness between sunroof switch
connector D-05 (terminal 6) and sunroof motor assembly
connector D-06 (terminal 10).
Q: Is the wiring harness between sunroof switch connector

D-05 (terminal 6) and sunroof motor assembly
connector D-06 (terminal No. 10) in good condition?
YES :
Go to Step 6.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Check that
the sunroof works normally.

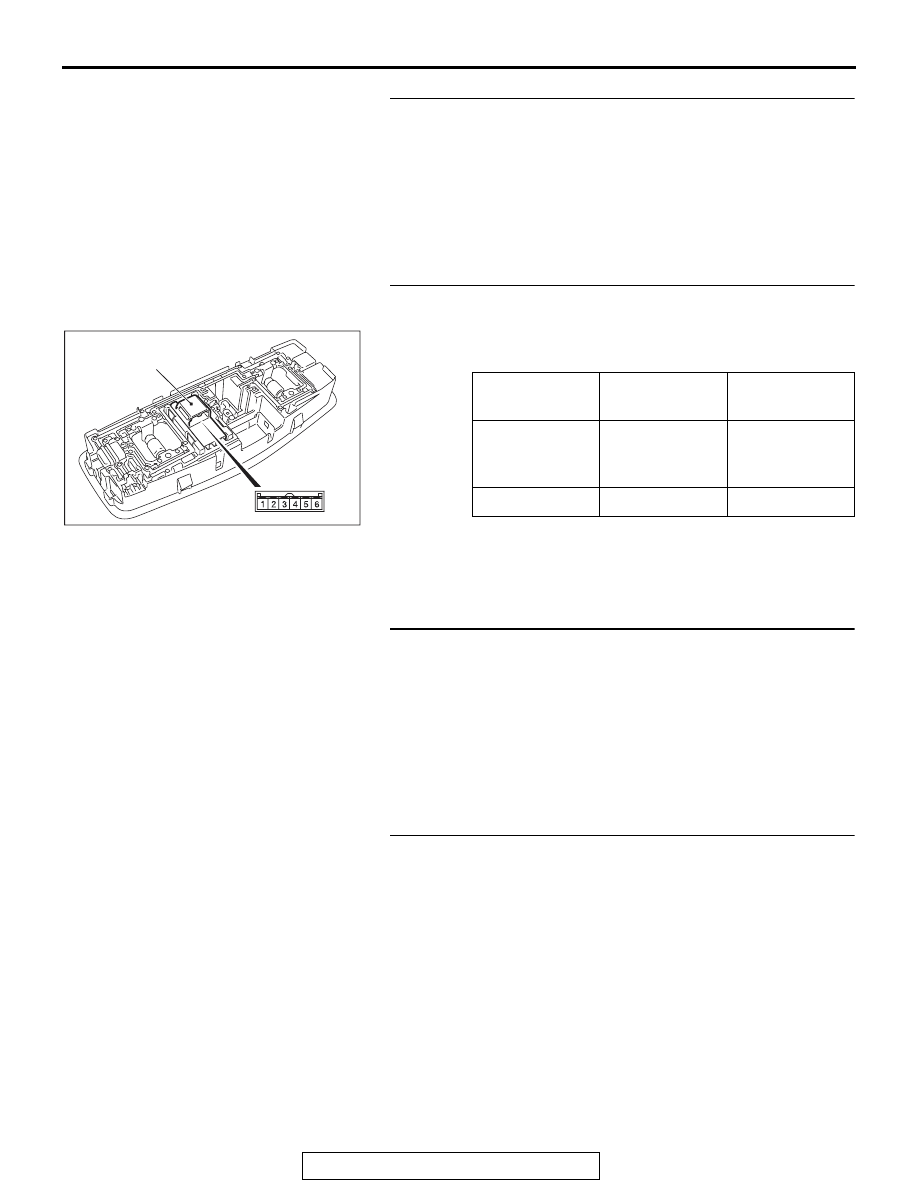

Switch
position

Terminal No.

Normal value

Close/tilt-down

− 6

Continuity
exists (2

Ω or

less)

OFF

− 4, 4 − 5, 4 − 6 Open circuit

AC506531AC

Sunroof switch

SUNROOF

TSB Revision

BODY

42A-173

STEP 6. Retest the system.
Check that the sunroof lid glass tilts down/ close.
Q: Is the check result normal?

YES : No action is necessary and testing is complete.
NO :  Replace the sunroof motor assembly. Check that the

sunroof works normally.

INSPECTION PROCEDURE 5: Sunroof Safety Function does not work Normally.

CAUTION

Before replacing the ECU, ensure that the power
supply circuit, the ground circuit and the com-
munication circuit are normal.

.

CIRCUIT OPERATION

Malfunction of the sunroof motor assembly or incor-
rect learning of the sunroof fully closed position is
suspected.

.

TROUBLESHOOTING HINTS

• The sunroof motor assembly may be defective

• Incorrect learning of the sunroof fully closed posi-

tion

DIAGNOSTIC PROCEDURE

Required Special Tools:

• MB992006: Extra fine probe

• MB991223: Harness set

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

SUNROOF

TSB Revision

BODY

42A-174

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect

scan tool (M.U.T.-III)

P.42B-10

."

(2) Turn the ignition switch to the "ON" position.
(3) Check whether the sunroof motor assembly related DTC is

set.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Diagnose the sunroof motor assembly. Refer to

Diagnostic trouble code chart

P.42A-152

.

NO :  Go to Step 2.

STEP 2. Check the trouble symptom.
Check the sunroof trouble symptom according to the following
procedures.
(1) Carry out the learning procedures of the sunroof fully closed

position (Refer to

P.42A-183

).

(2) Check the trouble symptom.
Q: Is the check result normal?

YES : No action is necessary and testing is complete.
NO :  Replace the sunroof motor assembly. Check that the

sunroof works normally.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB
