SUNROOF

TSB Revision

BODY

42A-159

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Sunroof does not work at All.

CAUTION

Before replacing the ECU, ensure that the power
supply circuit, the ground circuit and the com-
munication circuit are normal.

AC609432

CPU

INTERFACE
CIRCUIT

LIN DRIVE
CIRCUIT

INPUT CIRCUIT

INPUT CIRCUIT

DRIVE CIRCUIT

SUNROOF MOTOR

HALL SENSOR

FUSIBLE
LINK

34

SUNROOF

MOTOR

ASSEMBLY

ETACS-ECU

BLA

CK

WHITE

WHITE

GREEN

VIOLET

AC

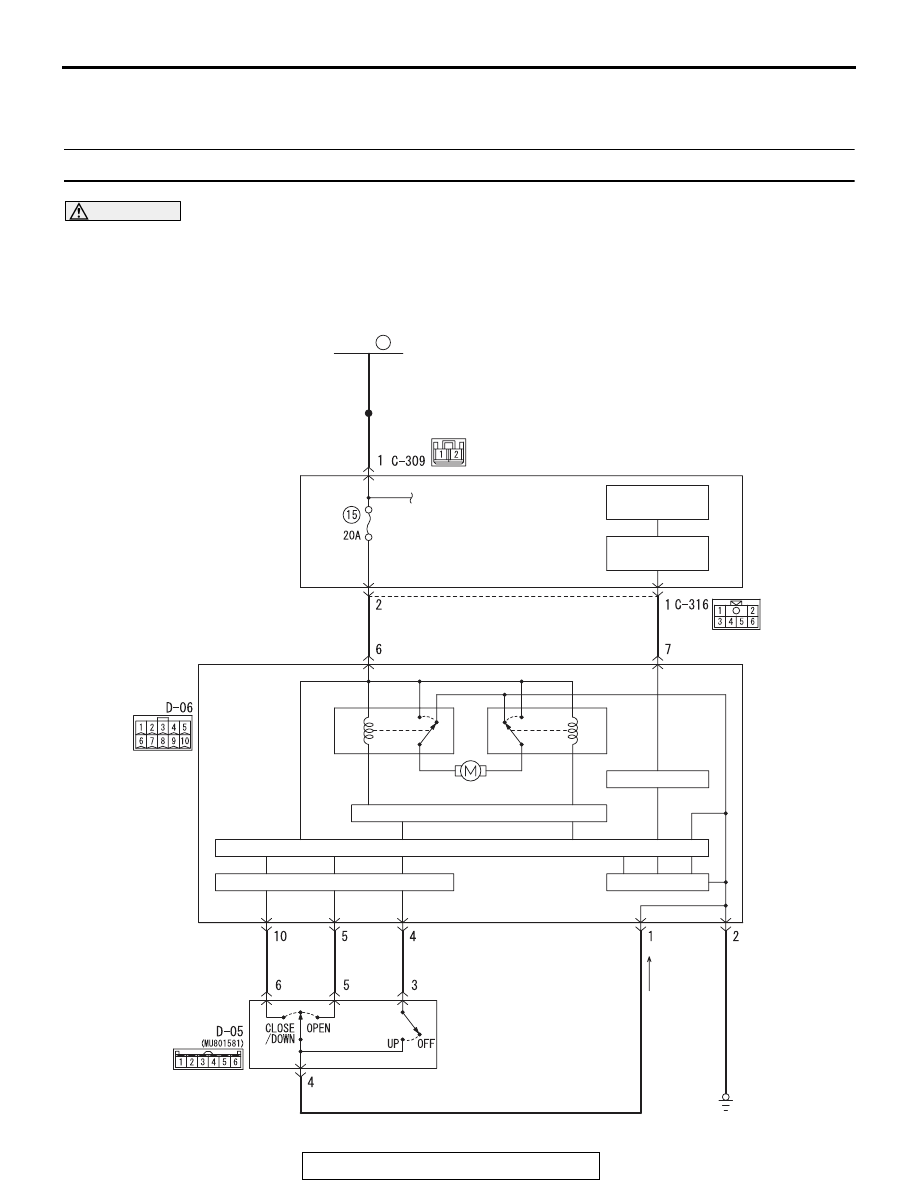

Sunroof Motor Assembly Power Supply Circuit

SUNROOF

SWITCH

BLA

CK

YELLO

W

GREEN

BLUE

SUNROOF

TSB Revision

BODY

42A-160

.

CIRCUIT OPERATION

Malfunctions of the sunroof motor assembly power
supply/ground system, sunroof motor assembly, or
sunroof switch are suspected.

.

TROUBLESHOOTING HINTS

• The sunroof switch may be defective

• The sunroof motor assembly may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSTIC PROCEDURE

Required Special Tools:

• MB992006: Extra fine probe

• MB991223: Harness set

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

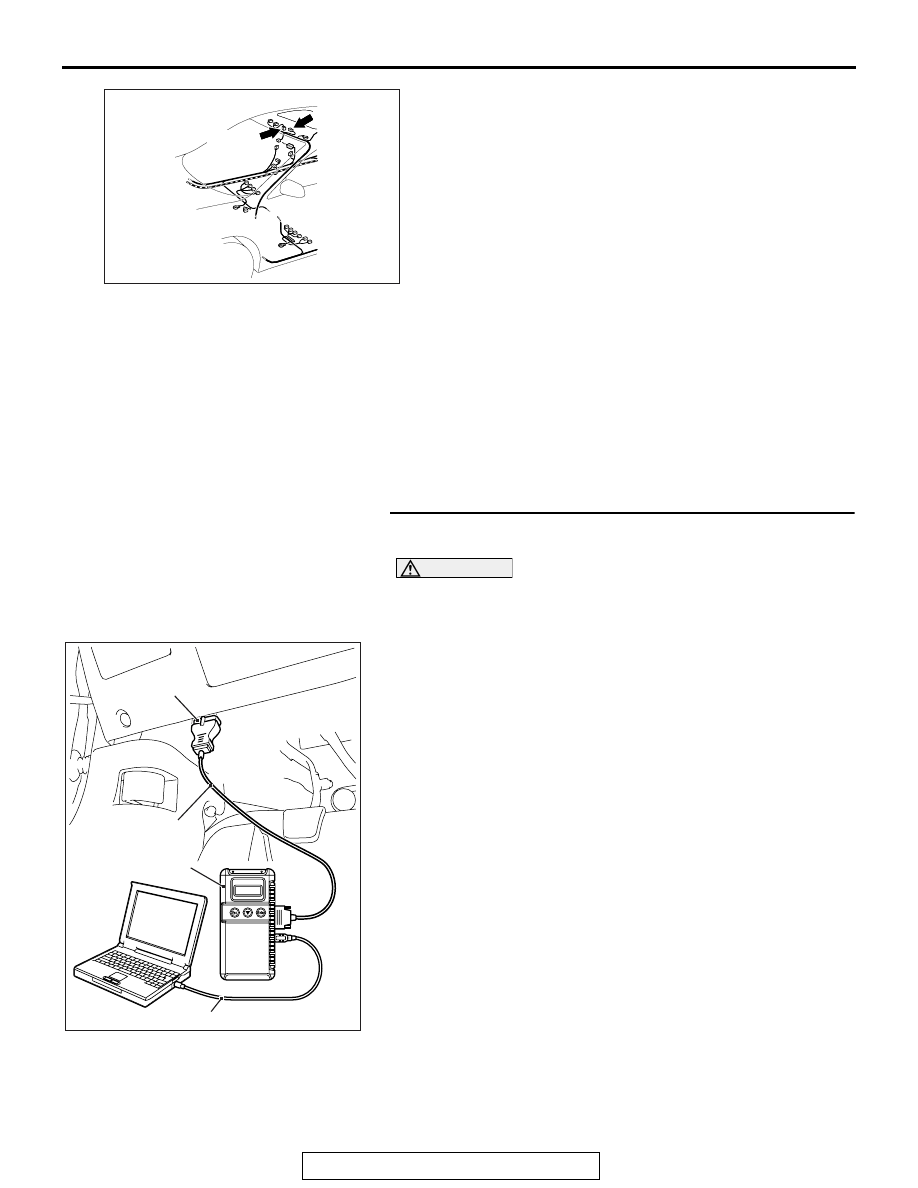

STEP 1. Using scan tool MB991958, read CAN bus the
diagnostic trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect

scan tool (M.U.T.-III)

P.42B-10

."

(2) Turn the ignition switch to the "ON" position.
(3) Check whether the CAN bus lines related DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Repair the CAN bus line (Refer to GROUP 54C, CAN

bus diagnostics table

P.54C-14

).

NO :  Go to Step 2.

AC708954 AG

Connectors: D-05, D-06

D-05 (B)

D-06 (GR)

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

SUNROOF

TSB Revision

BODY

42A-161

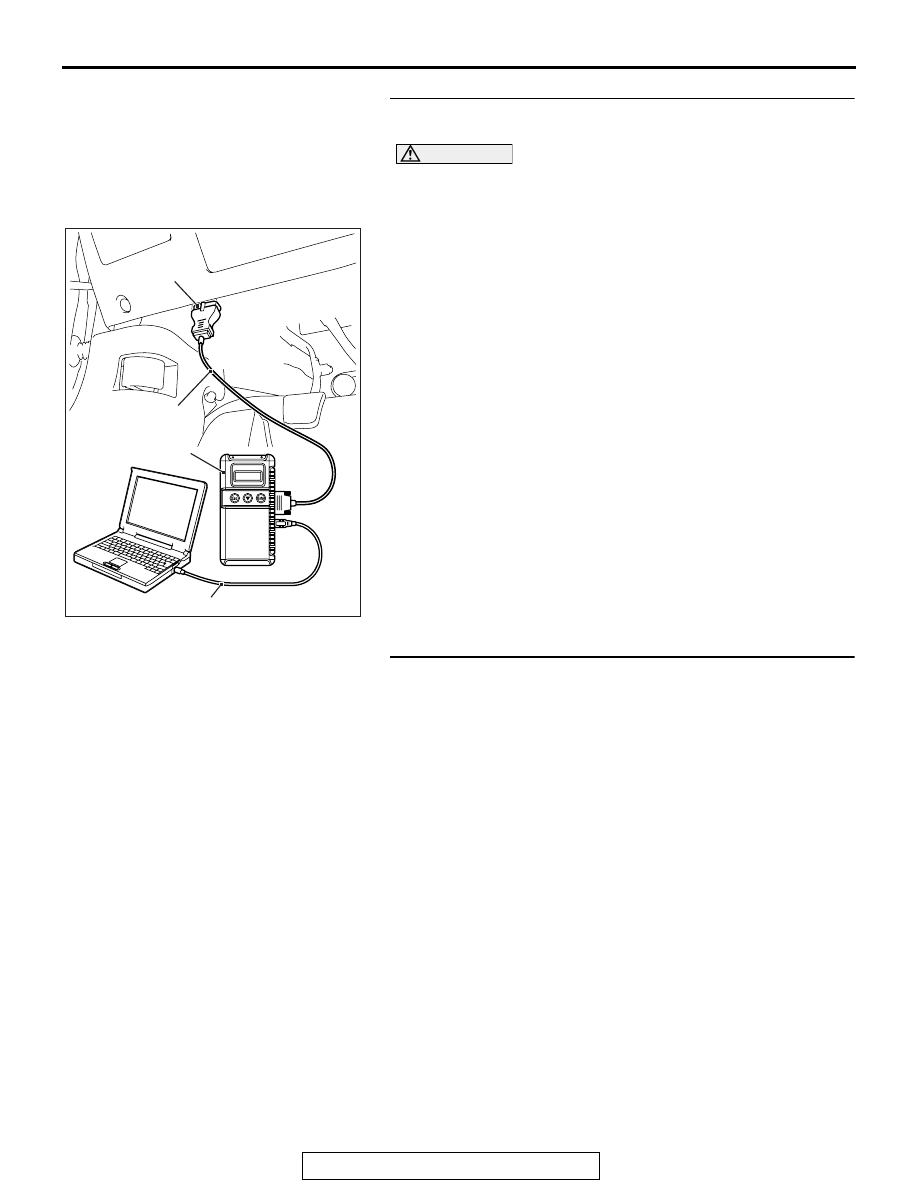

STEP 2. Using scan tool MB991958, read the diagnostic
trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect

scan tool (M.U.T.-III)

P.42B-10

."

(2) Turn the ignition switch to the "ON" position.
(3) Check whether the sunroof motor assembly related DTC is

set.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Diagnose the sunroof motor assembly. Refer to

Diagnostic trouble code chart

P.42A-152

.

NO :  Go to Step 3.

STEP 3. Check sunroof switch connector D-05 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is sunroof switch connector D-05 in good condition?

YES : Go to Step 4.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the sunroof works normally.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

SUNROOF

TSB Revision

BODY

42A-162

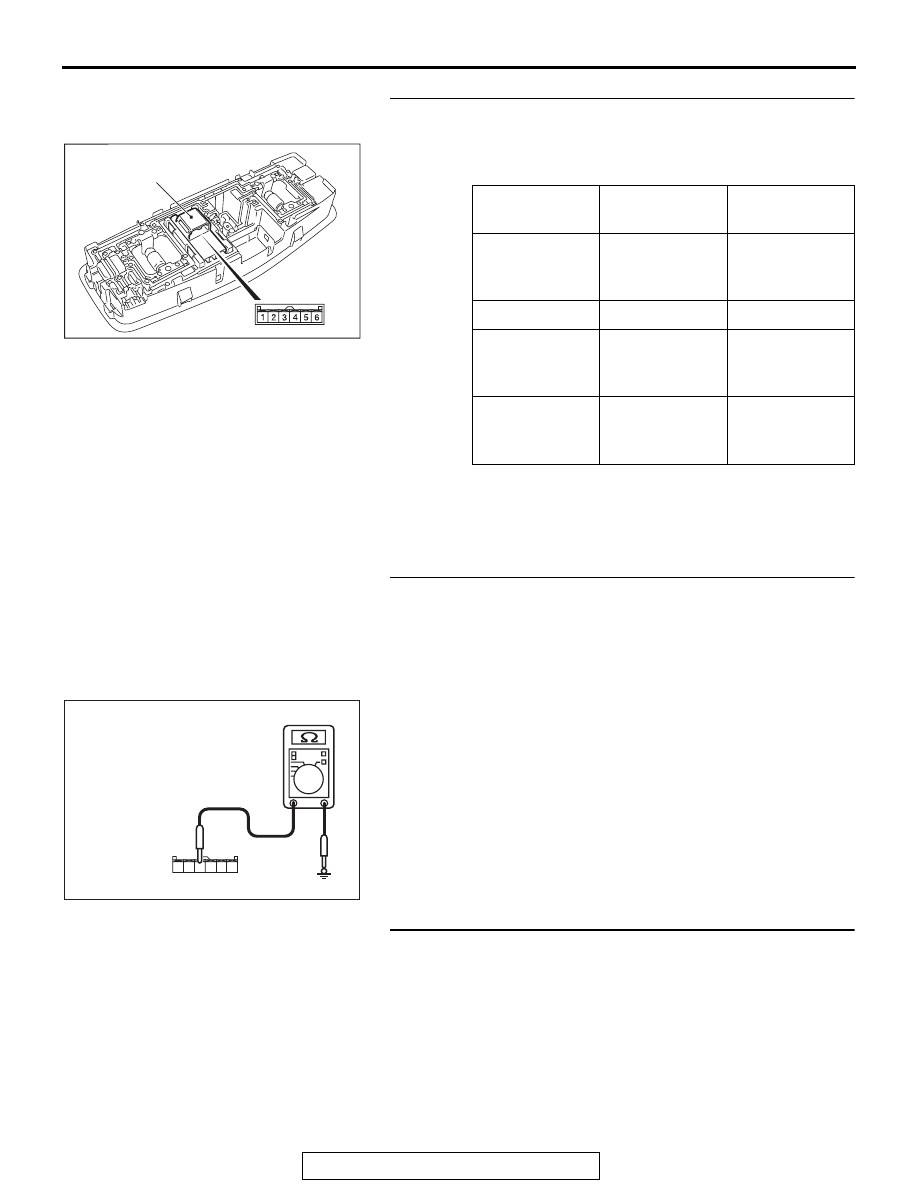

STEP 4. Sunroof switch check
(1) Remove the sunroof switch. Refer to

P.42A-187

.

(2) Check continuity when the sunroof switch is operated to

"OPEN", "TILT-UP" or "CLOSE/TILT-DOWN" position.

Q: Is the sunroof switch normal?

YES : Go to Step 5.
NO :  Replace the sunroof switch. Check that the sunroof

works normally.

STEP 5. Check the ground circuit to the sunroof motor
assembly. Measure the resistance at sunroof switch
connector D-05.
(1) Disconnect sunroof switch connector D-05 and measure the

resistance available at the wiring harness side of the
connector.

(2) Measure the resistance value between terminal 4 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 6.
NO :  Go to Step 8.

STEP 6. Check sunroof motor assembly connector D-06
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is sunroof motor assembly connector D-06 in good

condition?
YES : Go to Step 7.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the sunroof works normally.

Switch
position

Terminal No.

Normal value

Tilt-up

3

− 4

Continuity
exists (2

Ω or

less)

OFF

3

− 4, 4 − 5, 4 − 6 Open circuit

Open

4

− 5

Continuity
exists (2

Ω or

less)

Close/tilt-down

4

− 6

Continuity
exists (2

Ω or

less)

AC506531AC

Sunroof switch

AC209731

6

4

5

3 2 1

Connector D-05
(Harness side)

AC208731BX
