Mitsubishi Evolution X. Manual - part 461





DIAGNOSIS <SHIFT LEVER>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-301

FAIL-SAFE FUNCTION

If an abnormality occurs to the signal of sensors,
switches, solenoids, or others, the shift lever-ECU
performs a control for the driver safety and system
protection. The control contents are as follows.

FAIL-SAFE REFERENCE TABLE

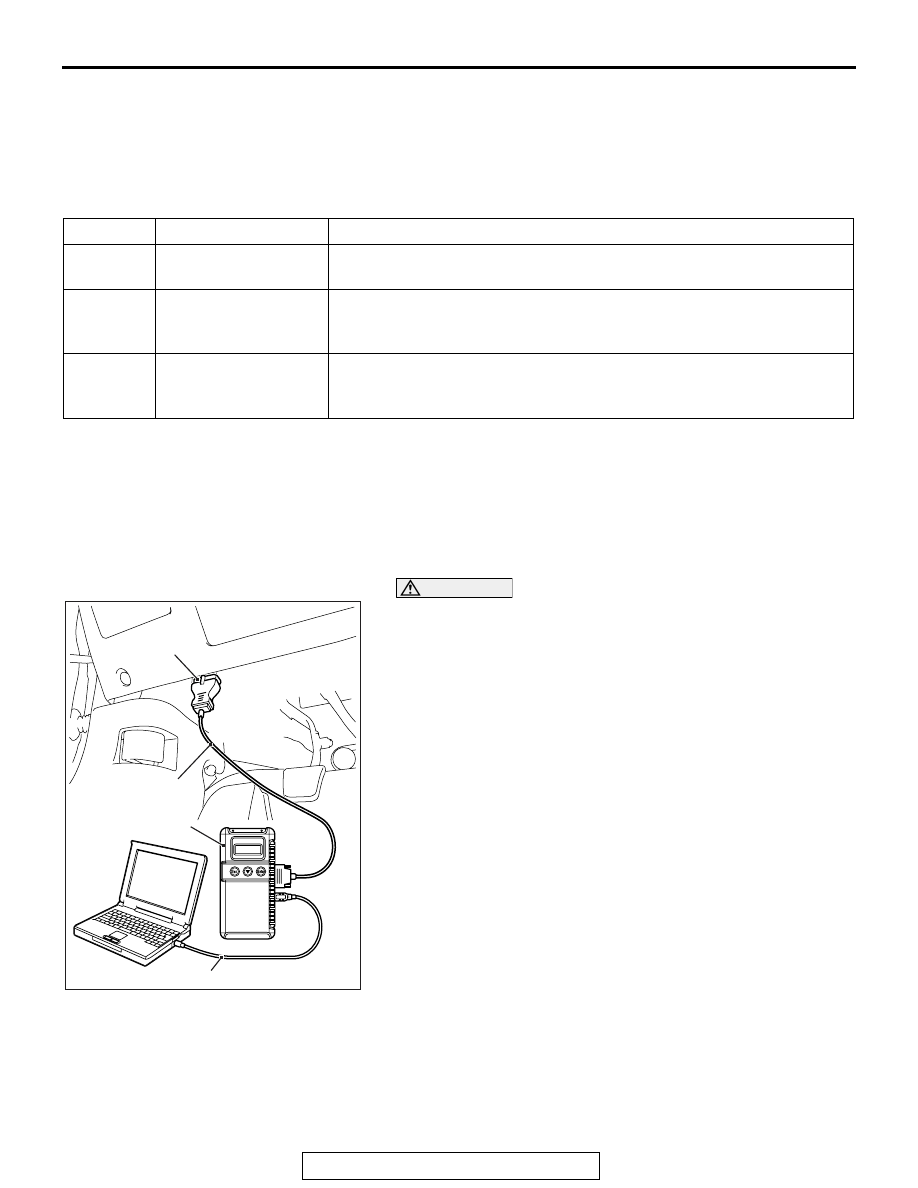

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

• MB991958 Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827 M.U.T.-III USB Cable

• MB991910 M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the scan tool system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

FREEZE FRAME DATA CHECK

Various data of when the diagnostic trouble code is determined
is obtained, and the status of that time is stored. By analyzing
each data using the scan tool, troubleshooting can be per-
formed efficiently.
Display items of the freeze frame data are as follows.

Code No.

Item

Control content

P198D

EEPROM

Normal driving can be performed, and displays an occurrence of
trouble to the multi information display to warn the driver.

P198E

Lever position sensor
system (Malfunction of
one sensor)

Normal driving can be performed, and displays an occurrence of
trouble to the multi information display to warn the driver.

P198F

Lever position sensor
system (Malfunction of
two sensors)

The lever position cannot be identified, and the clutch open at TC-SST
side prohibits the vehicle from driving. Then displays an occurrence of
trouble to the multi information display to warn the driver.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

DIAGNOSIS <SHIFT LEVER>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-302

FREEZE FRAME DATA REFERENCE TABLE

DIAGNOSTIC TROUBLE CODE CHART

M1225000600027

CAUTION

During diagnosis, a DTC associated with other system may be set when the ignition switch is turned
ON with connector(s) disconnected. On completion, confirm all systems for diagnostic trouble
code(s). If diagnostic trouble code(s) are set, erase them all.

SYMPTOM CHART

M1225005200024

CAUTION

During diagnosis, a DTC associated with other system may be set when the ignition switch is turned
ON with connector(s) disconnected. On completion, confirm all systems for diagnostic trouble
code(s). If diagnostic trouble code(s) are set, erase them all.

Item No.

Item

Display contents

4

Current trouble accumulative time

min

5

Shift lever position

• P

• R-P

• R

• N-R

• N

• D-N

• D

• Manual

• +
• −

6

Battery positive voltage

V

DTC No.

Diagnostic item

Reference
page

P0563

Power supply system

P.22C-303

P198D

EEPROM system

P.22C-304

P198E

Lever position sensor system

P.22C-304

P198F
U0001

Bus off

P.22C-305

U0100

Engine time-out error

P.22C-306

U0101

TC-SST time-out error

P.22C-306

U0121

ASC time-out error

P.22C-307

U0141

ETACS time-out error

P.22C-308

Symptom

Inspection
procedure No.

Reference
page

The scan tool cannot communicate with the shift lever-ECU.

1

P.22C-309

Shift indicator light does not illuminate.

2

P.22C-309

Back-up light does not illuminate.

3

P.22C-312

The driving mode cannot be changed.

4

P.22C-316

Speed change with the paddle shift is impossible.

5

P.22C-317

Shift lever-ECU power supply circuit abnormality

6

P.22C-319

DIAGNOSIS <SHIFT LEVER>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-303

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC P0563: Power Supply System

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

OPERATION

The shift lever-ECU checks that the power supply cir-
cuit is normal.

.

DTC SET CONDITIONS

The voltage from the battery is determined to be
overvoltage.

.

PROBABLE CAUSES

• Malfunction of the shift lever-ECU

• Generator malfunction

DIAGNOSTIC PROCEDURE

STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C

−

Troubleshooting

P.54C-14

.) After repairing the CAN

bus line, go to Step 2.

STEP 2. Check whether the DTC is reset.
Q: Is DTC No. P0563 set?

YES : Go to Step 3.
NO :  This diagnosis is complete.

STEP 3. Generator system check
Refer to GROUP 16

− Charging System, On-vehicle Service

P.16-7

.

Q: Is the check result normal?

YES : Go to Step 4.
NO :  Repair or replace the generator related parts.

STEP 4. Check whether the DTC is reset.
Q: Is DTC No. P0563 set?

YES : Shift lever assembly replacement. (Refer to

P.22C-334

.)

NO :  Intermittent malfunction. (Refer to GROUP 00

− How

to Cope with Intermittent Malfunction

P.00-15

.)

DIAGNOSIS <SHIFT LEVER>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-304

DTC P198D: EEPROM System

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

OPERATION

The shift lever-ECU checks that EEPROM or RAM is
normal.

.

DTC SET CONDITIONS

The EEPROM writing data is determined to be
abnormal.

.

PROBABLE CAUSES

• Malfunction of the shift lever-ECU

DIAGNOSTIC PROCEDURE

STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C

−

Troubleshooting

P.54C-14

.) After repairing the CAN

bus line, go to Step 2.

STEP 2. Check whether the DTC is reset.
Q: Is DTC No. P198D set?

YES : Replace the shift lever assembly. (Refer to

P.22C-334

.)

NO :  Intermittent malfunction. (Refer to GROUP 00

− How

to Cope with Intermittent Malfunction

P.00-15

.)

DTC P198E, P198F: Lever Position Sensor System

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

OPERATION

The shift lever-ECU has lever position sensors, and
checks for abnormality.

.

DTC SET CONDITIONS

• When one position signal is determined not to be,

P198E is set.

• When two position signals are determined not to

be, P198F is set.

.

PROBABLE CAUSES

• Malfunction of the shift lever-ECU

• Malfunction of the lever position sensor
