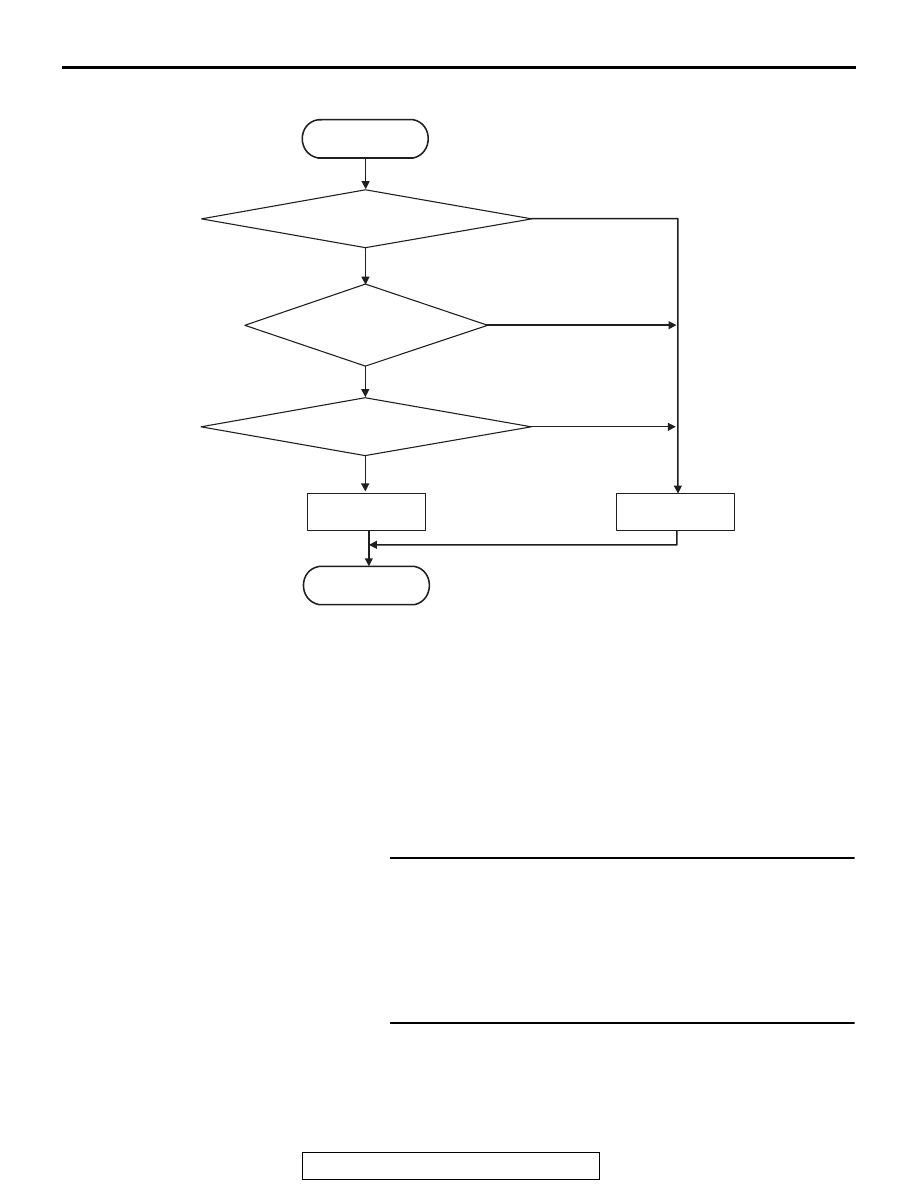

DIAGNOSIS <TC-SST> TSB Revision TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST) 22C-117 LOGIC FLOW CHARTS (Monitor Sequence) . DTC SET CONDITIONS Check Conditions • Voltage of battery: 8 V or more. • Voltage of battery: 16.5 V or less. JUDGMENT CRITERIA • Position sensor voltage: 0.128 V or less. (160 mil- lisecond) . OBD-II DRIVE CYCLE PATTERN The position sensor voltage remains 0.128 V or more . PROBABLE CAUSES • Malfunction of TC-SST-ECU DIAGNOSTIC PROCEDURE STEP 1. Scan tool CAN bus diagnostics YES : Go to Step 2. − Troubleshooting .) After repairing the CAN bus line, go to Step 2. STEP 2. Check whether the DTC is reset. YES : Replace the TC-SST assembly. (Refer to NO : Intermittent malfunction. (Refer to GROUP 00 − How to Cope with Intermittent Malfunction .) AC710676 START No Good Malfunction END Monitoring condition met Continuous failure No Yes Yes Yes No Shift fork position |
