Mitsubishi Evolution X. Manual - part 333





ON-VEHICLE SERVICE

TSB Revision

INTAKE AND EXHAUST

15-7

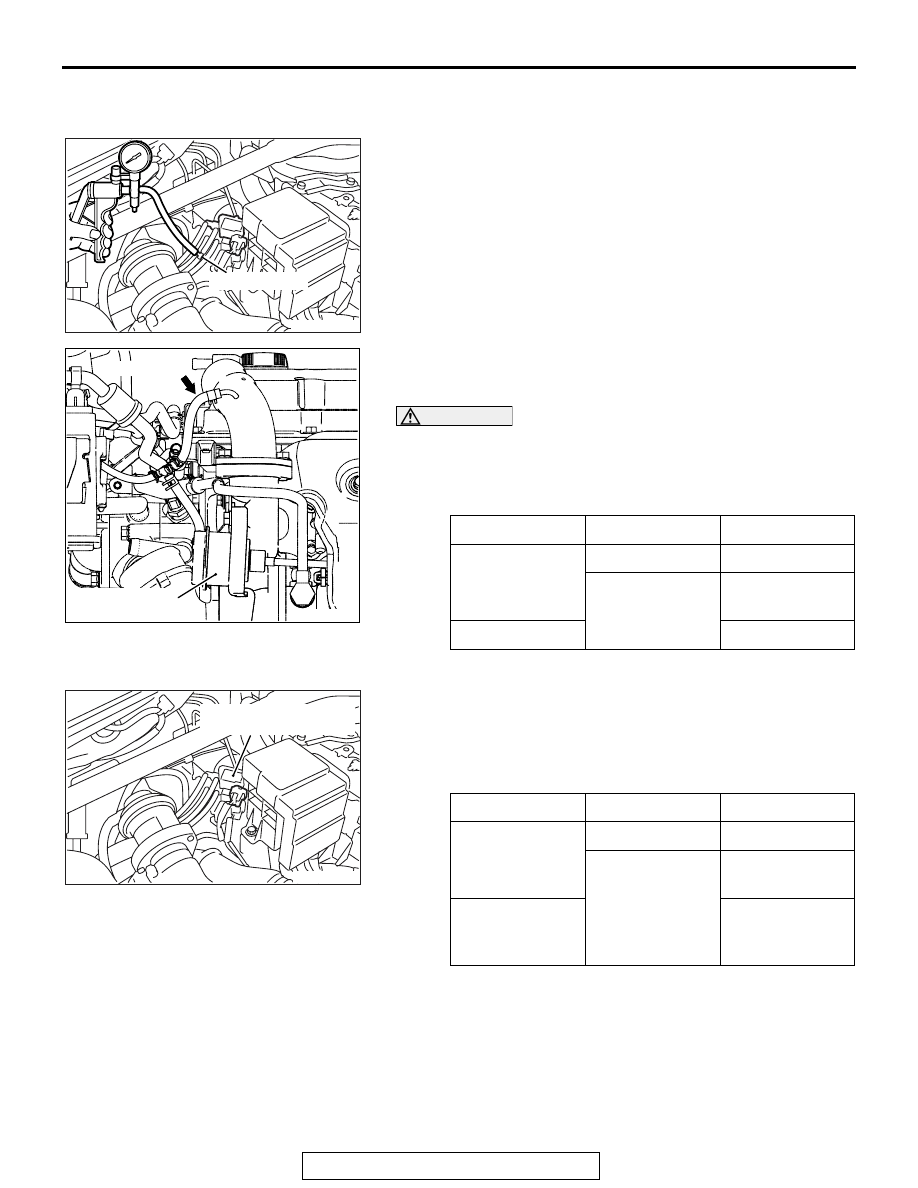

INTAKE CHARGE PRESSURE CONTROL SYSTEM
CHECK

M1151001100342

AK703284

Three-way joint

AC

1. Removing the black hose from the No.1 turbocharger

wastegate solenoid or the brown connector, connect
three-way joint between the hose and the solenoid.

2. Connect the pressurized type hand vacuum pump with the

three-way joint.

AK703105

Boost hose

Turbochager
wastegate actuator

AC

3. Use the turbocharger wastegate actuator control boost

nipple of air outlet fitting to remove the boost hose. Plug this
nipple.

CAUTION

Do not apply the pressure of 117kPA or more to prevent
the diaphragm damage.
4. Blocking or releasing the boost hose end, apply the

pressure. Check the pressurized state.

Engine state

Boost hose end Normal state

Stopped: Ignition
switch in "ON"
position

Opened

Pressure leaks

Closed

Pressure
maintained

Rapid racing

Pressure leaks

5. Put the ignition switch in "LOCK" (OFF) position.

AK703285AC

No. 1 turbochager
wastegate solenoid valve

6. Disconnect the connector of No.1 turbocharger wastegate

solenoid or the brown connector.

7. Blocking or releasing the boost hose end, apply the

pressure. Check the pressurized state. Plug the boost hose
end while driving.

Engine state

Boost hose end Normal state

Stopped: Ignition
switch in "ON"
position

Opened

Pressure leaks

Closed

Pressure
maintained

4000r/min after
warming up
engine

Pressure leaks

NOTE: Unless the pressurized state is normal, the turbo-
charger wastegate actuator, turbocharger wastegate solenoid
or the hose might have a malfunction.

ON-VEHICLE SERVICE

TSB Revision

INTAKE AND EXHAUST

15-8

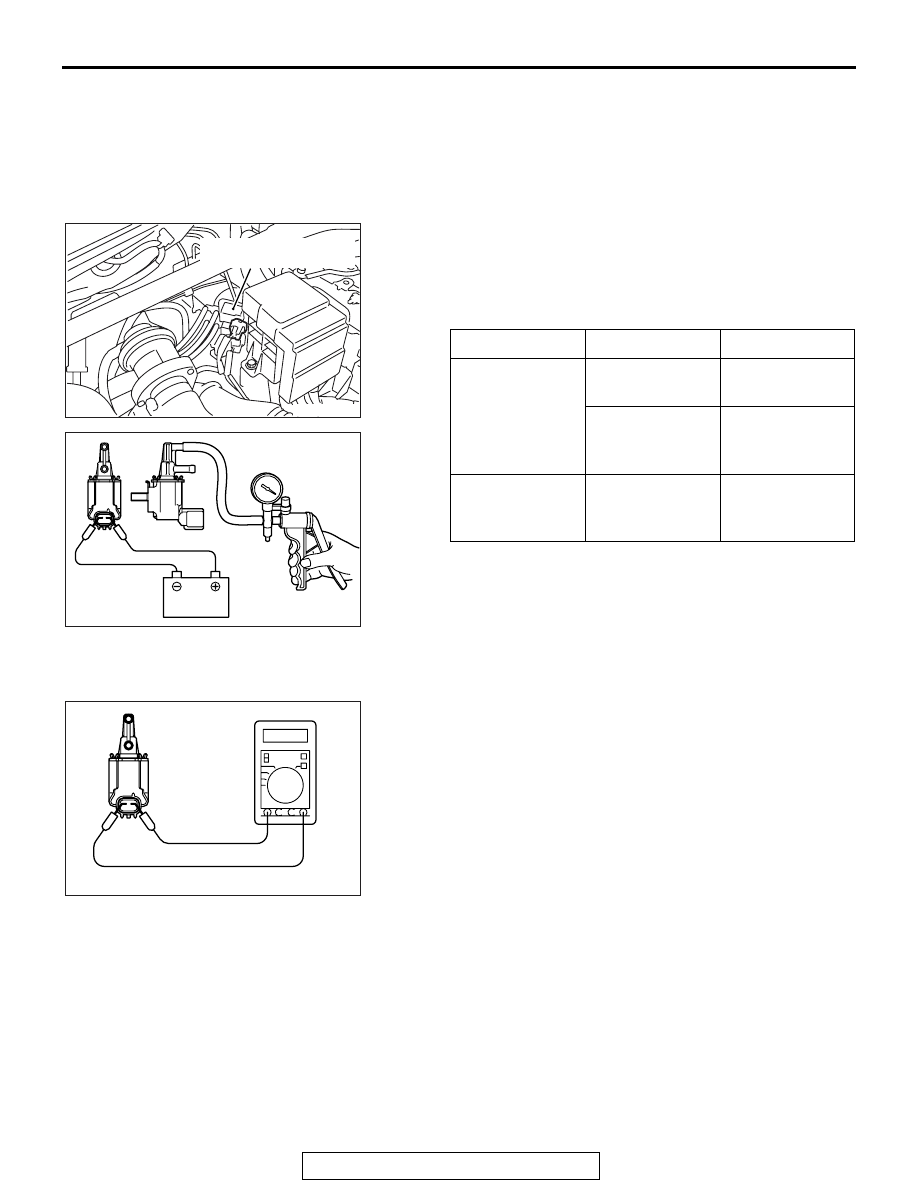

TURBOCHARGER WASTE GATE SOLENOID
CHECK

M1151001300272

No.1 turbocharger wastegate solenoid or brown
connector

.

A Operation check

AK703285AC

No. 1 turbochager
wastegate solenoid valve

AK200441

BATTERY

A

B

AD

1. Install the hand vacuum pump to the nipple "A" of solenoid.
2. Use the jumper wire to connect the solenoid terminal with

the battery terminal.

3. Disconnecting the jumper wire at the negative (-) battery

side, apply the vacuum pressure. Check the airtightness.

Jumper wire

Nipple "B" state Normal state

Connected

Opened

Negative
pressure leaks

Closed

Negative
pressure
maintained

Disconnected

Opened

Negative
pressure
maintained

.

B Check of coil resistance

AK200442

1. Measure the resistance between the solenoid terminals.

Standard value: 29

− 35 Ω at 20° C

ON-VEHICLE SERVICE

TSB Revision

INTAKE AND EXHAUST

15-9

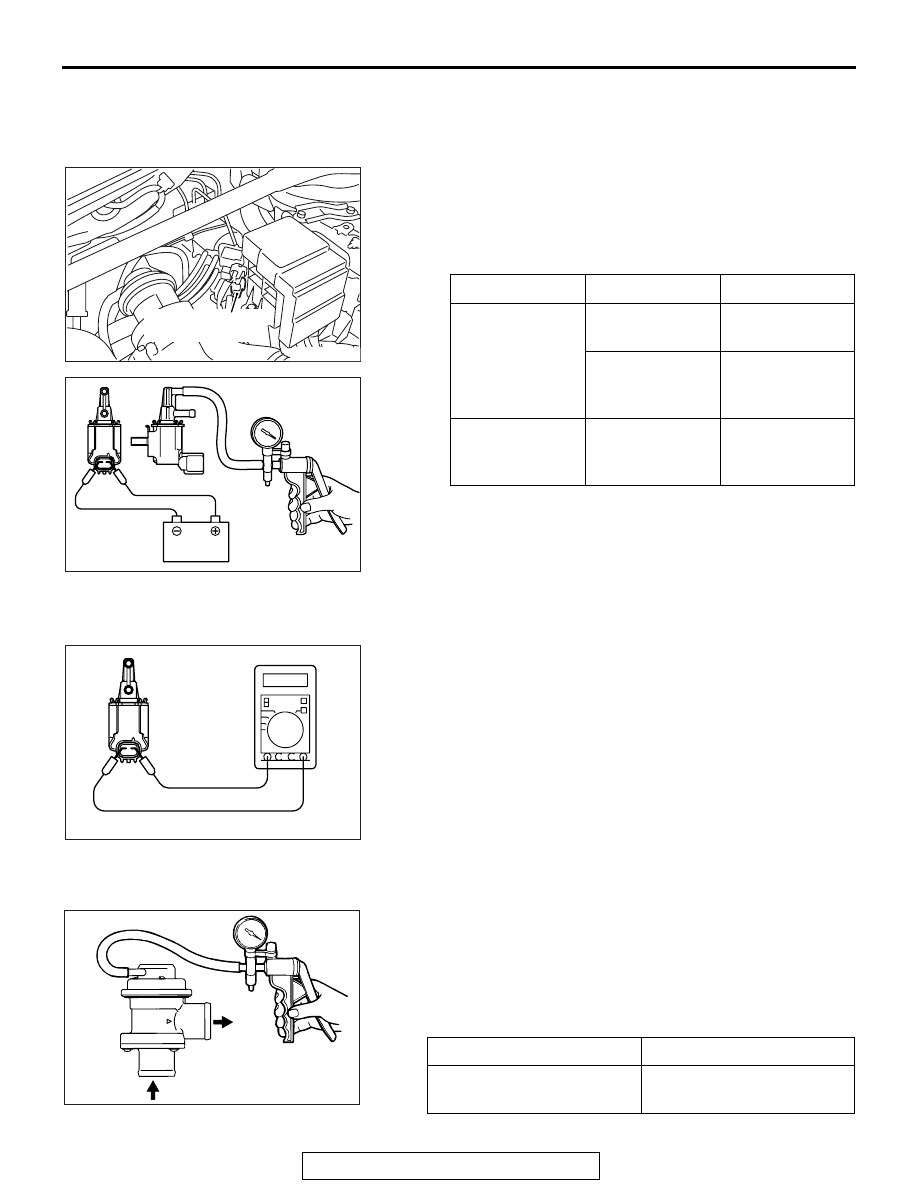

NO.2 turbocharger wastegate solenoid or black
connector

.

A Operation check

AK703283 AC

No. 2 turbochager
wastegate solenoid

AK200441

BATTERY

A

B

AD

1. Install the hand vacuum pump to the nipple "A" of solenoid.
2. Use the jumper wire to connect the solenoid terminal with

the battery terminal.

3. Disconnecting the jumper wire at the negative (-) battery

side, apply the vacuum pressure. Check the airtightness.

Jumper wire

Nipple "B" state Normal state

Connected

Opened

Negative
pressure leaks

Closed

Negative
pressure
maintained

Disconnected

Opened

Negative
pressure
maintained

.

B Check of coil resistance

AK200442

1. Measure the resistance between the solenoid terminals.

Standard value: 29

 35  at 20° C

TURBOCHARGER BYPASS VALVE CHECK

M1151001600217

AK703106AD

1. Remove the turbocharger bypass valve.
2. Connect the hand vacuum pump to the nipple of the

turbocharger bypass valve.

3. Apply a negative pressure of approximately 65 kPa (19

in.Hg) and check operation of the valve. Also check that air
tightness is maintained.

Negative pressure

Valve operation

Approximately 65 kPa (19
in.Hg)

Starts opening

AIR CLEANER

TSB Revision

INTAKE AND EXHAUST

15-10

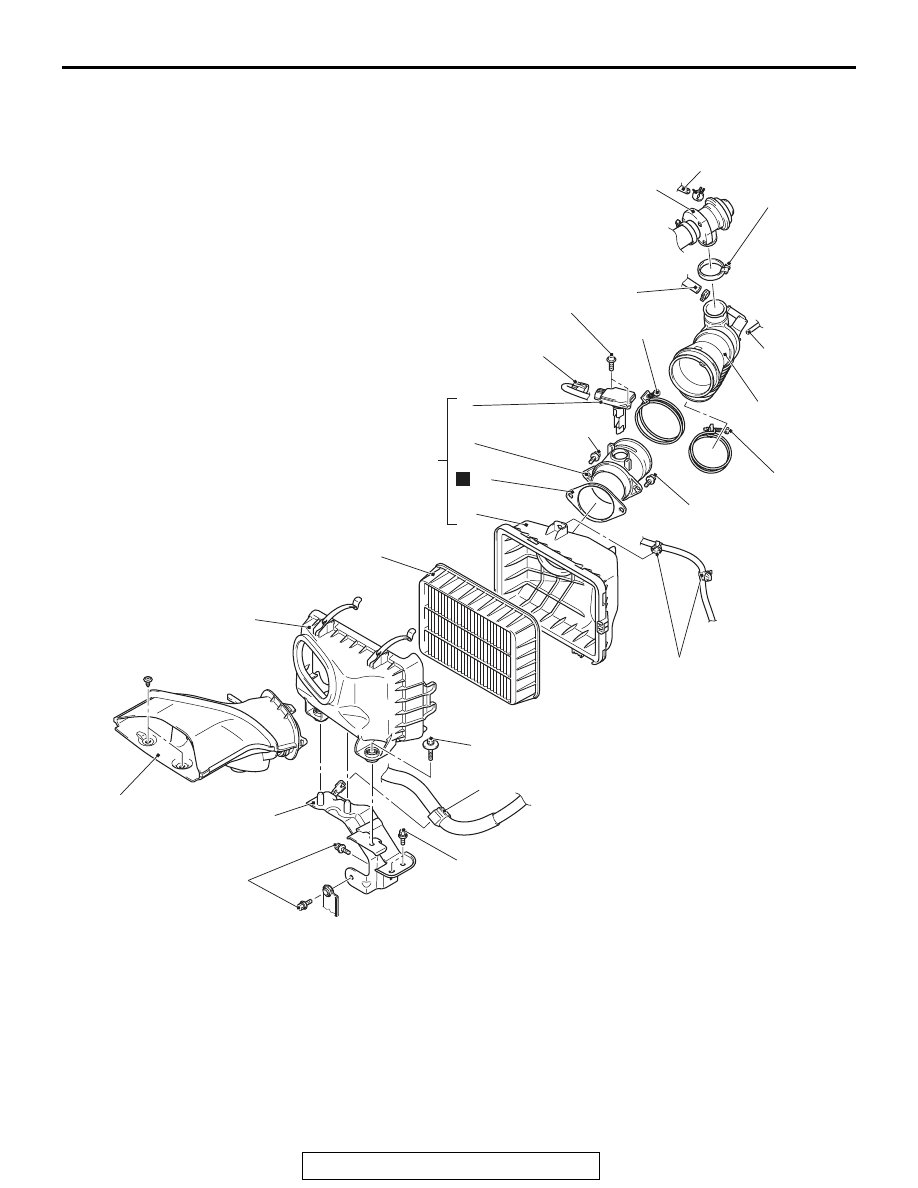

AIR CLEANER

REMOVAL AND INSTALLATION

M1151002101951

AC710665

2

1

5

13

14

15

7

12

11

17

AB

10

3

4

6

8

16

9.5 ± 3.5 N·m
84 ± 31 in-lb

9.5 ± 3.5 N·m
84 ± 31 in-lb

7.0 ± 3.0 N·m
62 ± 27 in-lb

4.0 ± 1.0 N·m
36 ± 8 in-lb

4.0 ± 1.0 N·m
36 ± 8 in-lb

1.5 ± 0.3 N·m
14 ± 2 in-lb

6.0 ± 1.0 N·m
53 ± 9 in-lb

8.5 ± 2.5 N·m
75 ± 22 in-lb

8.5 ± 2.5 N·m
75 ± 22 in-lb

9

N

Removal steps

1.

Air cleaner intake duct

2.

Air cleaner element

3.

Air cleaner body

4.

Air by-pass valve vacuum hose
connection

5.

Air by-pass valve connection

6.

Harness clamp connection

7.

Mass airflow sensor connector
connection

8.

Air cleaner cover assembly

>>

A

<<

9.

Mass airflow sensor

10. Air cleaner support
11. Gasket
12. Air cleaner cover
13. Breather hose connection
14. Vacuum hose connection
15. Air cleaner intake hose
16. Harness clamp connection
17. Air cleaner bracket

Removal steps (Continued)
