PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-39

SCAN TOOL (MULTI USE TESTER { M.U.T.-III }
SUB ASSEMBLY)

M1001012400226

CAUTION

Turn the ignition switch to the "LOCK" (OFF) position
before disconnecting or connecting the scan tool.
NOTE: M.U.T.-III trigger harness is not necessary when push-
ing V.C.I. ENTER key.

CODING LIST

M1001015000294

CAUTION

With the ETACS functions being customized, if any of the
ETACS-ECU variant coding and option coding items are
changed, the customized contents are reset. In such case,
the functions need to be recustomized.
Before troubleshooting, check that the coding data written into
the engine control module and ETACS-ECU are normal. If they
are not the same as the initial settings, various functions and
systems will not work correctly.

VARIANT CODING

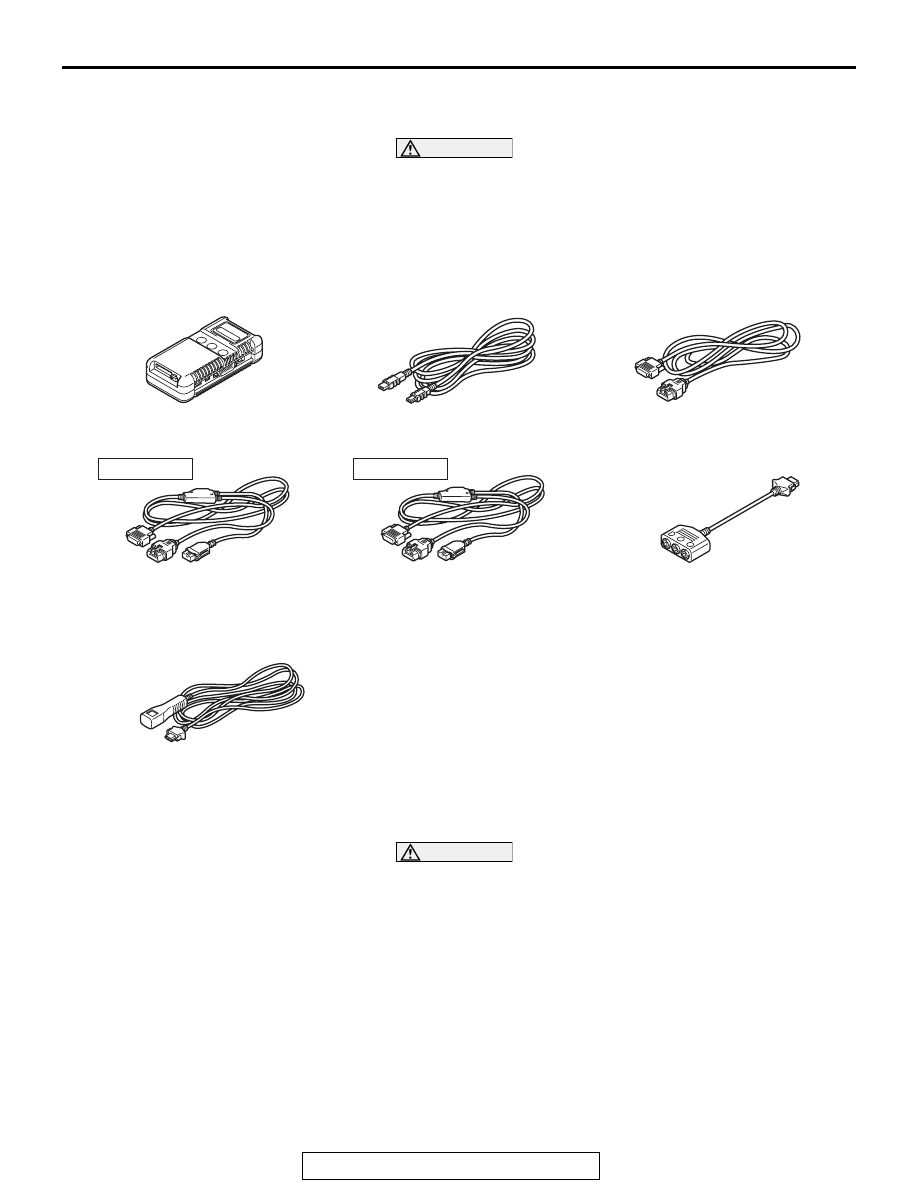

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

AC2010881

MB991910

MB991826

MB991911

MB991825

MB991824

MB991827

MB991914

VEHICLE COMMUNICATION
INTERFACE (V.C.I.)

M.U.T.-III MAIN HARNESS A

M.U.T.-III USB CABLE

M.U.T.-III MAIN HARNESS B

M.U.T.-III MAIN HARNESS C

M.U.T.-III MEASUREMENT ADAPTER

M.U.T.-III TRIGGER HARNESS

DO NOT USE

DO NOT USE

AC21088AD

PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-40

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

The coding data can be checked by operating scan tool
MB991958.
NOTE: For details on how to use the scan tool MB991958,
refer to the "M.U.T.-III Owner’s manual".

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

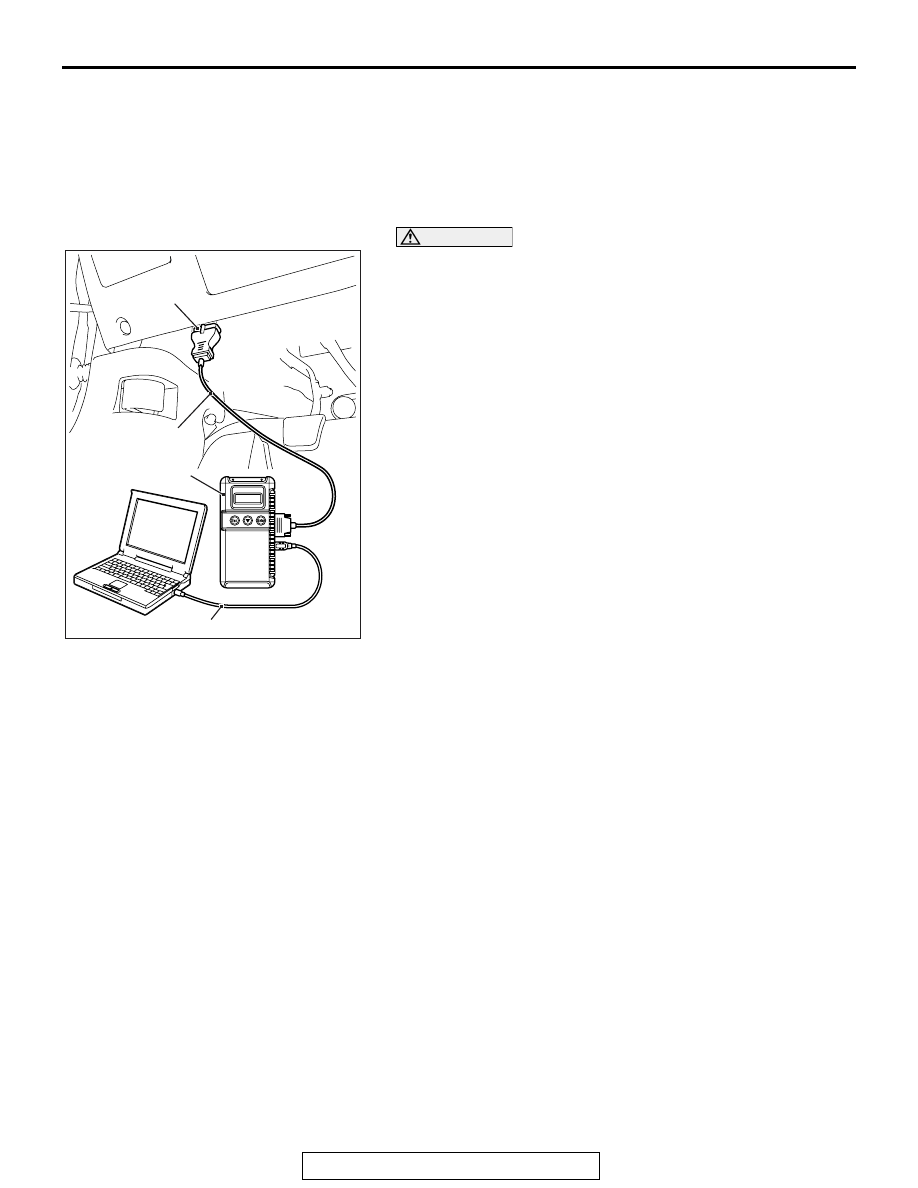

1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the "M.U.T.-III system" on the personal computer.
8. Turn the ignition switch to the "ON" position.
9. Select "System select" from the start-up screen.
10.Select "From 2006 MY" under "Model Year". Check that

"Vehicle Information" contents are correct.

11.On the system list screen, select "MPI/GDI/DIESEL" to

check the engine control module data,
"AT/CVT/A-MT/TC-SST" to check the TC-SST data, and
"ETACS" to check the ETACS-ECU data.
NOTE: If "Loading Option Setup" list is shown, click appro-
priate box.

12.Select "Coding."
13.Select "Coding information & copy."
14.If the displayed coding information is different from the

corresponding initial setting in the list, replace the ECU with
a correctly coded one. For replacement of the engine control
module, refer to GROUP 13A, engine control module

P.13A-920

. For replacement of the TC-SST-ECU

*

, refer to

GROUP 22C, transaxle assembly

P.22C-341

. For

replacement of the ETACS-ECU, refer to GROUP 54A,
ETACS

P.54A-676

.

NOTE:

*

: TC-SST-ECU cannot be disassembled. Thus,

replace the transaxle assembly.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-41

ENGINE CONTROL MODULE CODING DATA LIST

TC-SST-ECU CODING DATA LIST

ETACS-ECU CODING DATA LIST

Item name

Initial value

Final gear ratio

5MT/6MT or 4.062

Tire circumference

2026mm

IMMOBILIZER

Present

ABS

Not present

A.S.C.

Present

S/W variation

No.1

Item name

Initial value

Vehicle line

LANCER EVO

Destination

U.S.

Tire size

245/40R18

Cruise control

Present

A.S.C.

Present

Turbo charger

T/C(INCONEL-AL)

Item name

Initial value

Vehicle line

LANCER EVO

Model year

(Displays the model year)

Destination

U.S.

Transaxle

5MT or TC-SST

Engine type

D4 V.V.T. 2.0L TC

Engine power

Normal

Handle side

LHD

Chassis Type for A.S.C.

Type 1

Deadlock Button Operation

2 or Not present

Final drive

AWD FF Base

Transfer

ACD

IG off delay control

Disabled <Vehicles without TC-SST> or Enable
<Vehicles with TC-SST>

Tire size

-

Tire circumference

2026mm

Fuel tank

Not used

DRL

*1

 type

Dimming DRL w/ P <halogen type> or
IndependentDRL/P <discharge type>

Smart entry system

Not present or Type A or Type C

PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-42

TPMS

*1

Present

Keyless entry

Present

Air bag Auto Hazard

Not Present

Immobilizer

Type A <Vehicles for CANADA> or Type B <Vehicles
for USA>

Cruise control

Present

Corner sensor

Not present

Headlight auto leveling device

Not present

Oil level warning

Not present

Water separate warning

Not present

Speed meter scale

Not used

Idle neutral control

Not used

ENG-CVT unit control

Not used

INVECS control

Not used

Look-up slip control

Not used

Side air bag

Present

ACC

Default disabled

Number of speaker

*2

Premium or 6 speakers

Seat material

*2

Fabric or Leather

Auto light control

*2

No/Cng Ng or Hi RLS/chg Ng

Front differential

Helical

Rear differential

AYC

Power window type

Type P4

Sun roof type

Not present or Type S4

WCM

Present

OCM

Present

ORC

Present

A/C

Present

AUDIO

*2

Not present or Present

AND

*2

Not present or Present

VES

Not used

DISP

Not used

NAVI

Not used

CAMERA

Not present

TUNER

Not used

Item name

Initial value
