Mitsubishi Evolution X. Manual - part 1297

DUCTS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-139

Defroster nozzle and distribution
duct removal steps

•

Instrument panel (Refer to GROUP
52A

P.52A-2

).

1.

Front center duct

2.

Rear center duct

3.

Ventilator air distribution duct &
Side defroster duct

4.

Defroster nozzle
Foot duct and rear heater duct
removal steps

•

Instrument panel cover lower <MR>
(Refer to GROUP 52A, Instrument
panel lower panel

P.52A-8

).

5.

Foot duct (driver’s side)

•

Glove box (Refer to GROUP 52A,
Glove box

P.52A-6

).

6.

Foot duct (passsenger’s side)

Foot duct and rear heater duct
removal steps

•

Floor console assembly (Refer to
GROUP 52A, Floor console
assembly

P.52A-9

).

•

Instrument panel under cover
(Refer to GROUP 52A, Instrument
center panel

P.52A-7

).

7.

Rear heater duct A

•

Front seat assembly (Refer to
GROUP 52A, Front seat assembly

P.52A-20

).

•

Glove box (Refer to GROUP 52A,
Glove box

P.52A-6

).

•

Front scuff plate, cowl side trim
(Refer to GROUP 52A, Trims

P.52A-11

).

•

Floor carpet peeling

8.

Rear heater duct B

•

Accelerator stopper (Refer to
GROUP 17, Accelerator cable and
pedal

P.17-8

).

9.

Foot duct

VENTILATORS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-140

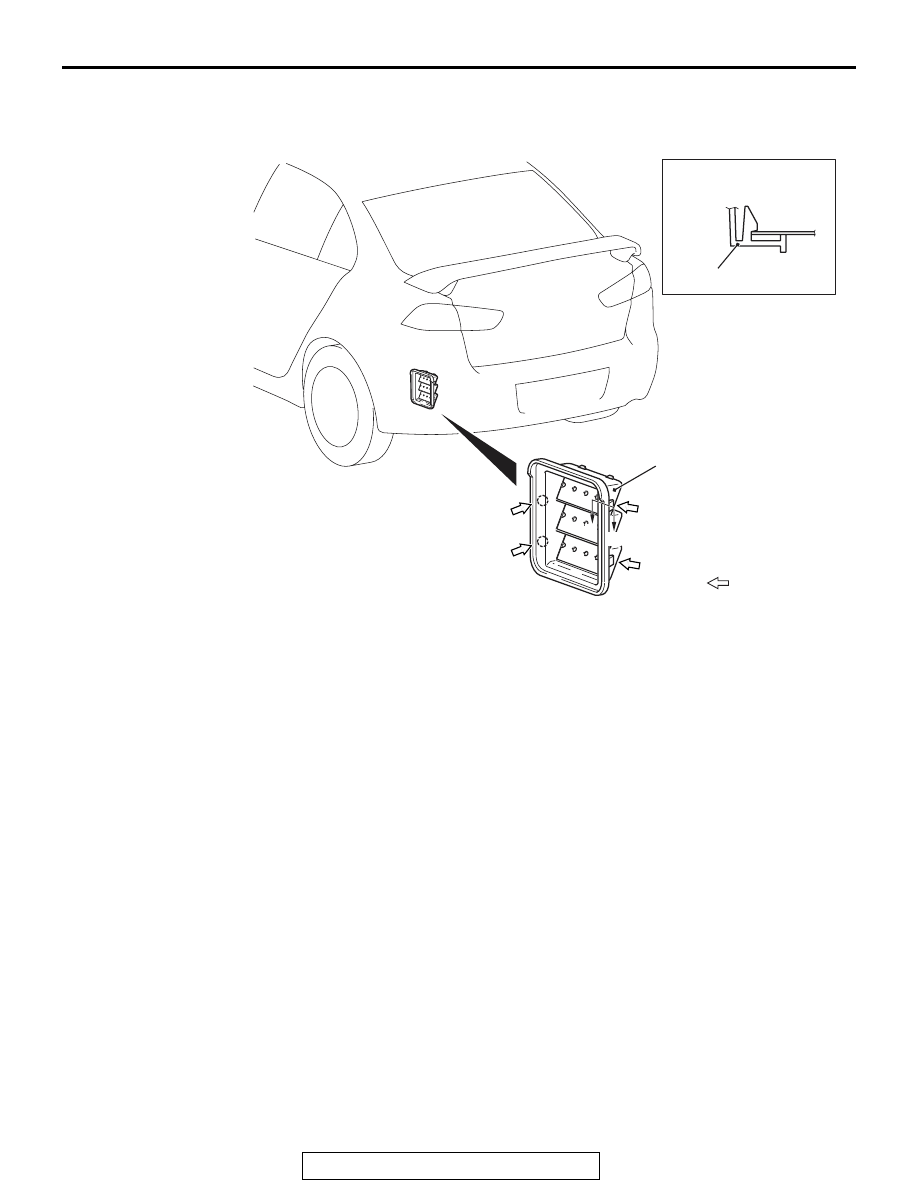

VENTILATORS

REMOVAL AND INSTALLATION

M1553001600619

AC608287

Cross-section A-A

1

1

AM

A

A

Note
         : Claw positions

Removal steps

•

Rear bumper assembly (Refer to
GROUP 51,

P.51-6

).

1.

Rear ventilation duct

GROUP INDEX

54

Chassis Electrical . . . . . . . . . . . . . . .

55

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

70

Component Locations . . . . . . . . . . .

80

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

90

Circuit Diagrams . . . . . . . . . . . . . . . .

NOTE:
For the information on all service manual
groups not listed above, please refer to
Volume

1

 and

2

.

Alphabetical Index  . . . . . . . . . . . . . .

2008

MITSUBISHI

LANCER EVOLUTION

SERVICE MANUAL

Volume 3

FOREWORD

This service manual is subdivided into various group
categories. Each section contains diagnostic,
disassembly, repair, and installation procedures,
along with complete specifications and tightening
references. Use of this manual will aid in properly
performing any service necessary to maintain or
restore the high levels of performance and reliability
designed into this Mitsubishi vehicle.
This manual is designed for use with the 2008
Service Manual Volume

1

,

2

 and the

LANCER EVO-

LUTION Body Repair Manual

 to provide complete

service information for the LANCER EVOLUTION.
When reference is made in this manual to a brand
name, number, or specific tool, an equivalent product
may be used in place of the recommended item. All
information, illustrations and specifications contained
in this manual are based on the latest product
information available at the time of publication
approval. The right is reserved to make changes at
any time without notice.

No part of this publication may be reproduced, stored in any retrieval

system of transmitted, in any form or by any means, including but not

limited to electronic, mechanical photocopying, recording or otherwise,

without the prior written permission of Mitsubishi Motors Corporation.

©2007 Mitsubishi Motors Corporation

All Rights, Reserved

Printed in USA

MSSP-206B-2008(3/3)

Heater, Air Conditioning

and Ventilation  . . . . . . . . . . . . . . . . .

Configuration Diagrams

and Splice Locations  . . . . . . . . . . . .

Proper service methods and repair procedures are necessary for the safe,
reliable operation of all motor vehicles as well as the personal safety of the
person doing the repair. There are many types of procedures, techniques,
tools, and parts for servicing vehicles, as well as differences in the skills of
the people doing the work. This manual cannot give advice or precautions for
every possible situation. Because of this, anyone who does not follow the
instructions in this manual must first make sure that the choice of methods,
tools, or parts will not cause damage to the vehicle or injury to the person
doing the work. The following list contains general precautions that should
always be followed while working on a vehicle.

• Always wear safety glasses for eye protection.

• Use safety stands whenever a procedure requires work under the

vehicle.

• Be sure the ignition switch is always "off" unless otherwise specified by

a procedure.

• Set the parking brake when working on a vehicle.

• Operate the engine only in a well-ventilated area.

• Keep clear of moving parts when the engine is running.

• To prevent serious burns, avoid contact with hot metal parts such as the

radiator, exhaust manifold, tail pipe, catalytic converter and muffler.

• Do not smoke while working on or near a vehicle.

WARNING
