Mitsubishi Evolution X. Manual - part 1252
PARKING BRAKE REMINDER TONE ALARM
TSB Revision

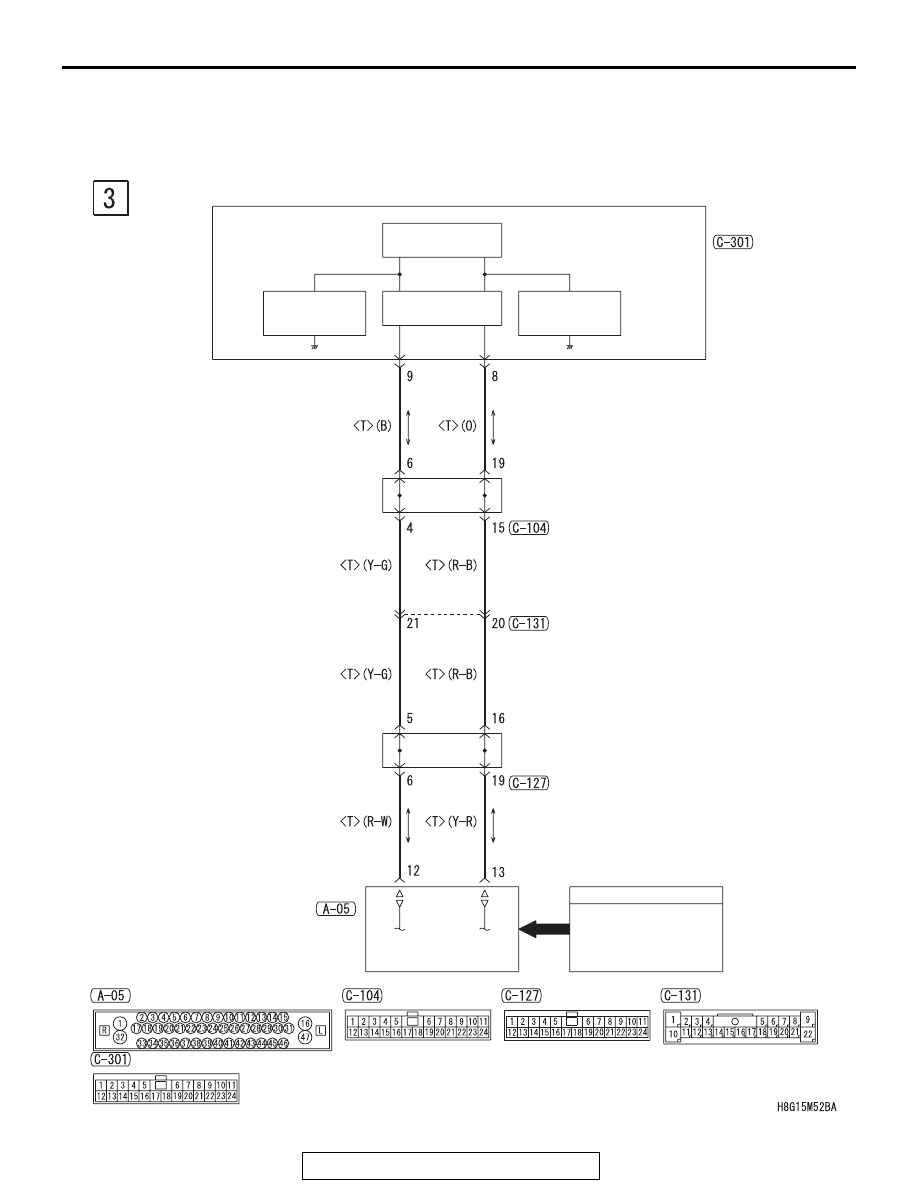

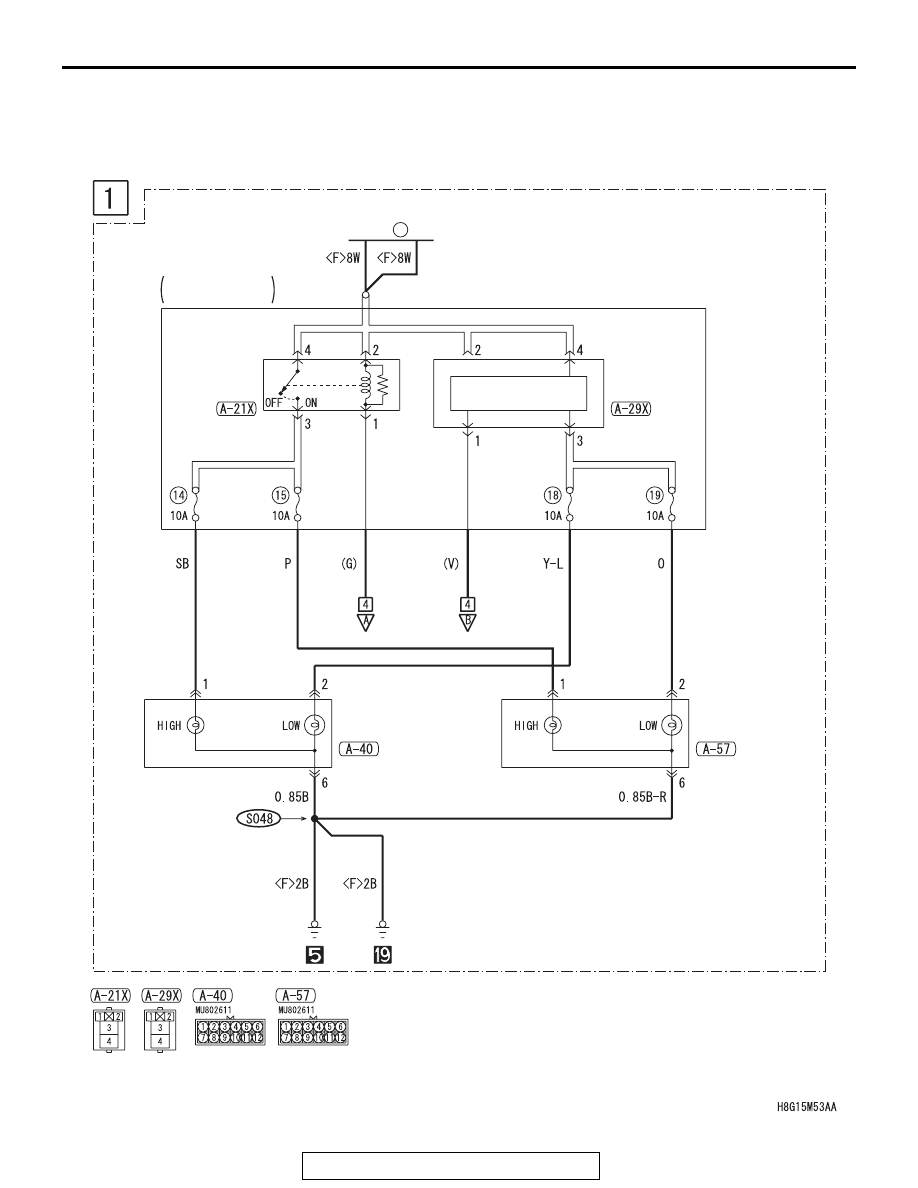

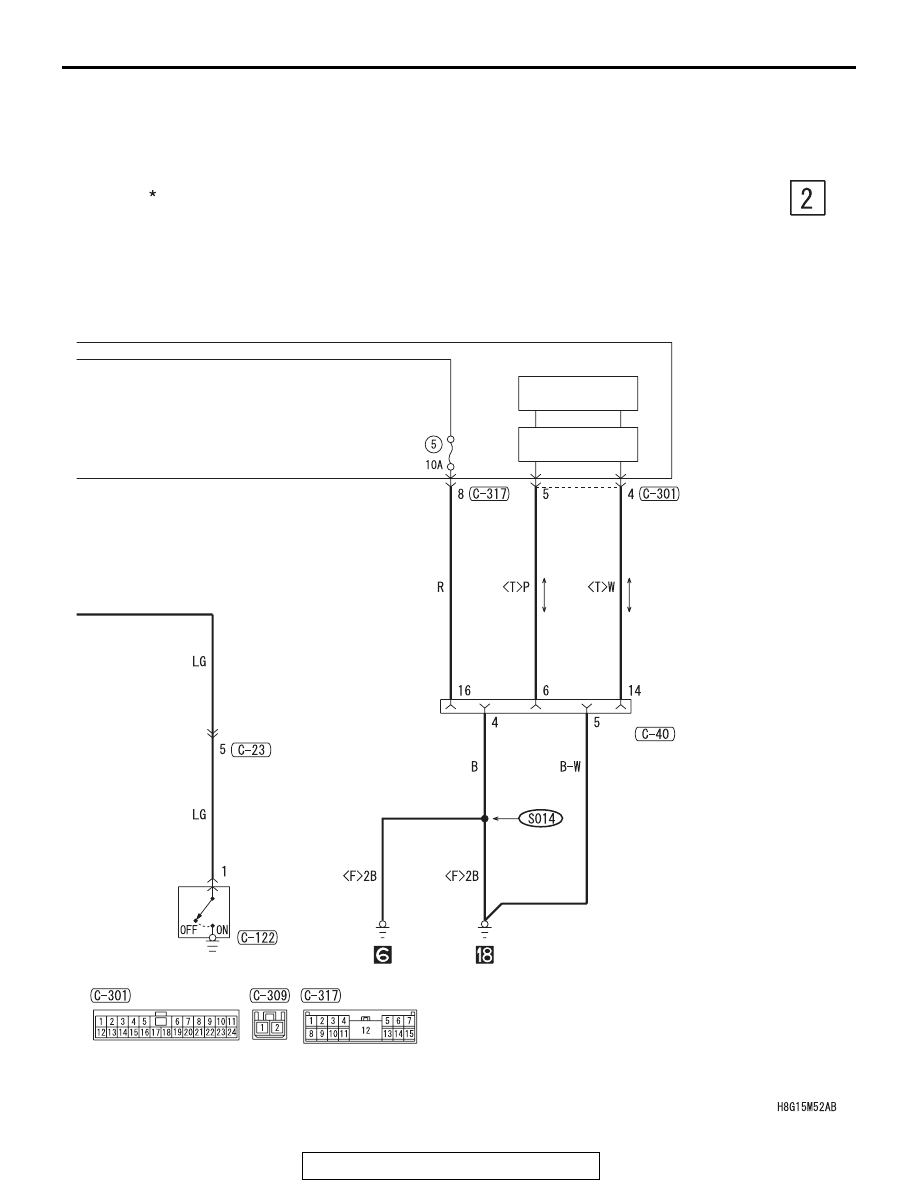

CIRCUIT DIAGRAMS
90-345
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE SI : SILVER
INTERFACE
CIRCUIT
CAN DRIVE
CIRCUIT
DATA LINK
CONNECTOR
PARKING
BRAKE
SWITCH
·ABS, ASC, ACD,
AYC AND S-AWC
·AIR CONDITIONING
SYSTEM
·CENTRAL DOOR
LOCKING SYSTEM
·DAYTIME RUNNING
LIGHT (DRL)
·DOME LIGHT, LUGGAGE
COMPARTMENT LIGHT
AND IGNITION KEY HOLE
ILLUMINATION LIGHT
·FOG LIGHT
·SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT,
LICENSE PLATE LIGHT AND
LIGHTING MONITOR TONE ALARM
·TC-SST
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
SYSTEM (TPMS)
·TRUNK LID OPENER
·TURN-SIGNAL LIGHT AND
HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
NOTE
:
·HEADLIGHT
·HEATED SEAT
·IGNITION KEY REMINDER
TONE ALARM
·IMMOBILIZER SYSTEM
·KEYLESS OPERATING
SYSTEM (KOS)
·REAR WINDOW DEFOGGER
·SEAT BELT WARNING
TONE ALARM
·SHIFT LOCK MECHANISM
·SUNROOF
