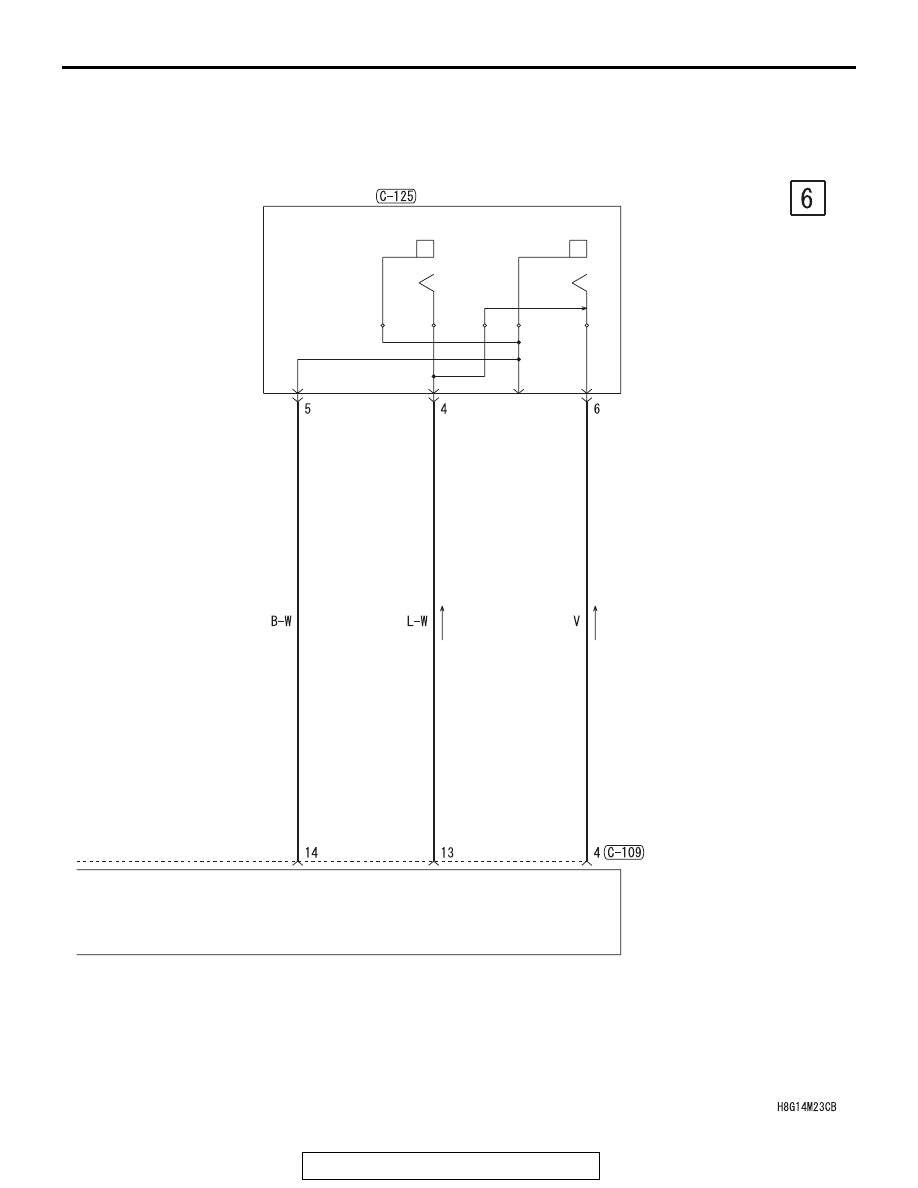

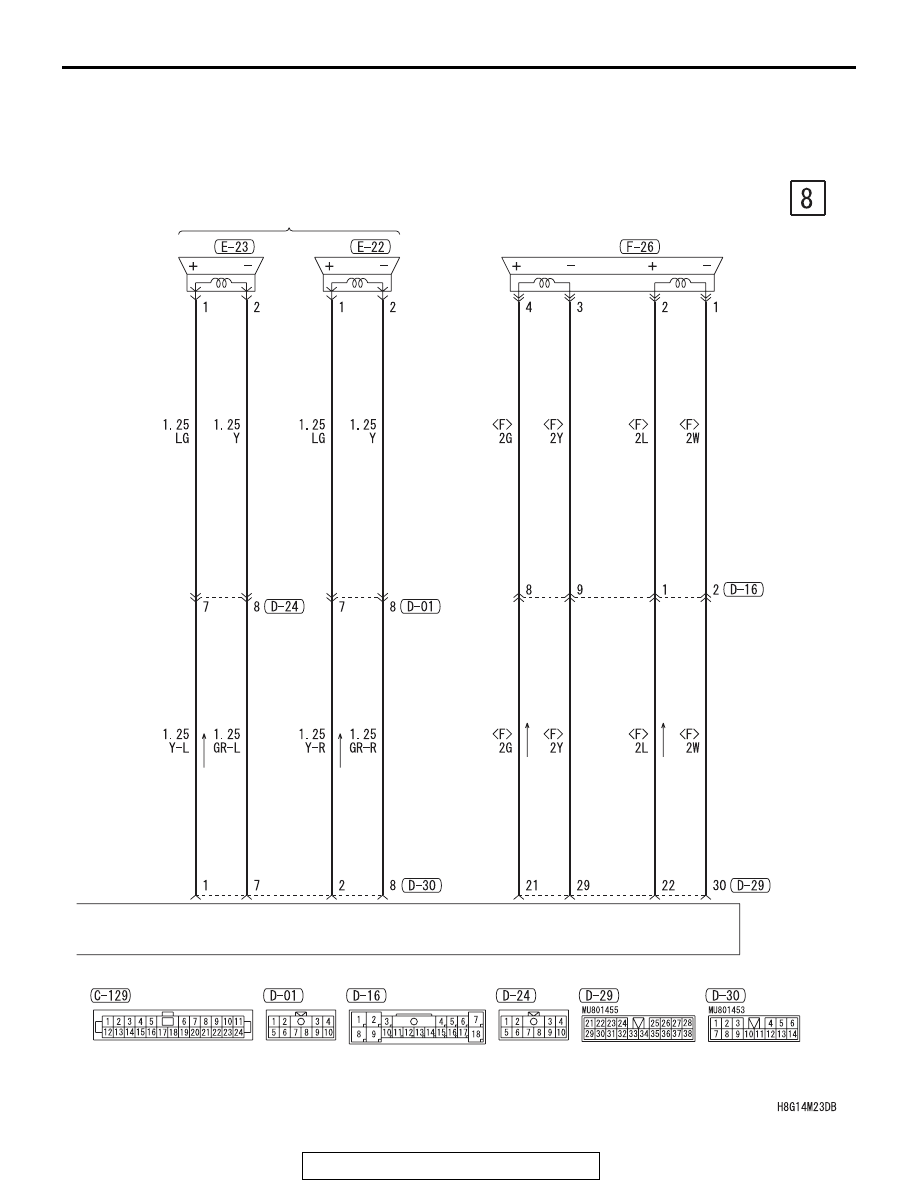

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-221

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

AUDIO ADPTER

AUDIO
L (MONO)

AUDIO
R

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-222

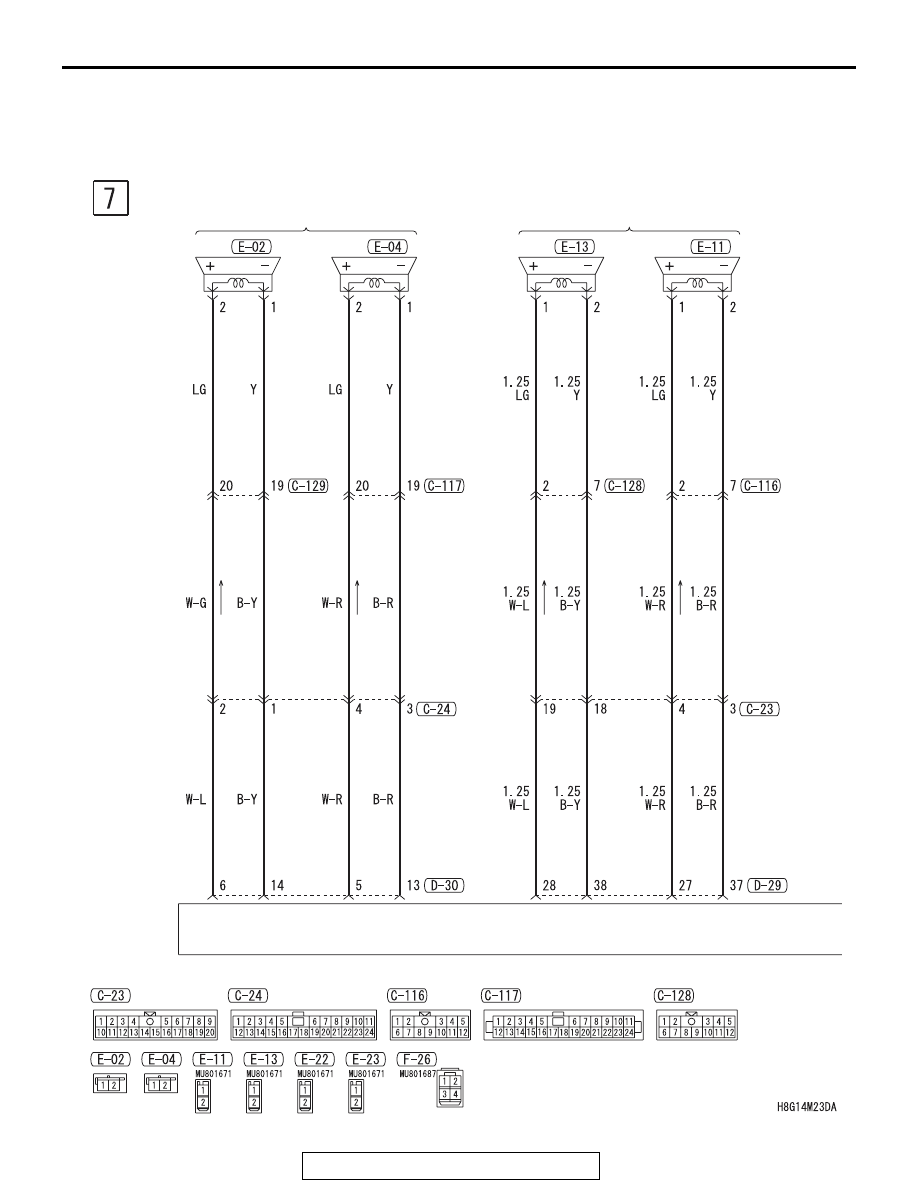

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER> (CONTINUED)

AUDIO AMPLIFIER

TWEETER

FRONT DOOR SPEAKER

(LH)

(LH)

(RH)

(RH)

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-223

REAR DOOR SPEAKER

SUB WOOFER

(LH)

(RH)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-224

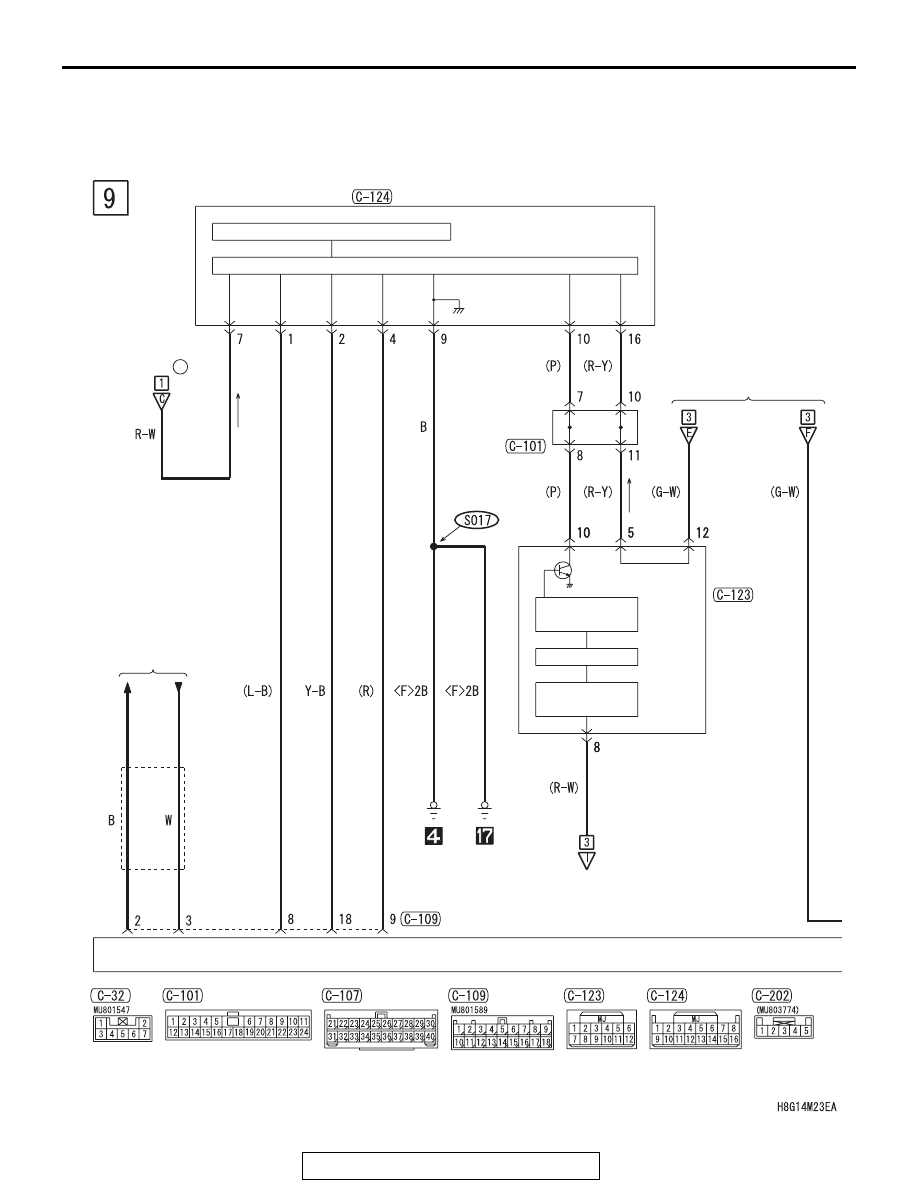

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER> (CONTINUED)

RADIO AND CD PLAYER

ETACS-ECU

(FUSE    )

7

CENTER PANEL UNIT

LCD PANEL (AUDIO, CLOCK)

AUDIO SWITCH PANEL

COMBINATION
METER

A/C
CONTROL
PANEL

JOINT
CONNECTOR
(1)

INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

CPU

HANDS FREE
SYSTEM
