Mitsubishi Evolution X. Manual - part 1203

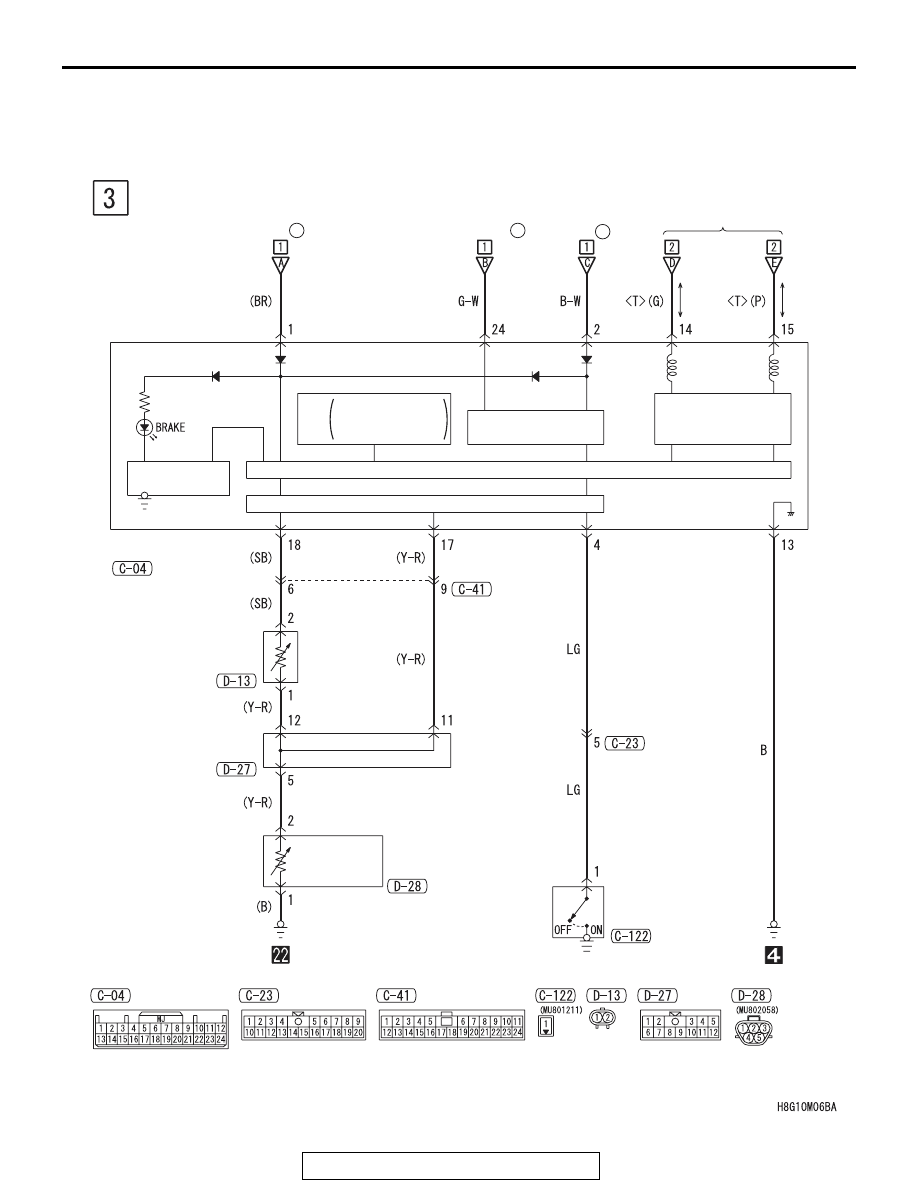

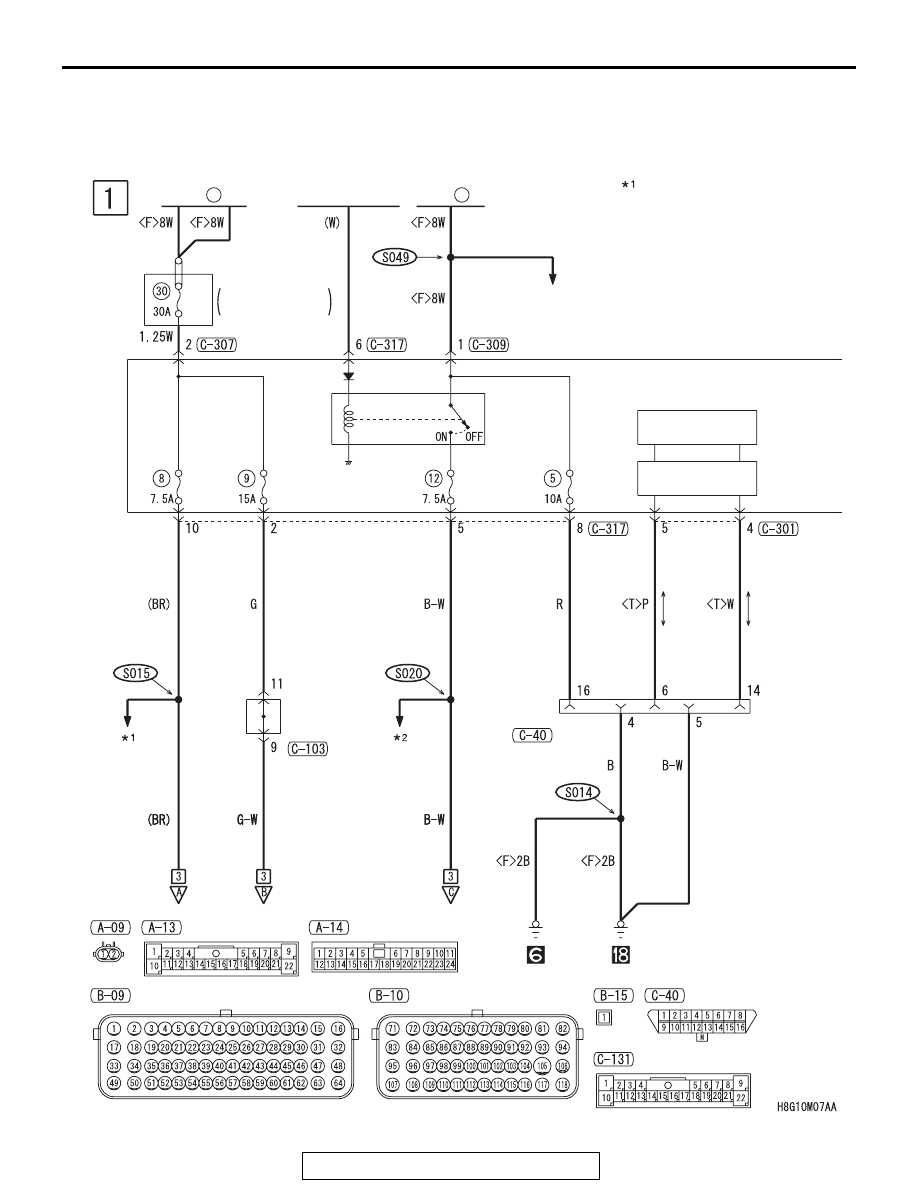

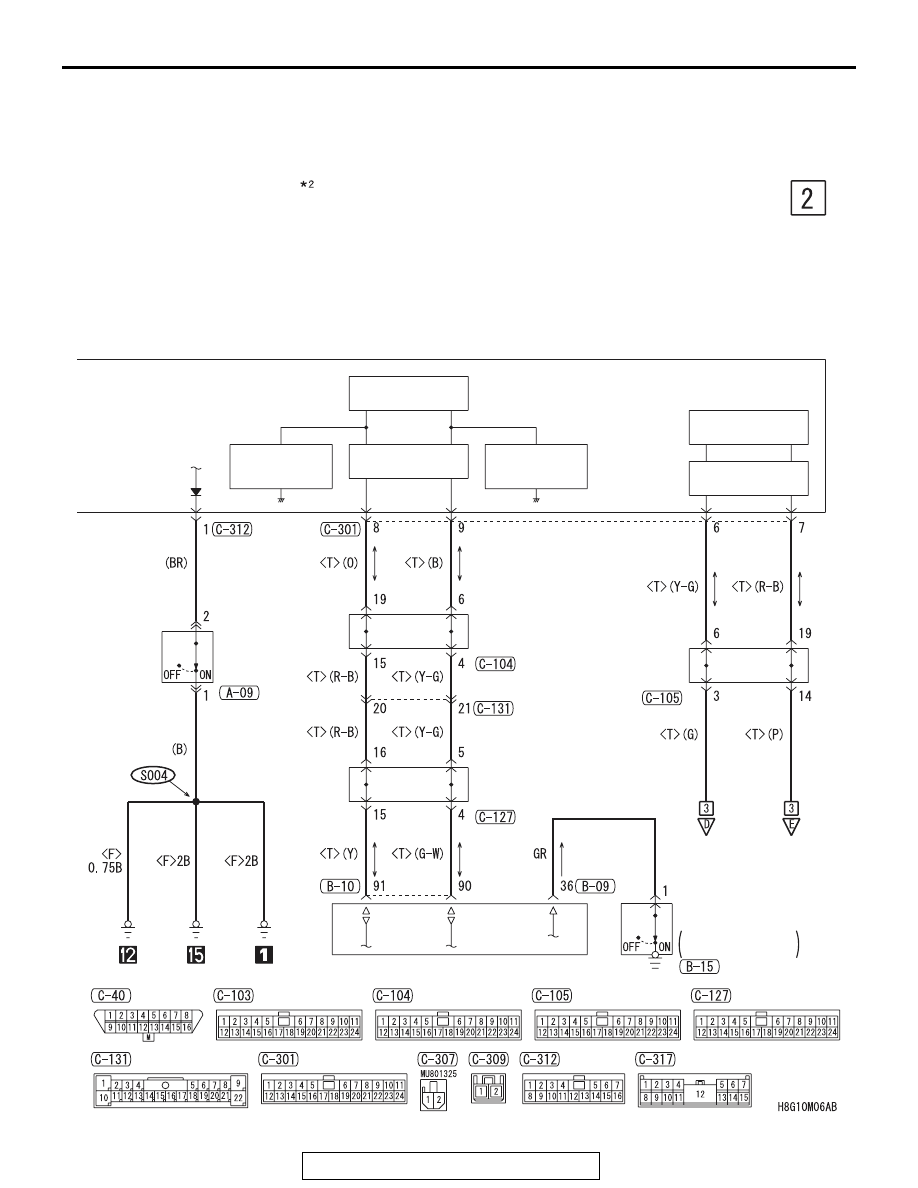

BRAKE WARNING LIGHT, FUEL WARNING LIGHT AND OIL PRESSURE WARNING LIGHT <M/T>
TSB Revision
CIRCUIT DIAGRAMS
90-149
INTERFACE
CIRCUIT
CAN DRIVE
CIRCUIT
INTERFACE
CIRCUIT
CAN DRIVE
CIRCUIT
ETACS-ECU
ANALOG
INTERFACE
CIRCUIT
ANALOG
INTERFACE
CIRCUIT
FRONT SIDE
BRAKE
FLUID
LEVEL
SWITCH
ENGINE CONTROL MODULE
:
JOINT
CONNECTOR
(CAN1)
JOINT
CONNECTOR
(CAN2)
JOINT
CONNECTOR
(CAN3)
ENGINE OIL
PRESSURE SWITCH
LOW ENGINE OIL
PRESSURE: ON
·ABS, ASC, ACD, AYC AND S-AWC
·AIR CONDITIONING SYSTEM
·CENTRAL DOOR LOCKING SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOME LIGHT, LUGGAGE
COMPARTMENT LIGHT
AND IGNITION KEY HOLE
ILLUMINATION LIGHT
·FOG LIGHT
·HEADLIGHT
·HEATED SEAT
·IGNITION KEY REMINDER TONE
ALARM
·IMMOBILIZER SYSTEM
·KEYLESS OPERATING SYSTEM
(KOS)
·REAR WINDOW DEFOGGER
·SEAT BELT WARNING TONE ALARM
·SUNROOF
·SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT,
LICENSE PLATE LIGHT AND
LIGHTING MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
SYSTEM (TPMS)
·TRUNK LID OPENER
·TURN-SIGNAL LIGHT AND
HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
·KEYLESS OPERATION SYSTEM
(KOS)
·TAILLIGHT, POSITION LIGHT,
LICENSE PLATE LIGHT
AND LIGHTING MONITOR
TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
SYSTEM (TPMS)
·TRUNK LID OPENER
·TURN-SIGNAL LIGHT AND
HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
