MFI SYSTEM <M/T>

TSB Revision

CIRCUIT DIAGRAMS

90-61

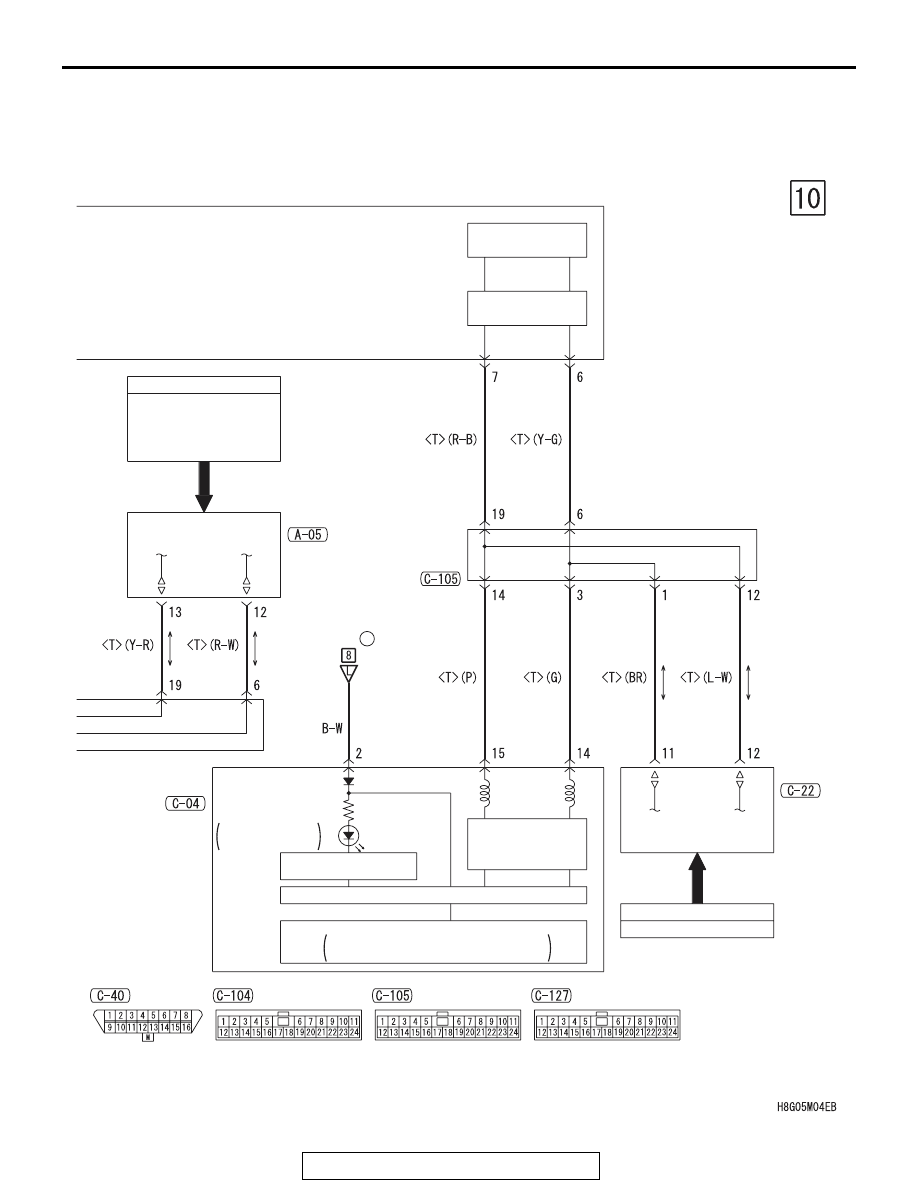

MALFUNCTION INDICATOR LIGHT
(SERVICE ENGINE SOON)

CAN DRIVE
CIRCUIT

CAN
TRANSCEIVER
CIRCUIT

LED DRIVE
CIRCUIT

INTERFACE
CIRCUIT

COMBINATION
METER

12

(FUSE     )

ETACS-ECU

CPU

LCD

INPUT SIGNAL

A/C SWITCH

A/C-ECU

ASC-ECU

FRONT SIDE

JOINT
CONNECTOR
(CAN1)

MALFUNCTION
INDICATOR
LIGHT
SERVICE
ENGINE SOON

INPUT SIGNAL

·FRONT WHEEL
 SPEED SENSOR
·REAR WHEEL
 SPEED SENSOR

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

MFI SYSTEM <M/T>

TSB Revision

CIRCUIT DIAGRAMS

90-62

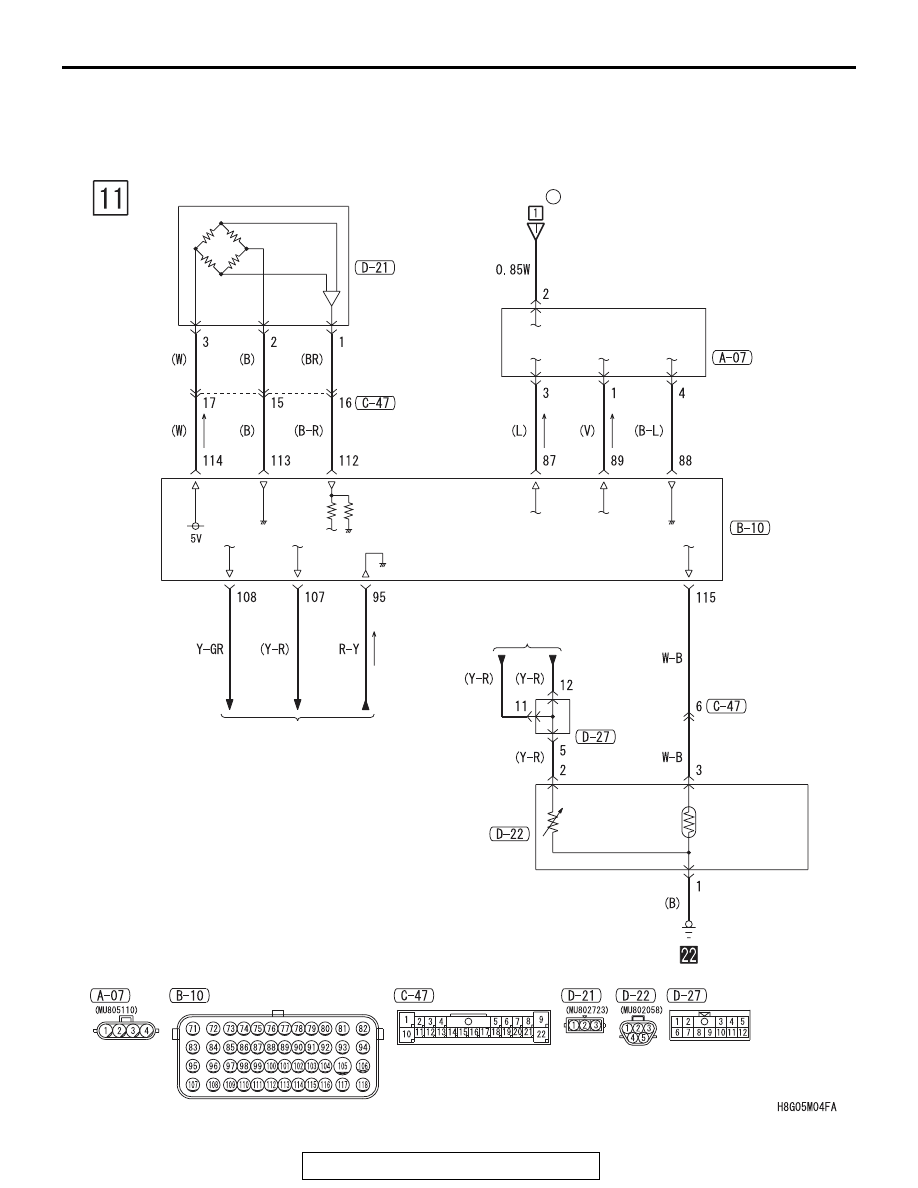

MFI SYSTEM <M/T> (CONTINUED)

MASS
AIRFLOW
SENSOR

FUEL TANK
DIFFERENTIAL
PRESSURE
SENSOR

RELAY BOX

(FUSE     )

22

ENGINE
CONTROL
MODULE

·BRAKE WARNING LIGHT,
 FUEL WARNING LIGHT AND
 OIL PRESSURE WARNING LIGHT

·METER AND GAUGE

FUEL
PUMP
MODULE

FUEL LEVEL
SENSOR

FUEL TANK
TEMPERATURE
SENSOR

JOINT
CONNECTOR (5)

AUTO-CRUISE
CONTROL SYSTEM

MFI SYSTEM <M/T>

TSB Revision

CIRCUIT DIAGRAMS

90-63

NOTES

MFI SYSTEM <TC-SST>

TSB Revision

CIRCUIT DIAGRAMS

90-64

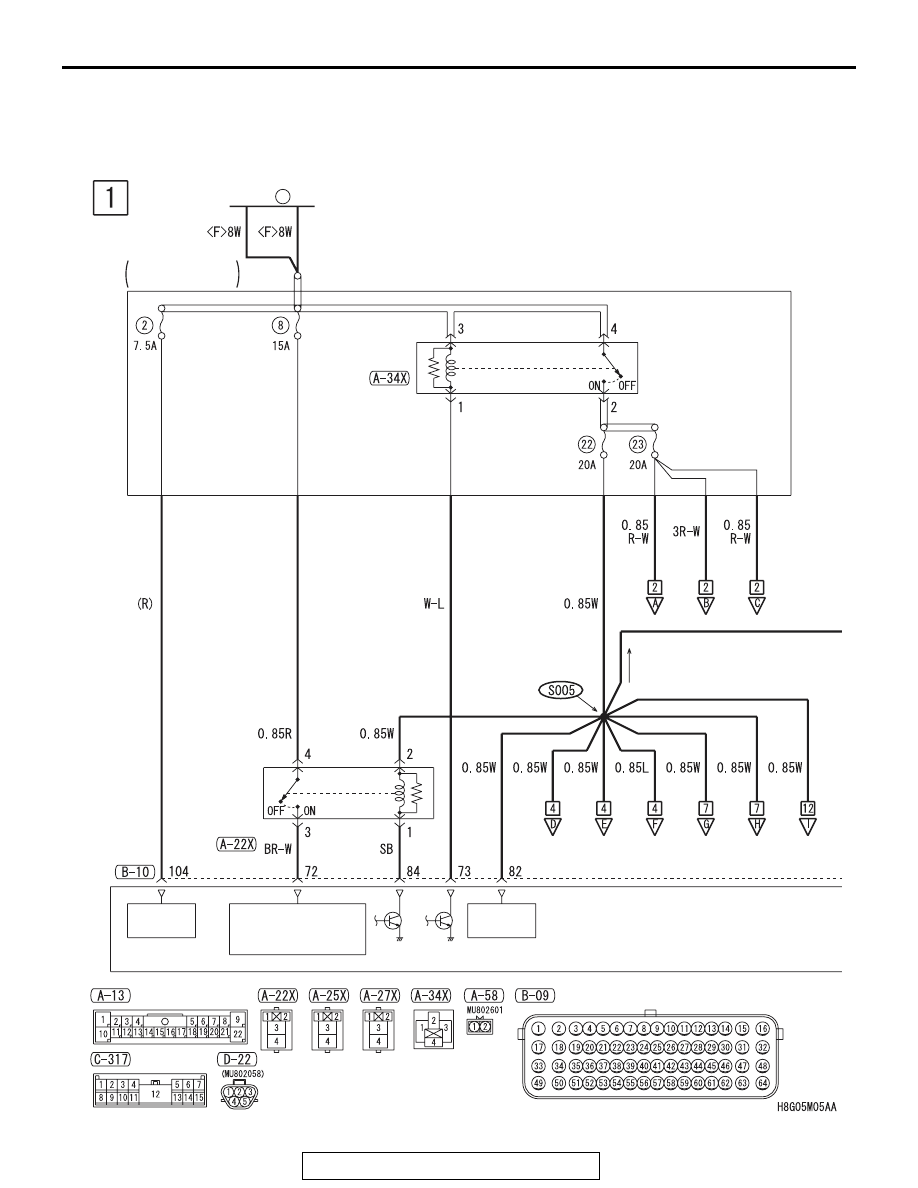

MFI SYSTEM  <TC-SST>

M1901000806626

FUSIBLE
LINK

36

BATTERY
BACKUP

MFI
RELAY

THROTTLE VALVE
DRIVE POWER
SUPPLY

ENGINE
COMPARTMENT

RELAY BOX

ENGINE CONTROL MODULE

POWER
SUPPLY

THROTTLE
ACTUATOR
CONTROL
MOTOR
RELAY
