Mitsubishi Evolution X. Manual - part 1138

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-187

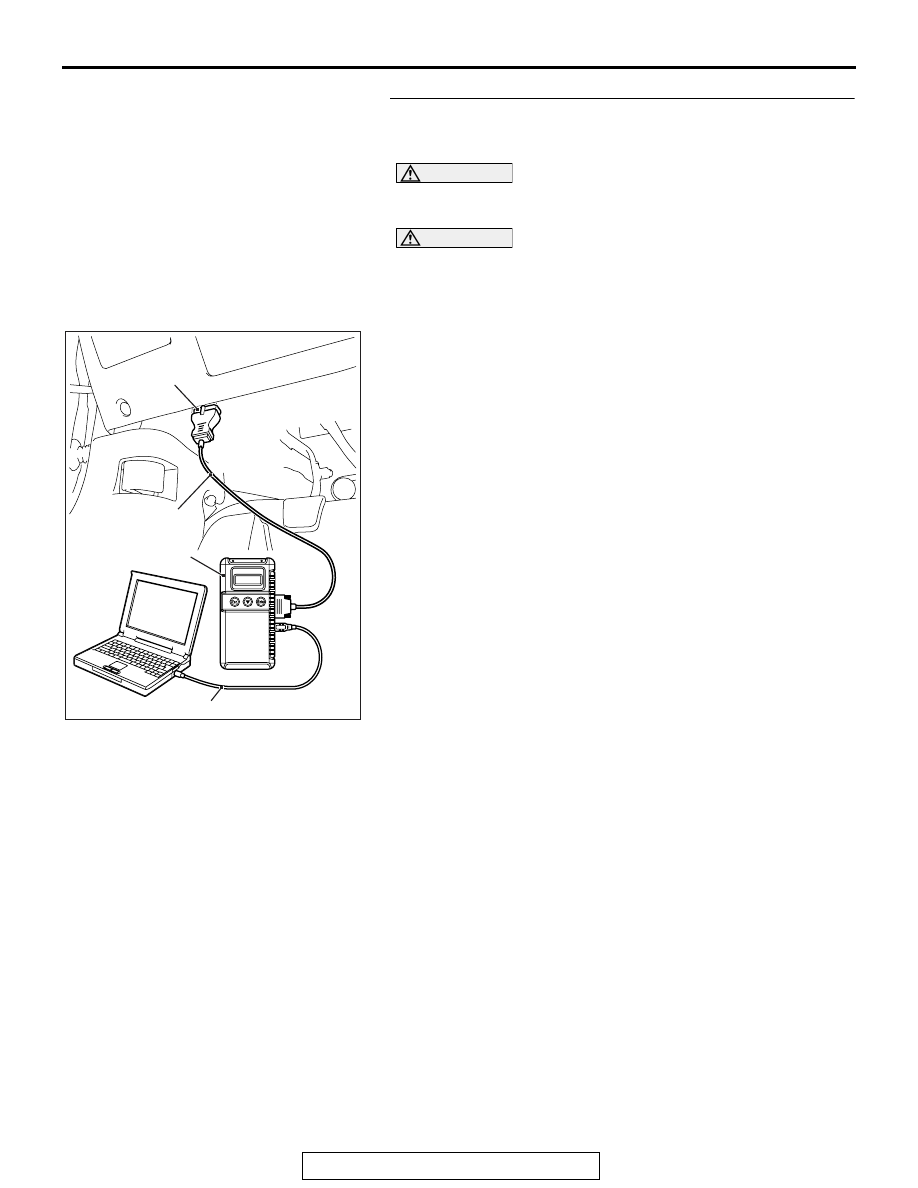

STEP 33. Using scan tool MB991958, diagnose the CAN
bus line. (checking the satellite radio tuner for internal
failure)

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-7

.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Disconnect satellite radio tuner connector C-18.
(2) Connect scan tool MB991958 to the data link connector.
(3) Turn the ignition switch to the "ON" position.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-188

(4) Diagnose CAN bus lines, and check if the scan tool

MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as
shown in the figure.

Q: Does scan tool MB991958 screen correspond to the

illustration?
YES : Repair the wiring harness between joint connector

(CAN1) C-105 and satellite radio tuner connector
C-18.

NO :  Check satellite radio tuner connector C-18, and repair

if necessary. If the satellite radio tuner connector is in
good condition, replace the satellite radio tuner.

AC709542 AD

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

ASC

ENGINE

ETACS

<M/T>

SAS

S-AWC

J/C (1)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

AC709543 AD

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

ASC

LEVER

ETACS

<TC-SST>

SAS

S-AWC

J/C (4)

TC-SST

ENGINE

J/C (1)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-189

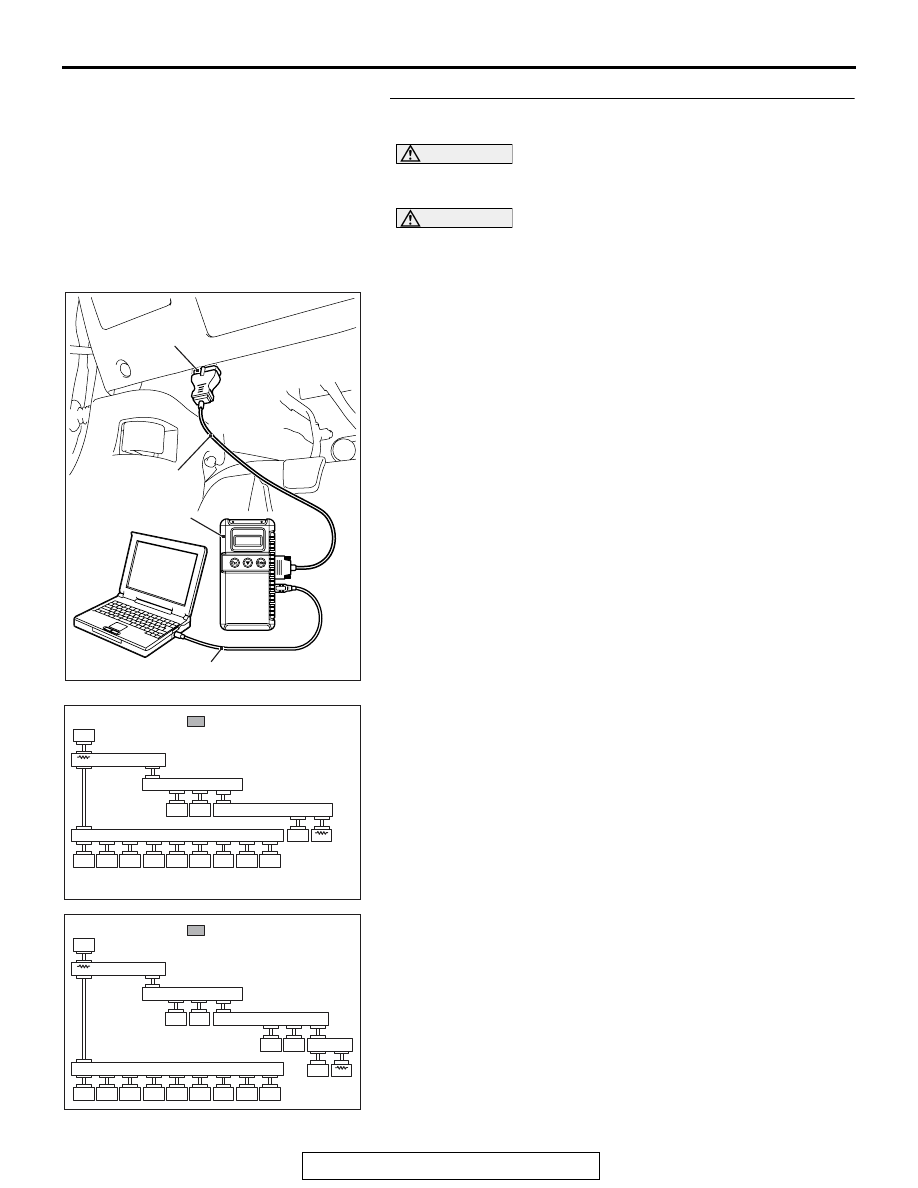

STEP 34. Using scan tool MB991958, diagnose the CAN
bus line. (trouble symptom check)

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-7

.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.

(3) Diagnose CAN bus lines, and check if the scan tool

MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as
shown in the figure.

Q: Does scan tool MB991958 screen correspond to the

illustration?
YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

NO :  Check the ETACS-ECU connector C-301, and repair

if necessary. If the ETACS-ECU connector is in good
condition, replace the ETACS-ECU.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

AC709542 AB

: Red section on screen

M.U.T.

J/C (3)

SAS

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

ENGINE

J/C (1)

ETACS

<M/T>

S-AWC

AC709543 AB

: Red section on screen

M.U.T.

J/C (3)

SAS

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

LEVER

ENGINE

J/C (1)

ETACS

<TC-SST>

S-AWC

TC-SST

J/C (4)

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-190

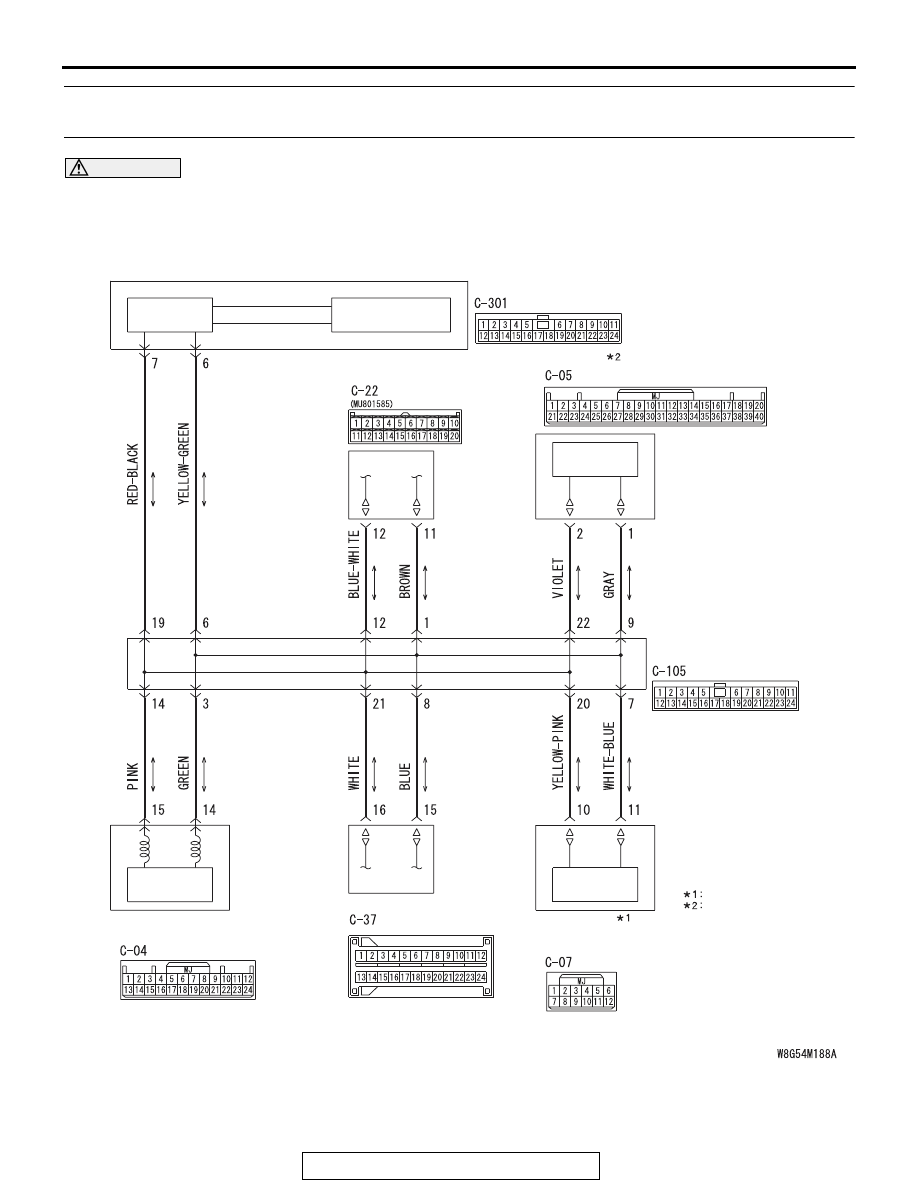

DIAGNOSTIC ITEM 26: Diagnose the ETACS-ECU, joint connector (CAN1) or lines between
ETACS-ECU and joint connector (CAN1).

CAUTION

When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted
water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

CAN-B Communication Circuit

ETACS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

A/C-ECU

COMBINATION
METER

SRS-ECU

WIRELESS
CONTROL
MODULE

KOS-ECU

NOTE

VEHICLES WITH WCM
VEHICLES WITH KOS

CAN DRIVE
CIRCUIT

CAN DRIVE
CIRCUIT

CAN DRIVE
CIRCUIT

JOINT CONNECTOR
(CAN1)
