Mitsubishi Evolution X. Manual - part 1111





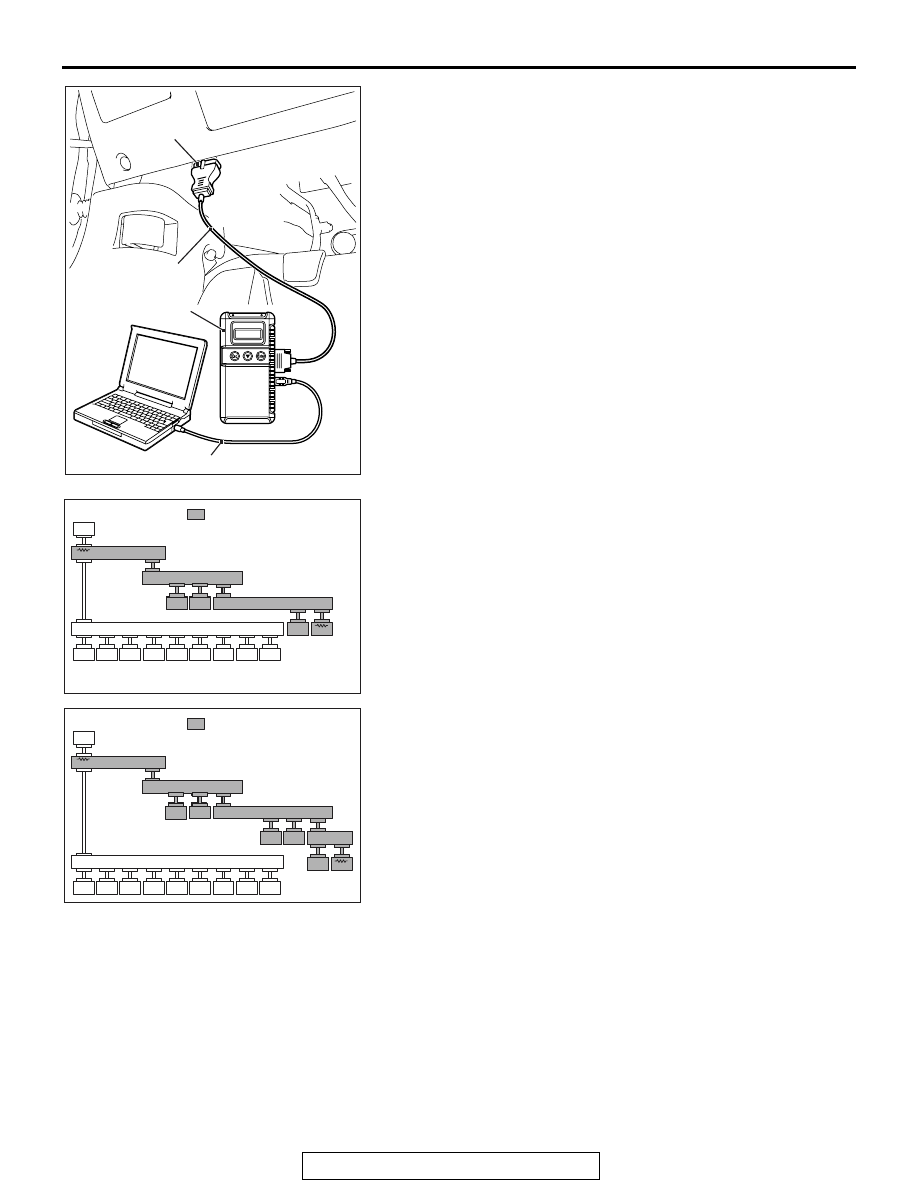

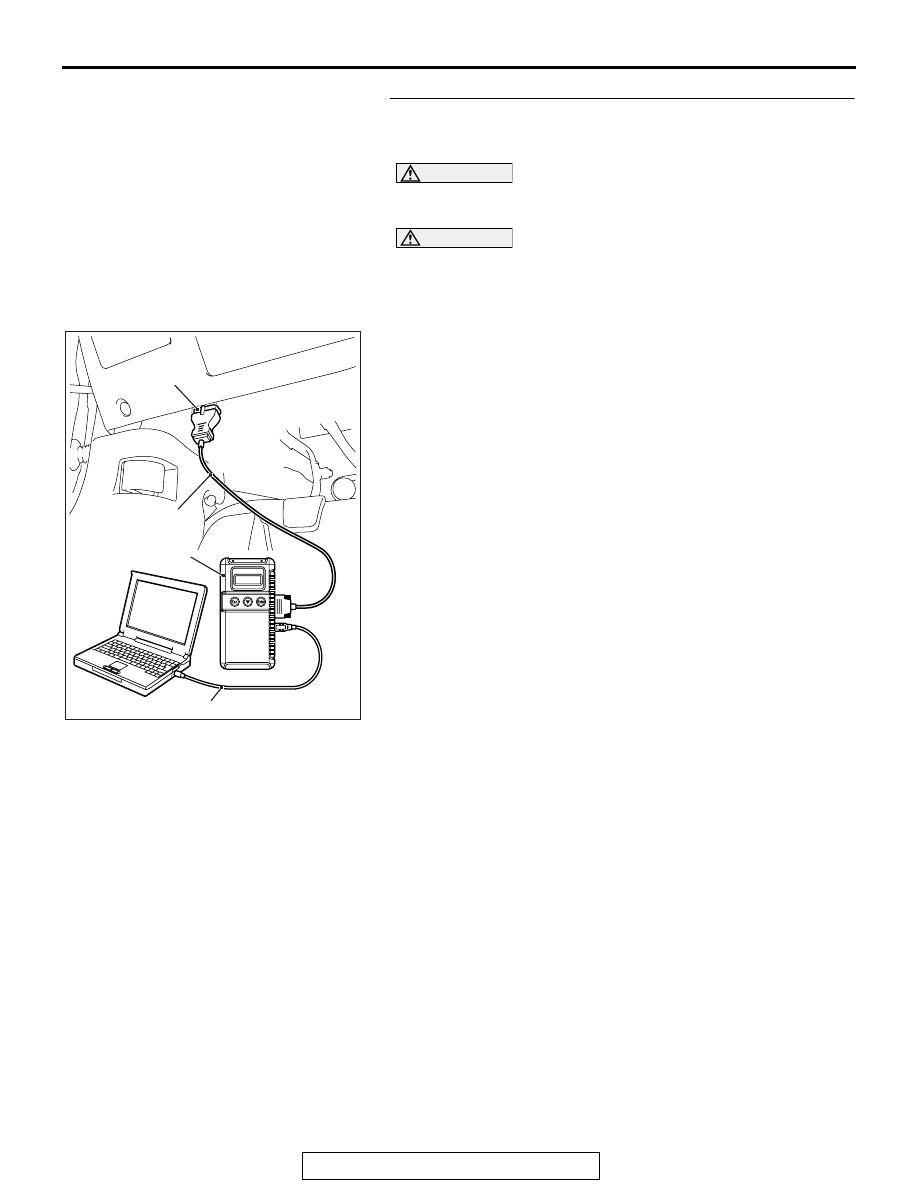

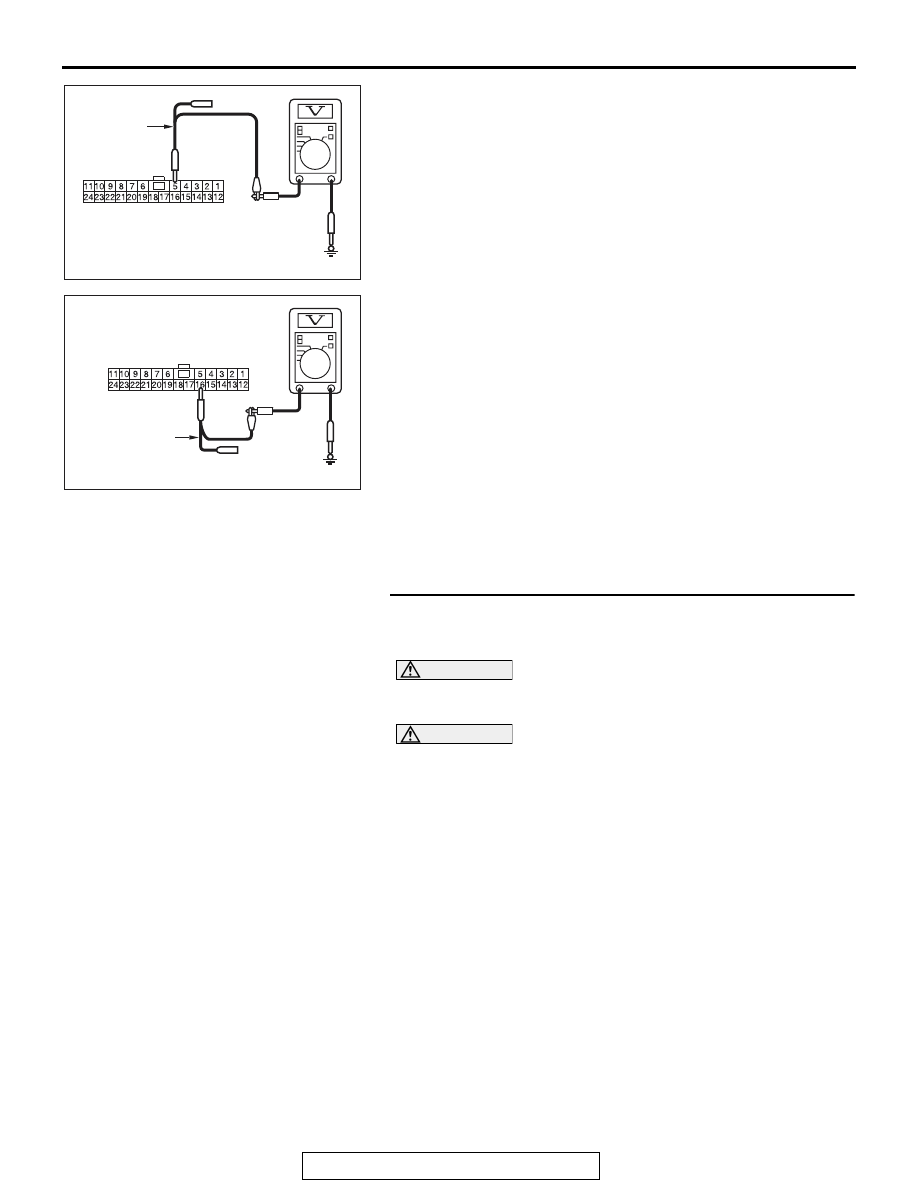

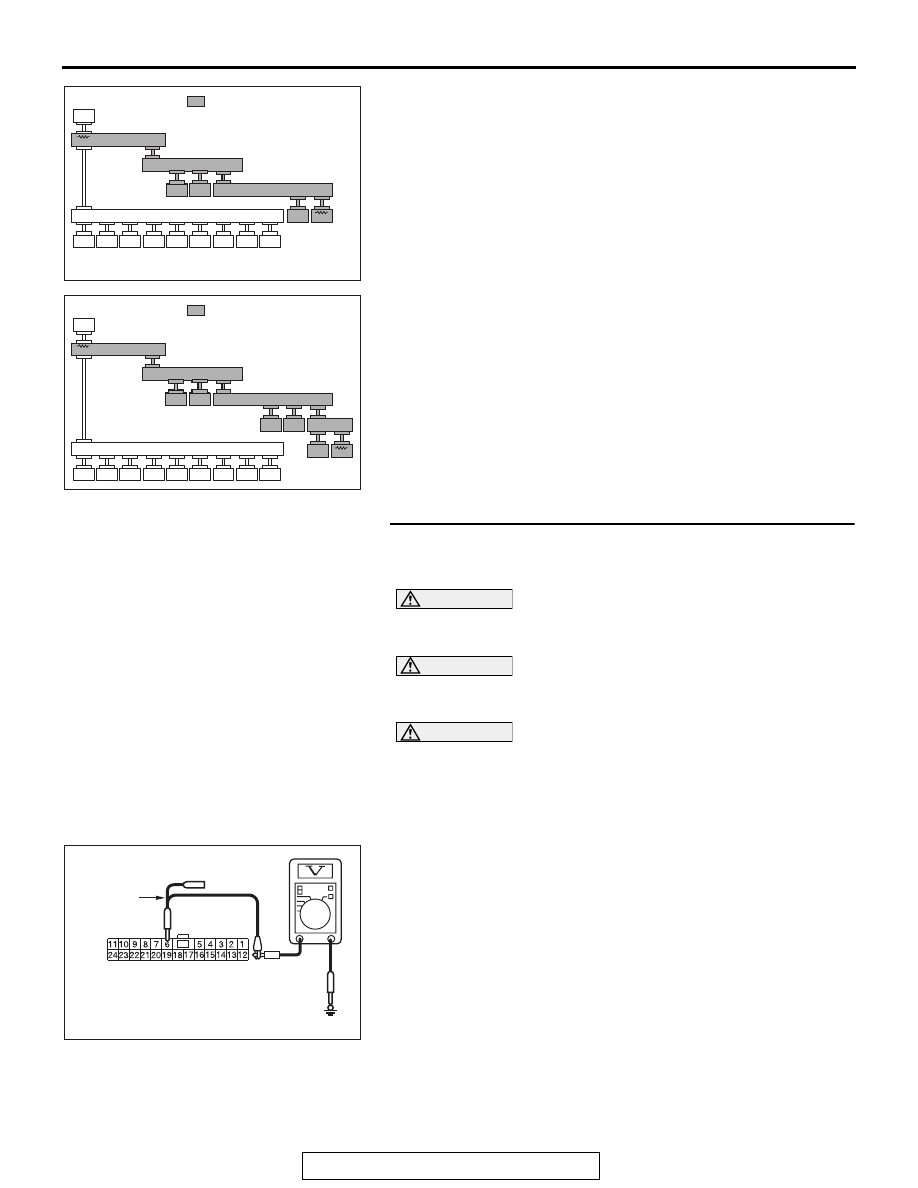

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-79

(3) Measure the voltage between joint connector (CAN3)

terminal 5 and body ground.

OK: 4.7 volts or less

(4) Measure the voltage between joint connector (CAN3)

terminal 16 and body ground.

OK: 4.7 volts or less

Q: Do all the voltages measure 4.7 volts or less?

YES : Check intermediate connector A-13, and repair if

necessary. If the intermediate connector is in good
condition, repair the wiring harness between joint
connector (CAN3) C-127 and joint connector (CAN4)
A-14.

NO :  Check intermediate connector C-131, and repair if

necessary. If the intermediate connector is in good
condition, repair the wiring harness between joint
connector (CAN3) C-127 and joint connector (CAN2)
C-104.

STEP 10. Using scan tool MB991958, diagnose the CAN
bus line. (checking the steering wheel sensor for internal
short to ground)

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-7

.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Disconnect ETACS-ECU connector C-301.

AC709708

TEST
HARNESS

Harness side: C-127

AT

AC709708

Harness side: C-127

AU

TEST
HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-80

(2) Connect scan tool MB991958 to the data link connector.
(3) Turn the ignition switch to the "ON" position.

(4) Diagnose CAN bus lines, and check if the scan tool

MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as
shown in the figure.

Q: Does scan tool MB991958 screen correspond to the

illustration?
YES :
Repair the wiring harness between steering wheel

sensor connector C-209 and joint connector (CAN2)
C-104.

NO :  Check steering wheel sensor connector C-209, and

repair if necessary. If the steering wheel sensor
connector is in good condition, replace the steering
wheel sensor.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

AC709542 AC

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

ENGINE

J/C (1)

ETACS

<M/T>

SAS

S-AWC

AC709543 AC

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

LEVER

J/C (1)

ETACS

<TC-SST>

SAS

S-AWC

J/C (4)

TC-SST

ENGINE

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-81

STEP 11. Using scan tool MB991958, diagnose the CAN
bus line. (checking the S-AWC-ECU for internal short to
ground)

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-7

.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Disconnect S-AWC-ECU connector C-46.
(2) Connect scan tool MB991958 to the data link connector.
(3) Turn the ignition switch to the "ON" position.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-82

(4) Diagnose CAN bus lines, and check if the scan tool

MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as
shown in the figure.

Q: Does scan tool MB991958 screen correspond to the

illustration?
YES :
Repair the wiring harness between S-AWC-ECU

connector C-46 and joint connector (CAN2) C-104.

NO :  Check S-AWC-ECU connector C-46, and repair if

necessary. If the S-AWC-ECU connector is in good
condition, replace the S-AWC-ECU.

STEP 12. Check the wiring harness between joint
connector (CAN2) C-104 and ETACS-ECU connector C-301
for short to power supply (voltage measurement).

CAUTION

A digital multimeter should be used. For details refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-7

.

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-7

.

(1) Disconnect ETACS-ECU connector and joint connector

(CAN2), and measure at the wiring harness side.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between joint connector (CAN2)

terminal 6 and body ground.

OK: 4.7 volts or less

AC709542 AC

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

ENGINE

J/C (1)

ETACS

<M/T>

SAS

S-AWC

AC709543 AC

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

LEVER

J/C (1)

ETACS

<TC-SST>

SAS

S-AWC

J/C (4)

TC-SST

ENGINE

AC709708

TEST
HARNESS

Harness side: C-104

AH
