CONTROLLER AREA NETWORK (CAN)

54C-35

.

FUNCTION

If a line-to-line short is present in the CAN-C lines,
this diagnosis result will be set.

.

TROUBLE JUDGEMENT CONDITIONS

If only diagnostic trouble code U0001 is set, the
ETACS-ECU determines that there is a failure.

.

TROUBLESHOOTING HINTS

• Malfunction of the connector (joint connectors or

ECU connectors improperly connected)

• Malfunction of the wiring harness (line-to-line

short in the CAN-C main or sub bus lines)

• Malfunction of the ECU (ECU on CAN-C lines

failed)

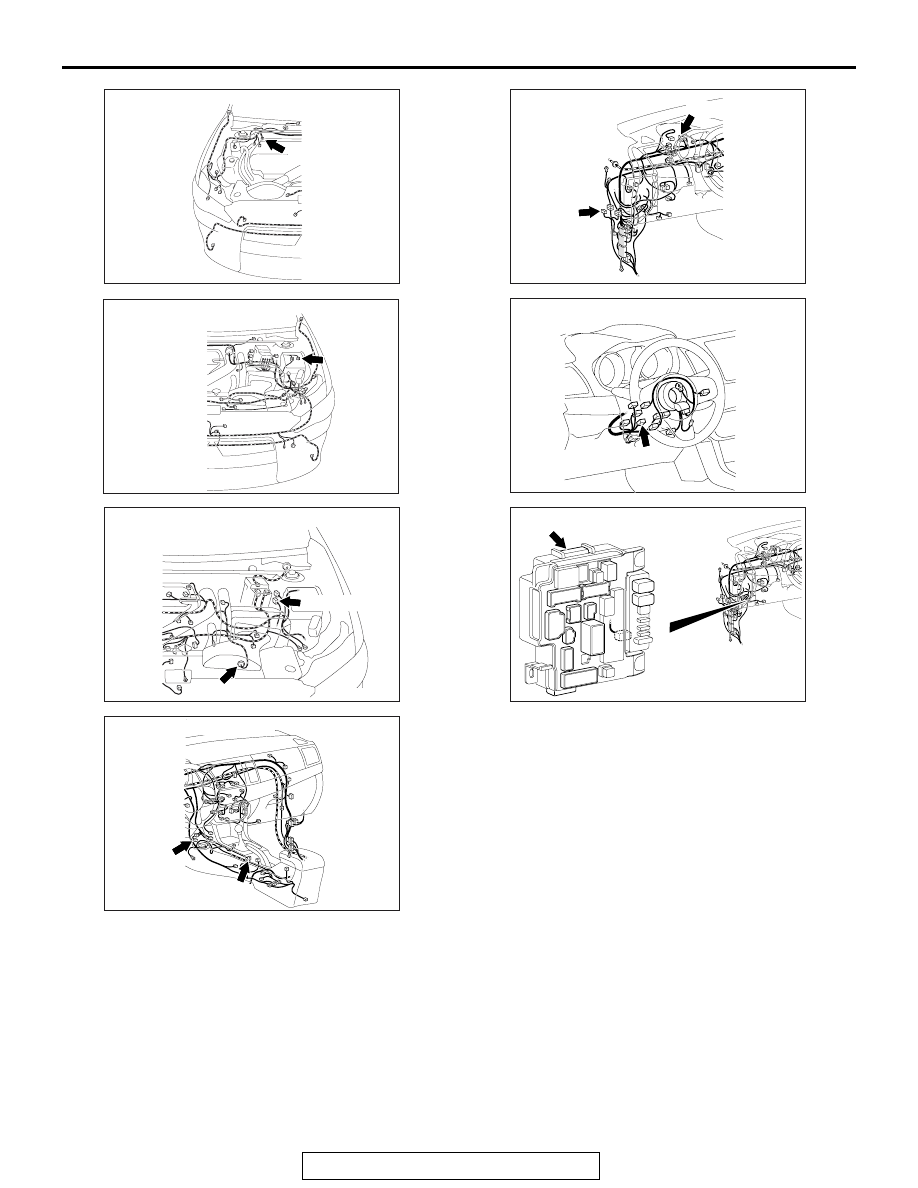

AC708948

Connector: A-05

A-05 (B)

AB

AC708949AM

Connector: A-14

AC709137

Connectors: B-10, B-107

AC

B-10 (GR)

B-107 (B)

AC708951CB

Connectors: C-27, C-127

C-27

C-127

AC708950BU

C-46

C-104

Connectors: C-46, C-104

AC708953AH

Connector: C-209

AC708972AY

Connector: C-301

ETACS-ECU

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-36

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

• MB992110: Power plant ECU check harness

• MB991997: ASC Check Harness

STEP 1. Check joint connector (CAN2) C-104, joint
connector (CAN3) C-127 and joint connector (CAN4) A-14
<TC-SST> for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-7

.

Q: Are joint connector (CAN2) C-104, joint connector

(CAN3) C-127 and joint connector (CAN4) A-14 in good
condition?
YES : Go to Step 2.
NO :  Repair the damaged parts.

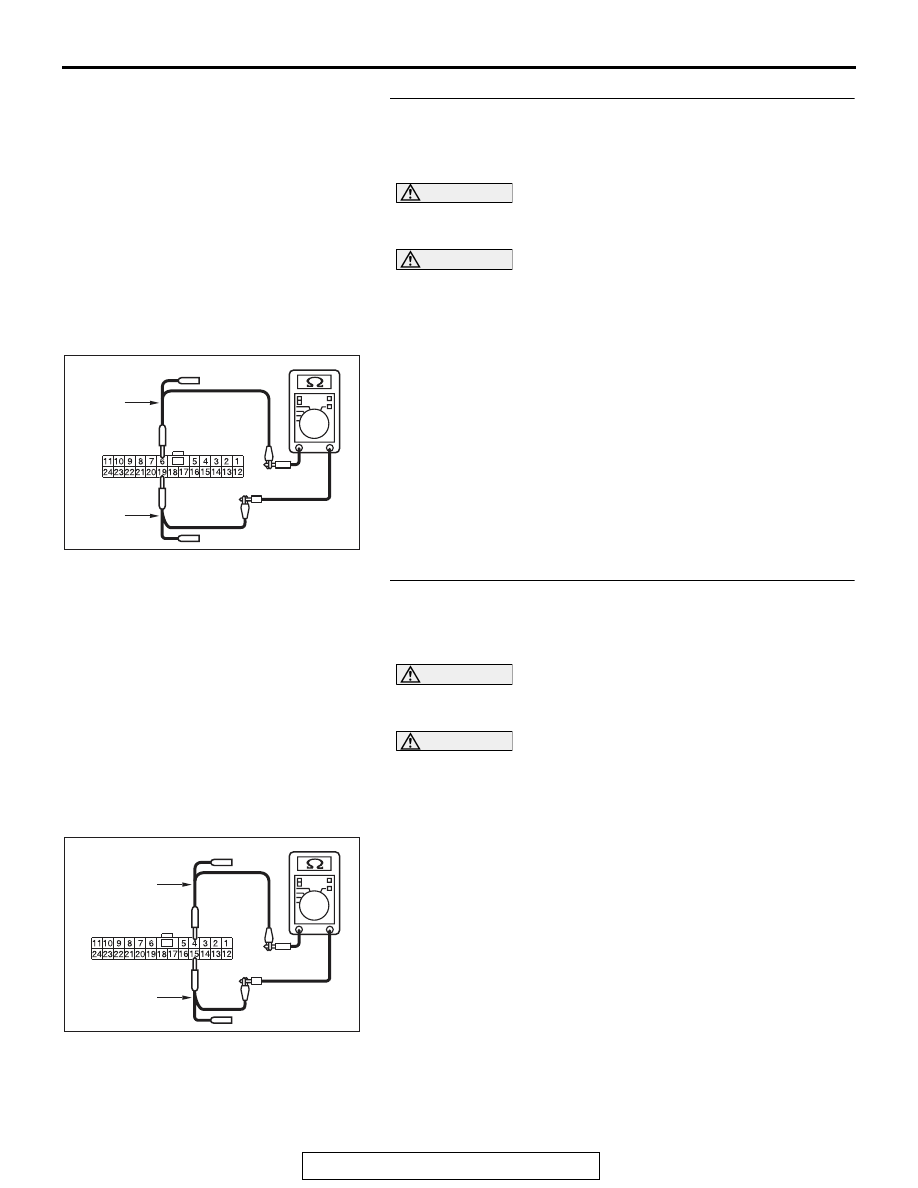

STEP 2. Check the wiring harness between joint connector
(CAN2) C-104 and steering wheel senor connector C-209
for line-to-line short. Measure the resistance at joint
connector (CAN2) C-104.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-7

.

(1) Disconnect joint connector (CAN2), and check that there is

continuity at the harness side of joint connector (CAN2).

(2) Check that there is continuity between joint connector

(CAN2) terminals 7 and 20.

OK: No continuity

Q: Is the check result normal?

YES : Go to Step 3.
NO :  Go to Step 11.

AC709707

Harness side: C-104

AG

TEST
HARNESS

TEST
HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-37

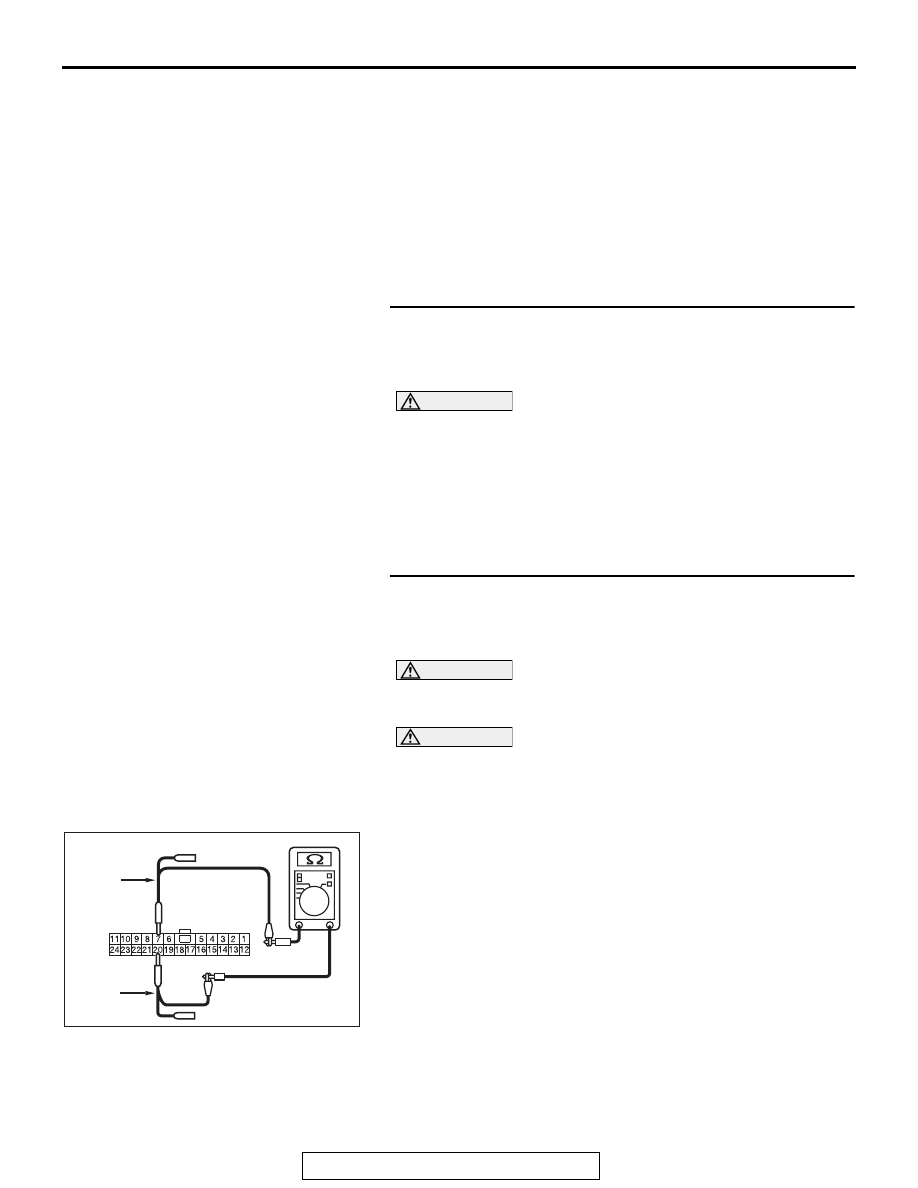

STEP 3. Check the wiring harness between joint connector
(CAN2) C-104 and S-AWC-ECU connector C-46 for
line-to-line short. Measure the resistance at joint
connector (CAN2) C-104.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-7

.

(1) Disconnect joint connector (CAN2), and check that there is

continuity at the harness side of joint connector (CAN2).

(2) Check that there is continuity between joint connector

(CAN2) terminals 5 and 16.

OK: No continuity

Q: Is the check result normal?

YES : Go to Step 4.
NO :  Go to Step 12.

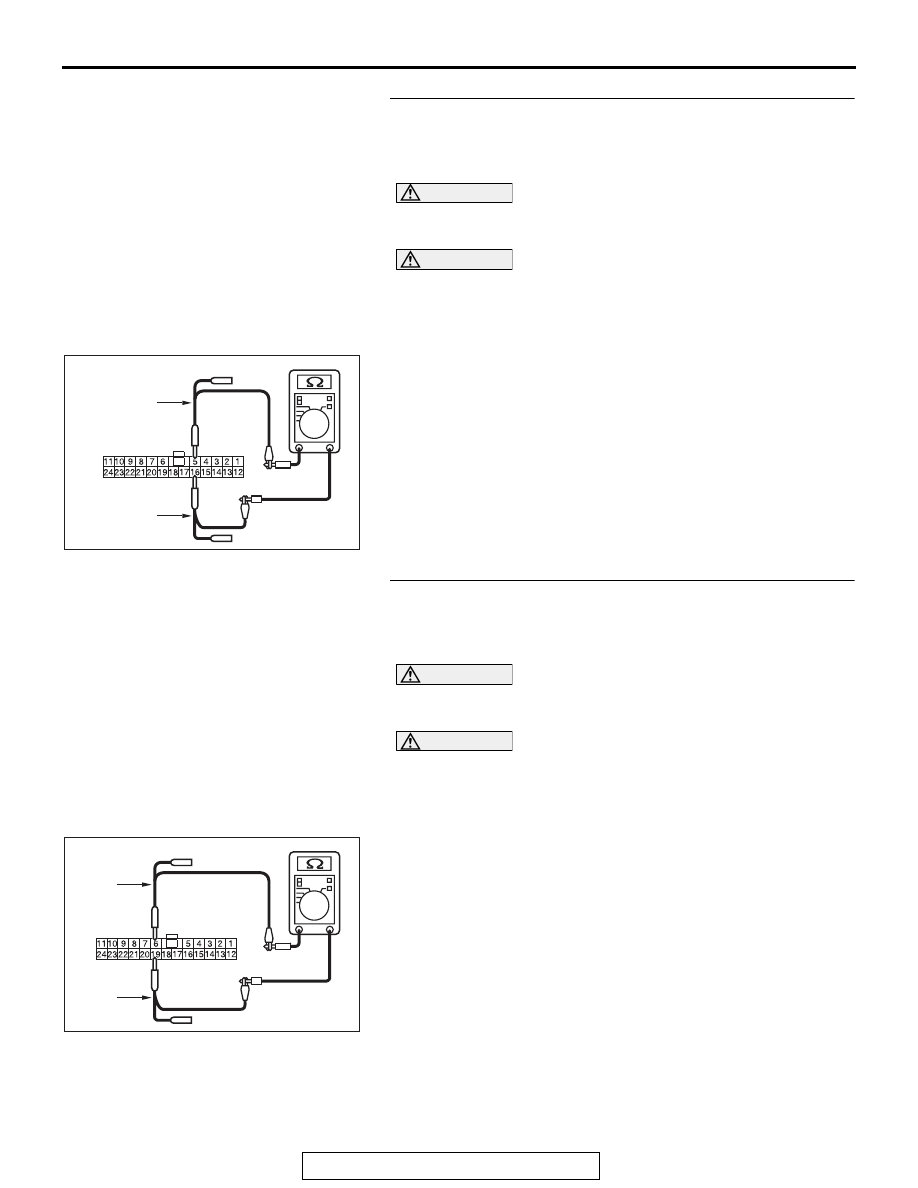

STEP 4. Check the wiring harness between joint connector
(CAN2) C-104 and ETACS-ECU connector C-301 for
line-to-line short. Measure the resistance at joint
connector (CAN2) C-104.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-7

.

(1) Disconnect joint connector (CAN2), and check that there is

continuity at the harness side of joint connector (CAN2).

(2) Check that there is continuity between joint connector

(CAN2) terminals 6 and 19.

OK: No continuity

Q: Is the check result normal?

YES : Go to Step 5.
NO :  Go to Step 13.

AC709707

Harness side: C-104

AH

TEST
HARNESS

TEST
HARNESS

AC709707

Harness side: C-104

AI

TEST
HARNESS

TEST
HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-38

STEP 5. Check the wiring harness between joint connector
(CAN3) C-127 and ASC-ECU connector A-05 for line-to-line
short. Measure the resistance at joint connector (CAN3)
C-127.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-7

.

(1) Disconnect joint connector (CAN3), and check that there is

continuity at the harness side of joint connector (CAN3).

(2) Check that there is continuity between joint connector

(CAN3) terminals 6 and 19.

OK: No continuity

Q: Is the check result normal?

YES <M/T> : Go to Step 6.
YES <TC-SST> : Go to Step 7.
NO  :  Go to Step 14.

STEP 6. Check the wiring harness between joint connector
(CAN3) C-127 and ECM connector B-10 <M/T> for
line-to-line short. Measure the resistance at joint
connector (CAN3) C-127.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-7

.

(1) Disconnect joint connector (CAN3), and check that there is

continuity at the harness side of joint connector (CAN3).

(2) Check that there is continuity between joint connector

(CAN3) terminals 4 and 15.

OK: No continuity

Q: Is the check result normal?

YES : Check intermediate connector C-131, and repair if

necessary. If the intermediate connector is in good
condition, repair the wiring harness between joint
connector (CAN2) C-104 and joint connector (CAN3)
C-127.

NO :  Go to Step 15.
