DIAGNOSIS

TSB Revision

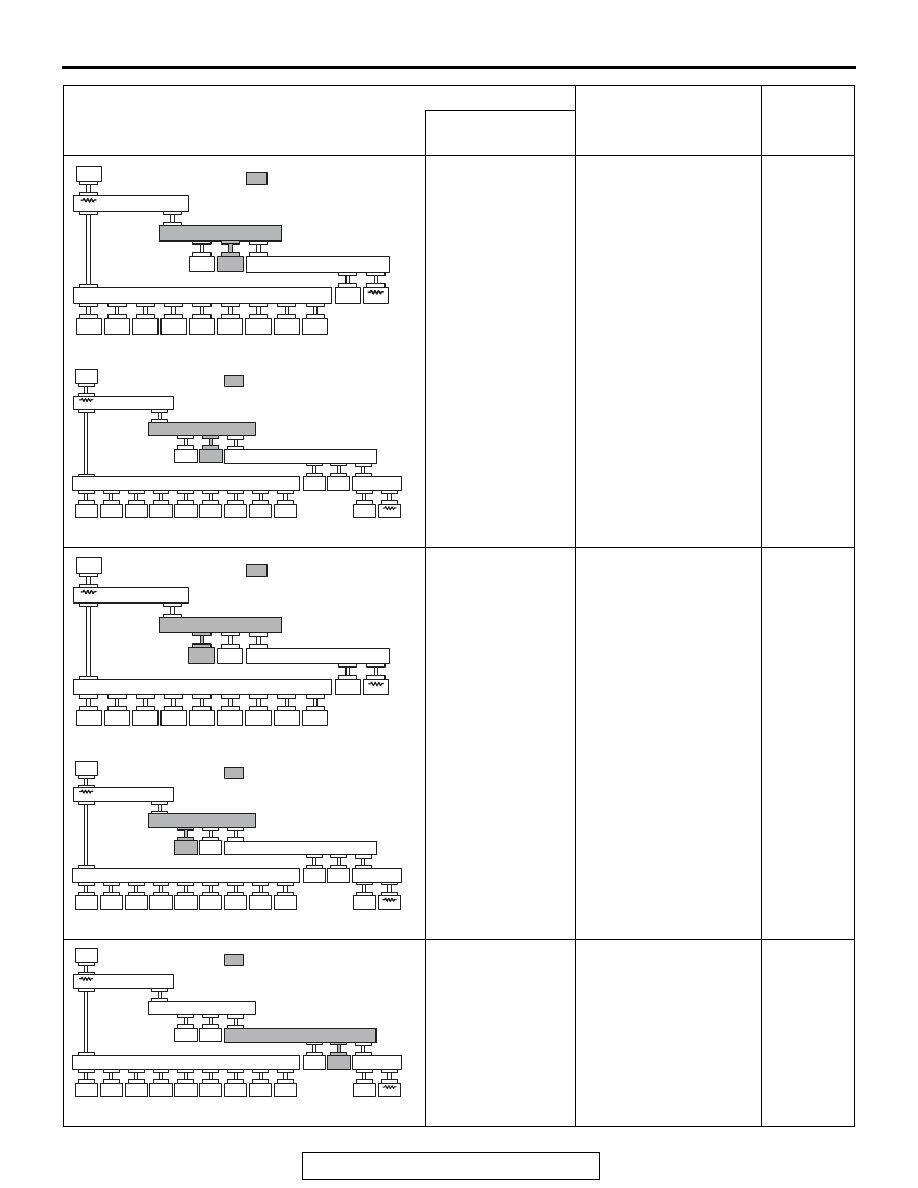

CONTROLLER AREA NETWORK (CAN)

54C-15

Grounding in red
displayed area is
estimated.

Diagnosis Item 2
Malfunction of the
ETACS-ECU.



P.54C-32

CAN-C: A bus-off
failure is present in
the gateway ECU.

Diagnosis Item 3
Abnormal short
between the CAN-C bus
lines.



P.54C-33

CAN-C: Grounding
in red displayed
area is estimated

Diagnosis Item 4
Diagnose shorts in the
ground to CAN-C bus
line.



P.54C-50

CAN-C: Short
circuit to battery in
red displayed area
is estimated

Diagnosis Item 5
Diagnose shorts in the
power supply to CAN-C
bus line.



P.54C-70

Scan tool screen

Diagnosis detail

Reference
page

(The ECUs that are not adopted are not
displayed.)

Comment

AC709520AC

M.U.T.

J/C (3)

SAS

S-AWC

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

ENGINE

J/C (1)

ETACS

: Red section on screen

<M/T>

AC709521

ETACS

AC

M.U.T.

J/C (3)

SAS

S-AWC

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

LEVER

J/C (4)

ENGINE

J/C (1)

: Red section on screen

<TC-SST>

TC-SST

AC709520AD

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<M/T>

ETACS

J/C (2)

J/C (3)

SAS

S-AWC

ASC

ENGINE

AC709521AD

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<TC-SST>

ETACS

J/C (2)

SAS

S-AWC

TC-SST

ENGINE

J/C (3)

ASC

LEVER

J/C (4)

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-16

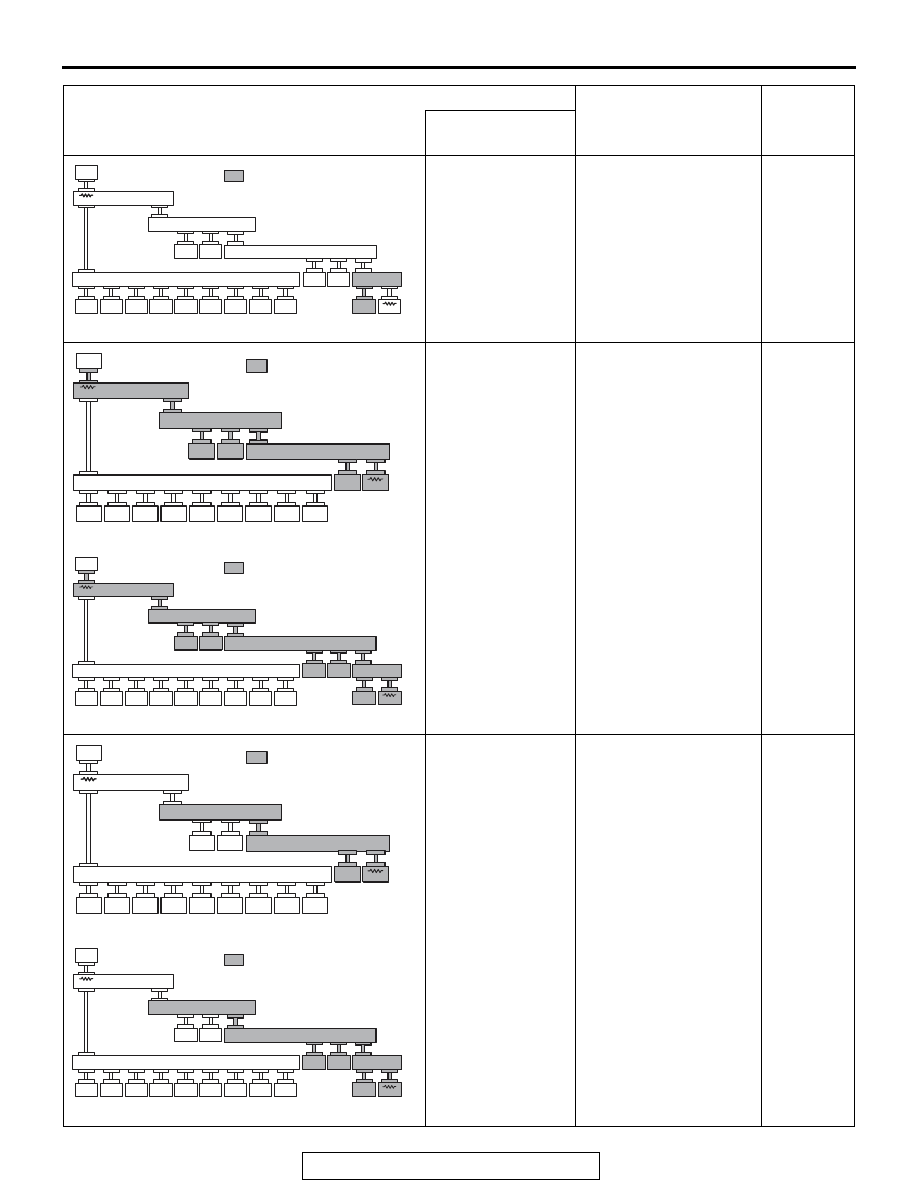

CAN-C:
Disconnection in
red displayed area
is estimated.

Diagnosis Item 6
Diagnose when the
scan tool cannot receive
the data sent by
S-AWC-ECU.



P.54C-89

CAN-C:
Disconnection in
red displayed area
is estimated.

Diagnosis Item 7
Diagnose when the
scan tool cannot receive
the data sent by
steering wheel sensor.



P.54C-93

CAN-C:
Disconnection in
red displayed area
is estimated.

Diagnosis Item 8
Diagnose when the
scan tool cannot receive
the data sent by shift
lever. <TC-SST>



P.54C-97

Scan tool screen

Diagnosis detail

Reference
page

(The ECUs that are not adopted are not
displayed.)

Comment

AC709520AE

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<M/T>

ETACS

J/C (2)

J/C (3)

SAS

S-AWC

ASC

ENGINE

AC709521AE

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<TC-SST>

ETACS

J/C (2)

SAS

S-AWC

TC-SST

ENGINE

J/C (3)

ASC

LEVER

J/C (4)

AC709520AF

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<M/T>

ETACS

J/C (2)

J/C (3)

SAS

S-AWC

ASC

ENGINE

AC709521AF

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<TC-SST>

ETACS

J/C (2)

SAS

S-AWC

TC-SST

ENGINE

J/C (3)

ASC

LEVER

J/C (4)

AC709521AG

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<TC-SST>

ETACS

J/C (2)

SAS

S-AWC

TC-SST

ENGINE

J/C (3)

ASC

LEVER

J/C (4)

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-17

CAN-C:
Disconnection in
red displayed area
is estimated.

Diagnosis Item 9
Diagnose when the
scan tool cannot receive
the data sent by
ASC-ECU.



P.54C-100

CAN-C:
Disconnection in
red displayed area
is estimated.

Diagnosis Item 10
Diagnose when the
scan tool cannot receive
the data sent by ECM.



P.54C-104

Scan tool screen

Diagnosis detail

Reference
page

(The ECUs that are not adopted are not
displayed.)

Comment

AC709520AG

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<M/T>

ETACS

J/C (2)

J/C (3)

SAS

S-AWC

ASC

ENGINE

AC709521AH

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<TC-SST>

ETACS

J/C (2)

SAS

S-AWC

TC-SST

ENGINE

J/C (3)

ASC

LEVER

J/C (4)

AC709520AH

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<M/T>

ETACS

J/C (2)

J/C (3)

SAS

S-AWC

ASC

ENGINE

AC709521AI

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<TC-SST>

ETACS

J/C (2)

SAS

S-AWC

TC-SST

ENGINE

J/C (3)

ASC

LEVER

J/C (4)

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-18

CAN-C:
Disconnection in
red displayed area
is estimated.

Diagnosis Item 11
Diagnose when the
scan tool cannot receive
the data sent by
TC-SST-ECU.
<TC-SST>



P.54C-109

CAN-C:
Disconnection in
red displayed area
is estimated.

Diagnosis Item 12
Diagnose the lines
between the
ETACS-ECU and joint
connector (CAN2).



P.54C-112

CAN-C:
Disconnection in
red displayed area
is estimated.

Diagnosis Item 13
Diagnose the lines
between joint connector
(CAN2) and joint
connector (CAN3).



P.54C-117

Scan tool screen

Diagnosis detail

Reference
page

(The ECUs that are not adopted are not
displayed.)

Comment

AC709521AJ

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<TC-SST>

ETACS

J/C (2)

SAS

S-AWC

TC-SST

ENGINE

J/C (3)

ASC

LEVER

J/C (4)

AC709520AI

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<M/T>

J/C (2)

J/C (3)

SAS

S-AWC

ASC

ENGINE

ETACS

AC709521AK

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<TC-SST>

J/C (2)

SAS

S-AWC

TC-SST

ENGINE

J/C (3)

ASC

LEVER

J/C (4)

ETACS

AC709520AJ

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<M/T>

ETACS

J/C (2)

J/C (3)

SAS

S-AWC

ASC

ENGINE

AC709521AL

M.U.T.

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

J/C (1)

: Red section on screen

<TC-SST>

J/C (2)

SAS

S-AWC

TC-SST

ENGINE

J/C (3)

ASC

LEVER

J/C (4)

ETACS
