CHASSIS ELECTRICAL

54A-673

ON-VEHICLE SERVICE

CUSTOMIZATION FUNCTION

M1545002500331

By operating the ETACS system or MMCS of scan
tool MB991958, the following functions can be pro-
grammed. The programmed information is held even
when the battery is disconnected.

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

ACC power
auto cut

Time to ACC power
cut-off when the
ignition switch is in
the ACC position

Disable

No function (default)

30 min

30 minutes

60 min

60 minutes

Turn power
source

Adjustment of
turn-signal light
operation condition

ACC or IG1

Operable with ACC or ON position

IG1

Operable with ON position (default)

Comfort flasher With/without

comfort flasher
function

Disable

No function

Enable

With function (default)

Comfort flasher
switch time

Switch operation
time to activate the
comfort flasher
function

Normal

0.4 seconds (default)

Long

0.8 seconds

Hazard answer
back

Adjustment of the
number of keyless
hazard warning light
answer back
flashes

Lock:1, Unlock:2

LOCK: Flashes once, UNLOCK: Flashes
twice (default)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Lock:0, Unlock:0

No function

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-674

Front wiper
operation

Adjustment of the
intermittent
windshield wiper
operation <vehicles
without auto light>

Normal INT

Intermittent wiper interval is fixed to 4
seconds.

Variable INT

Intermittent wiper interval is calculated only
by the wiper volume control.

Speed Sensitive

Intermittent wiper interval is calculated
according to the intermittent wiper volume
control and vehicle speed (default).

Adjustment of the
intermittent
windshield wiper
operation <vehicles
with auto light>

Normal INT

Intermittent wiper interval is fixed to 4
seconds.

Variable INT

Intermittent wiper interval is calculated only
by the wiper volume control.

Speed Sensitive

Intermittent wiper interval is calculated
according to the intermittent wiper volume
control and vehicle speed.

Rain Sensitive

Intermittent wiper interval is calculated
according to the intermittent wiper volume
control and lighting control sensor
(default).

Front wiper
washer

Disabling or
enabling
washer-linked wiper
function

Only washer

No function

Washer&wiper

With function (default)

Sensitivity for
auto light

Lighting control
sensor sensitivity
(illumination
intensity) <vehicles
with auto light>

Level 1 (+)bright

High-high ambient brightness

Level 2

High ambient brightness

Level 3

Standard ambient brightness (default)

Level 4(

−)dark

Low ambient brightness

Level 5(

−)dark

Low-low ambient brightness

Dome light
delay timer with
door

Adjustment of
interior light delay
shutdown time

0 sec

0 second (no delay shutdown time)

7.5 sec

7.5 seconds

15 sec

15 seconds

30 sec

30 seconds (default)

60 sec

60 seconds

120 sec

120 seconds

180 sec

180 seconds

Headlight auto
cut customize

Adjustment of
headlight automatic
shutdown function

Disable

No function

Enable (C-spec.)

With function (default)

Interior light
auto cut timer

Adjustment of
interior light
automatic shutdown
function operation
time

Disable

No function

3 min

3 minutes

30 min

30 minutes (default)

60 min

60 minutes

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-675

Door unlock
mode

Door lock system

All doors unlock

All the doors are unlocked when the
driver's side door is unlocked.

Dr door unlock

Only the driver's side door is unlocked
when the driver's side door is unlocked.
(default)

Auto door
unlock by P
position

Auto door unlock by
P position function
<Vehicles with
TC-SST>

Disable

No function (default)

Always enabled

Always with function

Duration of horn
chirp

Horn sounding time
during horn answer
back

Short

0.01 second (default)

Long

0.02 second

Horn chirp by
keyless

Horn chirp by
keyless entry
system <vehicles
without auto light>

Not sound horn

No horn answerback function

Lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed once.

W lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed twice.
(default)

Horn chirp by
keyless entry
system <vehicles
with auto light>

Not sound horn

No horn answerback function

Lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed once.

Lock/auto ON

During daytime, while the lighting switch is
in the AUTO position, the horn sounds
once when the lock is pressed once.

W lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed twice.
(default)

Tone alarm
answer back
<Vehicles with
KOS>

Adjusts the tone
alarm answer back
function

Not sound tone alarm

No function

At keyless

Sounds when the keyless entry system is
activated.

At F.A.S.T.

Sounds when KOS is activated (default).

At Both

Sounds when the keyless entry system or
KOS is activated.

Timer lock timer Timer lock period

adjustment

30 sec

30 seconds (default)

60 sec

60 seconds

120 sec

120 seconds

180 sec

180 seconds

Panic alarm
switch

With/without panic
alarm function

Disable

No function

Enable

With function (default)

F.A.S.T. key out
of car

With/without KOS
key exterior
detection function

Enable

No function

Disable

With function (default)

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-676

ETACS-ECU

REMOVAL AND INSTALLATION

M1545004700182

WARNING

•

Before removing the ETACS-ECU and knee air bag module, refer to GROUP 52B, Service
Precautions

P.52B-25

 and Knee Air Bag Module

P.52B-398

.

•

When removing and installing the ETACS-ECU, do not let it bump against the knee air bag
module.

CAUTION

When replacing the ETACS-ECU, use the ETACS-ECU to which the chassis number is written and the
coding is implemented. Also, if diagnostic trouble code No. B1761 "VIN not programmed" or No.
B222C "Coding not completed" is set to the ETACS-ECU, replace with the ETACS-ECU to which the
chassis number same as that of vehicle is written and the coding is implemented.

F.A.S.T. feature KOS function

adjustment

Both enable

All KOS functions are enabled (default).

DoorEntry enable

Only door entry function is enabled.

ENG strt enable

Only engine starting function is enabled.

Both disabled

All KOS functions are disabled.

F.A.S.T. unlock
disable time

Adjusts the door
unlock inhibition
period after door
lock is activated

0 sec

0 seconds

3 sec

3 seconds (default)

5 sec

5 seconds

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

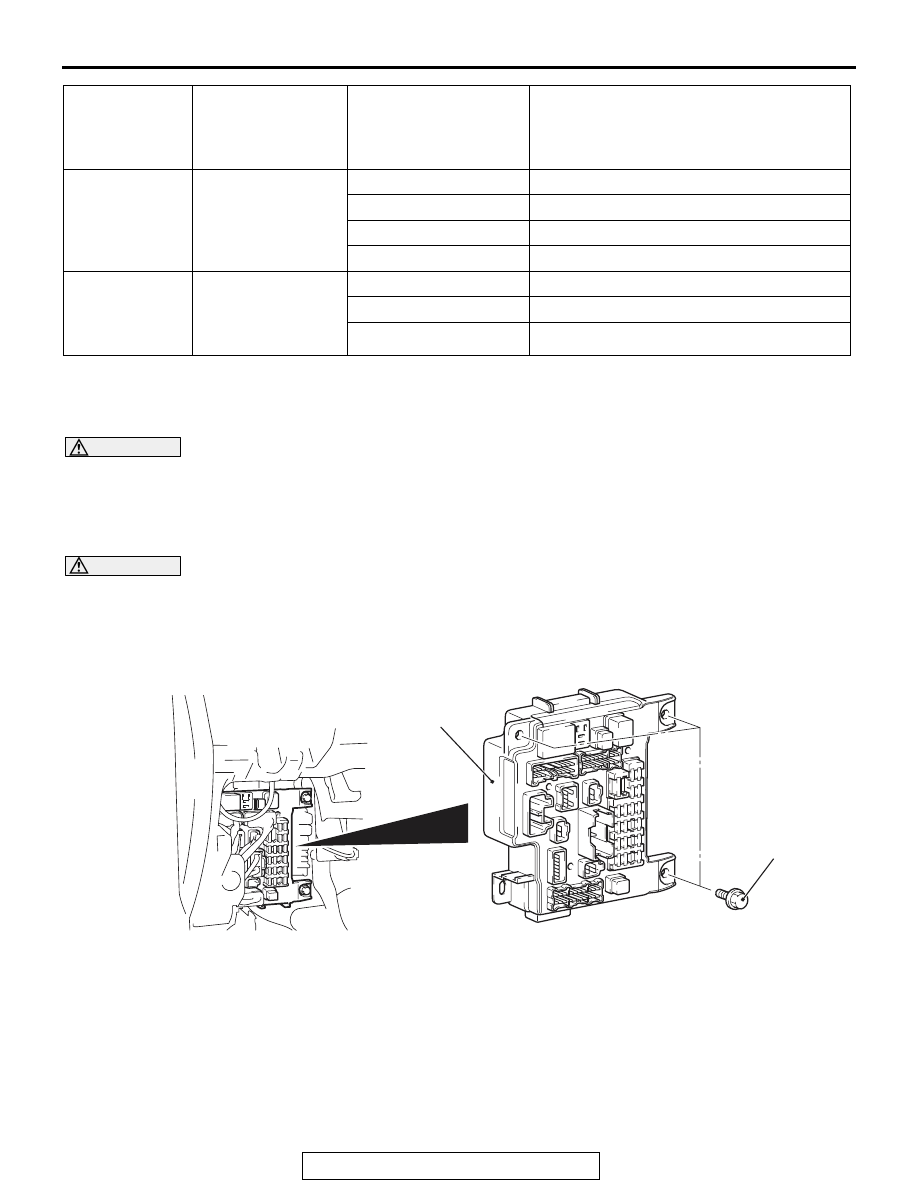

AC610001

1

AB

4.0 ± 2.0 N·m
36 ± 17 in-lb

Removal Steps

•

Instrument panel cover assembly
(Refer to GROUP 52A, Instrument
Lower Panel

P.52A-8

).

•

Knee air bag module (Refer to
GROUP 52B, Knee Air Bag Module

P.52B-398

).

1.

ETACS-ECU

Removal Steps (Continued)
