Mitsubishi Lancer Evolution X. Manual - part 632





CONTROL HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-41

DISASSEMBLY SERVICE POINTS

.

<<A>> LOCK PIN REMOVAL

Drive out the lock pin in the direction shown.

.

<<B>> OIL SEAL REMOVAL

Using special tool, MD999566, remove the oil seal.

.

<<C>> SLIDE BALL BEARING REMOVAL

Using special tool, MB990947, remove the slide ball bearing.

ASSEMBLY SERVICE POINTS

.

>>A<< SLIDE BALL BEARING INSTALLATION

Using special tool, MB990984, install the slide ball bearing in
alignment with the control housing end face taking care not to
let the bearing protrude to the oil seal installing surface.

AK703310

AK703311AC

MD999566

AK703384AC

MB990947

Slide ball bearing

AK703367AC

MB990984

CONTROL HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-42

.

>>B<< OIL SEAL INSTALLATION

1. Using special tool, MB991246, install the oil seal.
2. Apply specified transmission oil to the oil seal lip area.

Specified transaxle oil: Mitsubishi Genuine DiaQueen
New Multi Gear oil SAE 75W-80 (GL-3)

.

>>C<< LOCK PIN INSTALLATION

Drive the lock pin all the way into place to the end face from the
illustrated direction.

.

>>D<< STOPPER BRACKET INSTALLATION

Tighten the stopper bracket mounting bolts to the specified
torque in the illustrated order.

AK703312AC

MB991246

AK703310

AK703385AC

1

3

2

SELECT LEVER

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-43

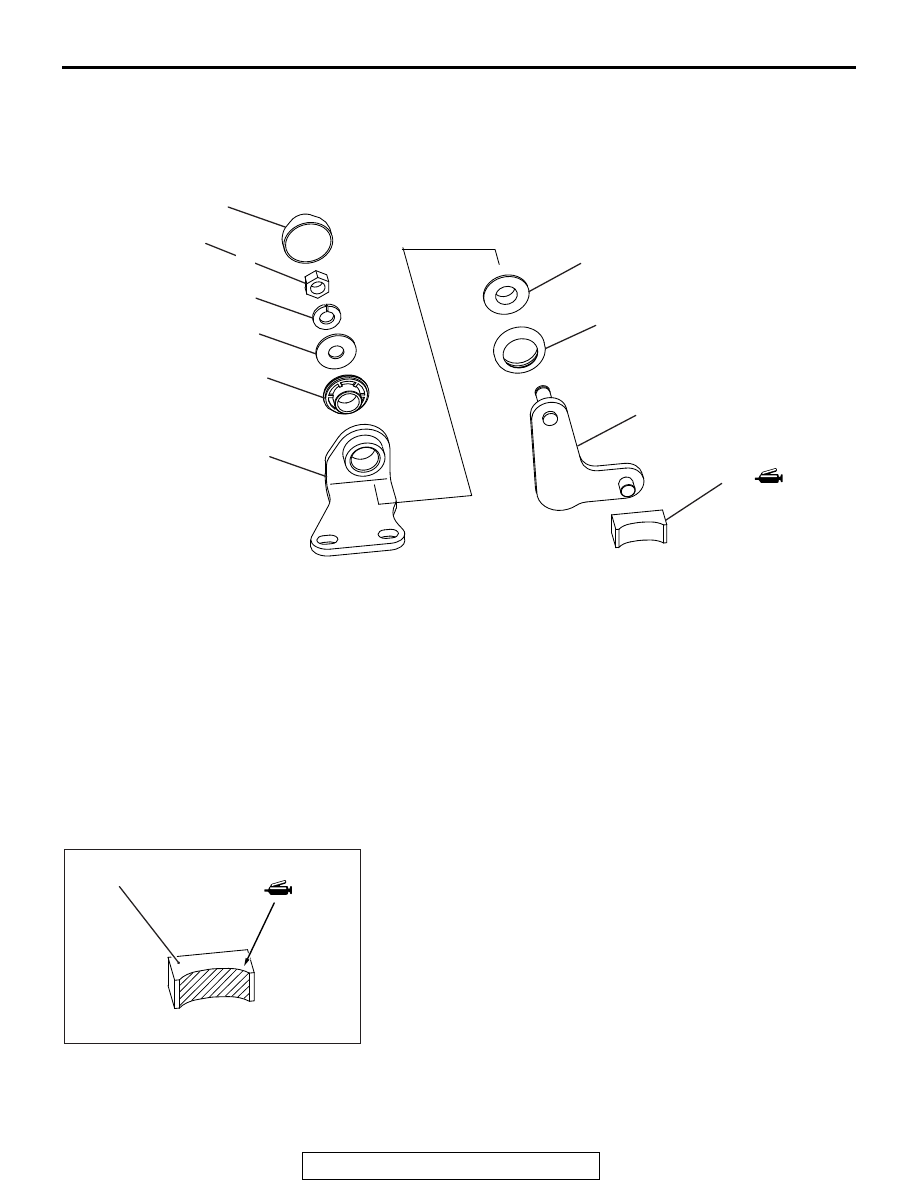

SELECT LEVER

DISASSEMBLY AND ASSEMBLY

M1222012800386

ASSEMBLY SERVICE POINTS

.

>>A<< SELECT LEVER SHOE INSTALLATION

Apply specified grease to the sliding contact surface of the
select lever shoe.

Specified grease: Mitsubishi Part No. 0101011 or
equivalent

AK703152

1

4

5

6

7

8

9

10

3

2

AC

11 ± 2 N·m
97 ± 17 in-lb

Removal steps

1.

Dust cover

2.

Nut

3.

Spring washer

4.

Washer

5.

Select lever bushing

6.

Select lever bracket

7.

Select lever bushing

8.

Dust cover

9.

Select lever

>>A<<

10. Select lever shoe

Removal steps (Continued)

AK703386

AC

Select lever shoe

CLUTCH HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-44

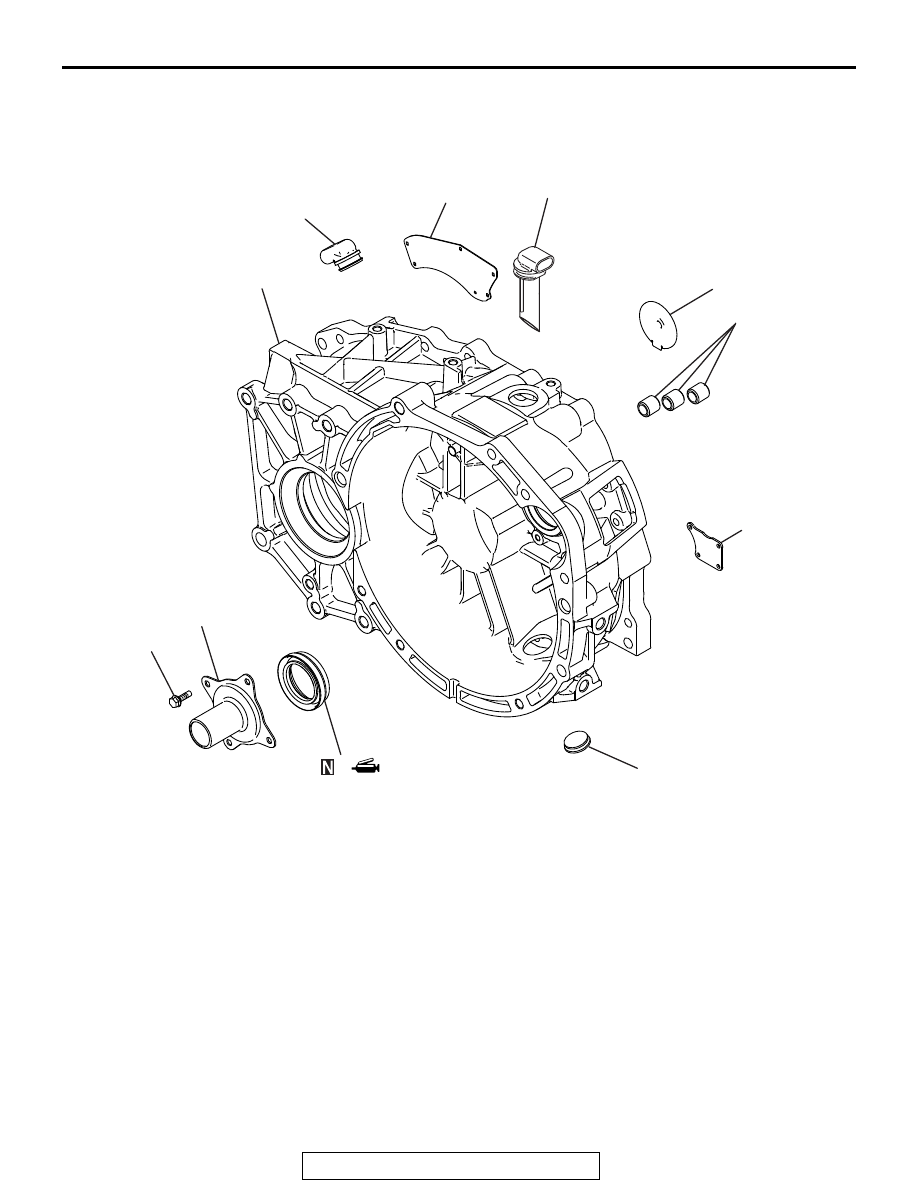

CLUTCH HOUSING

DISASSEMBLY AND ASSEMBLY

M1222003700660

NOTE: *Refer to the assembly service points only
when the clutch housing is replaced.

Required Special Tools:

• MB991946: Ply bar
• MB990883: Rear suspension bushing arbor
• MD999547: Oil seal installer

• MB992271: Oil seal installer
• MB992075: Handle

AK702515

1

2

6

5

4

9*

AC

3

7*

8*

10

10 ± 2 N·m
88 ± 17 in-lb

Removal steps

1. Clutch release bearing retainer

>>D<<

2. Oil seal
3. Maintenance hole cover
4. Cover A
5. Cover B

<<A>>

>>C<<

6. Output front oil guide

>>B<<

7. Oil tank cover (CHG)*

>>B<<

8. Oil tank cover (REV)*

>>A<<

9. Slide ball bearing (for shift rail)*
10. Clutch housing

Removal steps (Continued)
