MECHATRONIC ASSEMBLY, MANUAL CONTROL LEVER

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-421

MECHATRONIC ASSEMBLY, MANUAL CONTROL LEVER

REMOVAL AND INSTALLATION

M1225029600026

CAUTION

When the mechatronic assembly is replaced, reprogram the ECU and carry out the following Teach-In
(Refer to

P.22C-7

).

Pre-removal and Post-installation Operation
Oil Pan Removal and Installation (Refer to

P.22C-418

.)

AC900881AB

1

4

5

5

9

6

7

2

3

8

N

10

N

N

N

N

6.0 ± 1.0 N·m
53 ± 8 in-lb

10 ± 1.5 N·m
89 ± 8 in-lb

32 ± 2 N·m
24 ± 1 ft-lb

10 ± 1.5 N·m
89 ± 8 in-lb

5.0 ± 1.0 N·m
44 ± 8 in-lb

Removal steps

<<

A

>> >>

B

<< 1. Mechatronic assembly

>>

B

<< 2. Gasket A

3. Gasket B

>>

B

<< 4. Gasket C

5. Pin

6. Breather nipple

<<

B

>> >>

A

<< 7. Plug

<<

B

>> >>

A

<< 8. Bolt

<<

B

>>

9. Manual control shaft
10. Oil seal

Removal steps (Continued)

MECHATRONIC ASSEMBLY, MANUAL CONTROL LEVER

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-422

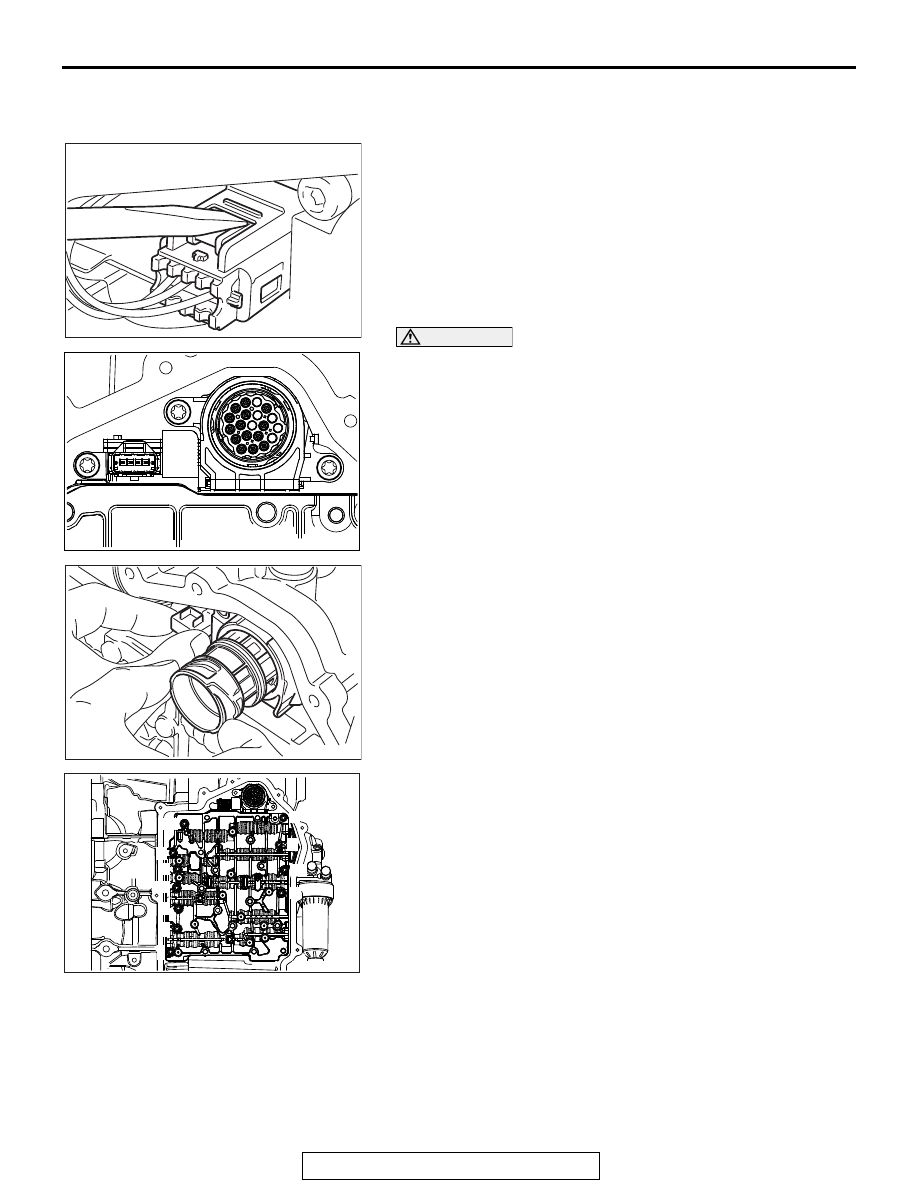

REMOVAL SERVICE POINTS

.

<<A>> MECHATRONIC ASSEMBLY REMOVAL

1. Remove the connector carefully.

CAUTION

When removing bolt, use magnetic tools to prevent them
from falling out.
2. Remove the three bolts.

3. Pull carefully at the connector to loose by approx. 2 - 3 mm

(0.08 - 0.1 inch).

4. Remove the bolts in the order shown and remove the

mechatronic assembly carefully.

.

AK900284

AK900330

AK900285

A

-

A

C

-

C

B

-

B

AK900257

AB

11

10

9

8

7

6

5

4

3

2

1

MECHATRONIC ASSEMBLY, MANUAL CONTROL LEVER

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-423

<<B>> PLUG/BOLT/MANUAL CONTROL SHAFT
REMOVAL

1. Move the lever from D in clock direction to the service

position as shown.

2. Remove the plug.

CAUTION

When removing bolt, use magnetic tools to prevent them
from falling out.
3. When removing the bolt located behind the plug, pay

attention to the bolt not to fall in the transaxle case.

4. Remove the manual control shaft carefully.

INSTALLATION SERVICE POINTS

.

>>A<< MANUAL CONTROL SHAFT/PLUG/BOLT
INSTALLATION

CAUTION

When installing bolt, use magnetic tools to prevent them
from falling out.
1. Install the manual control shaft carefully and tighten the bolt

to the specified torque.

Tightening torque: 10 ± 1.5 N⋅ m (89 ± 8 in-lb)

AK900313

AB

AK900310

AK900311

AK900311

MECHATRONIC ASSEMBLY, MANUAL CONTROL LEVER

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-424

2. Tighten the plug to the specified torque.

Tightening torque: 32 ± 2 N⋅ m (24 ± 1 ft-lb)

.

>>B<< GASKET A/GASKET C/MECHATRONIC
ASSEMBLY INSTALLATION

1. As shown in the illustration, fix the gasket to the transaxle

case by pushing the gasket at the area to which the gasket
dowel pin is inserted.

2. Install the mechatronic assembly carefully and tighten the

mechatronic assembly mounting bolts to the specified
torque in the order of number shown in the figure.

Tightening torque: 5.0 ± 1.0 N⋅ m (44 ± 8 in-lb)

3. Tighten again the mechatronic assembly mounting bolts to

the specified torque in the order of number shown in the
figure.

Tightening torque: 10 ± 1.5 N⋅ m (89 ± 8 in-lb)

AK900310

AK900286

AK900287

A

-

A

C

-

C

B

-

B

AK900257

AC

1

2

3

4

5

6

7

8

9

10

11
