Mitsubishi Lancer Evolution X. Manual - part 485





DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-33

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

OPERATION

AWC-ECU controls the electric pump by the informa-
tion from AWC pressure sensor.

.

DTC SET CONDITIONS

The code is set when AWC pressure sensor output
voltage is 0.2 V or less.

.

PROBABLE CAUSES

• AWC pressure sensor malfunction
• Damaged harness wires and connectors
• Malfunction of AWC-ECU

DIAGNOSTIC PROCEDURE

STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C −

Troubleshooting

P.54C-15

.) After repairing the CAN

bus line, go to Step 2.

STEP 2. Check whether the DTC is reset.
Q: Is DTC No. C1611 set?

YES : Go to Step 3.
NO :  This diagnosis is complete.

STEP 3. AWC-ECU connector, intermediate connector,
AWC pressure sensor connector check: C-46, D-11, F-13
Q: Is the check result normal?

YES : Go to Step 4.
NO :  Repair the defective connector. Then go to Step 7.

STEP 4. Check the wiring harness between C-46 AWC-ECU
connector terminal No. 7 and F-13 AWC pressure sensor
connector terminal No. 2.
Check the wiring harness for short circuit.
Q: Is the check result normal?

YES : Go to Step 5.
NO :  Repair the wiring harness. Then go to Step 7.

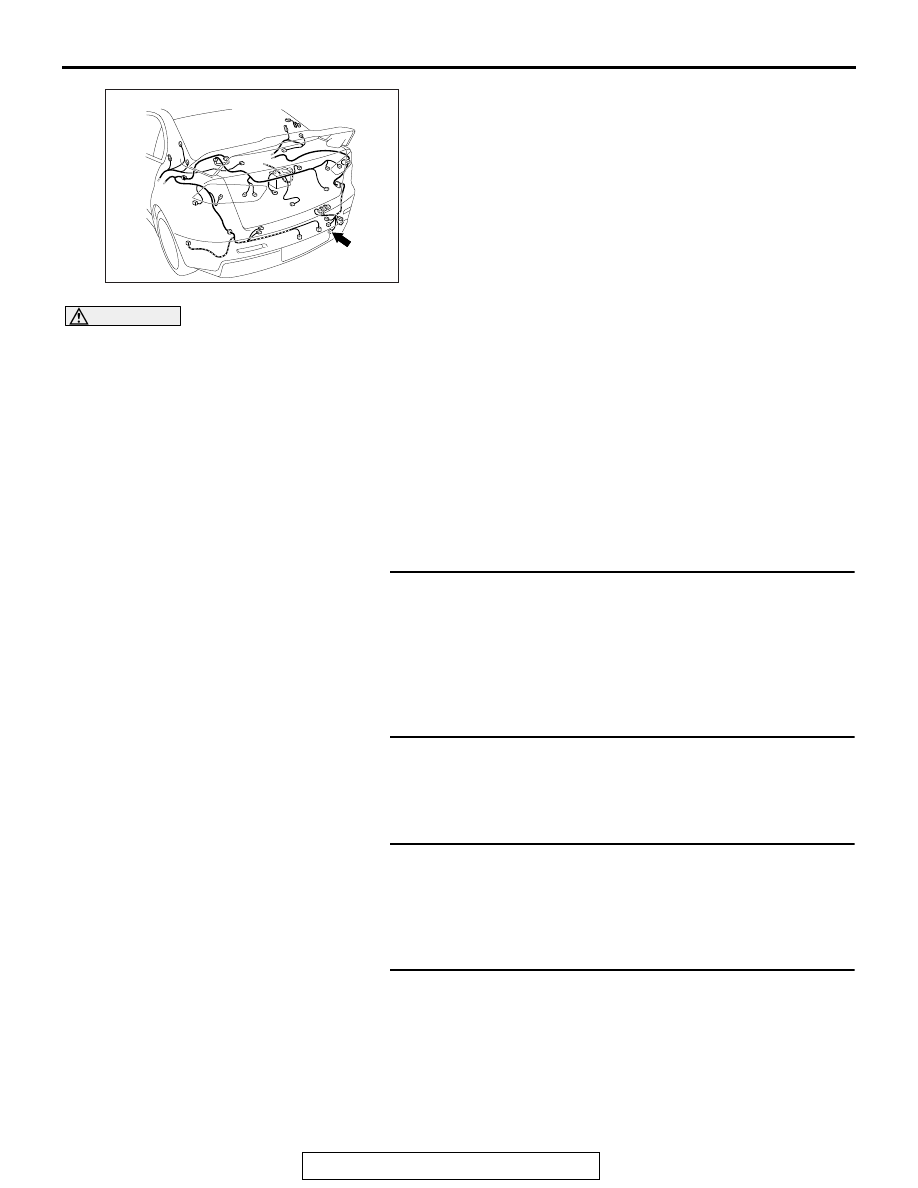

AC708970AS

Connector: F-13

F-13 (B)

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-34

STEP 5. Scan tool service data
Item No. 87: Pressure sensor output voltage

OK: 0.20 − 2.67 V

Q: Is the check result normal?

YES : Go to Step 6.
NO :  Replace the hydraulic unit. (Refer to GROUP 27 −

Hydraulic Unit

P.27-57

.) Then go to Step 6.

STEP 6. Check whether the DTC is reset.
Q: Is DTC No. C1611 set?

YES : Replace the AWC-ECU.(Refer to

P.22A-133

.) Then,

go to Step 7.

NO :  Intermittent malfunction. (Refer to GROUP 00 − How

to Cope with Intermittent Malfunction

P.00-15

.)

STEP 7. Check whether the DTC is reset.
Q: Is DTC No. C1611 set?

YES : Return to Step 1.
NO :  This diagnosis is complete.

DTC C1612: AWC Pressure Sensor System (High Voltage)

.

AWC PRESSURE SENSOR SYSTEM
CIRCUIT

Refer to

P.22A-32

.

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

OPERATION

AWC-ECU controls the electric pump by the informa-
tion from AWC pressure sensor.

.

DTC SET CONDITIONS

The code is set when AWC pressure sensor output
voltage is 4.6 V or more.

.

PROBABLE CAUSES

• AWC pressure sensor malfunction
• Damaged harness wires and connectors
• Malfunction of AWC-ECU

DIAGNOSTIC PROCEDURE

STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C −

Troubleshooting

P.54C-15

.) After repairing the CAN

bus line, go to Step 2.

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-35

STEP 2. Check whether the DTC is reset.
Q: Is DTC No. C1612 set?

YES : Go to Step 3.
NO :  This diagnosis is complete.

STEP 3. Scan tool diagnostic trouble code
Check if the AWC-related DTC No. C1625 is set.(Refer to

P.22A-12

.)

Q: Is the DTC set?

YES : Perform the relevant troubleshooting. Then go to Step

9.

NO :  Go to Step 4.

STEP 4. AWC-ECU connector, intermediate connector,
AWC pressure sensor connector check: C-46, D-11, F-13
Q: Is the check result normal?

YES : Go to Step 5.
NO :  Repair the defective connector. Then go to Step 9.

STEP 5. Check the wiring harness between C-46 AWC-ECU
connector terminal No. 7 and F-13 AWC pressure sensor
connector terminal No. 2.
Check the wiring harness for open or short circuit (short to
power supply).
Q: Is the check result normal?

YES : Go to Step 6.
NO :  Repair the wiring harness. Then go to Step 9.

STEP 6. Check the wiring harness between C-46 AWC-ECU
connector terminal No. 8 and F-13 AWC pressure sensor
connector terminal No. 3.
Check the wiring harness for open circuit.
Q: Is the check result normal?

YES : Go to Step 7.
NO :  Check D-11 intermediate connector. When no

problem is found, repair the wiring harness. Then go
to Step 9.

STEP 7. Scan tool service data
Item No. 87: Pressure sensor output voltage

OK: 0.20 − 2.67 V

Q: Is the check result normal?

YES : Go to Step 8.
NO :  Replace the hydraulic unit. (Refer to GROUP 27 −

Hydraulic Unit

P.27-57

.) Then go to Step 8.

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-36

STEP 8. Check whether the DTC is reset.
Q: Is DTC No. C1612 set?

YES : Replace the AWC-ECU.(Refer to

P.22A-133

.) Then

go to Step 9.

NO :  Intermittent malfunction. (Refer to GROUP 00 − How

to Cope with Intermittent Malfunction

P.00-15

.)

STEP 9. Check whether the DTC is reset.
Q: Is DTC No. C1612 set?

YES : Return to Step 1.
NO :  This diagnosis is complete.

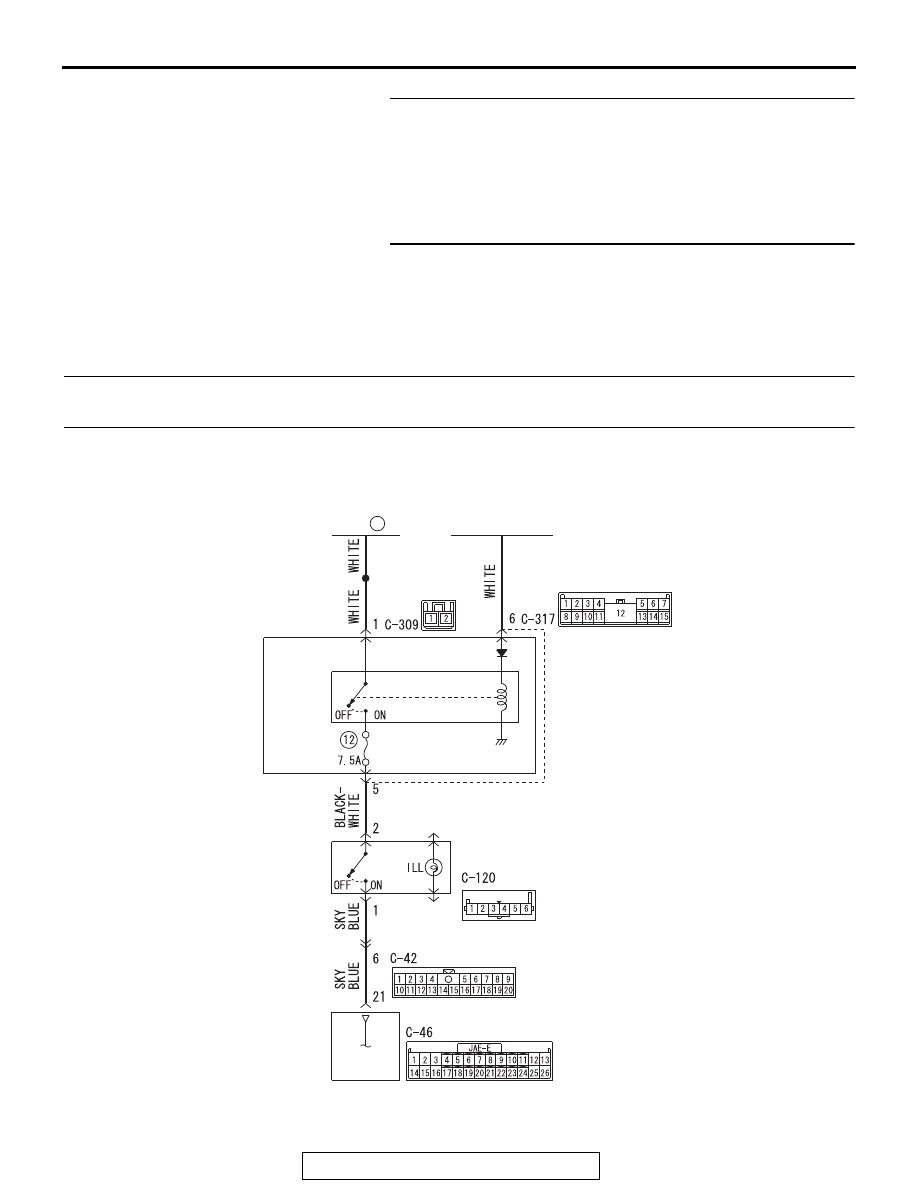

DTC C1613: AWC Mode Select Switch System (Clogging) <Vehicles with steering audio remote
control switch >

AC902087

ETACS-ECU

IGNITION
SWITCH (IG1)

FUSIBLE
LINK

34

AWC-ECU

AWC
SWITCH

IG1
RELAY

AWC mode select switch system circuit

AB
