DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-9

PRECAUTIONS FOR DIAGNOSIS

Before diagnosis, check that all the following items
are normal.

• A normal steering wheel is installed correctly to

the neutral position of steering column shaft
assembly.

• The size of tire and wheel, specification, tire pres-

sure, balance, and wear status are normal.

• The wheel alignment is normal.
• No modifications to the engine, suspension, or

others, which can affect the S-AWC system, is
implemented.

DIAGNOSTIC FUNCTION

M1221007700078

WARNING INDICATOR

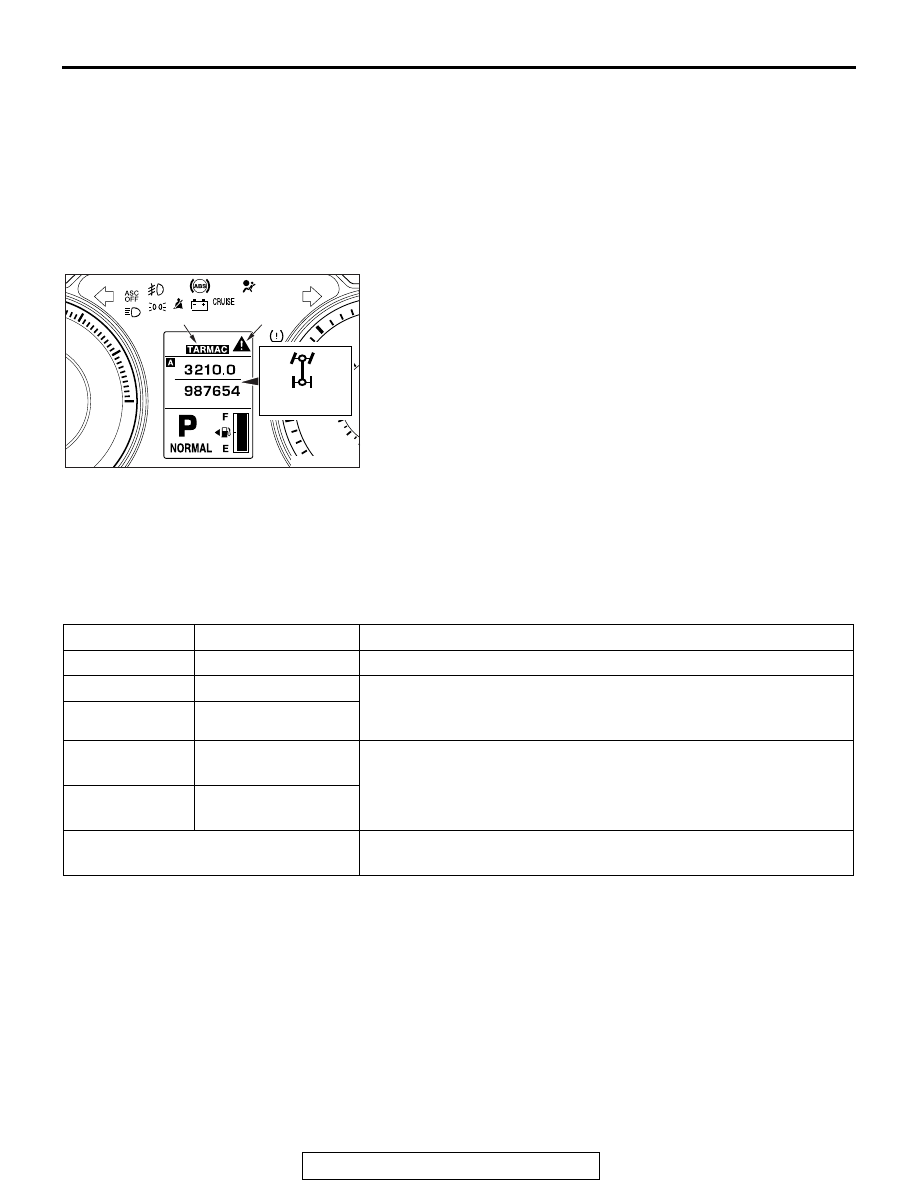

When a malfunction occurs in the S-AWC system, the figure (A)
will be displayed on the information screen of multi information
display, and the mode display (B) will be turned off.
Subsequently, the screen returns to the one before the warning
display, and then "!" indicator (C) will illuminate.
If the indicator (C) continues to be displayed on the information
screen of multi information display, check the diagnostic trouble
code that is set.

FAIL-SAFE FUNCTION

If an abnormality occurs to the signal of sensors,
switches, solenoids, or others, the AWC-ECU per-
forms a control for the driver safety and system pro-
tection. The control contents are as follows.

FAIL-SAFE REFERENCE TABLE

NOTE: All the troubles will return to a normal status
when the ignition switch is turned from OFF to ON.

AC710447AB

(B)

(C)

(A)

SERVICE

           REQUIRED

DTC No.

Item

Control content

C2203

VIN not written

Normal control

C1614

Parking brake switch A warning is given to the driver with the trouble displayed to the

multi information display, but the control is maintained because the
vehicle behavior is not affected.

C1624

EEPROM

C161F

AWC actuator
protection 1

A warning is given to the driver by the flashing of multi information
display control mode, and the control is stopped.

C1621

AWC actuator
protection 2

Others (other than above)

A warning is given to the driver with the trouble displayed to the
multi information display, and the control is stopped.

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-10

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

• MB991958 Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)
• MB991827 M.U.T.-III USB Cable
• MB991910 M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the scan tool system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-11

FREEZE FRAME DATA CHECK

Data of when the diagnostic trouble code is deter-
mined is obtained, and the status of S-AWC is
stored. By analyzing each data using the scan tool,
troubleshooting can be carried out efficiently.

Display items of the freeze frame data are as follows.

DISPLAY ITEM LIST

NOTE: BRC: Brake Control System

Item No.

Item

Unit/display
contents

1

Odometer

km

2

Ignition cycle

Count

4

Current trouble accumulative time

min

5

AWC control mode (for meter display)

• TARMAC
• GRAVEL
• SNOW

6

ASC control mode

• ASC ON
• ASC OFF
• ASC/BRC OFF
• ASC fail

7

AYC torque differential restriction direction (AYC request)

• No restriction

• Restriction of right

axle movement

• Restriction of left

axle movement

• Restriction of

lateral axle

movement

8

Stoplight switch

• ON
• OFF

9

Parking brake switch

• ON
• OFF

10

ABS activation flag

• ON
• OFF

11

Steering wheel sensor

deg

12

Accelerator opening angle

%

13

Wheel speed sensor <FL>

km/h

14

Wheel speed sensor <FR>

km/h

15

Wheel speed sensor <RL>

km/h

16

Wheel speed sensor <RR>

km/h

17

Master cylinder pressure sensor

MPa

18

Yaw rate sensor

deg/s

19

Lateral G-sensor

m/s

2

20

Longitudinal G-sensor

m/s

2

21

ACD target torque

Nm

22

AYC target torque

Nm

23

Brake control torque

Nm

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-12

DIAGNOSTIC TROUBLE CODE CHART

M1221007800097

CAUTION

During diagnosis, a DTC associated with other system may be set when the ignition switch is turned
ON with connector(s) disconnected. On completion, confirm all systems for diagnostic trouble
code(s). If diagnostic trouble code(s) are set, erase them all.

DTC No.

Item

Reference page

C1000

Stoplight switch system

P.22A-15

C100A

FL

Wheel speed sensor system (faulty circuit)

P.22A-19

C1015

FR

C1020

RL

C102B

RR

C1011

FL

Wheel speed sensor system (faulty signal)

P.22A-20

C101C

FR

C1027

RL

C1032

RR

C1014

FL

Wheel speed sensor system (characteristics abnormality)

P.22A-21

C101F

FR

C102A

RL

C1035

RR

C1078

Tire turning malfunction

P.22A-22

C1219

Steering wheel sensor system (faulty signal)

P.22A-24

C121A

Steering wheel sensor system (neutral learning abnormality)

P.22A-26

C123C

G and yaw rate sensor system (faulty signal)

P.22A-27

C1242

G and yaw rate sensor system (abnormality of longitudinal G sensor
output signal)

P.22A-29

C1610

Electronic relay abnormality of AWC actuator power supply

P.22A-31

C1611

AWC pressure sensor system (low voltage)

P.22A-32

C1612

AWC pressure sensor system (high voltage)

P.22A-34

C1613

AWC switch system (ON sticking)

P.22A-36

 <Vehicles with

steering wheel audio
remote control switch>

P.22A-39

 <Vehicles

without steering wheel
audio remote control
switch>

C1614

Parking brake switch system (ON sticking)

P.22A-42

C1615

Brake control prohibition request

P.22A-44

C1616

Cranking signal system (ON sticking)

P.22A-46

C1617

AWC CAN main data system (data not received)

P.22A-48

C1618

AWC CAN local data system (data not received)

P.22A-50

C1619

AYC current value (abnormal)

Refer to GROUP 27 −

Troubleshooting

P.27-8

.
