MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-209

STEP 3. Measure the sensor supply voltage at throttle
position sensor harness side connector B-11.
(1) Disconnect the connector B-11 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal No. 5 and ground.

• Voltage should be between 4.9 and 5.1 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q:  Is the measured voltage between 4.9 and 5.1 volts?

YES : Go to Step 6.
NO :  Go to Step 4.

STEP 4. Check harness connector B-09 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

STEP 5. Check for open circuit and short circuit to ground
between throttle position sensor connector B-11 (terminal
No. 5) and ECM connector B-09 (terminal No. 12).
Q: Is the harness wire in good condition?

YES : Go to Step 9.
NO :  Repair it. Then go to Step 14.

STEP 6. Check the continuity at throttle position sensor
harness side connector B-11.
(1) Disconnect the connector B-11 and measure at the harness

side.

(2) Measure the continuity between terminal No. 3 and ground

• Continuity (2 ohms or less)

Q: Does continuity exist?

YES : Go to Step 10.
NO :  Go to Step 7.

STEP 7. Check harness connector B-09 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

1

6 5 4 3 2

AK203049

B-11 harness
connector:
component side

AG

1

6 5 4 3 2

AK203051

B-11 harness
connector:
component side

AH

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-210

STEP 8. Check for open circuit and harness damage
between throttle position sensor connector B-11 (terminal
No. 3) and ECM connector B-09 (terminal No. 13).
Q: Is the harness wire in good condition?

YES : Go to Step 9.
NO :  Repair it. Then go to Step 14.

STEP 9. Using scan tool MB991958, check data list item 13:
Throttle Position Sensor (main).
(1) Turn the ignition switch to the "ON" position.
(2) Detach the intake air hose at the throttle body.
(3) Disconnect the connector of the throttle position sensor.
(4) Use test harness special tool (MB991658) to connect only

terminals No. 3, No. 4, No. 5, and No. 6.

(5) Set scan tool MB991958 to the data reading mode for item

13, Throttle Position Sensor (main).

• Output voltage should be between 0.3 and 0.7 volt when

the throttle valve is fully closed with your finger.

• Output voltage should be 4.0 volts or more when the

throttle valve is fully open with your finger.

(6) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points − How to

Cope with Intermittent Malfunctions

P.00-15

.

NO :  Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles with

KOS>

P.42B-11

 or GROUP 42C, Diagnosis − ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-9

. Then go to Step 14.

STEP 10. Check harness connector B-09 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 11.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

STEP 11. Check for harness damage between throttle
position sensor connector B-11 (terminal No. 5) and ECM
connector B-09 (terminal No. 12).
Q: Is the harness wire in good condition?

YES : Go to Step 12.
NO :  Repair it. Then go to Step 14.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-211

STEP 12. Check for open circuit, short circuit to ground
and harness damage between throttle position sensor
connector B-11 (terminal No. 4) and ECM connector B-09
(terminal No. 10).
Q: Is the harness wire in good condition?

YES : Go to Step 13.
NO :  Repair it. Then go to Step 14.

STEP 13. Replace the throttle body assembly.
(1) Replace the throttle body assembly.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P0123 set?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles with

KOS>

P.42B-11

 or GROUP 42C, Diagnosis − ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-9

. Then go to Step 14.

NO :  The inspection is complete.

STEP 14. Using scan tool MB991958, read the diagnostic
trouble code (DTC).
(1) Turn the ignition switch to the "ON" position.
(2) After the DTC has been deleted, read the DTC again.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P0123 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-212

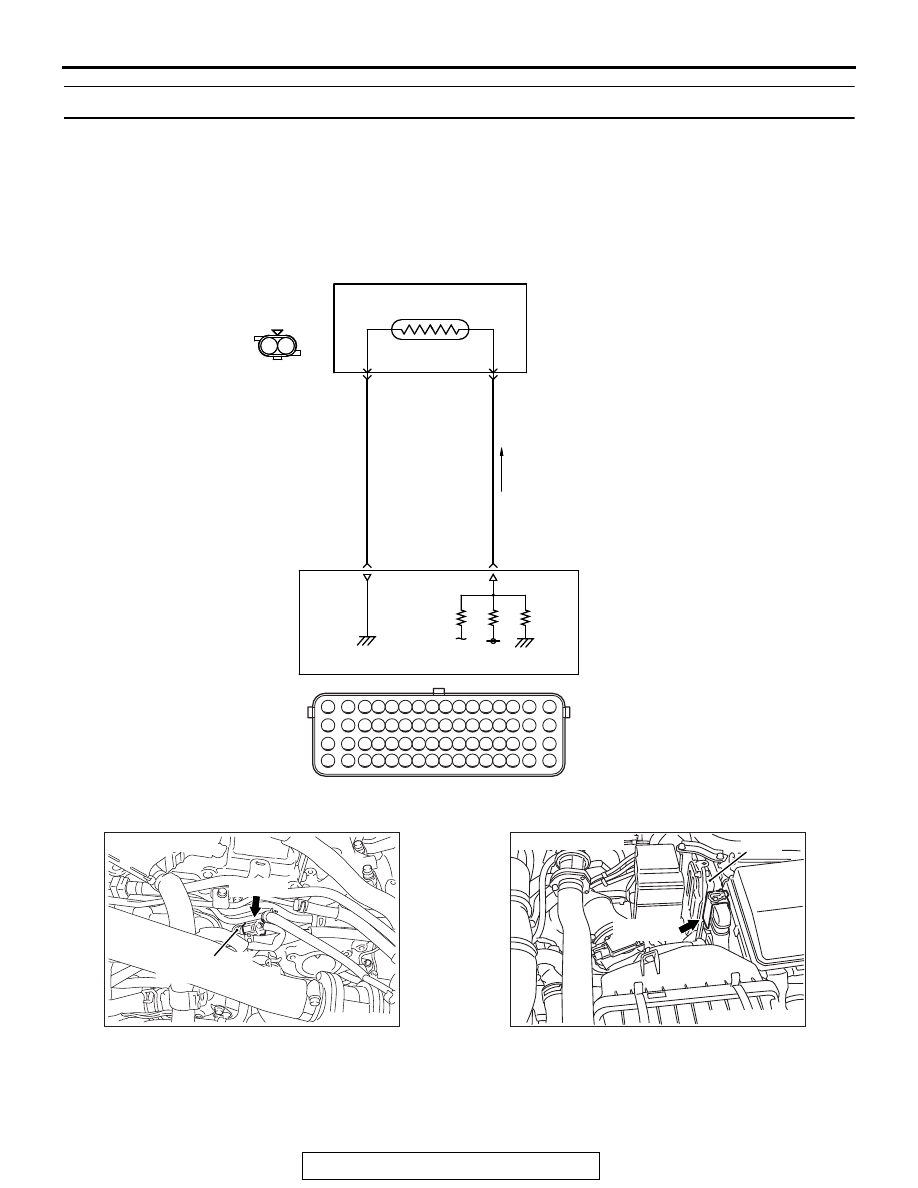

DTC P0125: Insufficient Coolant Temperature for Closed Loop Fuel Control

.

AK603948

1 2

1 2

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

WHITE

WHITE-BLA

CK

ENGINE
CONTROL
MODULE

ENGINE COOLANT
TEMPERATURE SENSOR

B-08

(MU802406)

B-09

ENGINE COOLANT TEMPERATURE SENSOR CIRCUIT

2

27

1

26

AD

5 V

AK704246AB

Engine coolant
temperature sensor

Connector: B-08

B-08 (B)

AK704227

Connector: B-09

ECM

B-09 (GR)

AB
