MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-197

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.
• MB991827: USB Cable
• MB991910: Main Harness A

• MB992110: Power Plant ECU Check Harness

STEP 1. Using scan tool MB991958, check data list item 6:
Engine Coolant Temperature Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

6, Engine Coolant Temperature Sensor.

• The engine coolant temperature and temperature

shown with the scan tool should approximately match.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points − How to

Cope with Intermittent Malfunctions

P.00-15

.

NO :  Go to Step 2.

STEP 2. Check harness connector B-08 at the engine
coolant temperature sensor for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 10.

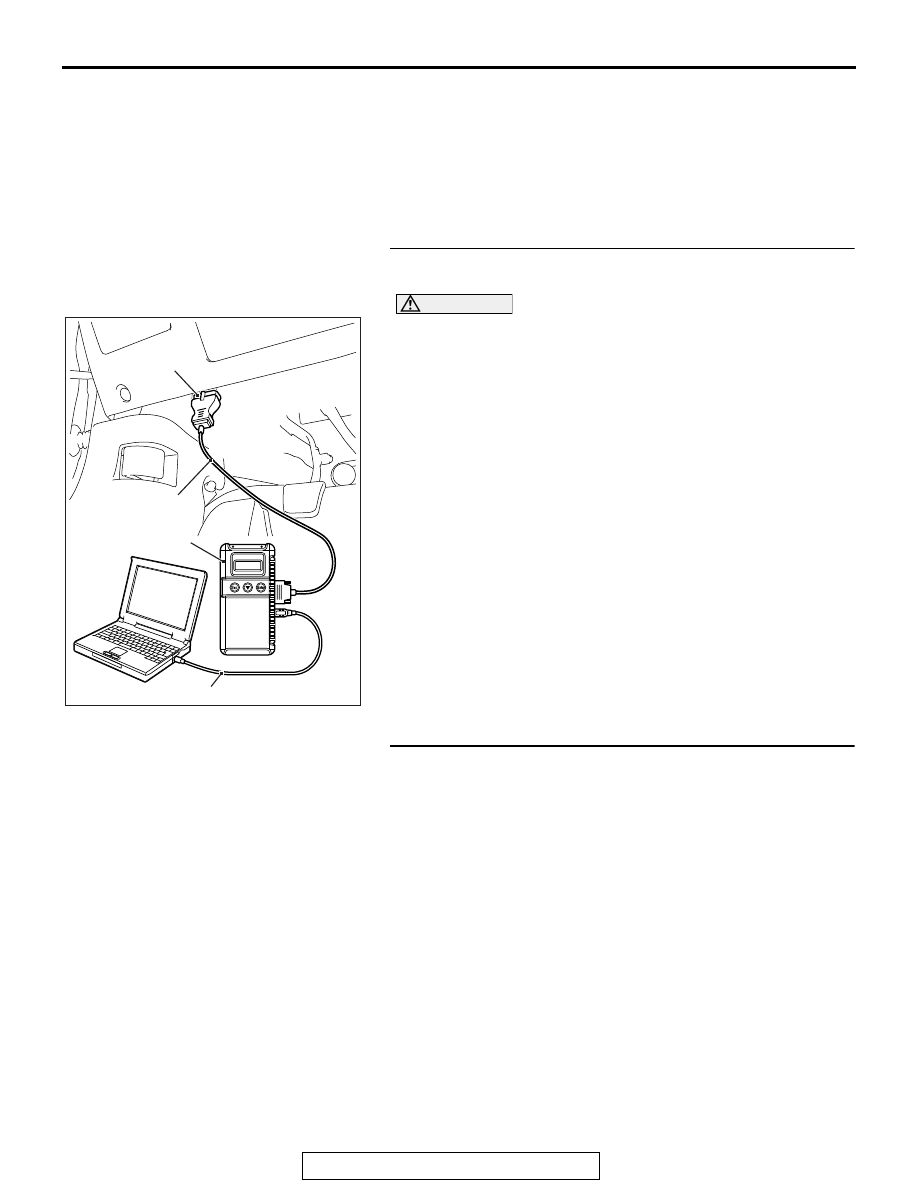

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-198

STEP 3. Measure the sensor supply voltage at engine
coolant temperature sensor harness side connector B-08.
(1) Disconnect the connector B-08 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal No. 1 and ground.

• Voltage should be between 4.5 and 4.9 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.5 and 4.9 volts?

YES : Go to Step 6.
NO :  Go to Step 4.

STEP 4. Check harness connector B-09 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 10.

AK604181

1

2

AD

B-08 harness
connector:
component side

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-199

STEP 5. Measure the sensor supply voltage at ECM
connector B-09 by using power plant ECU check harness
special tool MB992110.
(1) Disconnect all ECM connectors. Connect the power plant

ECU check harness special tool MB992110 between the
separated connectors.

(2) Disconnect the engine coolant temperature sensor

connector B-08.

(3) Turn the ignition switch to the "ON" position.

(4) Measure the voltage between terminal No. 26 and ground.

• Voltage should be between 4.5 and 4.9 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.5 and 4.9 volts?

YES : Repair harness wire between engine coolant

temperature sensor connector B-08 (terminal No. 1)
and ECM connector B-09 (terminal No. 26) because
of open circuit. Then go to Step 10.

NO :  Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, ID Code
Registration Necessity Judgment Table <Vehicles
with KOS>

P.42B-11

 or GROUP 42C, ID Codes

Registration Judgment Table <Vehicles with WCM>

P.42C-9

. Then go to Step 10.

STEP 6. Check the continuity at engine coolant
temperature sensor harness side connector B-08.
(1) Disconnect the connector B-08 and measure at the harness

side.

(2) Check for the continuity between terminal No. 2 and

ground.

• Continuity (2 ohms or less)

Q: Does continuity exist?

YES : Go to Step 9.
NO :  Go to Step 7.

AK604040

ECM

AB

Body side harness

MB992110

AK604182

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

AB

Power plant ECU
check harness connector

AK604180

1

2

B-08 harness
connector:
component side

AD

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-200

STEP 7. Check harness connector B-09 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 10.

STEP 8. Check for open circuit between engine coolant
sensor connector B-08 (terminal No. 2) and ECM connector
B-09 (terminal No. 27).
Q: Is the harness wire in good condition?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, ID Code
Registration Necessity Judgment Table <Vehicles
with KOS>

P.42B-11

 or GROUP 42C, ID Codes

Registration Judgment Table <Vehicles with WCM>

P.42C-9

. Then go to Step10.

NO :  Repair it. Then go to Step 10.

STEP 9. Check the engine coolant temperature sensor.
Refer to Engine Coolant Temperature Sensor Check

P.13A-875

.

Q: Is the engine coolant temperature sensor normal?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, ID Code
Registration Necessity Judgment Table <Vehicles
with KOS>

P.42B-11

 or GROUP 42C, ID Codes

Registration Judgment Table <Vehicles with WCM>

P.42C-9

. Then go to Step 10.

NO :  Replace the engine coolant temperature sensor. Then

go to Step 10.

STEP 10. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function − OBD-II Drive Cycle − Pattern 23

P.13A-9

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0118 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.
