DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-281

.

RESISTANCE AND CONTINUITY BETWEEN
HARNESS-SIDE CONNECTOR TERMINALS

Required Special Tool:
MB991997: ASC Check Harness
1. Operate the lock lever as shown in the figure to disconnect

the ASC-ECU wiring harness connector.

Terminal
No.

Check item

Check conditions

Normal
conditions

1

Motor power supply

Ignition switch: ON (OFF)

Battery positive
voltage

2

ASC-ECU power supply

Ignition switch: ON (OFF)

Battery positive
voltage

22

G and yaw rate sensor power
supply

Ignition switch: ON

Battery positive
voltage

32

Solenoid valve power supply

Ignition switch: ON (OFF)

Battery positive
voltage

34

Wheel speed sensor (FR) power
supply

Ignition switch: ON

Battery positive
voltage

36

Wheel speed sensor (RL) power
supply

Ignition switch: ON

Battery positive
voltage

43

Wheel speed sensor (RR) power
supply

Ignition switch: ON

Battery positive
voltage

45

Wheel speed sensor (FL) power
supply

Ignition switch: ON

Battery positive
voltage

AC708791

AB

Lock lever

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-282

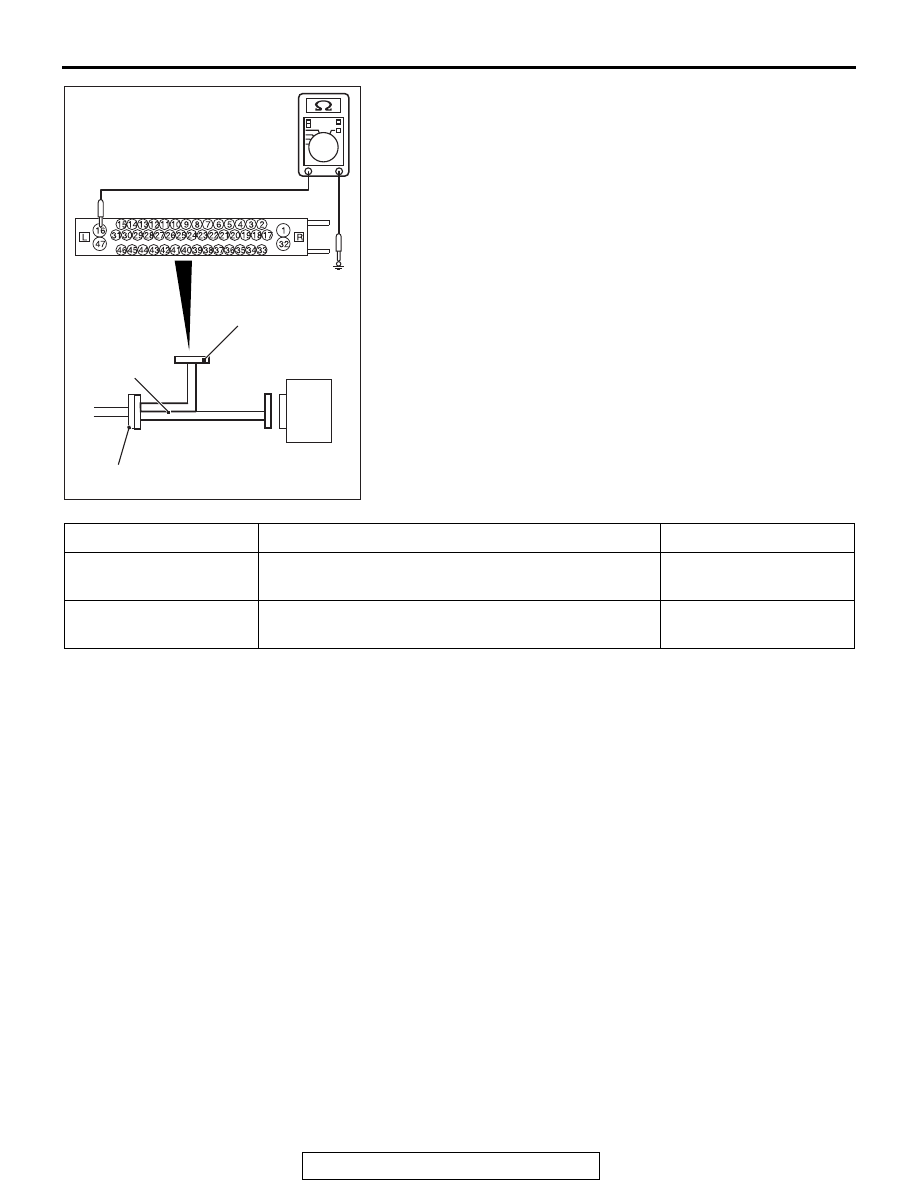

2. When performing the continuity check, turn the ignition

switch to LOCK (OFF) position, connect special tool ASC
Check Harness (MB991997) as shown in the figure, and
disconnect the ASC-ECU connector.

3. Check for continuity between terminals shown in the chart

below.

4. Terminal layout is shown in the figure.

AC400817CO

ASC-ECU

MB991997

A-05 ASC-ECU
harness connector

Check harness

Terminal No.

Signal

Normal conditions

16 − body ground

Ground

Continuity exists (2 Ω or

less)

47 − body ground

Ground

Continuity exists (2 Ω or

less)

SPECIAL TOOLS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-283

SPECIAL TOOLS

M1355005800101

Tool

Tool number and
name

Supersession

Application

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub
assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Daimler Chrysler
models only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
ASC check (Diagnostic trouble
code display, service data display
and calibration by scan tool )

MB991997

ASC check harness

Voltage inspection at ASC-ECU
terminals

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

MB991997

ON-VEHICLE SERVICE

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-284

ON-VEHICLE SERVICE

HYDRAULIC UNIT CHECK

M1355006100138

Required Special Tools:

• MB991958: M.U.T.-III Sub Assembly

• MB991824: Vehicle Communication Interface (V.C.I.)
• MB991827: M.U.T.-III USB Cable
• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

1. Raise the vehicle using a jack and support the specified

points with a rigid rack.

CAUTION

Before connecting or disconnecting scan tool, always turn
the ignition switch to the LOCK (OFF) position.
2. Before setting scan tool, turn the ignition key to the LOCK

(OFF) position.

3. With the M/T vehicles, check that the shift lever is in the

neutral position. With the TC-SST vehicle, check that the
selector lever is in the "N" position. Then, start the engine of
the vehicle.

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness

adaptor

d. Probe

General service tools Continuity check and voltage

measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

a. Connector pin contact

pressure inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester connection

MB992006
Extra fine probe

−

Continuity check and voltage
measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

MB992006
