DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-129

STEP 2. DTC recheck after repairing the CAN bus line
Q: Is DTC C1073 set?

YES : Go to Step 3.
NO :  The procedure is complete.

STEP 3. Battery check
Refer to GROUP 54A − Battery Test

P.54A-9

.

Q: Is the battery in good condition?

YES : Go to Step 4.
NO :  Replace the battery. Then go to Step 11.

STEP 4. Charging system check
Refer to GROUP 16 − Output Current Test

P.16-8

.

Q: Is the charging system in good condition?

YES : Go to Step 5.
NO :  Repair or replace the charging system component(s).

Then go to Step 11.

STEP 5. Connector check: A-05 ASC-ECU connector
Q: Is the check result normal?

YES : Go to Step 6.
NO  :  Repair the defective connector. Then go to Step 11.

STEP 6. Fusible link check: Check the fusible link No. 26.
Visually check for open circuit in the fusible link No.26.
Q: Is the check result normal?

YES : Go to Step 8.
NO :  Go to Step 7.

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-130

STEP 7. Resistance measurement at A-05 ASC-ECU
connector
(1) Disconnect the ASC-ECU connector, connect the special

tool ASC check harness (MB991997) to the wiring
harness-side connector, and then measure the resistance
at the special tool connector side.
NOTE: Do not connect the special tool to ASC-ECU.

(2) Disconnect the fusible link No. 26.
(3) Measure the resistance between the terminal No. 1 and the

body ground.

OK: No continuity

Q: Is the check result normal?

YES : Replace the fusible link No.26. Then go to Step 11.
NO :  The short circuit may be present in the power supply

circuit. Repair the wiring harness between the A-05
ASC-ECU connector terminal No.1 and the fusible
link No.26, and then replace the fusible link No.26.
Then go to Step 11.

STEP 8. Voltage measurement at the A-05 ASC-ECU
connector
(1) Disconnect the ASC-ECU connector, connect the special

tool ASC check harness (MB991997) to the wiring
harness-side connector, and then measure the voltage at
the special tool connector side.
NOTE: Do not connect the special tool to ASC-ECU.

(2) Measure the voltage between the terminal No. 1 and the

body ground.

OK: Battery positive voltage

Q: Is the check result normal?

YES : Go to Step 9.
NO :  The open circuit may be present in the power supply

circuit. Repair the wiring harness between the A-05
ASC-ECU connector terminal No.1 and the fusible
link No.26. Then go to Step 11.

AC400817 EM

ASC-ECU

MB991997

A-05 ASC-ECU
harness connector

Check harness

AC400817CP

ASC-ECU

MB991997

A-05 ASC-ECU
harness connector

Check harness

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-131

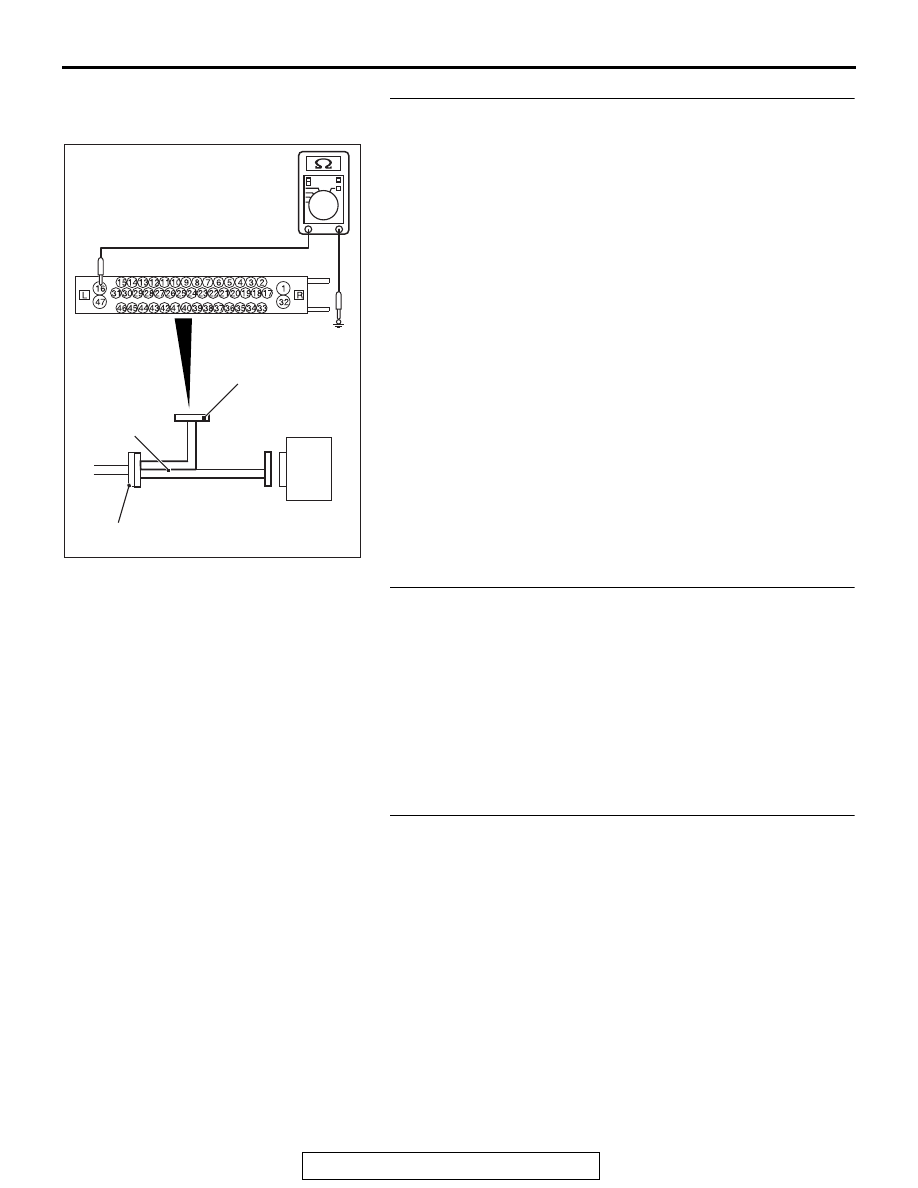

STEP 9. Resistance measurement at A-05 ASC-ECU
connector
(1) Disconnect the ASC-ECU connector, connect the special

tool ASC check harness (MB991997) to the wiring
harness-side connector, and then measure the resistance
at the special tool connector side.
NOTE: Do not connect the special tool to ASC-ECU.

(2) Measure the resistance between the terminal No. 16 and

the body ground as well as between the terminal No. 47
and the body ground.

OK: Continuity exists (2 Ω or less)

Q: Is the check result normal?

YES : Go to Step 10.
NO :  An open circuit may be present in the ground circuit.

Repair the wiring harness between the A-05
ASC-ECU connector terminal No.16 and the body
ground, and between the A-05 ASC-ECU connector
terminal No.47 and the body ground. Then go to Step
11.

STEP 10. Check whether the DTC is reset.
(1) Erase the DTC.
(2) Drive the vehicle at 12mph (20 km/h) or more.

NOTE: The ABS warning light does not turn OFF in some
cases unless the vehicle runs at 12mph (20 km/h) or higher.

Q: Is DTC C1073 set?

YES : Replace the hydraulic unit (incorporates in

ASC-ECU).(Refer to

P.35C-298

.) Then go to Step 11.

NO :  Intermittent malfunction. (Refer to GROUP 00 − How

to Cope with Intermittent Malfunction

P.00-15

.)

STEP 11. Check whether the DTC is reset.
(1) Erase the DTC.
(2) Drive the vehicle at 12mph (20 km/h) or more.

NOTE: The ABS warning light does not turn OFF in some
cases unless the vehicle runs at 12mph (20 km/h) or higher.

Q: Is DTC C1073 set?

YES : Return to Step 1.
NO :  This diagnosis is complete.

AC400817CO

ASC-ECU

MB991997

A-05 ASC-ECU
harness connector

Check harness

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-132

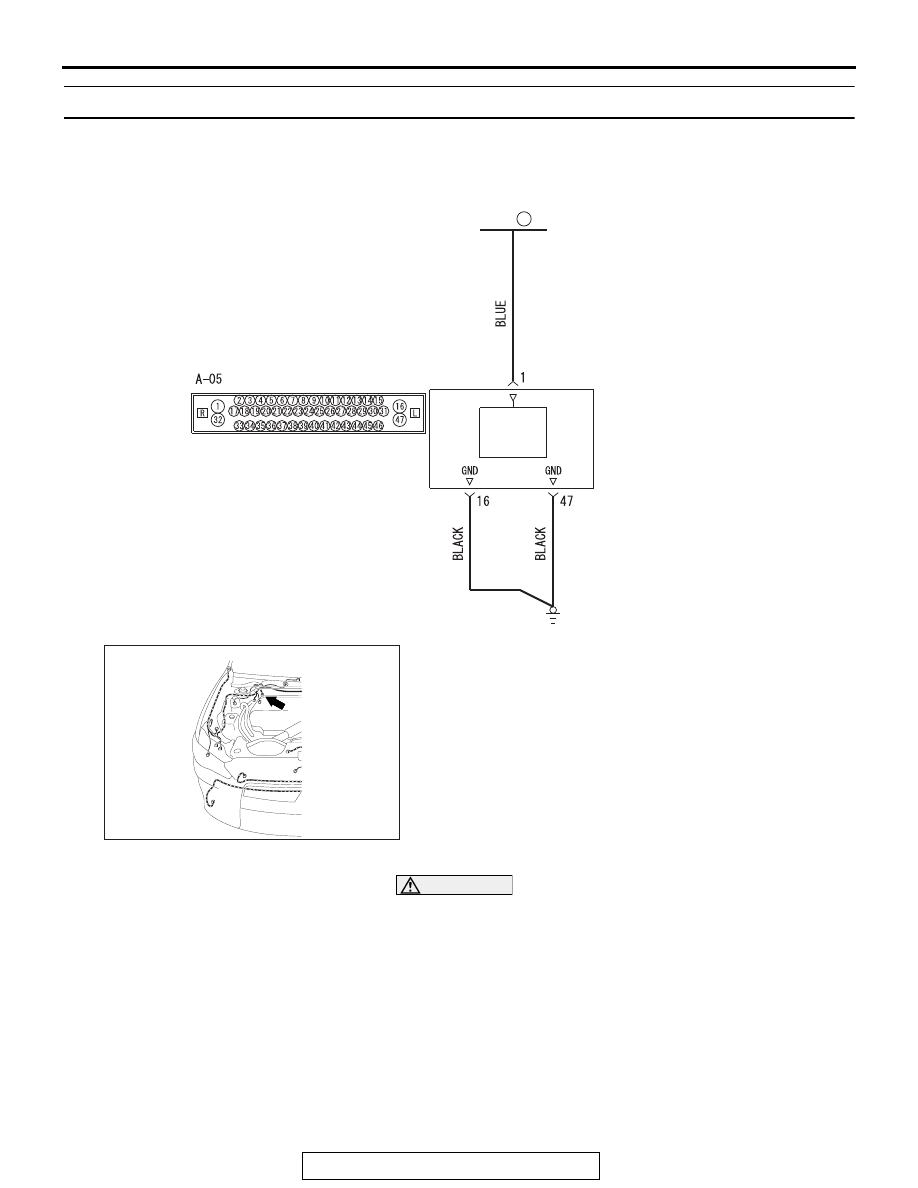

DTC C2116: Abnormality in power supply voltage in pump motor

CAUTION

• If there is any problem in the CAN bus lines, an incor-

rect diagnostic trouble code may be set. Prior to this
diagnosis, diagnose the CAN bus lines.

• Whenever the ECU is replaced, ensure that the CAN

bus lines are normal.

• When the hydraulic unit (integrated with ASC-ECU) is

replaced, always perform the calibration of steering
wheel sensor, G and yaw rate sensor, brake fluid pres-
sure sensor, cut valve, and inlet valve.(Refer to

P.35C-287

,

P.35C-289

,

P.35C-294

, and

P.35C-295

.)

.

ASC-ECU

AC804602

Motor Power Supply Circuit

MOTOR
POWER
SUPPLY

FUSIBLE
LINK

26

AC708948

Connector: A-05

A-05 (B)

AB
