DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-61

• The number of poles on the magnetic encoder for wheel

speed detection (the number of N-pole and S-pole) is
changed.

Past trouble

• When DTC No. C1020 is also set, perform the diagnosis

with a particular emphasis on the wiring harness and con-
nector failures between ASC-ECU and the wheel speed
sensor. For diagnosis procedures, refer to How to Treat
Past Trouble (GROUP 00 − How to Use Troubleshoot-

ing/Inspection Service Points

P.00-16

).

• When the diagnostic trouble code No.C1020 is not set, the

following conditions may be present:

• Wheel(s) spinning
• Unstable vehicle attitude (spin)
• External noise interference
• Vehicle ran with the parking brake applied.

DIAGNOSIS

Required Special Tools:

• MB991958 Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)
• MB991827 M.U.T.-III USB Cable
• MB991910 M.U.T.-III Main Harness A

• MB991997: ASC check harness

STEP 1. Using scan tool MB991958, diagnose the CAN bus
lines.
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the CAN bus lines (Refer to GROUP 54C −

CAN Bus Diagnostics Table

P.54C-9

). On completion,

go to Step 2.

STEP 2. DTC recheck after repairing the CAN bus line
Q: Is DTC C1027 set?

YES : Go to Step 3.
NO :  This diagnosis is complete.

STEP 3. Scan tool diagnostic trouble code
Check if DTC No. C1020 is also set.
Q: Is DTC C1020 also set?

YES : Carry out the diagnosis for DTC C1020. (Refer to

P.35C-25

.)

NO :  Go to Step 4.

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-62

STEP 4. Check of wheel speed sensor installation status
Check the installation status of wheel speed sensor <RL> (dis-
connection of wheel speed sensor, looseness of mounting bolt,
etc.).
Q: Is the check result normal?

YES : Go to Step 5.
NO :  Reinstall the wheel speed sensor <RL> correctly.

(Refer to

P.35C-300

.) Then go to Step 16.

STEP 5. Check of wheel speed sensor as a single unit
Refer to

P.35C-303

.

Q: Is the check result normal?

YES : Go to Step 6.
NO :  Replace the wheel speed sensor <RL>. (Refer to

P.35C-300

.) Then go to Step 16.

STEP 6. Wheel bearing looseness check
NOTE:

.

Wheel bearing looseness may increase the gap between
the wheel speed sensor and the wheel speed detection
magnet encoder.

Check the wheel bearing <RL> for looseness. (Refer to
GROUP 27

 On-vehicle Service

P.27-32

.)

Q: Is the check result normal?

YES : Go to Step 7.
NO :  Replace the rear wheel hub assembly. (Refer to

GROUP 27 − Rear Axle Hub Assembly

P.27-35

.)

STEP 7. Check of wheel speed detection encoder
Check the encoder for adhesion of foreign materials or defor-
mation.
Q: Is the check result normal?

YES : Go to Step 8.
NO (Adhesion of foreign materials) : Clean the encoder

so as not to disturb the magnetization pattern on the
encoder while taking care of the magnet, magnetic
substance, and magnetic attraction. Then go to Step
16  .

NO (Deformation) : Replace the rear wheel hub assembly.

(Refer to GROUP 27 − Rear Axle Hub Assembly

P.27-35

.) Then go to Step 16.

AC608248AB

Magnetic
encoder

Rear Wheel
bearing

Rear wheel
hub
assembly

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-63

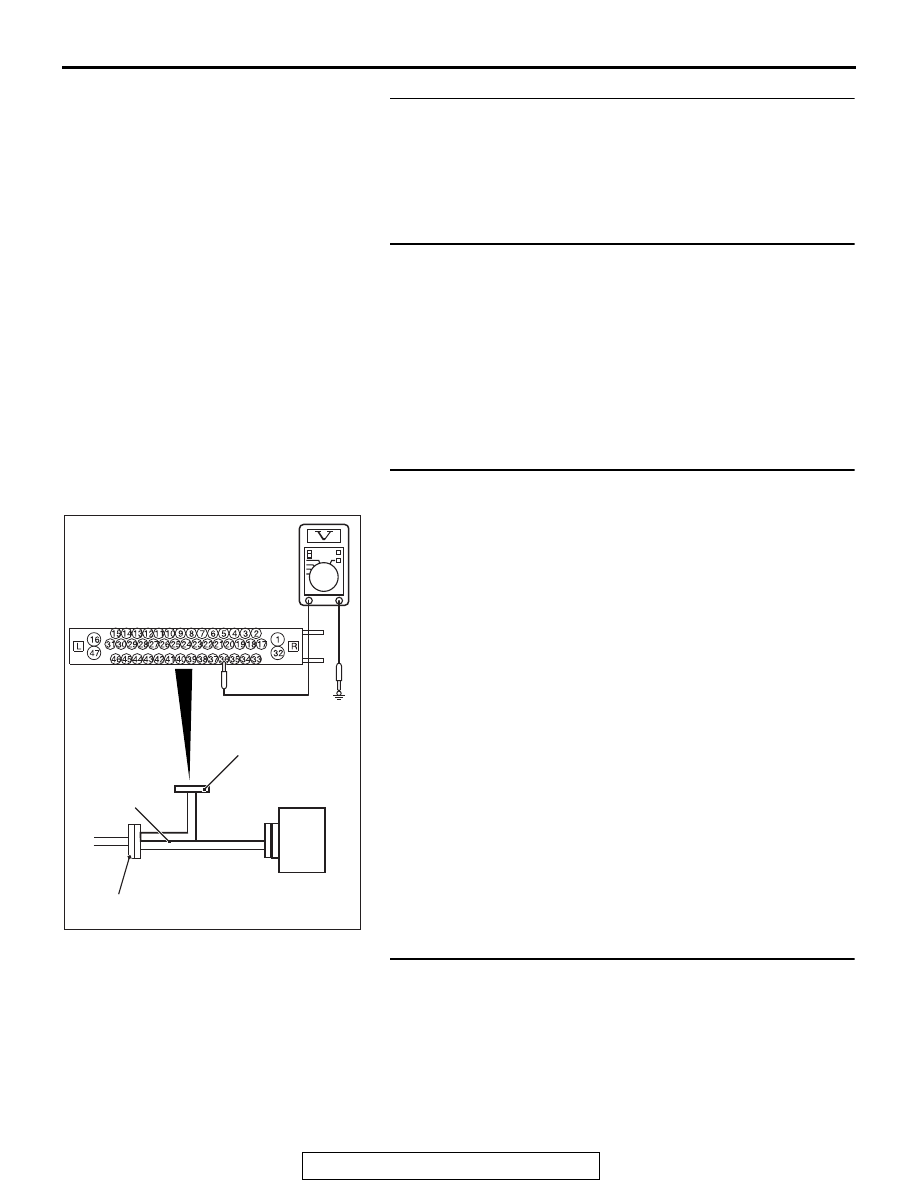

STEP 8. Voltage measurement at A-05 ASC-ECU connector
(1) Disconnect the ASC-ECU connector, connect the special

tool ASC check harness (MB991997) to the wiring
harness-side connector, and then measure at the special
tool connector side.
NOTE: Do not connect the special tool to ASC-ECU.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between the wheel speed sensor

circuit power supply terminal (signal terminal) No. 36 and
the body ground as well as between the ground terminal
No. 37 and the body ground.

OK: 1 volt or less

Q: Is the check result normal?

YES  : Go to Step 9.
NO (Not normal at the terminal No. 36 or 37) : Go to Step

10.

STEP 9. Resistance measurement at A-05 ASC-ECU
connector
(1) Disconnect the ASC-ECU connector, connect the special

tool ASC check harness (MB991997) to the wiring
harness-side connector, and then measure at the special
tool connector side.
NOTE: Do not connect the special tool to ASC-ECU.

(2) Measure the resistance between the wheel speed sensor

circuit power supply terminal (signal terminal) No. 36 and
the body ground as well as between the ground terminal
No. 37 and the body ground.

OK: No continuity

Q: Is the check result normal?

YES  : Go to Step 12.
NO (Not normal at the terminal No. 36 or 37) : Go to Step

10.

AC400817CH

ASC-ECU

MB991997

Check harness

A-05 ASC-ECU
harness connector

AC400817CI

ASC-ECU

MB991997

Check harness

A-05 ASC-ECU
harness connector

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-64

STEP 10. Connector check: A-05 ASC-ECU connector,
C-45 intermediate connector, D-18 wheel speed sensor
<RL> connector
Q: Is the check result normal?

YES : Go to Step 11.
NO :  Repair the defective connector. Then go to Step 16.

STEP 11. Wiring harness check between A-05 ASC-ECU
connector terminal No. 36 and D-18 wheel speed sensor
<RL> connector terminal No. 1, and between A-05
ASC-ECU connector terminal No. 37 and D-18 wheel speed
sensor <RL> connector terminal No. 2

• Check for short circuit in wheel speed sensor <RL> circuit

Q: Is the check result normal?

YES : Replace the wheel speed sensor <RL>. (Refer to

P.35C-300

.) Then, go to Step 16.

NO :  Repair the wiring harness. Then go to Step 16.

STEP 12. Voltage measurement at A-05 ASC-ECU
connector
(1) Disconnect the ASC-ECU connector, connect the special

tool ASC check harness (MB991997) to the ASC-ECU-side
connector and the wiring harness-side connector, and then
measure at the special tool connector side.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between the wheel speed sensor

circuit power supply terminal (signal terminal) No. 36 and
the body ground.

OK: Battery positive voltage

Q: Is the check result normal?

YES : Go to Step 13.
NO :  Go to Step 15.

STEP 13. Connector check: A-05 ASC-ECU connector,
C-45 intermediate connector, D-18 wheel speed sensor
<RL> connector
Q: Is the check result normal?

YES : Go to Step 14.
NO :  Repair the defective connector. Then go to Step 16.

AC400817CJ

ASC-ECU

MB991997

Check harness

A-05 ASC-ECU
harness connector
