Mitsubishi Lancer Evolution X. Manual - part 92

EXHAUST PIPE AND MAIN MUFFLER

TSB Revision

INTAKE AND EXHAUST

15-27

Required Special Tool:

• MB991953: Oxygen Sensor Wrench

REMOVAL SERVICE POINTS

.

<<A>> HEATED OXYGEN SENSOR REMOVAL

Use special tool MB991953 to remove the heated oxygen sen-
sor.

.

4.

Heated oxygen sensor (rear)
connector

6.

Catalytic converter

•

Cowl side trim (Refer to GROUP
52A, Trims

•

Footrest

•

Floor console side cover (Refer to
GROUP 52A, Front Floor
Console Assembly

•

Turn up the passenger side floor
carpet.

•

Front floor backbone brace (Refer
to GROUP 42A, Loose Panel

Front floor panel front heat
protector and front floor panel
rear heat protector removal
steps (Continued)

7.

Heated oxygen sensor (front)
connector

9.

Front exhaust pipe

10. Seal ring
14. Exhaust pipe gasket
16. Exhaust pipe gasket
19. Seal ring
•

Propeller shaft assembly (Refer
to GROUP 25, Propeller Shaft

).

<<

B

>>

>>

A

20. Rivet

<<

B

>>

>>

A

21. Front floor rear panel heat

protector

22. Dash panel heat protector

<<

B

>>

>>

A

23. Rivet
24 Heated oxygen sensor clip

<<

B

>>

>>

A

25. Front floor front panel heat

protector

Front floor panel front heat
protector and front floor panel
rear heat protector removal
steps (Continued)

AC301966

AG

MB991953

Heated oxygen
sensor

EXHAUST PIPE AND MAIN MUFFLER

TSB Revision

INTAKE AND EXHAUST

15-28

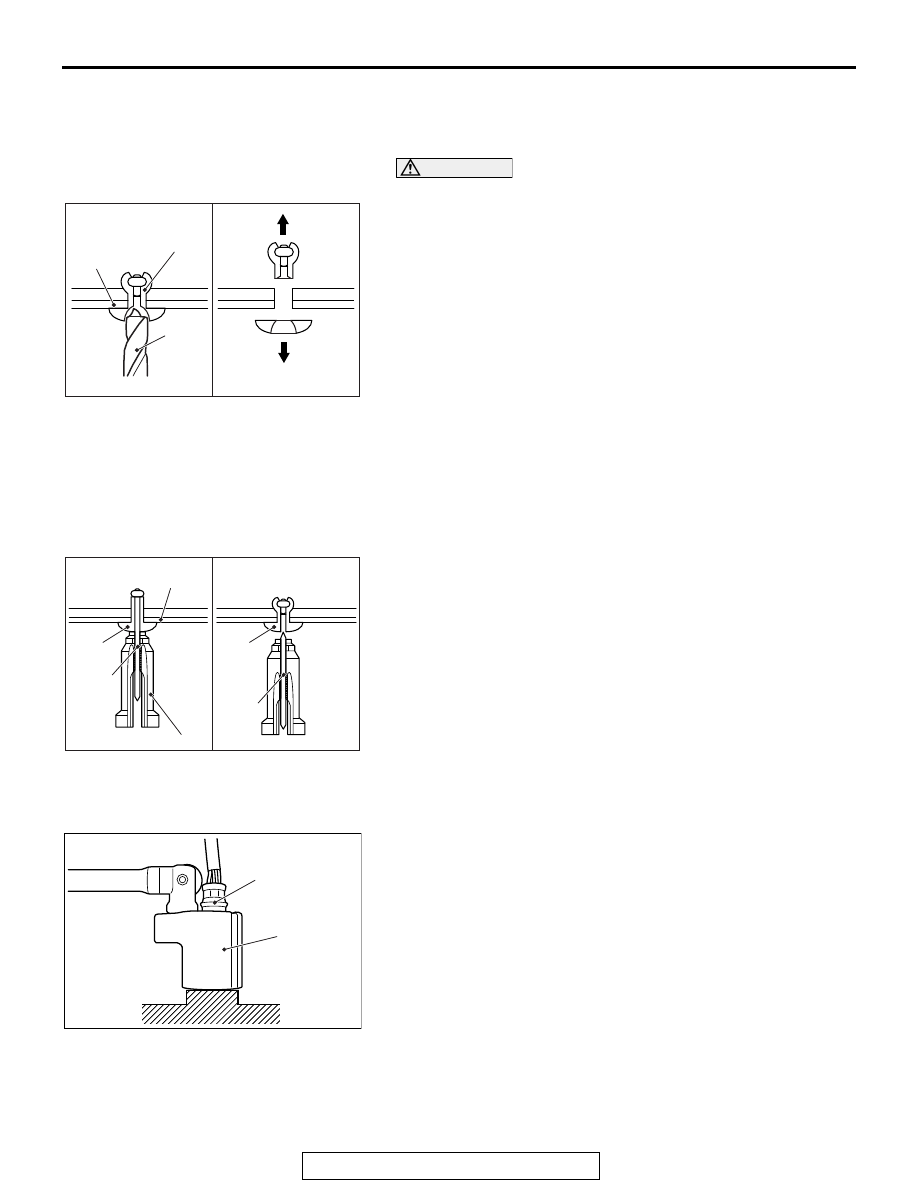

<<B>> RIVET/FRONT FLOOR REAR PANEL HEAT
PROTECTOR/FRONT FLOOR FRONT PANEL
HEAT PROTECTOR REMOVAL

CAUTION

Be careful not to score the heat protector by drill.
1. Use a 6.0 / diameter / mm drill to make a hole in the flange

of rivet as shown.

2. Break the rivet, and remove the rivet and heat protector.

INSTALLATION SERVICE POINTS

.

>>A<< RIVET/FRONT FLOOR FRONT PANEL
HEAT PROTECTOR/FRONT FLOOR REAR PANEL
HEAT PROTECTOR/RIVET INSTALLATION

Use a riveter to tighten the rivet by the following procedure.
1. Insert part A of rivet into the riveter, and insert the rivet into

the assembling area.

2. Operate the tool's handle while pushing the flange surface of

rivet by riveter. Part A of rivet is cut and the rivet is tightened.

.

>>B<< HEATED OXYGEN SENSOR
INSTALLATION

Tighten the heated oxygen sensor to the specified torque by
using special tool MB991953.

Tightening torque: 44 ± 5 N⋅ m (33 ± 3 ft-lb)

AC301909AD

Heat
protector

Drill

Rivet

AC301910 AD

Heat protector

Rivet

Part A

Riveter

Rivet

Part A

AC301966

AG

MB991953

Heated oxygen
sensor

16-1

GROUP 16

ENGINE

ELECTRICAL

CONTENTS

CHARGING SYSTEM . . . . . . . .

GENERAL INFORMATION . . . . . .

GENERAL SPECIFICATIONS. . . .

SERVICE SPECIFICATIONS. . . . .

CHARGING SYSTEM DIAGNOSIS

SPECIAL TOOL . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE. . . . . . . . .

GENERATOR OUTPUT LINE VOLTAGE
DROP TEST . . . . . . . . . . . . . . . . . . . . .

OUTPUT CURRENT TEST . . . . . . . . . .

REGULATED VOLTAGE TEST. . . . . . .

WAVE PATTERN CHECK USING AN
OSCILLOSCOPE. . . . . . . . . . . . . . . . . .

GENERATOR ASSEMBLY . . . . . .

REMOVAL AND INSTALLATION . . . . .

DISASSEMBLY AND ASSEMBLY. . . . .

INSPECTION . . . . . . . . . . . . . . . . . . . . .

STARTING SYSTEM . . . . . . . . .

GENERAL INFORMATION . . . . . .

GENERAL SPECIFICATIONS. . . .

SERVICE SPECIFICATIONS. . . . .

STARTING SYSTEM DIAGNOSIS

ON-VEHICLE SERVICE. . . . . . . . .

STARTER RELAY CHECK . . . . . . . . . .

STARTER MOTOR ASSEMBLY . .

REMOVAL AND INSTALLATION. . . . . .

INSPECTION . . . . . . . . . . . . . . . . . . . . .

DISASSEMBLY AND ASSEMBLY . . . . .

INSPECTION . . . . . . . . . . . . . . . . . . . . .

IGNITION SYSTEM . . . . . . . . .

GENERAL INFORMATION . . . . . .

GENERAL SPECIFICATIONS . . . .

SERVICE SPECIFICATIONS . . . . .

SPECIAL TOOL . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE . . . . . . . . .

KNOCK CONTROL SYSTEM CHECK. .

IGNITION COIL CHECK. . . . . . . . . . . . .

SPARK PLUG TEST . . . . . . . . . . . . . . .

SPARK PLUG CHECK AND CLEANING

CAMSHAFT POSITION SENSOR CHECK

CRANKSHAFT POSITION SENSOR
CHECK . . . . . . . . . . . . . . . . . . . . . . . . . .

IGNITION COIL. . . . . . . . . . . . . . . .

REMOVAL AND INSTALLATION. . . . . .

CAMSHAFT POSITION SENSOR .

REMOVAL AND INSTALLATION. . . . . .

CRANKSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION. . . . . .

KNOCK SENSOR . . . . . . . . . . . . . .

REMOVAL AND INSTALLATION. . . . . .

CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-2

CHARGING SYSTEM

GENERAL INFORMATION

M1161000101291

The charging system charges the battery with the
generator output to keep the battery charged at a
constant level during varying electrical load.

OPERATION

Rotation of the excited field coil generates AC volt-
age in the stator.
This alternating current is rectified through diodes to
DC voltage having a waveform shown in the illustra-
tion above.
The average output voltage fluctuates slightly with
the generator load condition.

When the ignition switch is turned on, current flows in
the field coil and initial excitation of the field coil
occurs.
When the stator coil begins to generate power after
the engine is started, the field coil is excited by the
output current of the stator coil.
The generator output voltage rises as the field cur-
rent increases and it falls as the field current
decreases. When the battery positive voltage (gener-
ator S terminal voltage) reaches a regulated voltage
of approximately 14.4 V, the field current is cut off.
When the battery positive voltage drops below the
regulated voltage, the voltage regulator regulates the
output voltage to a constant level by controlling the
field current.
In addition, when the field current is constant, the
generator output voltage rises as the engine speed
increases.

AK400075

Voltage

Time

Approximately

AC

14.4 V

AK704219

Generator

B

ECM

CAN
communication

G
S
L
FR

Battery

+

-

AB

Generator
malfunction
light

Combination
meter

Stator coil

Stator coil

Voltage
regulator

Field coil
