SERVICE SPECIFICATIONS

M1121000300759

Item

Specification

Oil pump type

Gear type

Drive method

Crankshaft

ITEM

STANDARD VALUE

Engine oil pressure kPa (psi)

at idle

29 (4.2) or more

at 3,500 r/min

294 − 686 (43 − 100)

SEALANT

TSB Revision

ENGINE LUBRICATION

12-3

SEALANT

M1121000500827

LUBRICANTS

M1121000401715

ENGINE OIL

CAUTION

Never use nondetergent or straight mineral oil.

Use only engine oils displaying the ILSAC certification mark
("Starburst" symbol) on the container.

If these oils are not available, an API classification SM or
higher can be used.

Item

Specified sealant

Engine oil pressure switch

THREE BOND 1215 or 1212D or equivalent

Item

Engine oil

Quantity dm

(qt)

Oil filter

Engine oils displaying ILSAC certification
symbol ("Starburst" symbol) or conforming
to the API classification SM or higher

0.3 (0.32)

Oil cooler

0.5 (0.52)

Total quantity

5.6 (5.9)

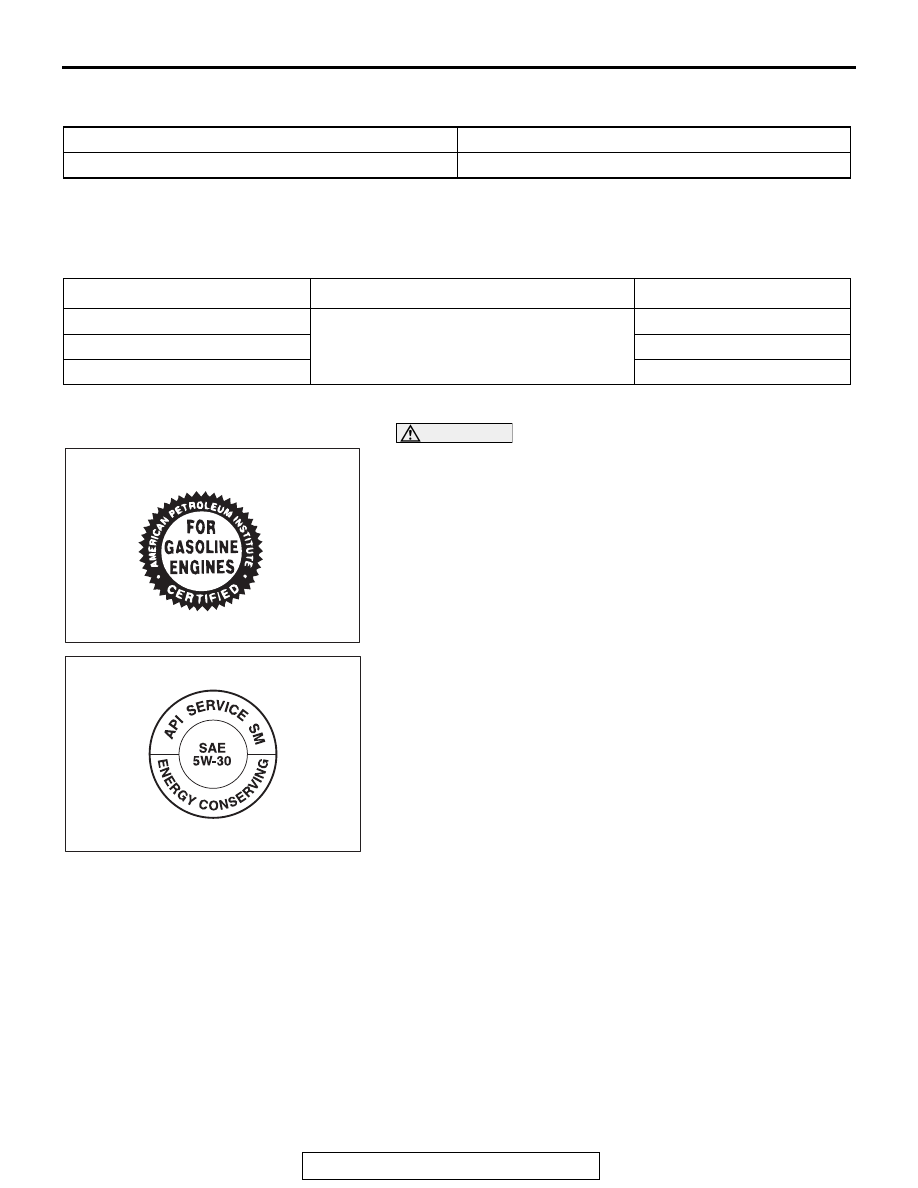

AC609011

ILSAC certification symbol
("Starburst" symbol)

AC709997

API service symbol

SPECIAL TOOLS

TSB Revision

ENGINE LUBRICATION

12-4

SPECIAL TOOLS

M1121000601571

ON-VEHICLE SERVICE

ENGINE OIL CHECK

M1121000900955

1. Pull out the oil dipstick, clean off the engine oil on the oil

dipstick, and then reinsert the oil dipstick.

2. Pull out the oil dipstick, and check the engine oil level is

within the marks on one side of the oil dipstick (engine cover
side).
NOTE:

•

Checking the oil might be difficult shortly after stopping
the engine or engine oil replacement.

•

If difficult, take some time (approx. 30 sec.) and try
again.

•

Refer to the information label indicating the engine oil
check process on the rocker cover.

3. Check that the engine oil is not excessively dirty, that there

is no coolant or gasoline mixed in, and that it is sufficiently
thick and slippery.

ENGINE OIL REPLACEMENT

M1121001002876

1. Start the engine and allow it to warm up until the

temperature of the coolant reaches 80 − 90° C (176 − 194° F).

WARNING

Use care as oil could be hot.

2. Remove the engine oil filler cap.

Tool

Tool number
and name

Supersession

Application

MB991610
Oil filter wrench

Oil filter wrench

Removal and installation of engine oil
filter (When using oil filter MD356000)

MB992118
Oil pressure
switch wrench

Oil pressure switch
wrench

Removal and installation of engine oil
pressure switch

MB991346
Top cover
wrench

−

Holding the engine oil pump sprocket

MB991610

MB992118

B991346

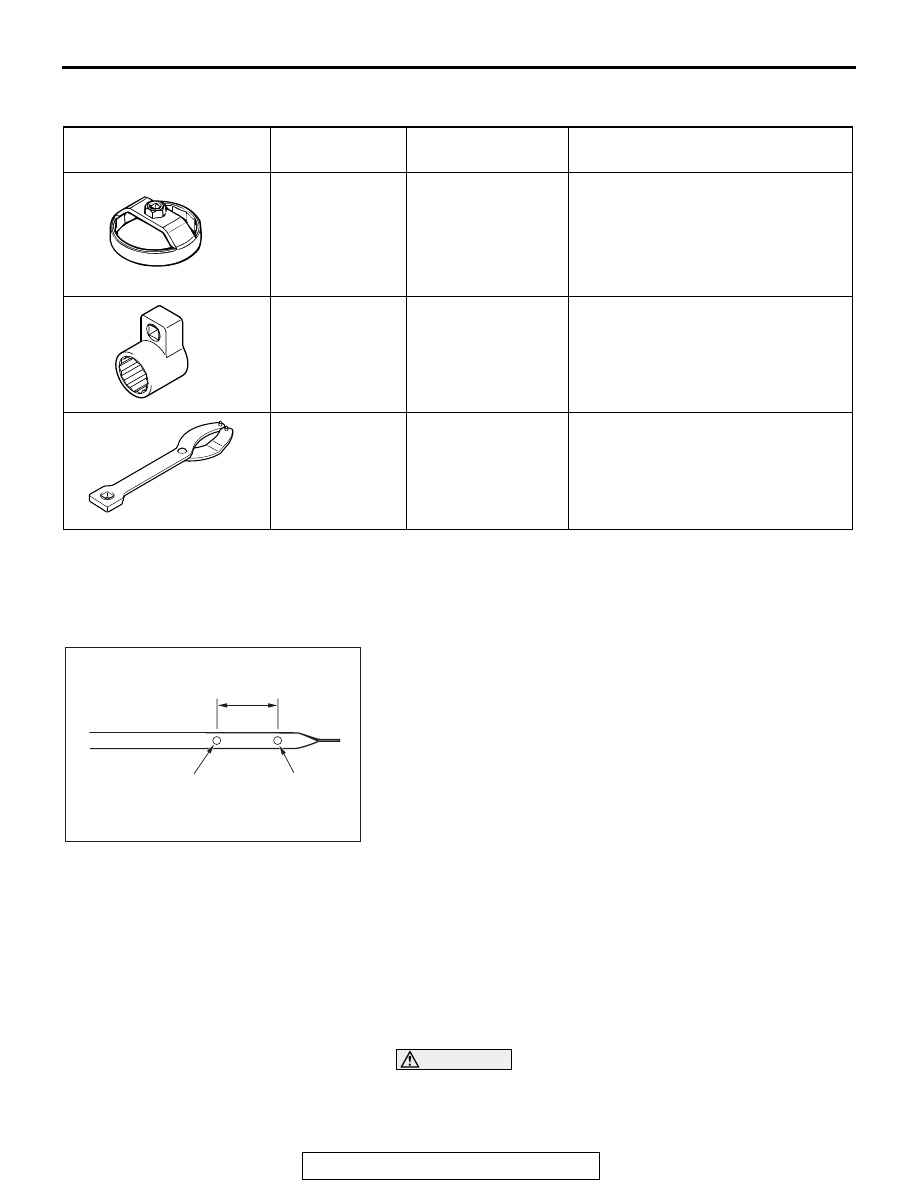

AC205268

Maximum

Minimum

Good
