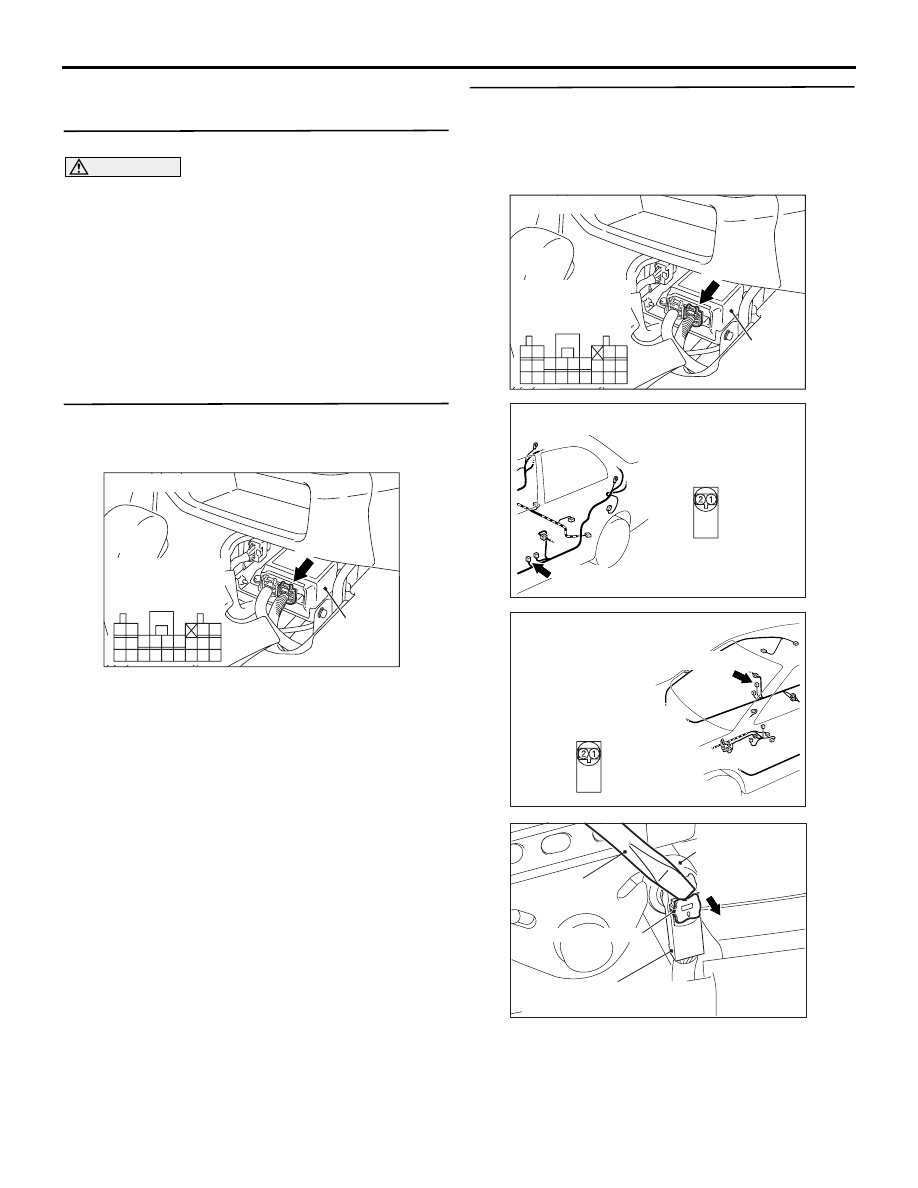

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-29

(3) Resistance measurement between the following

terminals.

• SRS-ECU connector C-12 terminal No.10 and

the passenger’s (front) air bag module con-
nector C-106 terminal No.1

• SRS-ECU connector C-12 terminal No.9 and

the passenger’s (front) air bag module con-
nector C-106 terminal No.2

OK: Less than 2

Q: Are the check results normal?

YES :

Go to Step 3.

NO :

Repair the harness wires between
SRS-ECU connector C-12 (terminal No.10
and 9 and passenger’s (front) air bag
module connector C-106 (terminal No.1 and
2).

STEP 3. Check whether the diagnosis code is
reset.

Q: Is diagnosis code 25 set?

YES :

Replace the SRS-ECU (Refer

to

P.52B-109

).

NO :

An intermittent malfunction is suspected
(Refer to GROUP 00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

Code No.26: Driver's seat belt pre-tensioner (squib) system (short-circuited between terminals of the
squib circuit)

CONNECTOR
LOCK
SWITCH

CONNECTOR
LOCK
SWITCH

AIR BAG DRIVE CIRCUIT

MICROCOMPUTER

SRS-ECU

SEAT BELT
PRE-TENSIONER
(LH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

NOTE

: CONNECTOR
  COUPLED: ON
  CONNECTOR
  UNCOUPLED: OFF

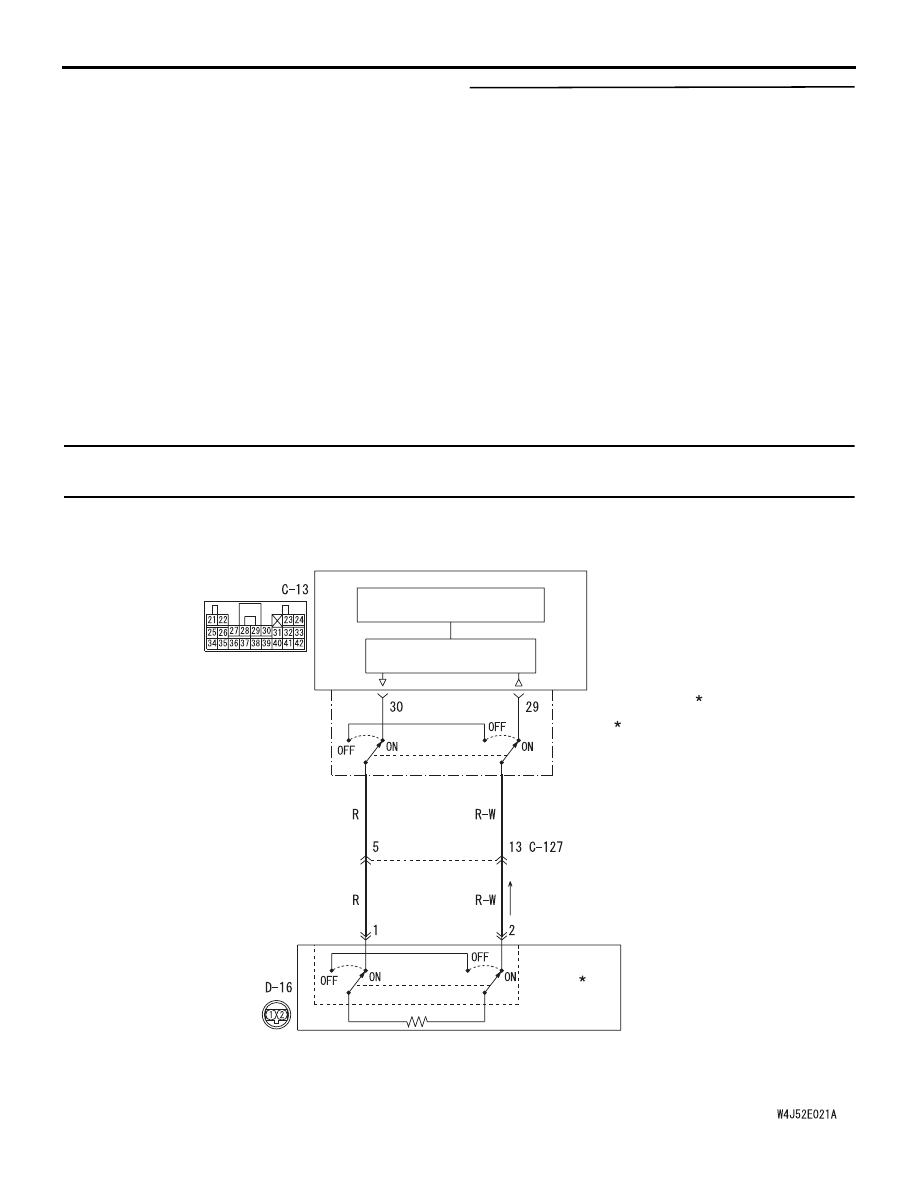

Driver's Seat Belt Pre-Tensioner (Squib) (LHD)

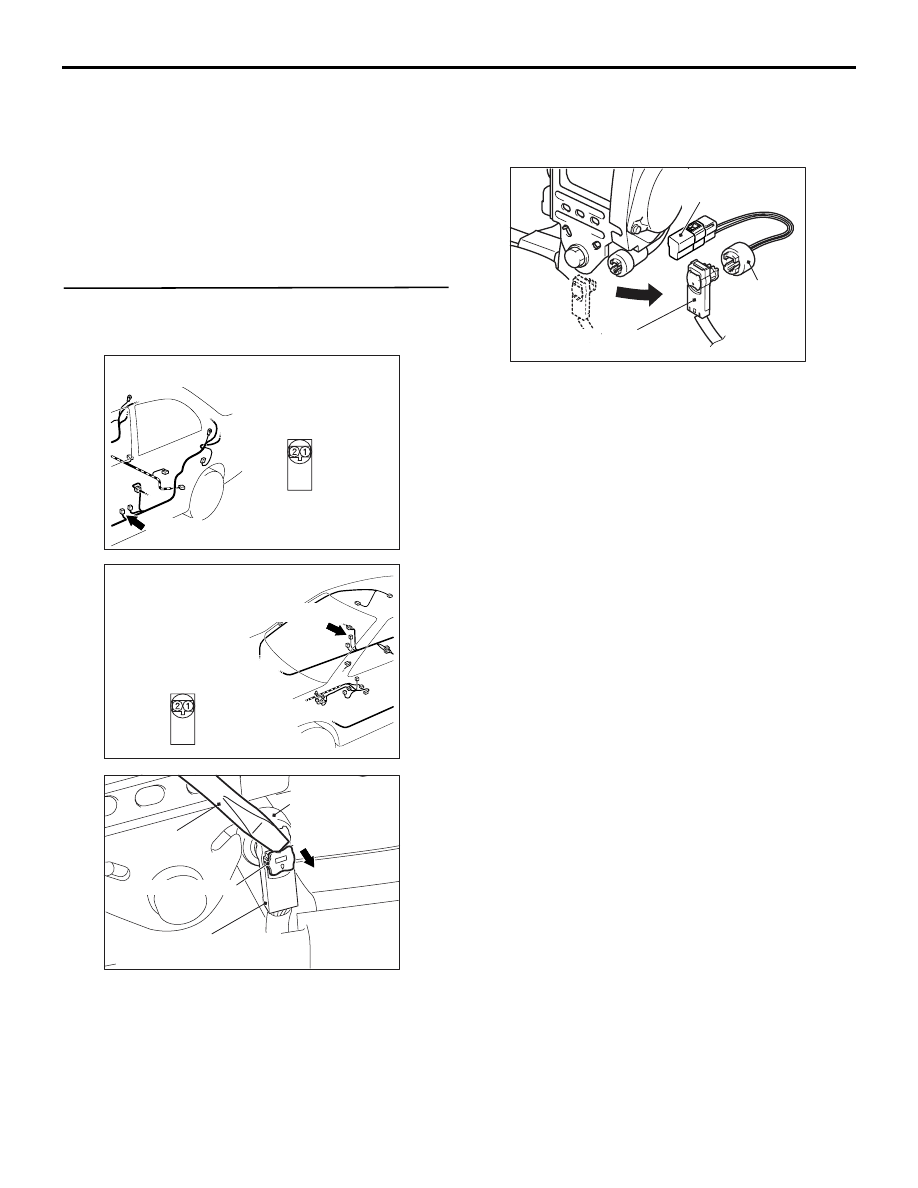

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-30

OPERATION

The SRS-ECU judges how severe a collision is by
detecting signals from the front impact sensors and
the front air bag analogue G-sensor. If the impact is
over a predetermined level, the SRS-ECU outputs an
ignition signal. At this time, if the front air bag safing
G-sensor is on, the seat belt pre-tensioner will
deploy.

DIAGNOSIS CODE SET CONDITIONS

This diagnosis code is set if one driver’s seat belt
pre-tensioner squib wire shorted to the other. How-
ever, if no diagnosis code resets, the SRS warning
lamp will be switched off (diagnosis code will be
retained).

PROBABLE CAUSES

• Improper engaged connector or defective short

spring*

• Short circuit between the driver's seat belt

pre-tensioner (squib) circuit terminals

• Damaged connector(s)

• Malfunction of the SRS-ECU

NOTE: *: The squib circuit connectors integrate a
"short" spring (which prevents the air bag from
deploying unintentionally due to static electricity by
shorting the positive wire to the earth wire in the
squib circuit when the connectors are disconnected).
Therefore, if connector C-13, D-16 <LHD>, or D-03
<RHD> is damaged or improperly engaged, the short
spring may not be released when the connector is
connected.

CONNECTOR
LOCK
SWITCH

CONNECTOR
LOCK
SWITCH

AIR BAG DRIVE CIRCUIT

MICROCOMPUTER

SRS-ECU

SEAT BELT
PRE-TENSIONER
(RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

NOTE

: CONNECTOR
  COUPLED: ON
  CONNECTOR
  UNCOUPLED: OFF

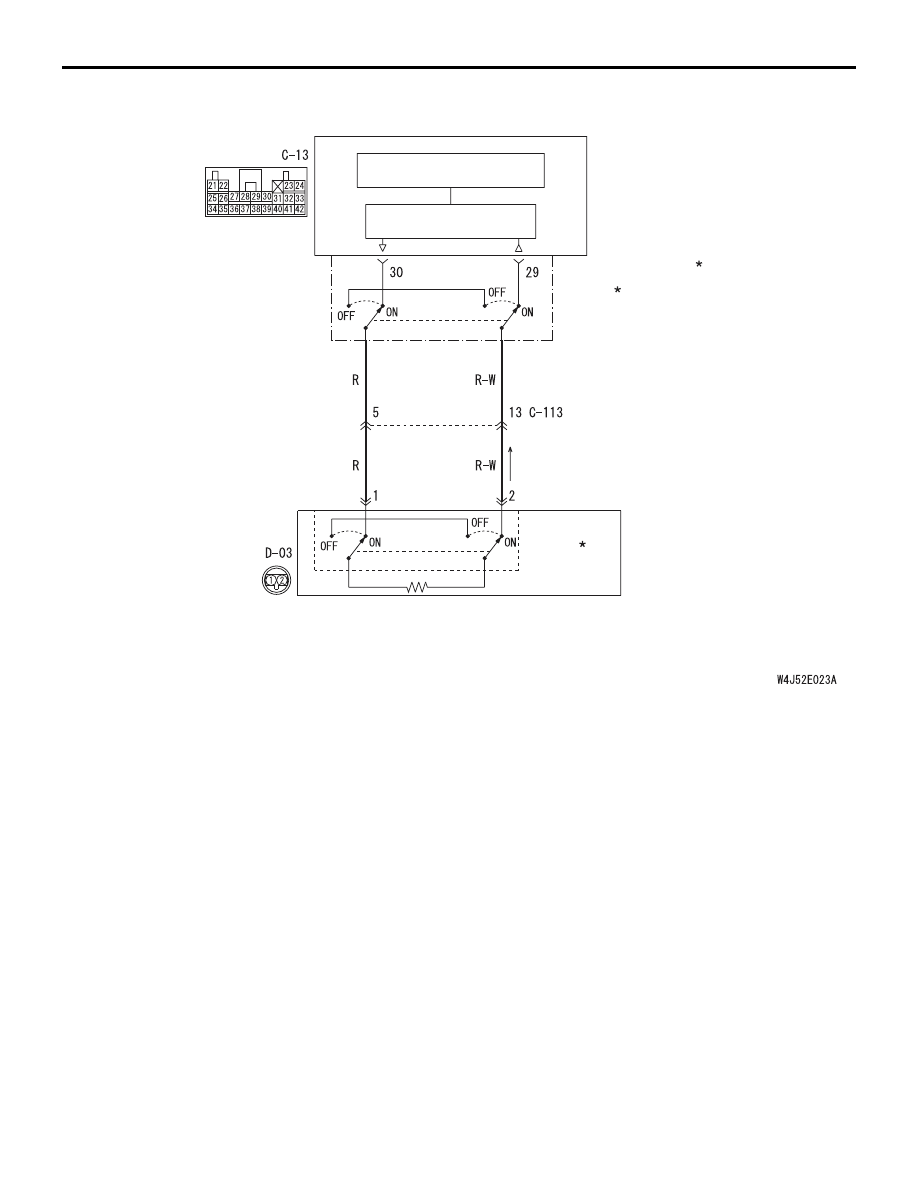

Driver's Seat Belt Pre-Tensioner (Squib) (RHD)

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-31

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-II/III diagnosis code

CAUTION

To prevent damage to M.U.T.-II/III, always turn the
ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting M.U.T.-II/III.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the diagnosis code is set.
(3) Turn the ignition switch to the "LOOK" (OFF)

position.

Q: Is diagnosis code 34 set?

YES :

Go to Step 2.

NO :

Go to Step 3.

STEP 2. Connector lock check: SRS-ECU
connector C-13 (M.U.T.-II/III diagnosis code)
(1) Disconnect the negative battery terminal.

(2) Disconnect the connectors C-13 and then

reconnect them.

(3) Connector the negative battery terminal.
(4) Erase the diagnosis code memory, and check the

diagnosis code.

Q: Is diagnosis code 26 set?

YES :

Go to Step 4.

NO :

The procedure is complete. It is assumed
that diagnosis code 26 set as connector
C-13 was engaged improperly.

STEP 3. Connector lock check: SRS-ECU
connector C-13 and driver’s seat belt
pre-tensioner connector D-16 <LHD> or D-03
<RHD> (M.U.T.-II/III diagnosis code)
(1) Disconnect the negative battery terminal.

(2) Disconnect connectors C-13, D-16 <LHD>, or

D-03 <RHD>, and then reconnect them. For
connector D-16 <LHD> or D-03 <RHD>, use a
flat-tipped screwdriver to pull out the locking
button at the harness side connector, and then
disconnect the connector.

AC101951

Connector: C-13

SRS-ECU

AL

C-13 (Y)

21

252627 282930 313233
34 35 3637 38394041 42

22

23 24

Harness side
connector
(rear view)


AC101951

Connector: C-13

SRS-ECU

AL

C-13 (Y)

21

252627 282930 313233
34 35 3637 38394041 42

22

23 24

Harness side
connector
(rear view)


AC310465

AN

Connector: D-16
<LHD>

Harness side
connector
(front view)

D-16 (B)

AC310471

Ai

Connector: D-03
<RHD>

Harness side
connector
(front view)

D-03 (B)

AC300147AW

Flat-tipped
screwdriver

Locking button

D-16 <LHD>,
D-03 <RHD>
 Driver's seat
belt pre-tensioner
connector

D-16 <LHD>, D-03 <RHD>
Harness side connector

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-32

(3) Connector the negative battery terminal.
(4) Erase the diagnosis code memory, and check the

diagnosis code.

Q: Is diagnosis code 26 set?

YES :

Go to Step 4.

NO :

The procedure is complete. It is assumed
that diagnosis code 26 set as connector
C-13, D-16 <LHD>, or D-03 <RHD> was
engaged improperly.

STEP 4. Check the diagnosis code by connecting
a dummy resistor. (M.U.T.-II/III diagnosis code)
(1) Disconnect the negative battery terminal.

(2) Disconnect driver's seat belt pre-tensioner

connector D-16 <LHD> or D-03 <RHD>. Use a
flat-tipped screwdriver to pull out the locking
button at the harness side connector, and then
disconnect the connector.

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991884).

(4) Connect special tool (MB991884) to the

D-16<LHD> or D-03 <RHD> harness side
connector.

(5) Connect the negative battery terminal.
(6) Erase diagnosis code memory, and then check

the diagnosis code.

Q: Is diagnosis code 26 set?

YES :

Go to Step 5.

NO :

Replace the driver's seat belt with
pre-tensioner (Refer to

P.52B-117

).

AC310465

AN

Connector: D-16
<LHD>

Harness side
connector
(front view)

D-16 (B)

AC310471

Ai

Connector: D-03
<RHD>

Harness side
connector
(front view)

D-03 (B)

AC300147AW

Flat-tipped
screwdriver

Locking button

D-16 <LHD>,
D-03 <RHD>
 Driver's seat
belt pre-tensioner
connector

D-16 <LHD>, D-03 <RHD>
Harness side connector

MB991884
MB991885

AC300975 AI

MB991865
(Dummy resistor : 3  )

MB991884
(Resistor
harness)

D-16 <LHD>, D-03 <RHD>
 Harness side connectors
