ON-VEHICLE SERVICE

MULTIPORT FUEL INJECTION (MPI)

13A-399

3. Disconnect the fuel pump module connector.

4. After starting the engine and letting it run until it

stops naturally, turn the ignition switch to the
"LOCK" (OFF) position.

5. Connect the fuel pump module connector.
6. Install the protector and rear seat assembly (Refer

to GROUP 52A

− Rear Seat Assembly

P.52A-20

).

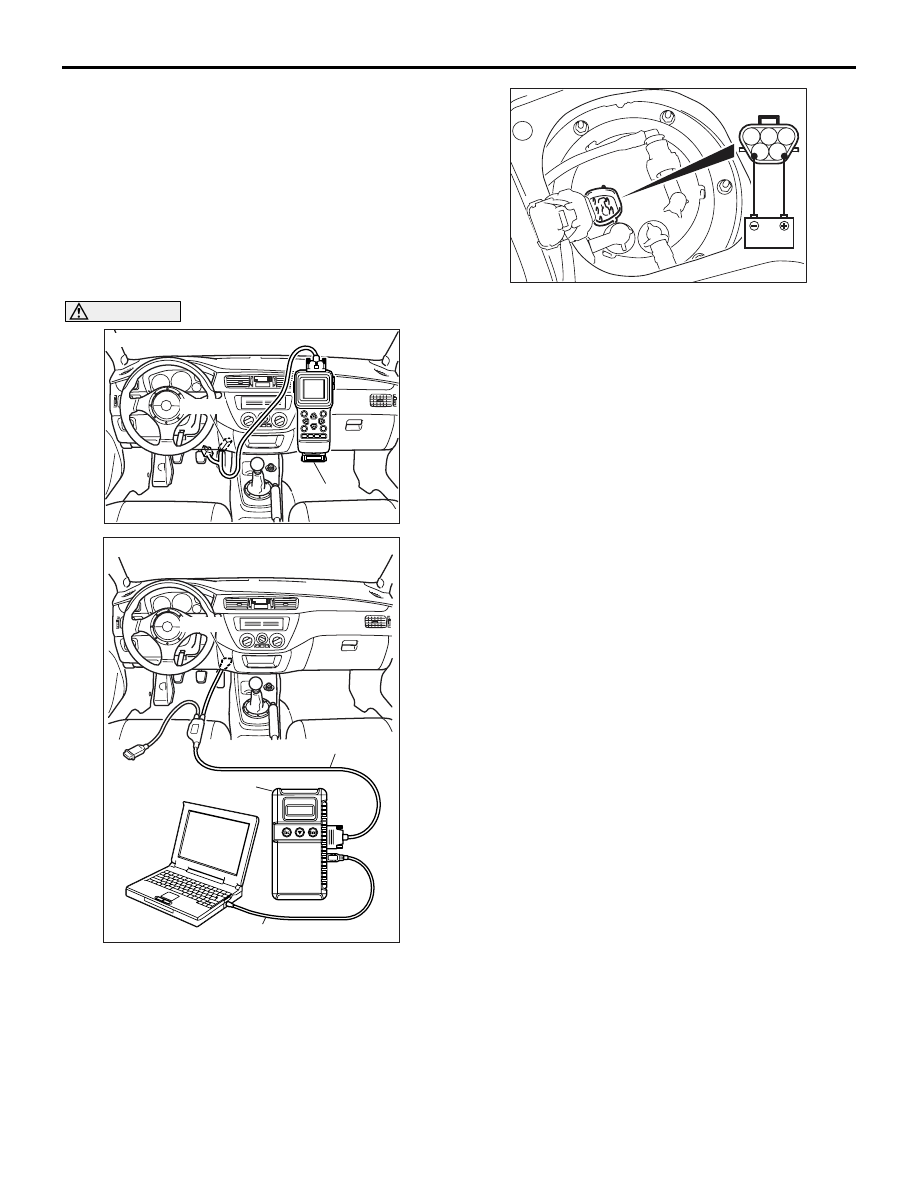

FUEL PUMP OPERATION CHECK

M1131002000818

CAUTION

To prevent damage to the M.U.T.-II/III, always turn
the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting the
M.U.T.-II/III.
1. Check the operating of the fuel pump by using the

M.U.T.-II/III to force-drive the fuel pump.

2. If the fuel pump will not operate, check by using

the following procedure. If normal, check the fuel
pump drive circuit.
(1) Turn the ignition switch to the "LOCK" (OFF)

position.

(2) Remove the rear seat assembly (Refer to

GROUP 52A

− Rear Seat Assembly

P.52A-20

).

(3) Remove the protector.
(4) Disconnect the fuel pump module connector.
(5) When the fuel pump drive connector is

attached directly to the battery, check if the
sound of the fuel pump operation can be
heard.

NOTE: As the fuel pump is an in-tank type, the
fuel pump sound is hard to hear. Remove the
fuel tank filler tube cap and check from the tank
inlet.

(6) Check for fuel pressure by pinching the fuel

hose with fingertips.

(7) Connect the fuel pump module connector.
(8) Install the protector and rear seat assembly

(Refer to GROUP 52A

− Rear Seat Assembly

P.52A-20

).

AC207179AD

M.U.T.-II

16-pin

<When using the M.U.T.-II>

AC210056

<When using the M.U.T.-III>

AG

MB991911

16-pin

MB991827

MB991824

AC208409

1

2

3

4

5

ON-VEHICLE SERVICE

MULTIPORT FUEL INJECTION (MPI)

13A-400

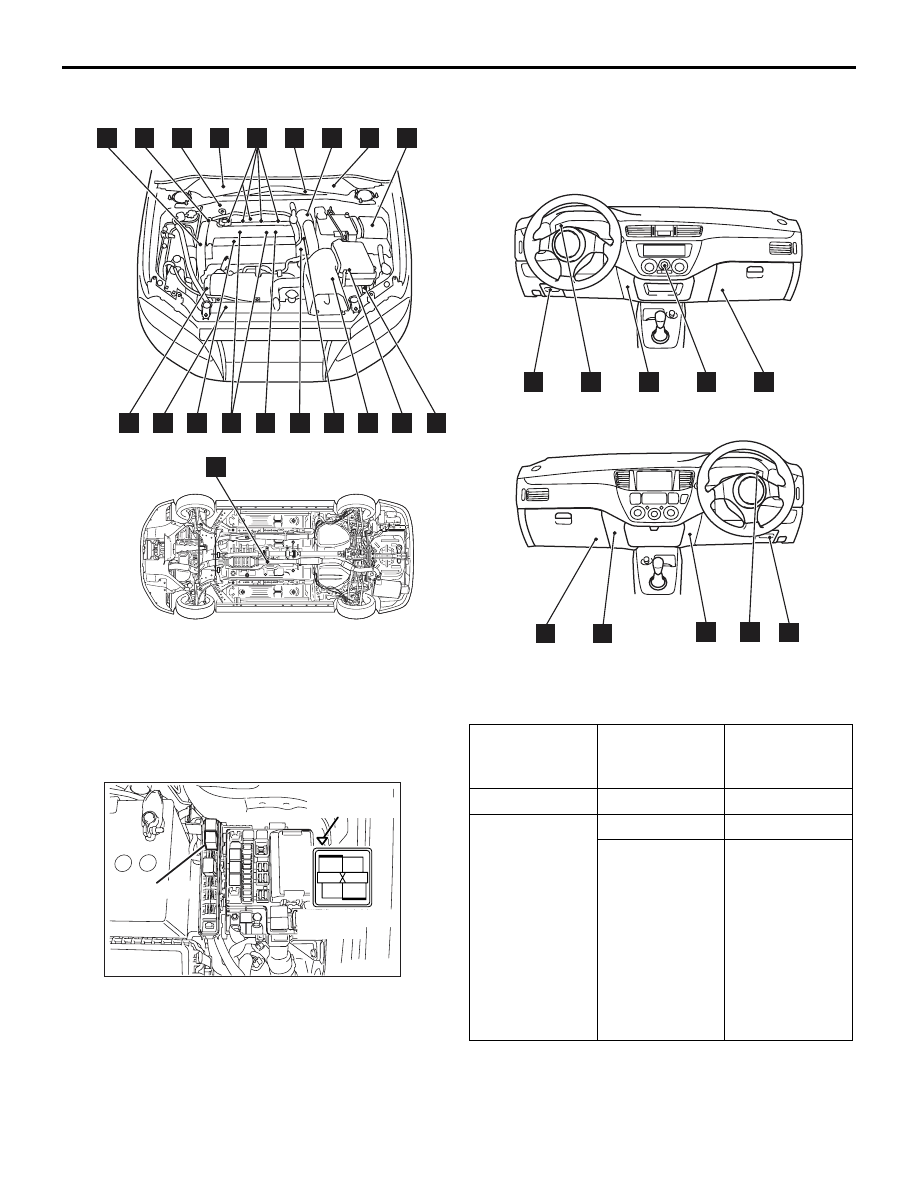

COMPONENT LOCATION

M1131002101573

Name

Symbol

Name

Symbol

A/C relay

I

Fuel pump resistor

<L.H. drive
vehicles>

D

<R.H.
drive
vehicles>

H

A/C switch

X

Idle speed control servo (stepper motor) F

Air flow sensor (with intake air
temperature sensor and barometric
pressure sensor)

R

Ignition coil (integrated power transister) M

Crank angle sensor

A

Ignition coil relay <R.H. drive vehicles>

I

Injector

E

Detonation sensor

N

Oil feeder control solenoid valve

B

Diagnosis connector

W

Oxygen sensor (front)

K

EGR control solenoid valve

L

Oxygen sensor (rear)

T

Engine control relay

I

Power steering fluid pressure switch

J

Engine coolant temperature sensor

O

Purge control solenoid valve

G

Engine-ECU

Y

Injector resistor

<L.H. drive
vehicles>

D

<R.H.
drive
vehicles>

H

Engine warming lamp (check engine
lamp)

V

Intake camshaft position sensor

N

Exhaust camshaft position sensor

N

Throttle position sensor

F

Fan control relay

I

Transmission oil temperature sensor

Q

Fuel pressure control solenoid valve

C

Vehicle speed sensor

P

Fuel pump relay (1) and (2)

U

Waste gate solenoid valve

S

Fuel pump relay (3)

<L.H. drive
vehicles>

D

<R.H.
drive
vehicles>

H

ON-VEHICLE SERVICE

MULTIPORT FUEL INJECTION (MPI)

13A-401

ENGINE CONTROL RELAY CONTINUITY
CHECK

M1131050000754

AK304573AC

<L. H. drive vehicles>

<R. H. drive vehicles>

A

C

D

E

F

G

H

I

B

T

Y

X

W

V

U

Y

X

W

V

U

J

K

L

M

N

O

P

Q

R

S

AK304574

1

2

3

4

AB

Engine control
relay

Relay box’s
triangle marks

Equipment side
connector

Tester
Connection
Terminal

Battery
Voltage

Normal State

2

− 3

No Voltage

Continuity

1

− 4

No Voltage

No continuity

Voltage
(Connect
positive (+)
terminal of
battery to
terminal No. 2
and negative (

−)

terminal of
battery to
terminal No. 3.)

Continuity

ON-VEHICLE SERVICE

MULTIPORT FUEL INJECTION (MPI)

13A-402

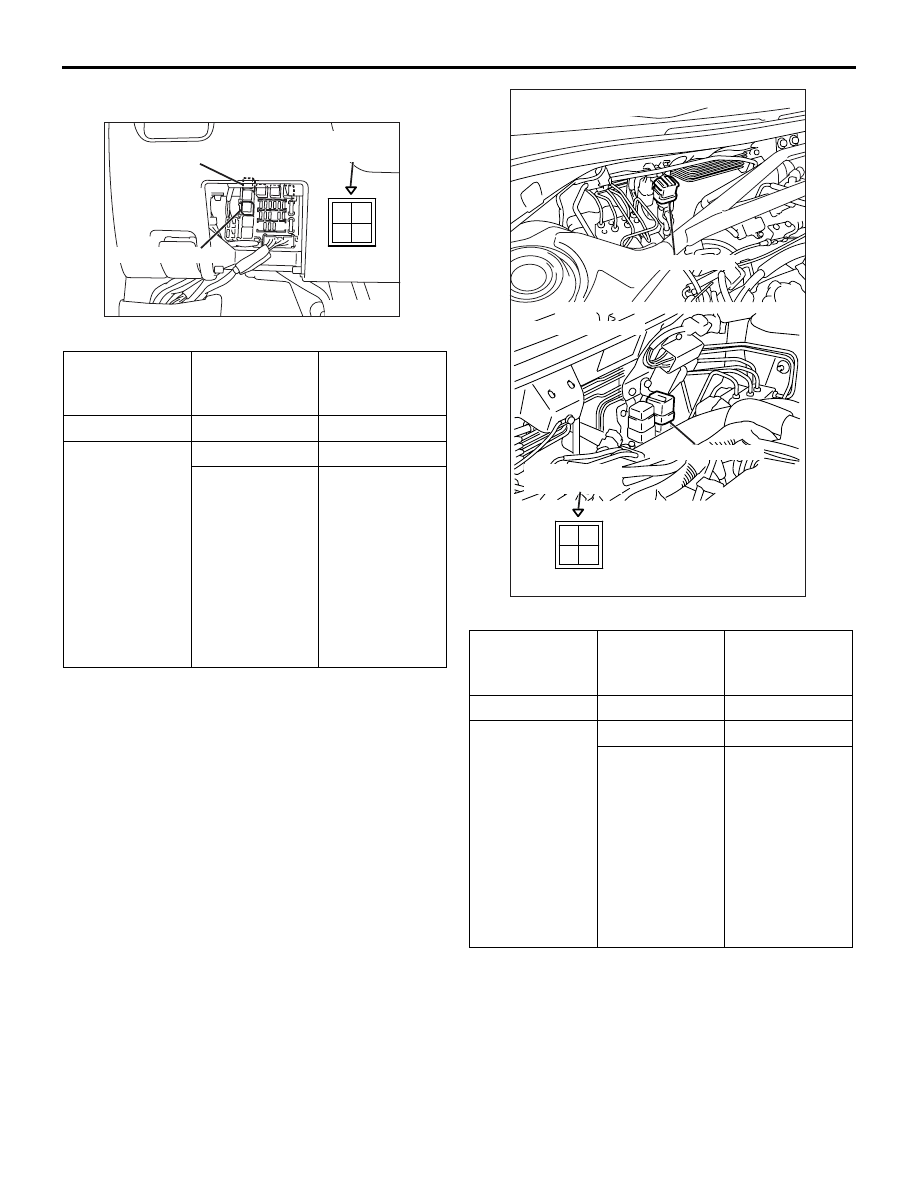

FUEL PUMP RELAY CONTINUITY CHECK

M1131033000762

Fuel pump relay (1) and (2)

Fuel pump relay (3)

Tester
Connection
Terminal

Battery
Voltage

Normal State

1

− 4

No Voltage

Continuity

2

− 3

No Voltage

No continuity

Voltage
(Connect
positive (+)
terminal of
battery to
terminal No. 1
and negative (

−)

terminal of
battery to
terminal No. 4.)

Continuity

AK304575

1

2

3

4

AB

Junction block's
triangle marks

Fuel pump relay (1)

Fuel pump relay (2)

Equipment
side connector

Tester
Connection
Terminal

Battery
Voltage

Normal State

3

− 4

No Voltage

Continuity

1

− 2

No Voltage

No continuity

Voltage
(Connect
positive (+)
terminal of
battery to
terminal No. 2
and negative (

−)

terminal of
battery to
terminal No. 1.)

Continuity

AK304576

1

2

3

4

AB

Junction block's
triangle marks

Fuel pump relay(3)

Equipment side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

Fuel pump relay(3)
