TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-271

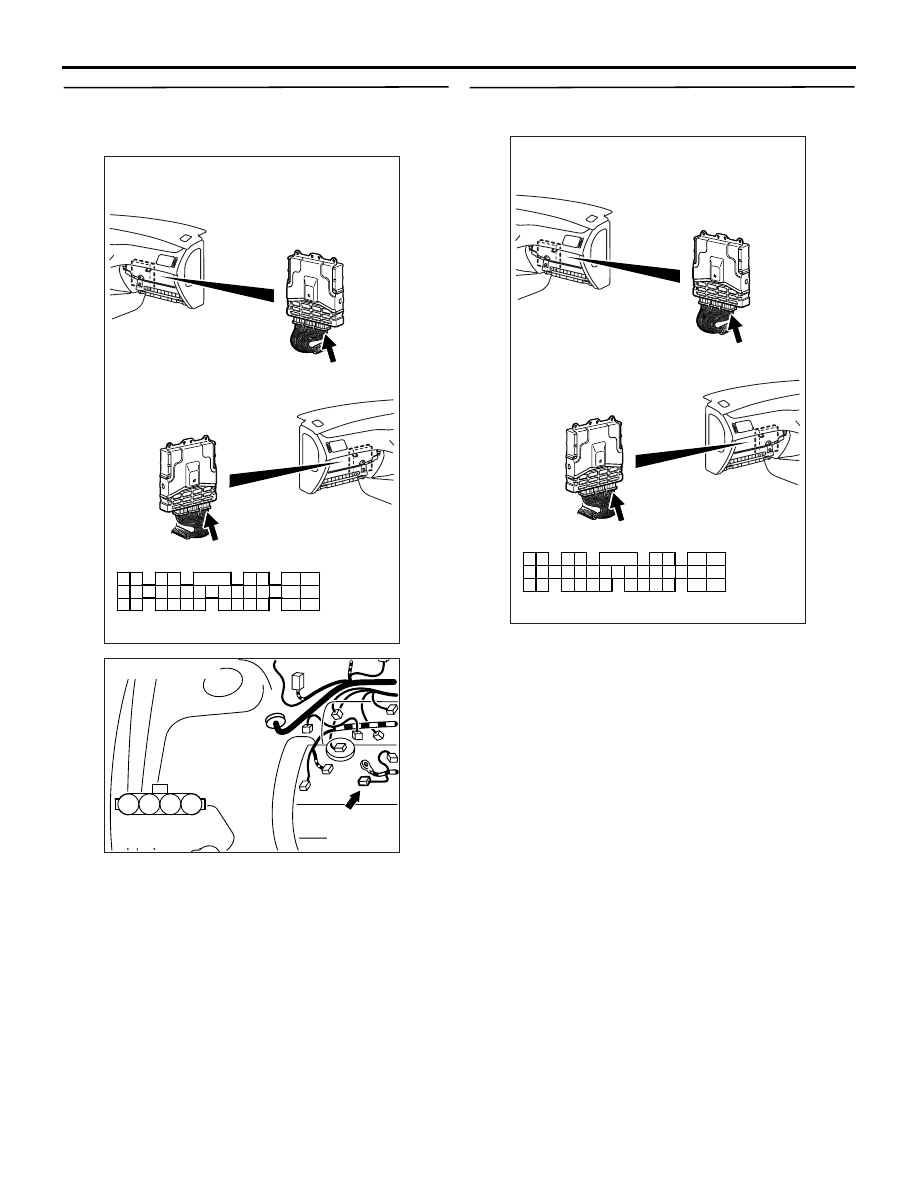

STEP 15. Check harness between C-121 (terminal
No. 8) engine-ECU connector and B-25 (terminal
No. 1) alternator connector.

NOTE: Before checking harness, check intermediate
connector B-14 and repair if necessary.

• Check output line for open/short circuit and dam-

age.

Q: Is the check result normal?

YES :

Go to Step 16 .

NO :

Repair the damaged harness wire.

STEP 16. Perform voltage measurement at C-121
engine-ECU connector.

• Measure engine-ECU terminal voltage.

• Engine: Idling after warm-up

• Transmission: Neutral

• Radiator fan: Not operating

• Voltage between terminal No. 8 and earth.

OK: Switching the head lamps to ON from
OFF causes the voltage to fall.

Q: Is the check result normal?

YES :

Go to Step 20 .

NO :

Go to Step 17 .

AK501995

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

AB

Connector: C-121

C-121 (GR)

C-121 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

AK305036

M

2

1

3

4

Harness side
connector

AB

Connector : B-25

B-25(GR)

AK501995

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

AB

Connector: C-121

C-121 (GR)

C-121 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-272

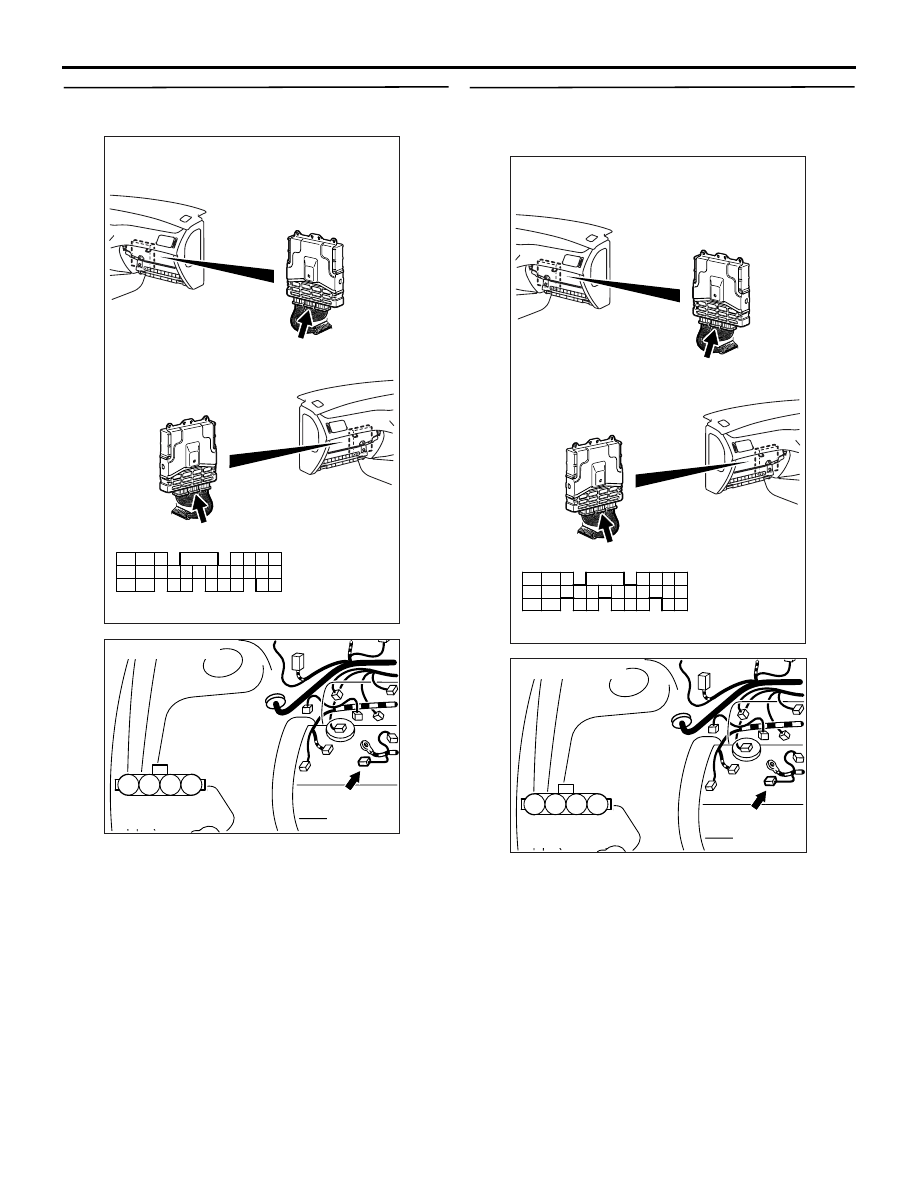

STEP 17. Connector check: C-119 engine-ECU
connector and B-25 alternator connector.

Q: Is the check result normal?

YES :

Go to Step 18 .

NO :

Repair or replace the connector.

STEP 18. Check harness between C-119 (terminal
No. 52) engine-ECU connector and B-25 (terminal
No. 4) alternator connector.

NOTE: Before checking harness, check intermediate
connector B-14, and repair if necessary.

• Check output line for open/short circuit and dam-

age.

Q: Is the check result normal?

YES :

Go to Step 19 .

NO :

Repair the damaged harness wire.

AK501994

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

AB

Connector: C-119

C-119 (GR)

C-119 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

AK305036

M

2

1

3

4

Harness side
connector

AB

Connector : B-25

B-25(GR)

AK501994

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

AB

Connector: C-119

C-119 (GR)

C-119 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

AK305036

M

2

1

3

4

Harness side
connector

AB

Connector : B-25

B-25(GR)

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-273

STEP 19. Check the trouble symptoms.

Q: Does trouble symptom persist?

YES :

Replace the alternator.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

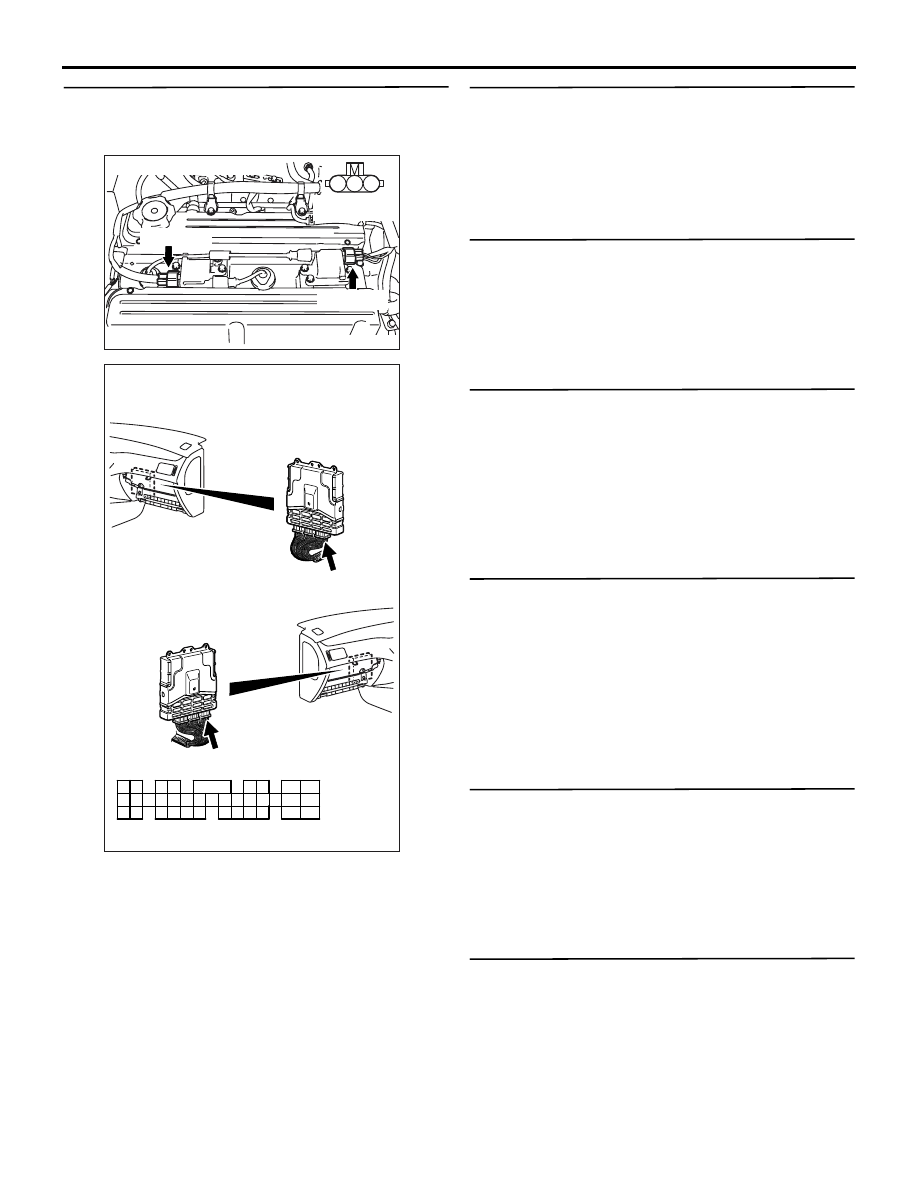

STEP 20. Perform voltage measure at C-119
engine-ECU connector.

• Measure engine-ECU terminal voltage.

• Engine: Idling

• A/C switch: ON (A/C compressor ON)

• Voltage between terminal No. 65 and earth.

OK:

1 V or less (with outside air temperature sen-

sor ambient temperature at 18

°C or higher

and A/C set for maximum air flow at mini-
mum temperature)

System voltage (with A/C set for minimum air

flow at room temperature)

Q: Is the check result normal?

YES :

Go to Step 21 .

NO :

Check A/C load signal system (Refer to
Inspection Procedure 29

P.13A-352

).

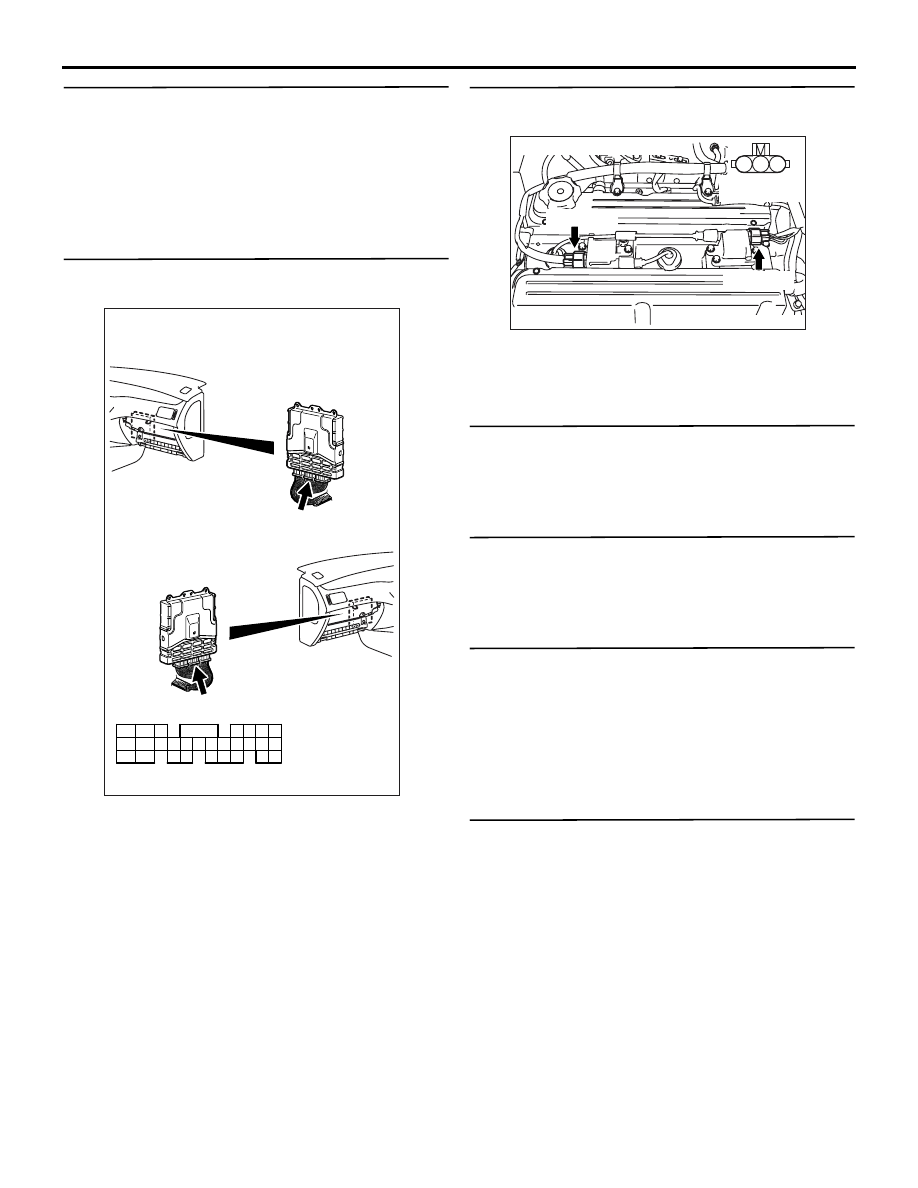

STEP 21. Connector check: B-103 and B-114
ignition coil connectors.

Q: Is the check result normal?

YES :

Go to Step 22 .

NO :

Repair or replace the connector.

STEP 22. Check ignition coil spark.

Q: Is the check result normal?

YES :

Go to Step 27 .

NO :

Go to Step 23 .

STEP 23. Check spark plug.

Q: Is the check result normal?

YES :

Go to Step 24 .

NO :

Replace the spark plug.

STEP 24. Check spark plug cable.

• Check spark plug cable itself (Refer to GROUP

16

− Ignition System − On-vehicle Service

P.16-29

).

Q: Is the check result normal?

YES :

Go to Step 25 .

NO :

Replace the spark plug cable.

STEP 25. Check ignition coil itself.

• Check ignition coil itself (Refer to GROUP 16 −

Ignition System

− On-vehicle Service

P.16-28

).

Q: Is the check result normal?

YES :

Go to Step 26 .

NO :

Replace the ignition coil.

AK501994

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

AB

Connector: C-119

C-119 (GR)

C-119 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

AK305047

1

2

3

Connector : B-103, B-114

B-114(GR)

B-103(GR)

AB

Harness side
connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-274

STEP 26. Check harness between ignition coil
connector terminal No. 2 of each cylinder and
body earth.

• Check earthing line for open/short circuit and

damage.

Q: Is the check result normal?

YES :

Check and repair harness between ignition

coil connector terminal No. 3 of each
cylinder and C-121 engine-ECU.

• Check signal line for open/short and

damage.

NO :

Repair the damaged harness wire.

STEP 27. Check injector for spray condition.

• Check each injector for spray condition (Refer to

P.13A-406

).

Q: Is the check result normal?

YES :

Go to Step 28 .

NO :

Replace the injector.

STEP 28. Check compression pressure.

• Check compression pressure (Refer to GROUP

11A

− On-vehicle Service

P.11A-11

).

Q: Is the check result normal?

YES :

Go to Step 29 .

NO :

Repair.

STEP 29. Check purge control solenoid valve
itself.

• Check purge control solenoid valve itself (Refer

to GROUP 17

− Emission Control System −

Evaporative Emission Control System

P.17-11

).

Q: Is the check result normal?

YES :

Go to Step 30 .

NO :

Replace the purge control solenoid valve.

STEP 30. Check EGR control solenoid valve
itself.

• Check EGR control solenoid valve itself (Refer to

GROUP 17

− Emission Control System −

Exhaust Gas Recirculation (EGR) System

P.17-15

).

Q: Is the check result normal?

YES :

Go to Step 31 .

NO :

Replace the EGR control solenoid valve.

STEP 31. Check EGR valve itself.

• Check EGR valve itself (Refer to GROUP 17 −

Emission Control System

− Exhaust Gas Recir-

culation (EGR) System

P.17-15

).

Q: Is the check result normal?

YES :

Go to Step 32 .

NO :

Replace the EGR valve.

STEP 32. M.U.T.-II/III actuator test

• Item No. 07: Fuel pump

OK: Operating sounds of fuel pump can be
heard.

Q: Is the check result normal?

YES :

Go to Step 33 .

NO :

Check fuel pump system (Refer to
inspection Procedure 24

P.13A-313

).

AK305047

1

2

3

Connector : B-103, B-114

B-114(GR)

B-103(GR)

AB

Harness side
connector

AK501995

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

AB

Connector: C-121

C-121 (GR)

C-121 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>
