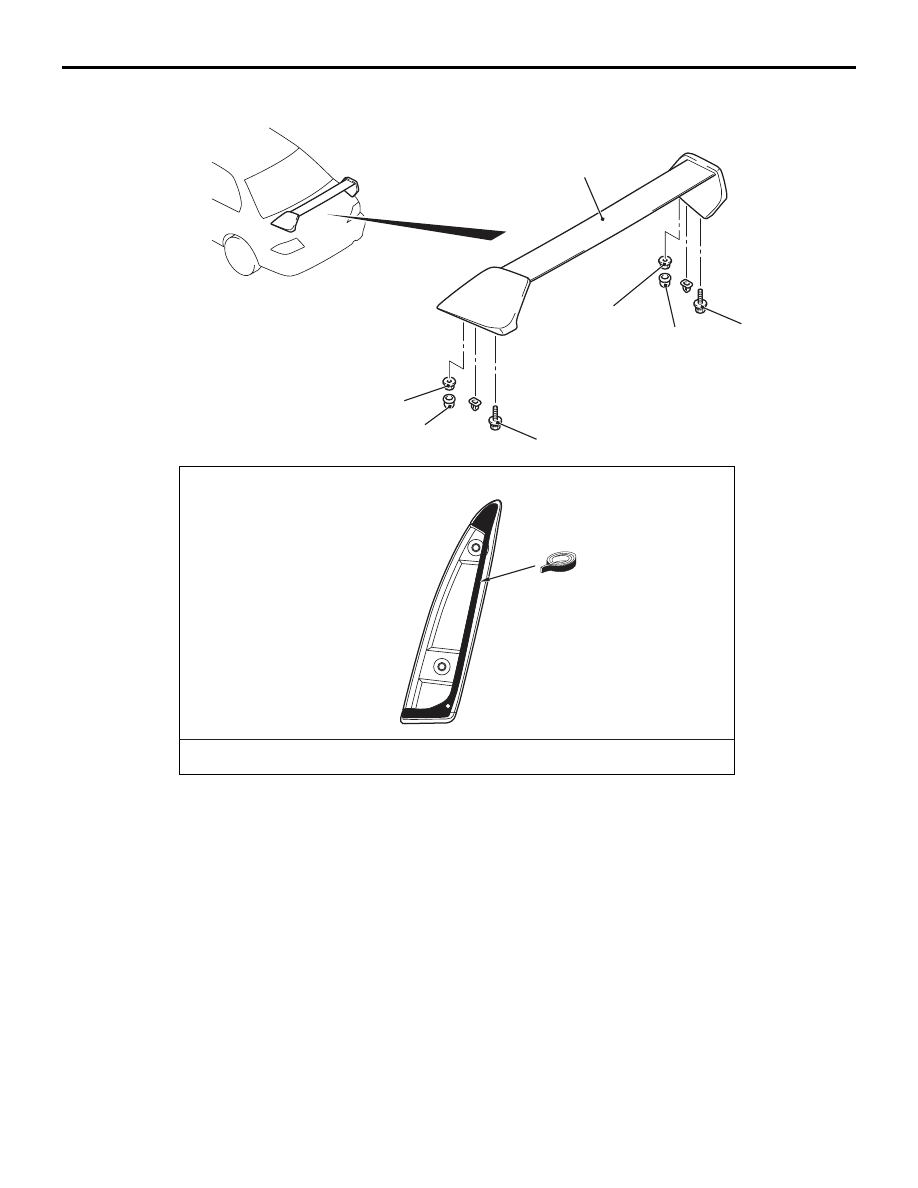

REAR SPOILER

EXTERIOR

51-17

<Type B>

AC504553

Double-sided tape: Generic products, 1.6 mm thickness

Adhesive tape affixed location

AB

5.2 ± 0.2 N·m

5.2 ± 0.2 N·m

5.2 ± 0.2 N·m

5.2 ± 0.2 N·m

2

1

1

Removal steps
•

Trunk lid bumper (Refer to GROUP
42, Trunk Lid

P.42-37

).

1. Cap

<<

A

>> >>

A

<< 2. Rear spoiler assembly

REMOVAL SERVICE POINT
<<A>> REAR SPOILER ASSEMBLY
REMOVAL

Remove by the same procedure as described in
SIDE AIR DAM REMOVAL (Refer to

P.51-8

).

INSTALLATION SERVICE POINT
>>A<< REAR SPOILER ASSEMBLY
INSTALLATION

Install by the same procedure as described in SIDE
AIR DAM INSTALLATION (Refer to

P.51-8

).

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-18

WINDSHIELD WIPER AND WASHER

SERVICE SPECIFICATION

M1511000300422

Item

Standard value

Stop position of the windshield wiper arm/blade assembly (Distance between the
edge of the wiper blade and the end of the deck garnish) mm

69

± 5

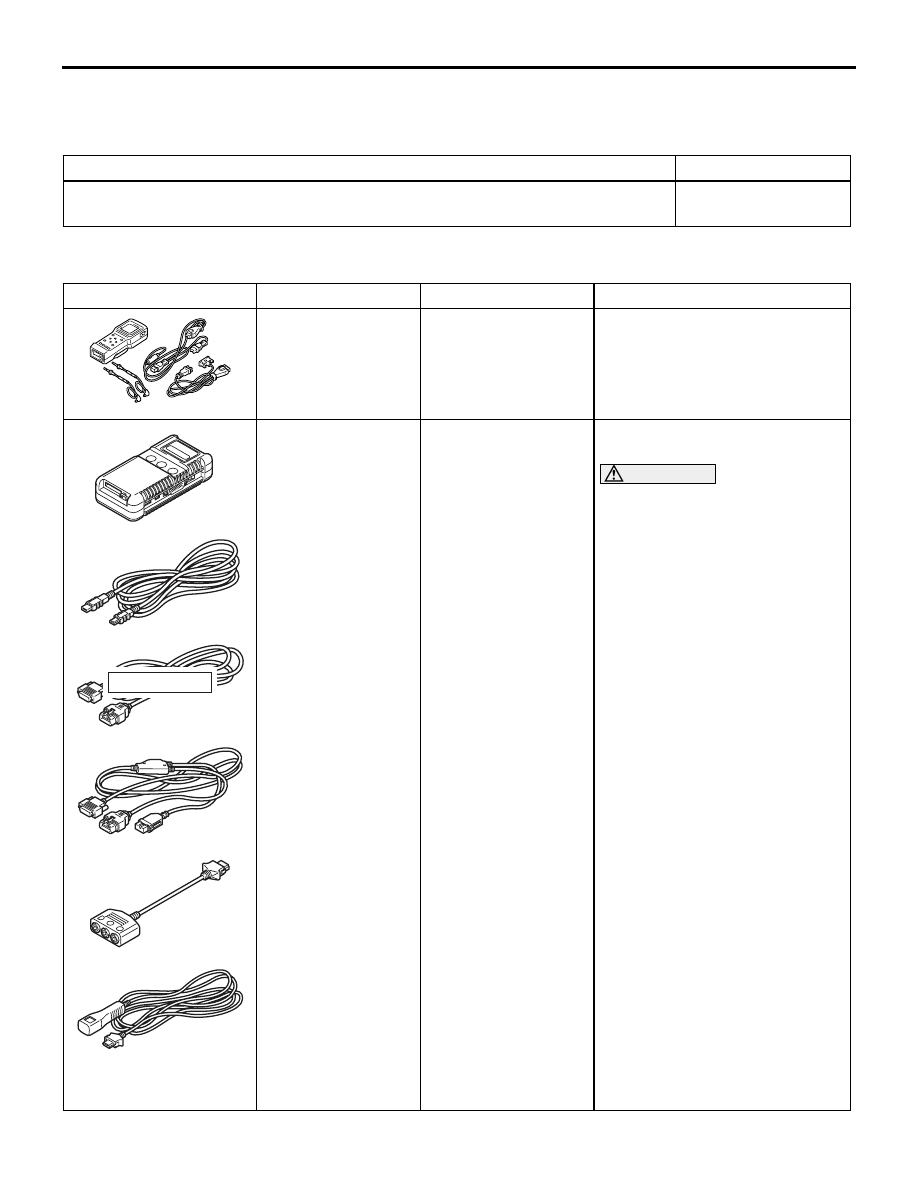

SPECIAL TOOLS

M1511000601783

Tool

Number

Name

Use

B991502

MB991502

M.U.T.-II sub
assembly

Check the windshield intermittent
wiper interval

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

A

B

C

D

E

F

DO NOT USE

MB991955

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

M.U.T.-III
sub-assembly

A: Vehicle

Communication
Interface (V. C. I.)

B: M.U.T.-III USB

cable

C: M.U.T.-III main

harness A
(Vehicles with CAN
communication
system)

D: M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

E: M.U.T.-III

measurement
adapter

F: M.U.T.-III trigger

harness

Check the windshield intermittent
wiper interval

CAUTION

M.U.T.-III main harness B
(MB991911) should be used.
M.U.T.-III main harness A
should not be used for this
vehicle.

MB991529

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-19

TROUBLESHOOTING

M1511000700323

The windshield wiper and washer are controlled by
the Smart Wiring System (SWS). For troubleshoot-
ing, refer to GROUP 54B, Troubleshooting

P.54B-13



or GROUP 54C, Troubleshooting

P.54C-4

.

NOTE: Even when the ETACS-ECU has failed, the
windshield wiper can work at low speed as fail-safe
mode. (Normally, the windshield wiper operates
when the ignition switch is at the "ACC" position. But,
if it enters the fail-safe mode, the wiper can operate
only when the ignition switch is at the "ON" position.)

ON-VEHICLE SERVICE

WINDSHIELD INTERMITTENT WIPER
INSPECTION

M1511021900054

1. If the windshield intermittent wiper interval

adjusting knob is operated, the wiper interval
should change.

2. Holding the windshield intermittent wiper interval

adjusting knob, input the simulated vehicle speed
with M.U.T.-II / III and check that the wiper interval
changes as the vehicle speed changes.

3. If not, carry out the troubleshooting (Refer to

GROUP 54B, Troubleshooting

P.54B-13

 or

GROUP 54C, Troubleshooting

P.54C-4

).

MB991529

Diagnosis code check
harness

Input signal check by using a
voltmeter

MB991223

a

d

c

b

DO NOT USE

BA

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

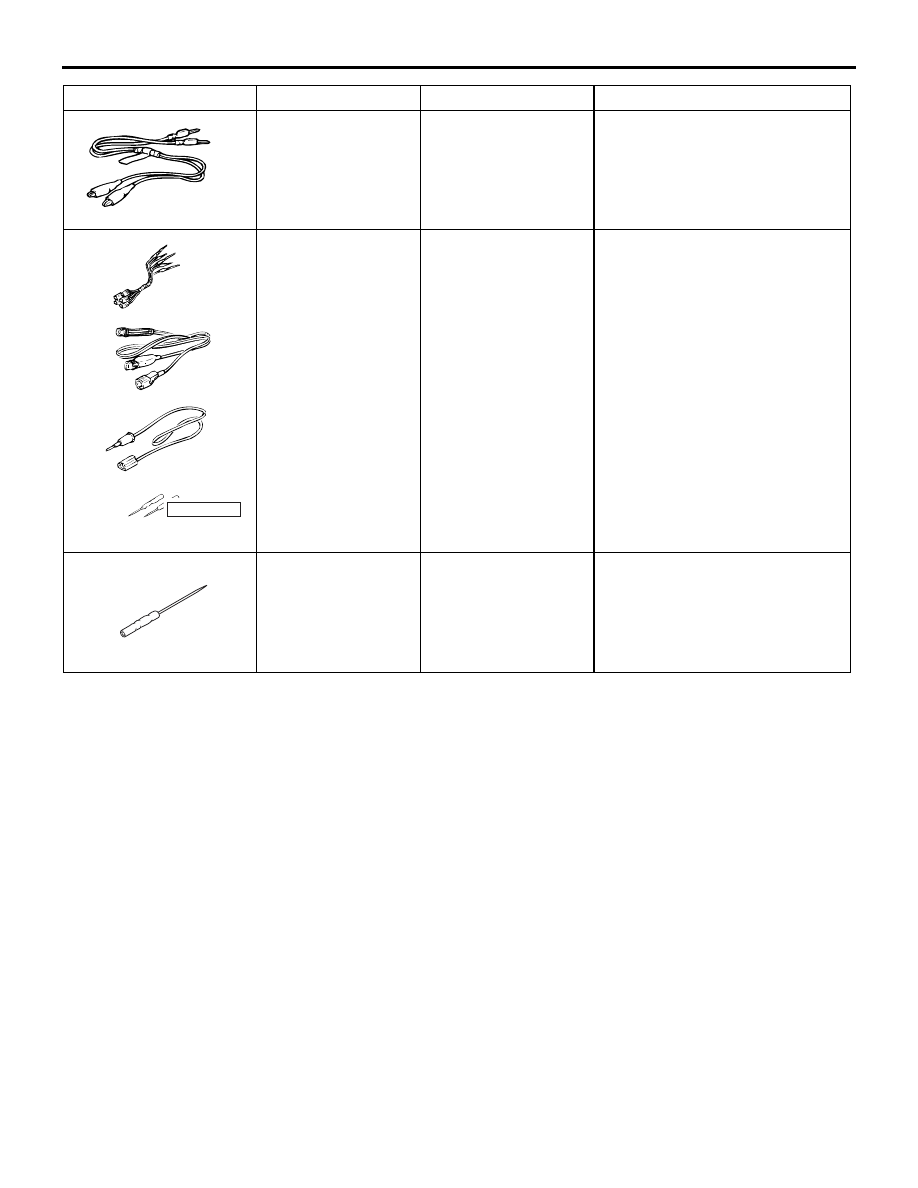

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally

sourced tester

MB992006

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-20

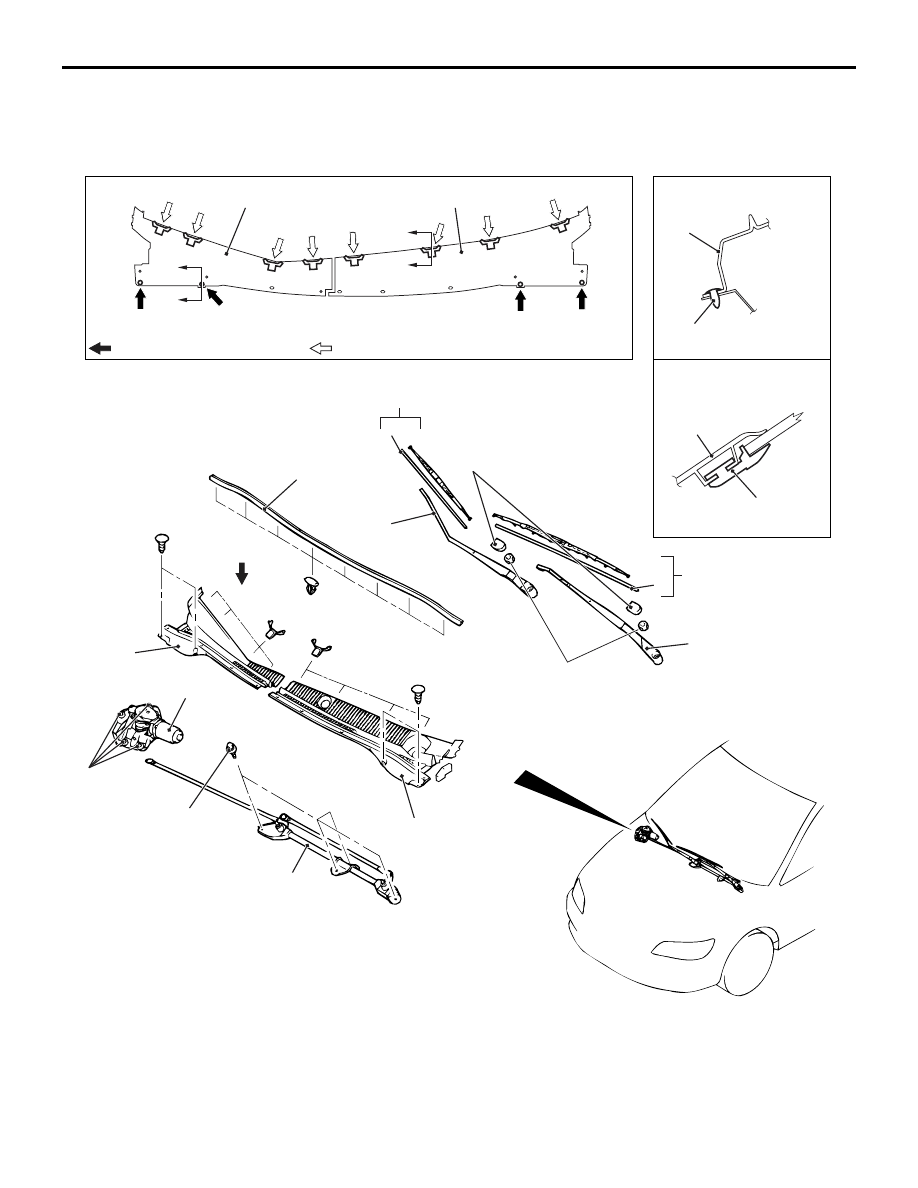

WINDSHIELD WIPER

REMOVAL AND INSTALLATION

M1511007900209

AC211876

Note
       :Indicates the clip (A) locations.         :Indicates the clip (B) locations.

Section B – B

Section A – A

View A

6, 7

3, 4

Clip (A)

Clip (B)

2

1

2

4

4

1

27 ± 3 N·m

A

A

A

AF

5

6

6

7

7

8

9

7.4 ± 1.4 N·m

8.9 ± 1.9 N·m

B

B

3

Wiper blade assembly removal steps

>>

B

<< 1. Wiper blade assembly

>>

A

<< 2. Wiper blade

Windshield wiper motor and link
assembly removal steps
3. Cover
4. Wiper arm

5. Hood weather strip
6. Front deck garnish (Passenger's side)
7. Front deck garnish (Driver's side)

<<

A

>>

8. Windshield wiper motor assembly
9. Link assembly

Windshield wiper motor and link
assembly removal steps (Continued)
