DOOR

BODY

42-25

CENTRAL DOOR LOCKING SYSTEM
INSPECTION

M1427001100207

Check that the central door locking system works by
operating the key cylinders (driver’s and passenger’s
door) and the inside lock knob (driver’s door). Carry
out troubleshooting if the system does not activate.
Refer to GROUP 54B, Troubleshooting

P.54B-13

 or

GROUP 54C, Troubleshooting

P.54C-4

.

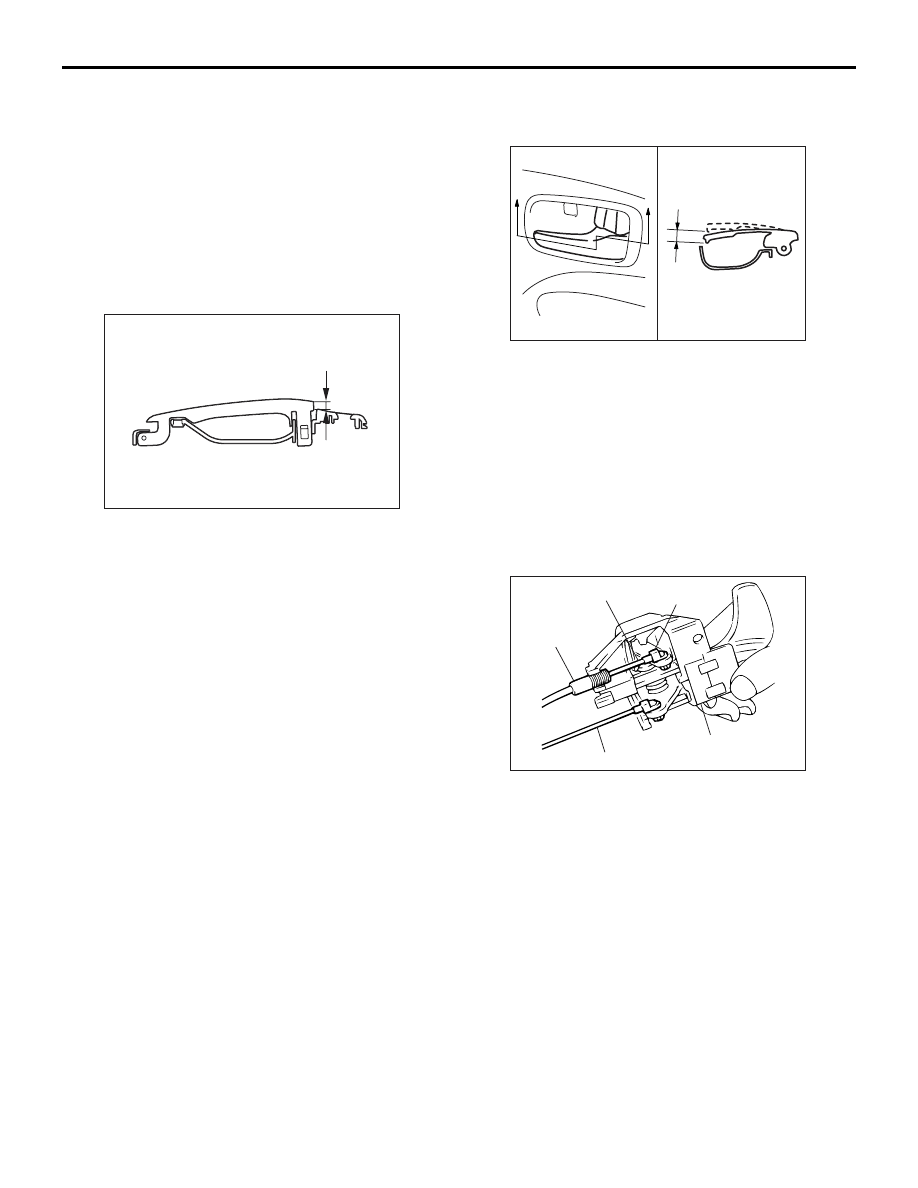

DOOR OUTSIDE HANDLE PLAY CHECK

M1423001600404

AC006113AB

A

1. Check that the door outside handle play is within

the standard value range.

Standard value (A):
Front door: 2.3 mm
Rear door: 0

− 3.3 mm (target value: 1.3 mm)

2. If the door outside handle play is not within the

standard value range, check the door outside
handle or the door latch assembly. Replace, if
necessary.

DOOR INSIDE HANDLE PLAY
ADJUSTMENT

M1423001500292

AC006114

Y0705AU

AB

A

A

B

Section A – A

1. Check that the door inside handle play is within

the standard value range.

Standard value (B):
Front door: 10.4

± 9.6 mm

Rear door: 10

± 9.6 mm

2. If the door inside handle play is outside the

standard value range.

3. Remove the door trim assembly (Refer to GROUP

52A, Door trim

P.52A-12

).

4. Remove the waterproof film (Refer to

P.42-33

).

AC100404 AB

Clip

Inner cable

Outer cable end

Inside handle rod

Door inside handle

5.  Adjust the door inside handle play with the outer

cable end connecting the door inside handle and
inside lock cable.

DOOR

BODY

42-26

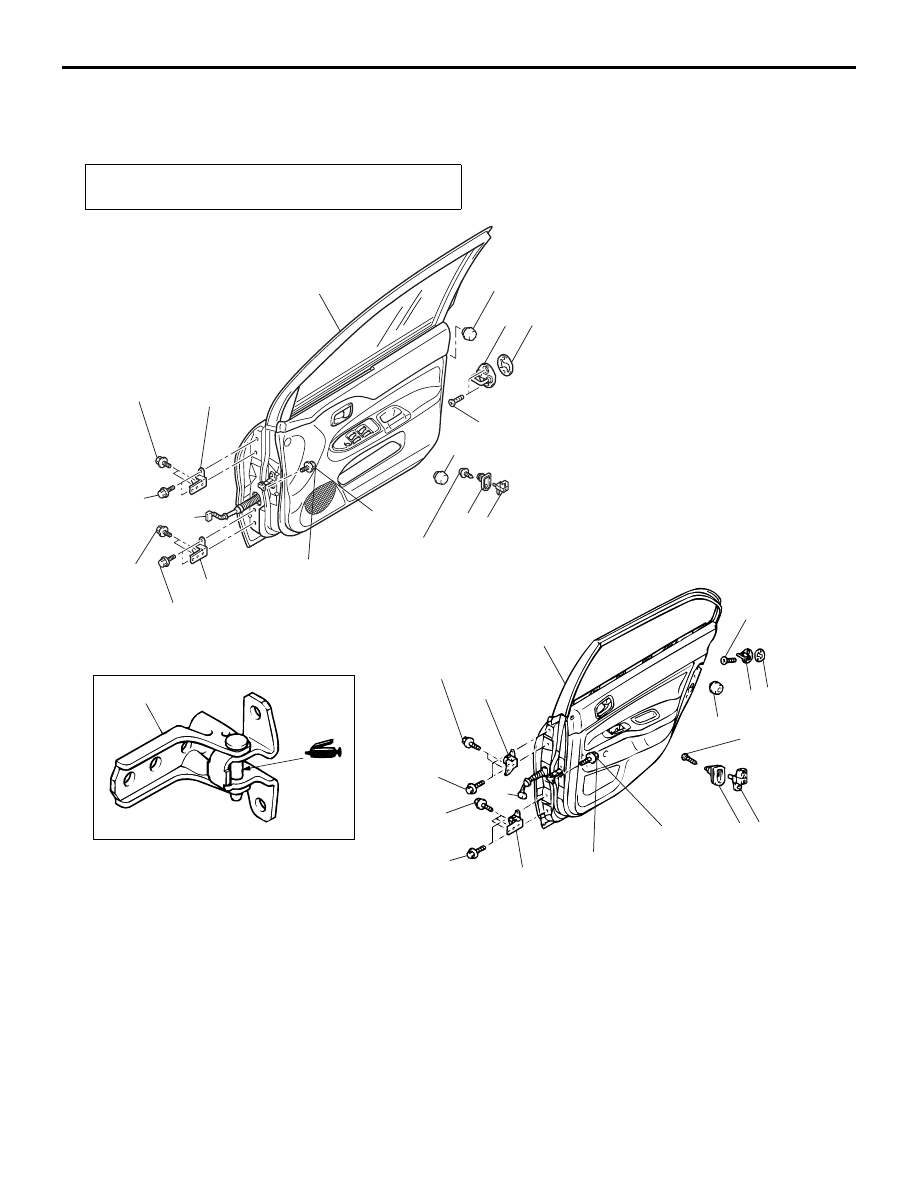

DOOR ASSEMBLY

REMOVAL AND INSTALLATION

M1423002200283

Post-installation Operation
• Door Fit Adjustment (Refer to

P.42-22

.)

Y0655AU

AC006125

ACX00503

Y0652AU

5, 6

AB

<FRONT DOOR>

<REAR DOOR>

1

2

3

4

5

6

7 8

9 10

1

2

3

4

5

6

7

8

9 10

1

1.5 ± 0.5 N·m

1.5 ± 0.5 N·m

11 ± 2 N·m

11 ± 2 N·m

11 ± 2 N·m

11 ± 2 N·m

21 ± 4 N·m

27 ± 5 N·m

21 ± 4 N·m

27 ± 5 N·m

21 ± 4 N·m

27 ± 5 N·m

21 ± 4 N·m

27 ± 5 N·m

Removal
1. Damper mail
Door assembly removal steps
2. Harness connector
3. Door check connecting bolt
4. Door assembly
5. Door upper hinge
6. Door lower hinge

Striker removal steps

>>

A

<< 7. Striker

8. Striker shim
Door switch removal steps
9. Door switch cap
10. Door switch

DOOR

BODY

42-27

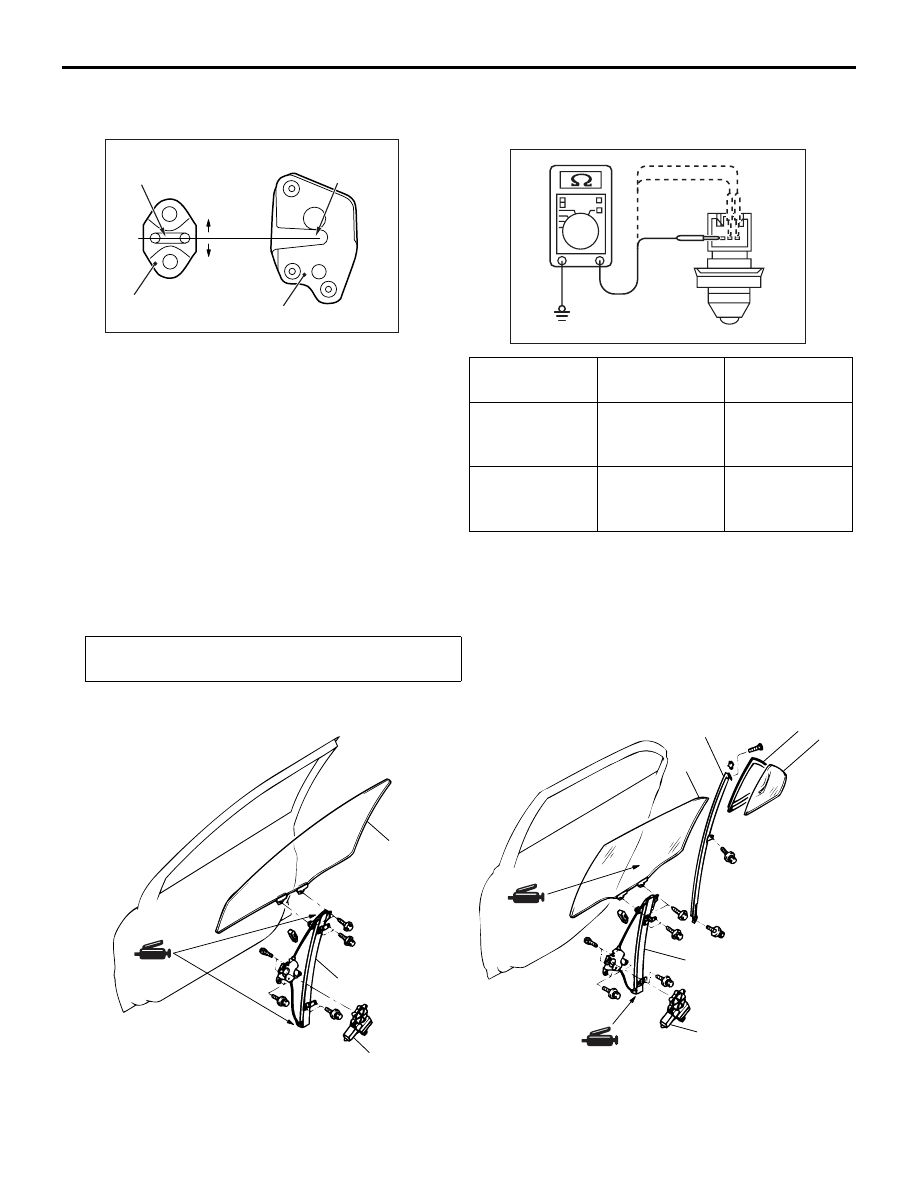

INSTALLATION SERVICE POINT
>>A<< STRIKER INSTALLATION

AC305098AB

Striker centre

Striker

Latch centre

Latch

+1.5 mm

-1.5 mm

Align the centre of the striker and latch within

±1.5

mm, and install.

INSPECTION

M1423006000322

DOOR SWITCH CHECK

AC211414

1

2

3

AC

Switch
position

Tester
connection

Specified
condition

Released (ON) 1

− switch body,

2

− switch body,

3

− switch body

Less than 2
ohms

Depressed
(OFF)

1

− switch body,

2

− switch body,

3

− switch body

Open circuit

DOOR GLASS AND REGULATOR

REMOVAL AND INSTALLATION

M1429001300467

Post-installation Operation
• Door Window Glass Adjustment (Refer to

P.42-23

).

AC212124 AB

<FRONT DOOR>

<REAR DOOR>

1

2

3

1

2

3

4

5

6

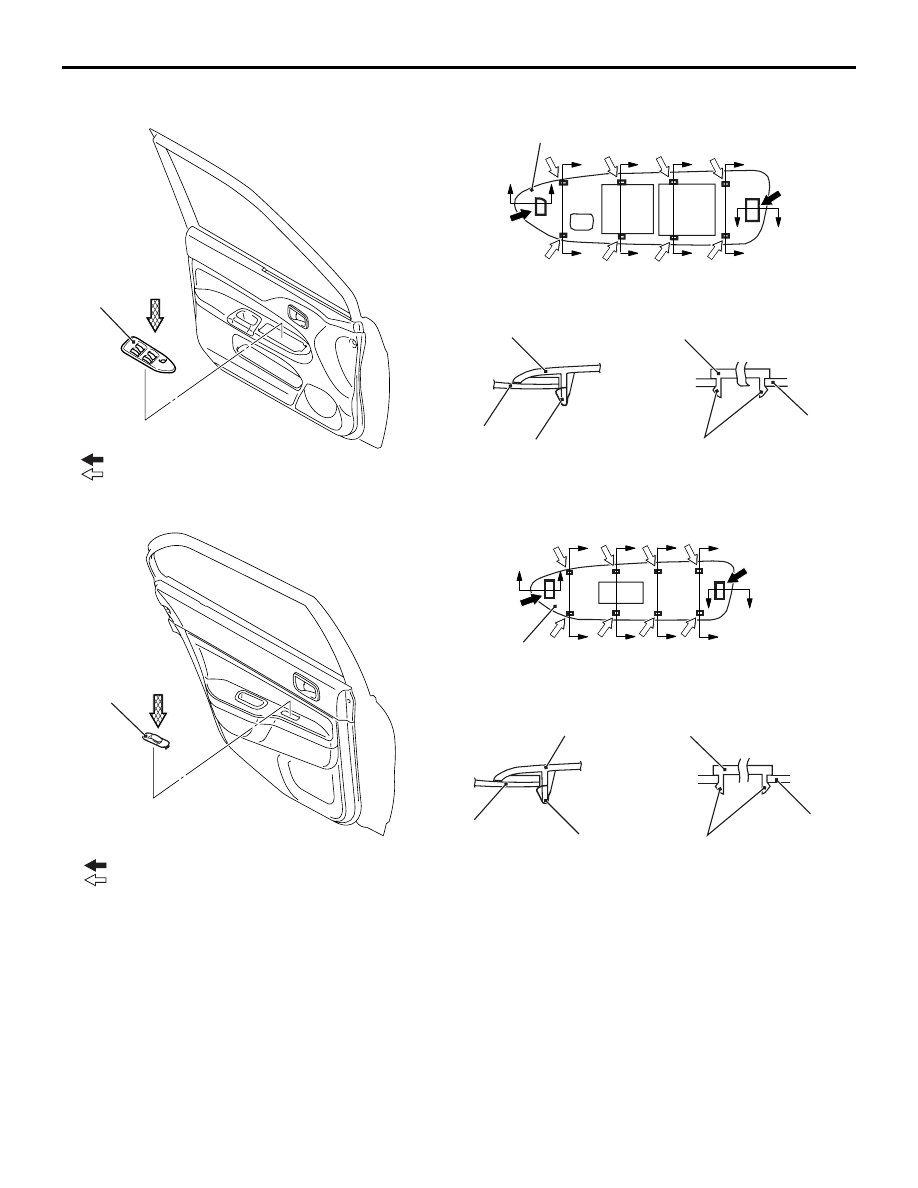

AC305108

NOTE
       : Clip positions
       : Claw positions

View A

B

B

B

B

C

C

C

C

C

C

C

C

Section B - B

<FRONT DOOR>

Door trim

Clip

Section C - C

AB

Door trim

Claw

7

7

7

7

A

AC305109

NOTE
       : Clip positions
       : Claw positions

E

E

E

E

F

F

F

F

F

F

F

F

Section E - E

View D

Door trim

Clip

Section F - F

Door trim

Claw

D

<REAR DOOR>

7

7

7

AB

7

Door window regulator assembly
removal steps
•

Door trim assembly (Refer to GROUP
52A, Door Trim

P.52A-12

).

•

Waterproof film (Refer to

P.42-33

).

<<

A

>> >>

B

<< 1. Window regulator assembly

<<

A

>> >>

B

<< 2. Power window motor assembly

Door window glass removal steps
•

Window glass runchannel (Refer to

P.42-33

).

3. Door window glass

Stationary window glass removal
steps
•

Window glass runchannel (Refer to

P.42-33

).

•

Door beltline inner weatherstrip
(Refer to

P.42-33

).

3. Door window glass

<<

B

>> >>

A

<< 4. Centre sash upper

5. Stationary window glass
6. Stationary window weatherstrip
Power window switch removal steps
7. Power window switch panel assembly

DOOR

BODY
