Mitsubishi Lancer Evolution IX. Manual - part 349

AC406359

9.0 ± 1.0 N·m

11 ± 1 N·m

22 ± 4 N·m

24 ± 4 N·m

44 ± 10 N·m

20 ± 2 N·m

5.0 ± 1.0 N·m

8.8 ± 1.0 N·m

13 ± 1 N·m

9.0 ± 1.0 N·m

5.0 ± 1.0 N·m

(Engine oil)

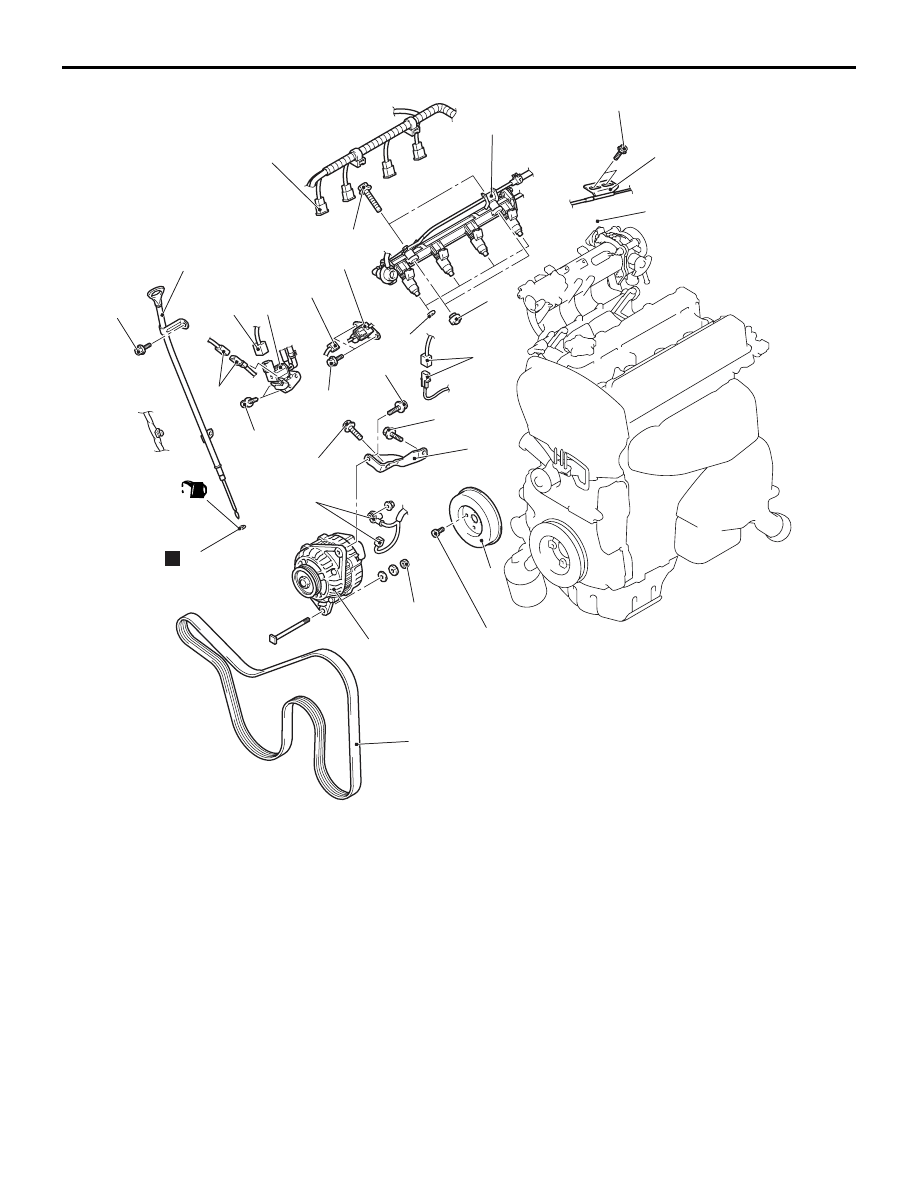

Removal steps

Fuel injector connectors

Accelerator cable connection

Fuel injector, delivery pipe, fuel
return pipe and fuel pressure
regulator assembly

Insulators

Fuel pressure solenoid valve
connector

Fuel pressure solenoid valve

Detonation sensor connector

Purge control solenoid valve
connector

10. Purge control solenoid valve
11. Oil level gauge and guide assembly
12. O-ring

13. Drive belt
14. Alternator connector and terminal
•

Engine front mounting bracket
(Refer to GROUP 32, Engine
Mounting

P.32-4

15. Alternator
16. Water pump pulley
17. Crank angle sensor connector
18. Alternator bracket

CHARGING SYSTEM

ENGINE ELECTRICAL

16-13

Removal steps (Continued)

CHARGING SYSTEM

ENGINE ELECTRICAL

16-14

REMOVAL SERVICE POINTS
<<A>> FUEL INJECTOR, DELIVERY PIPE,
FUEL RETURN PIPE AND FUEL PRES-
SURE REGULATOR ASSEMBLY
REMOVAL

After loosening the delivery pipe mounting bolts,
move the fuel injector, delivery pipe, fuel return pipe
and the fuel pressure regulator as an assembly aside
in order to make room for the alternator removal.

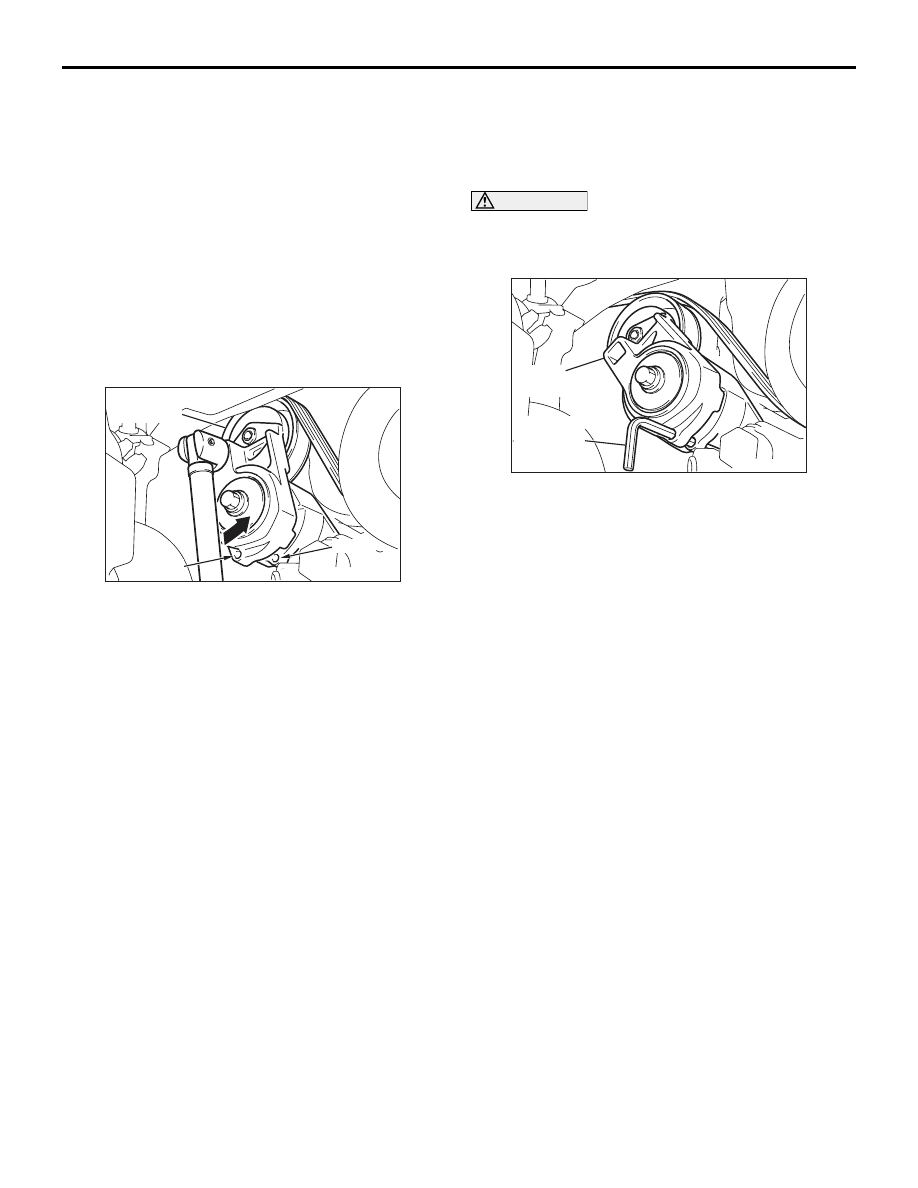

<<B>> DRIVE BELT REMOVAL

The following operations will be needed due to the
introduction of the serpentine drive system with the
drive belt auto-tensioner.

AC210996 AB

Auto-
tensioner

Hole A

Hole B

1. Securely insert the spindle handle or ratchet

handle with a 12.7 mm insertion angle into the jig
hole of the auto-tensioner.

2. Rotate the auto-tensioner anti-clockwise and align

hole A with hole B.

CAUTION

To reuse the drive belt, draw an arrow indicating
the rotating direction (clockwise) on the back of
the belt using chalk, etc.

AC210998AB

L-shaped
hexagon
wrench

Auto-
tensioner

3. Insert an L-shaped hexagon wrench, etc. into the

hole to fix and then remove the drive belt.

<<C>> ALTERNATOR REMOVAL

Raise the engine with a floor jack and remove the
alternator upward from the engine room.

CHARGING SYSTEM

ENGINE ELECTRICAL

16-15

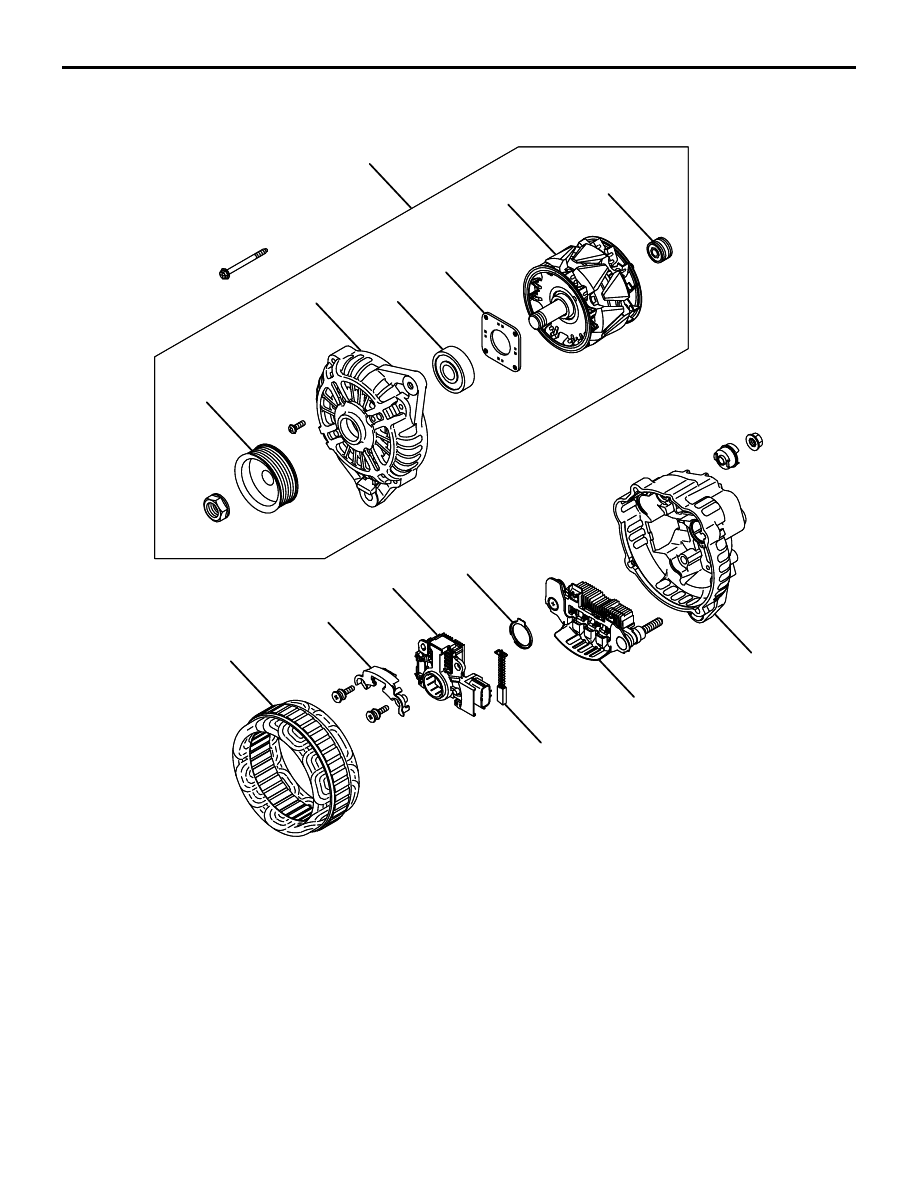

DISASSEMBLY AND REASSEMBLY

M1161001600199

AK202845

Disassembly steps

A>>

1. Front bracket assembly

B>>

2. Alternator pulley

>>B

<< 3. Rotor

4. Rear bearing
5. Bearing retainer
6. Front bearing
7. Front bracket

C>>

8. Stator
9. Plate

C>> >>A

<< 10. Regulator assembly

11. Brush
12. Rubber packing
13. Rectifier
14. Rear bracket

Disassembly steps (Continued)

CHARGING SYSTEM

ENGINE ELECTRICAL

16-16

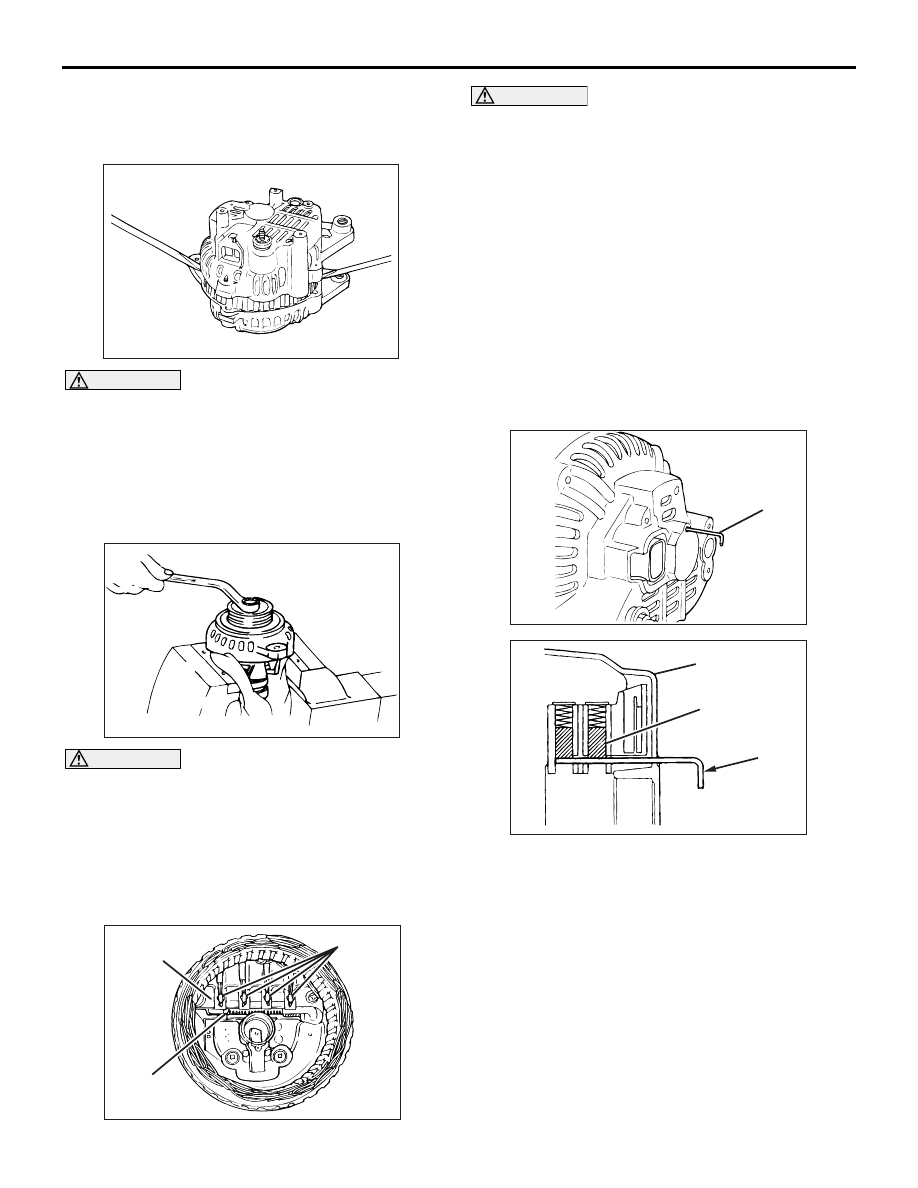

DISASSEMBLY SERVICE POINTS
<<A>> FRONT BRACKET ASSEMBLY
REMOVAL

AK202718

CAUTION

Do not insert the screwdriver blades too deep.
Doing so could damage the stator coil.
Insert the blades of screwdrivers between the front
bracket assembly and stator core, and pry and sepa-
rate them with the screwdrivers.

<<B>> ALTERNATOR PULLEY REMOVAL

AK202714

CAUTION

Perform operation carefully not to damage the
rotor.
Clamp the rotor in a vise with the pulley facing up to
remove the pulley.

<<C>> STATOR / REGULATOR
ASSEMBLY REMOVAL

AK202778

Solder

Rectifier
assembly

CAUTION

• Use a 180 − 250 W soldering iron, and finish

unsoldering within four seconds. Diodes will
be damaged by heat if unsoldering time is too
long.

• Avoid applying undue force to the diode

leads.

1. Unsolder the stator leads from the main diode of

the rectifier assembly when the stator is removed.

2. When removing the rectifier assembly from the

regulator assembly, undo the soldered points on
the rectifier assembly.

REASSEMBLY SERVICE POINTS
>>A<< REGULATOR ASSEMBLY INSTAL-
LATION

AK202779

Wire

AK202830

Rear bracket

Brush

Wire

After installing the regulator assembly, insert a piece
of wire through the hole in the rear bracket while
pressing the brush to keep the brush against move-
ment.
NOTE: Holding the brush with the wire facilities
installation of the rotor.
