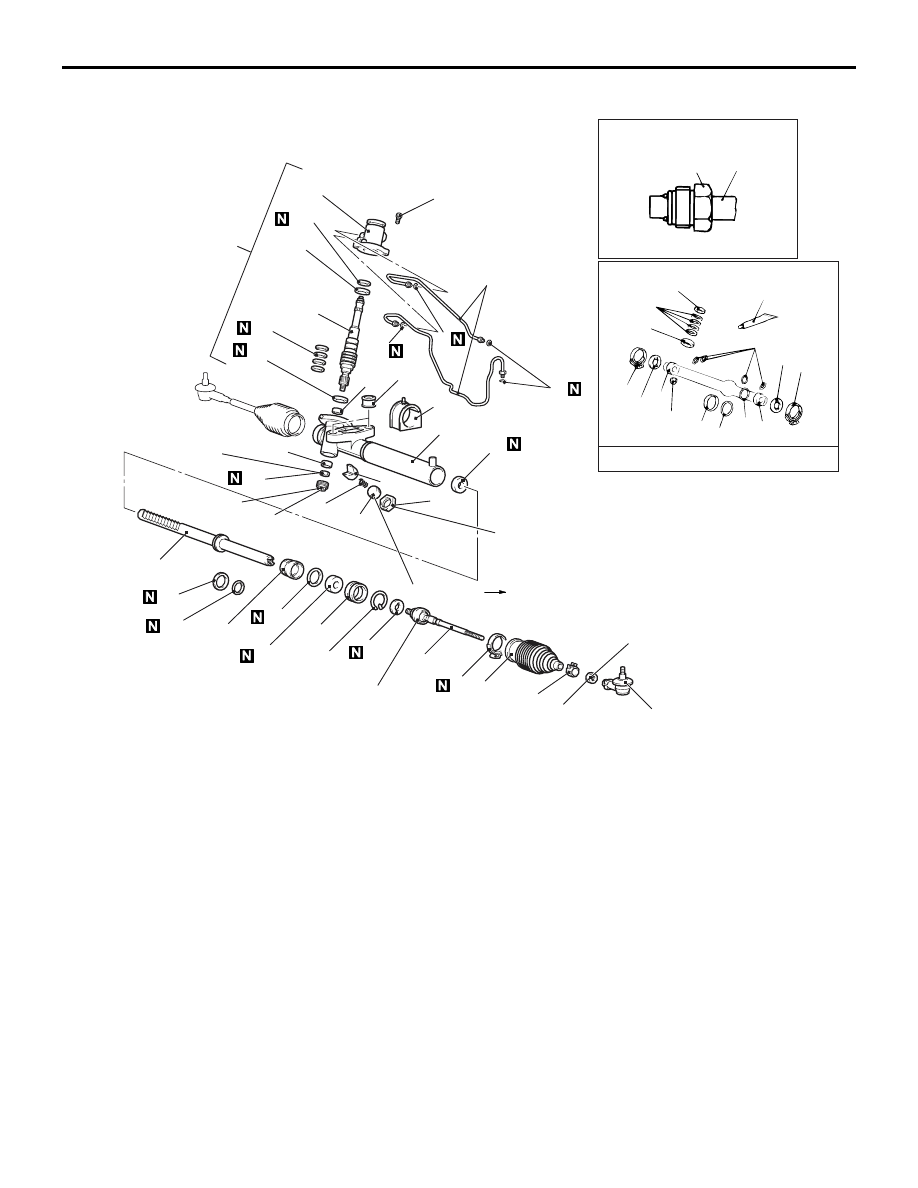

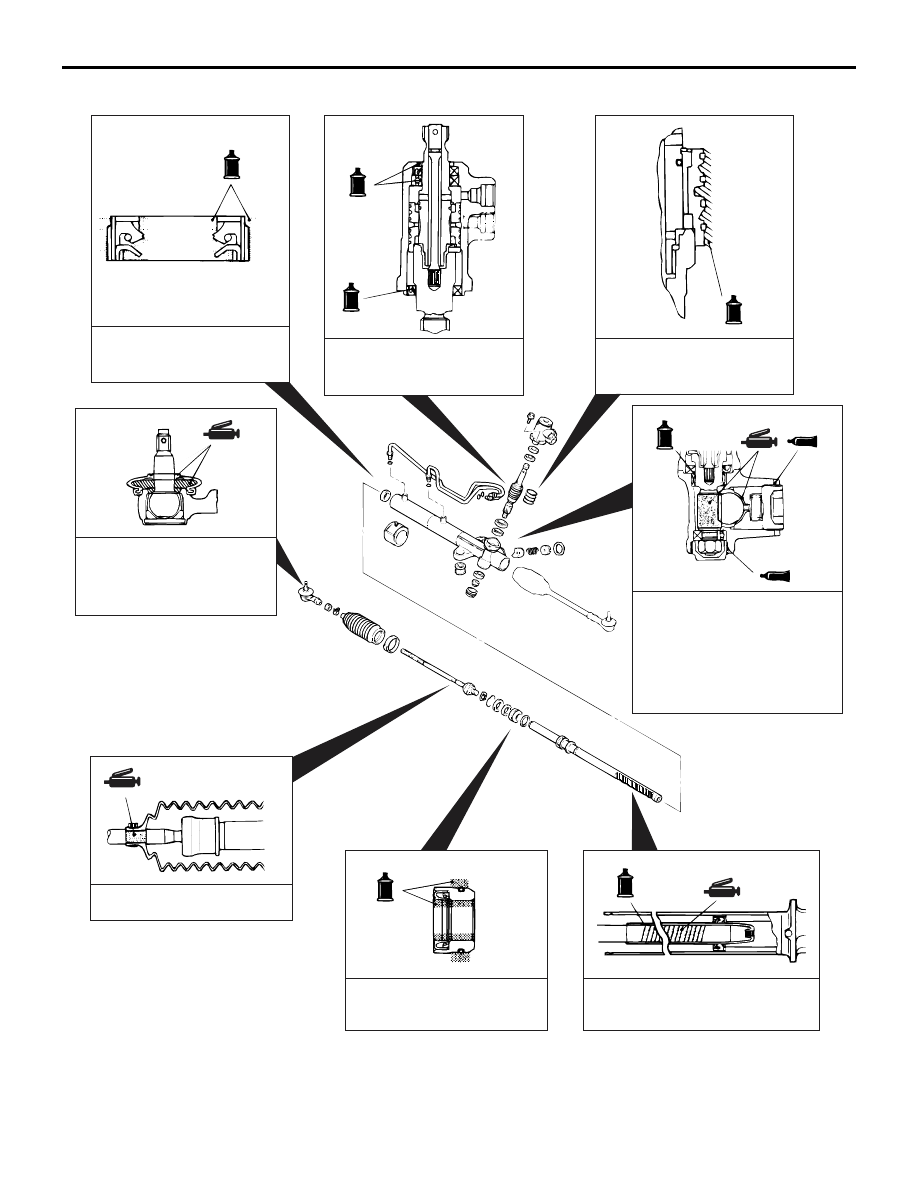

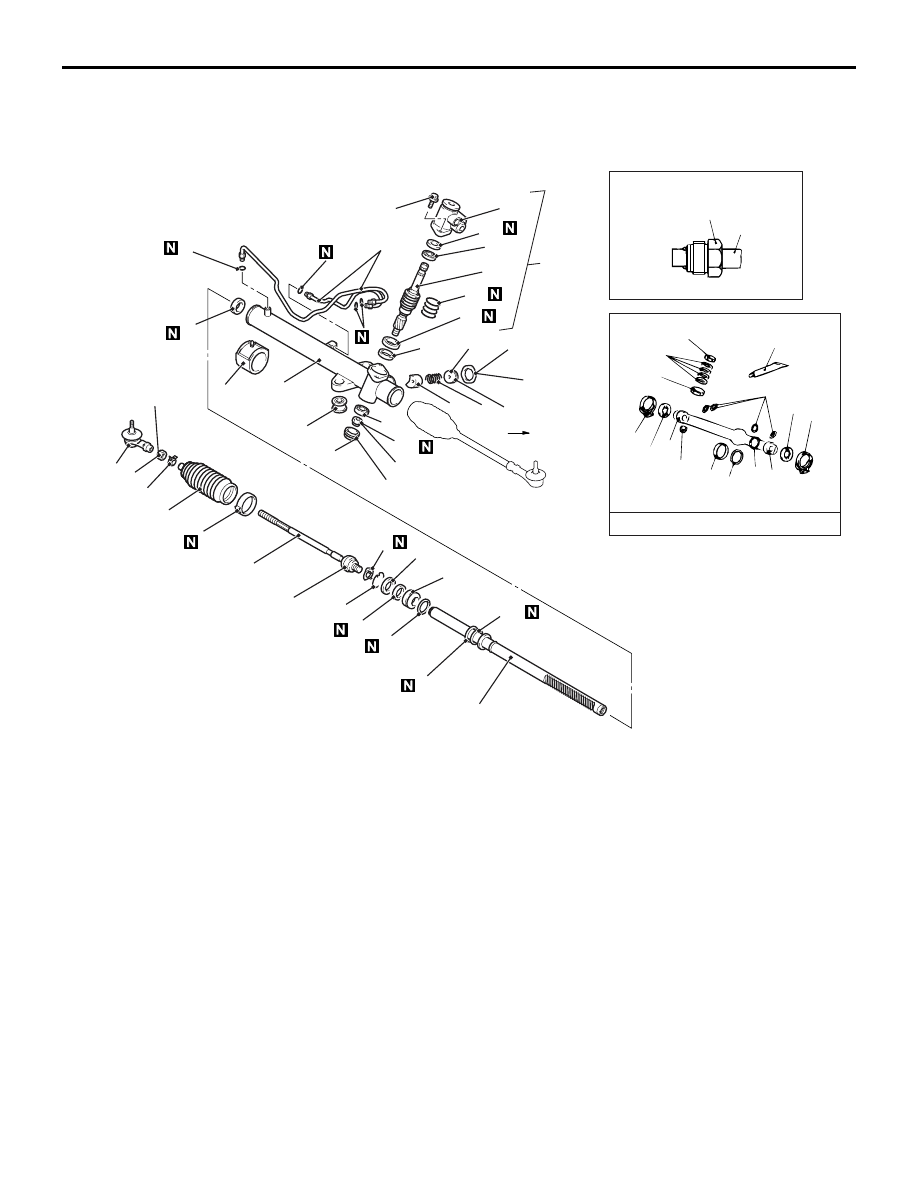

POWER STEERING GEAR BOX AND LINKAGE
POWER STEERING
37-21

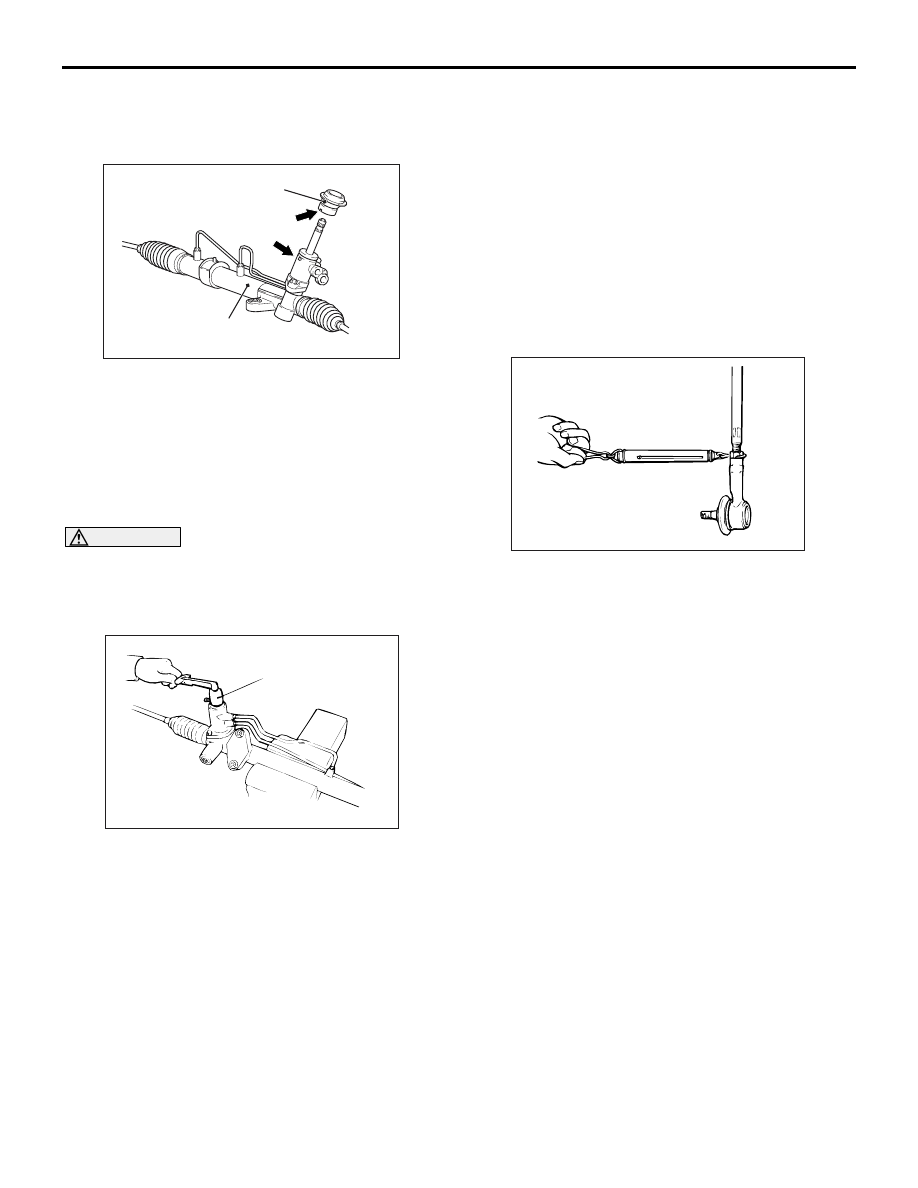

INSTALLATION SERVICE POINT
>>A<< JOINT COVER GROMMET INSTAL-
LATION
AC304922 AB
A
B
Joint cover
grommet
Steering gear
Align the joint cover grommet notch (arrow A) with
the steering gear lug (arrow B), and then install the
steering joint cover to the steering gear.
INSPECTION
M1372011000323
STEERING GEAR TOTAL PINION
TORQUE CHECK
CAUTION
When holding the steering gear in a vice, secure
its mounting positions. If it is secured in any
other place, the gear housing may become
deformed or damaged.
AC000996 AC
MB991006
1. Using special tool preload socket (MB991006),
rotate the pinion gear at the rate of one rotation in
approximately 4 to 6 seconds to check the total
pinion torque.
Standard value:
Total rotation torque 0.8
− 1.8 N⋅m
Torque fluctuation 0.49 N
⋅m or less
NOTE: Remove the bellows from the rack hous-
ing before measuring.
NOTE: Measure the total rotation torque by turn-
ing the special tool left and right 180
°
from the
neutral position.
2. If the standard values are not met, adjust the
pinion total rotation torque.
3. In case the adjustment is impossible, disassemble
and check the components, and repair if
necessary.
TIE ROD SWING RESISTANCE CHECK
1. Give 10 hard swings to the tie rod.
AC000997
2. Measure the tie rod swing resistance [tie rod
swing torque] with a spring balance.
Standard value: 8
− 27 N [1.5 − 4.9 N⋅m]
3. If the measured value exceeds the standard
value, replace the tie rod.
4. If the measured value is below the standard value,
the tie rod can be re-used if it swings smoothly
without excessive play.
TIE ROD END BALL JOINT DUST COVER
CHECK
1. Check the dust cover for cracks or damage by
pushing it with your finger.
2. If the dust cover is cracked or damaged, replace
the tie rod end (Refer to
).
NOTE: Cracks or damage of the dust cover may
damage the ball joint. If it is damaged during serv-
ice work, replace the dust cover (Refer to
