26-1

GROUP 26

FRONT AXLE

CONTENTS

GENERAL INFORMATION . . . . . . . .

26-2

SERVICE SPECIFICATIONS. . . . . . .

26-3

LUBRICANTS  . . . . . . . . . . . . . . . . . .

26-3

SPECIAL TOOLS. . . . . . . . . . . . . . . .

26-3

ON-VEHICLE SERVICE. . . . . . . . . . .

26-6

WHEEL BEARING AXIAL PLAY CHECK . .

26-6

HUB BOLT REPLACEMENT  . . . . . . . . . . .

26-6

FRONT AXLE HUB ASSEMBLY . . . .

26-7

REMOVAL AND INSTALLATION  . . . . . . . .

26-7

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

26-9

DISASSEMBLY AND REASSEMBLY . . . . .

26-9

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

26-10

DRIVESHAFT ASSEMBLY. . . . . . . . .

26-11

REMOVAL AND INSTALLATION  . . . . . . . .

26-11

DISASSEMBLY AND REASSEMBLY . . . . .

26-14

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

26-16

EBJ BOOT (RESIN BOOT) REPLACEMENT

26-17

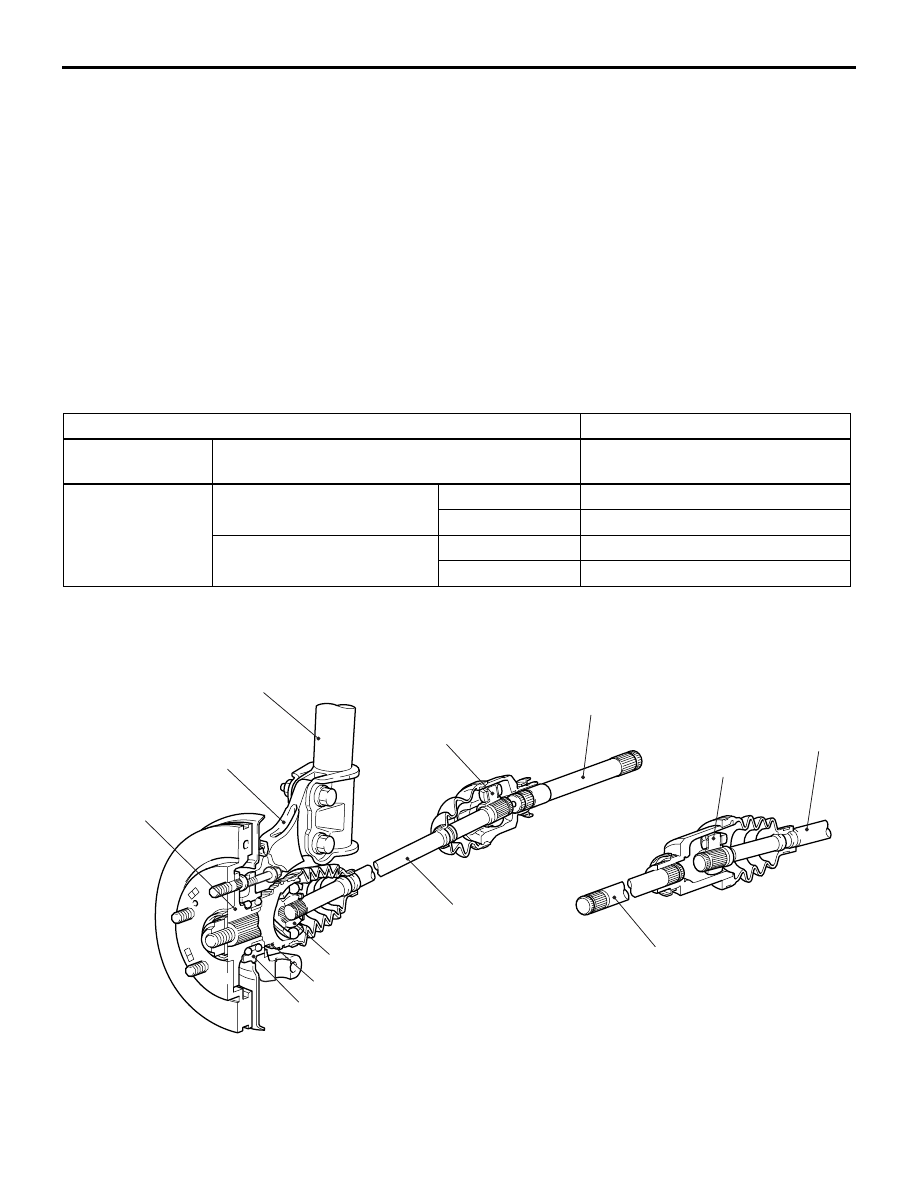

GENERAL INFORMATION

FRONT AXLE

26-2

GENERAL INFORMATION

M1261000100444

The front axle consists of front wheel hub assembly,
knuckles and driveshafts, and has the following fea-
tures:

• The wheel bearing incorporates a unit ball bear-

ing (double-row angular contact ball bearing) for
reduced friction.

• The front wheel hub assembly combines the hub,

wheel bearing, and oil seal in a single unit for
fewer parts, better rigidity, improved assembly
precision, and better structural organization.

• The driveshaft on wheel side incorporates an EBJ

type constant velocity joint.

• The driveshaft on the differential side incorpo-

rates a TJ type constant velocity joint.

• ABS rotor  for detecting the wheel speed is

press-fitted to the EBJ.

• For environmental protection, a lead-free grease

is used on the joints.

EBJ:Eight Ball Fixed Joint; The use of the

smaller-sized eight balls inside the joint achieves
weight saving and compact size compared with a
BJ (Birfield Joint).

TJ: Tripod Joint

SPECIFICATIONS

Item

Specification

Wheel bearing

Type

Unit ball bearing (Double-row
angular contact ball bearing)

Driveshaft

Joint type

Outer

EBJ

Inner

TJ

Length (joint to joint)

×

diameter mm

Left

352.5

× 26

Right

429.5

× 26

NOTE: The wheel bearing is part of the hub, therefore its size is not listed here.

CONSTRUCTION DIAGRAM

AC211166

Front wheel
hub assembly

Knuckle

Strut assembly

TJ (LH)

EBJ

Output shaft

Driveshaft
(RH)

TJ (RH)

AB

Wheel bearing

Output shaft

Driveshaft
(LH)

ABS rotor

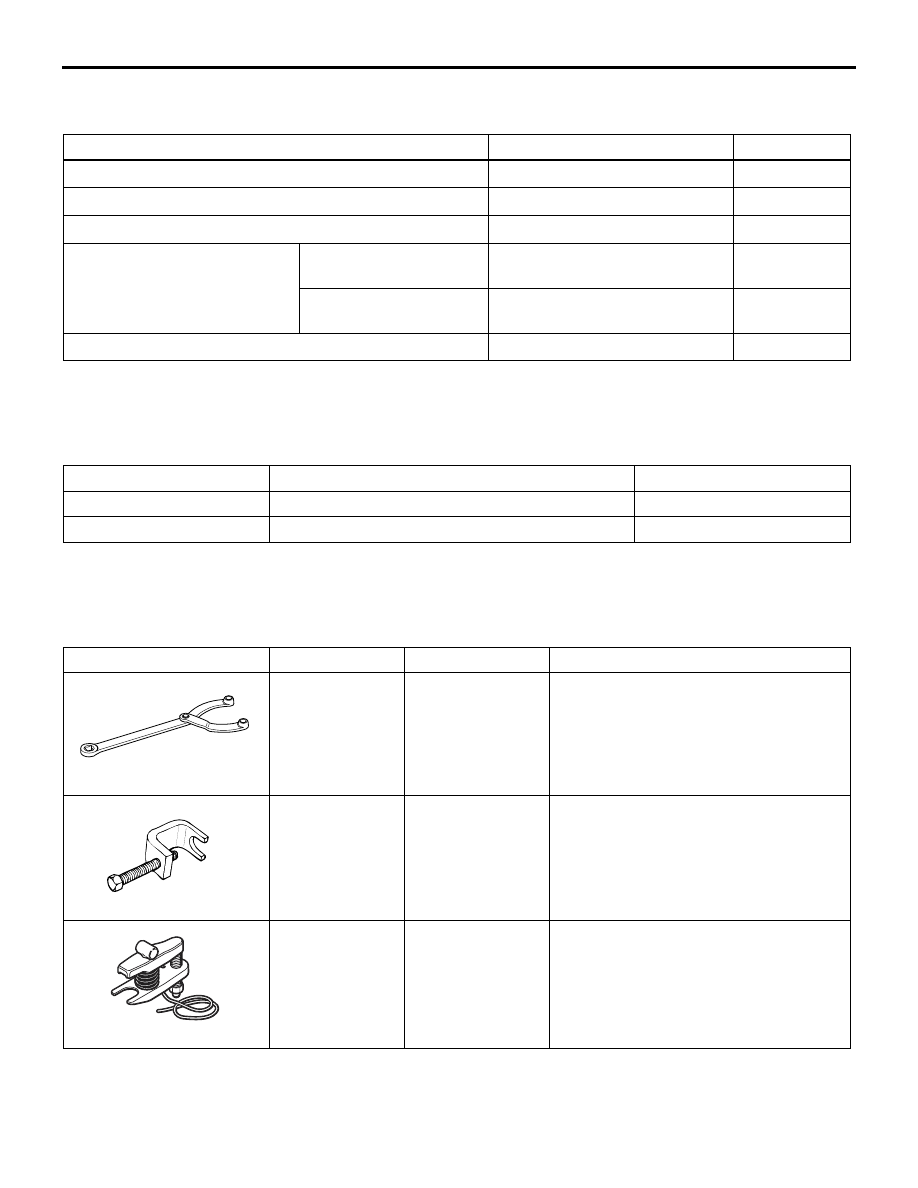

SERVICE SPECIFICATIONS

FRONT AXLE

26-3

SERVICE SPECIFICATIONS

M1261000300460

Item

Standard value

Limit

Wheel bearing axial play mm

−

0.05

Wheel bearing rotation starting torque N

⋅m

−

1.03

Setting of TJ boot length mm

85

± 3

−

Opening dimension of the
special tool (MB991561) mm

When the EBJ boot
band (small) is crimped

2.9

−

When the EBJ boot
band (large) is crimped

3.2

−

Crimped width of the EBJ boot band mm

2.4

− 2.8

−

LUBRICANTS

M1261000400490

Item

Specified lubricant

Quantity

TJ boot grease

Repair kit grease

145

± 10 g

EBJ boot grease

Repair kit grease

100

± 10 g

SPECIAL TOOLS

M1261000600784

Tool

Number

Name

Use

B990767

MB990767

Front hub and end
yoke holder

Fixing of the hub

MB991618

MB991618

Hub bolt remover Removal of the hub bolt

AC106827

MB991897 or
MB992011

Ball joint remover Knuckle and tie rod end ball joint

disconnection
NOTE: Steering linkage puller
(MB990635 or MB991113)is also used
to disconnect knuckle and tie rod end
ball joint.

MB990241AB

A

B

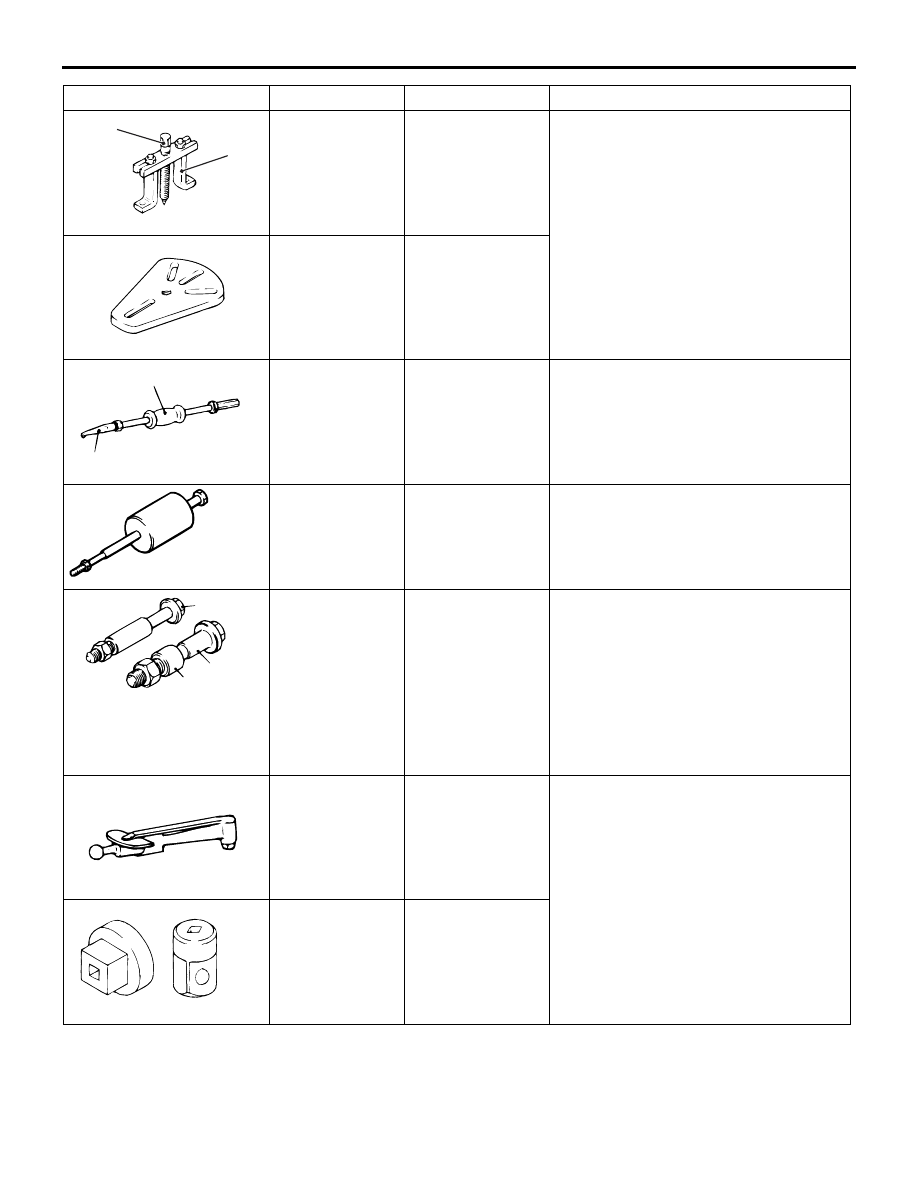

SPECIAL TOOLS

FRONT AXLE

26-4

MB990241

A: MB990242
B: MB990244

Axle shaft puller

A: Puller shaft
B: Puller bar

Removal of the driveshaft

MB991354

MB991354

Puller body

MB990590

A

B

MB990590

A: MB990212
B: MB990211

Rear axle shaft oil
seal remover

A: Adapter
B: Slide hammer

Removal of the front wheel hub

MB991721

MB991721

Slide hammer

Removal of the output shaft

AC100320AB

A

B

C

A: MB991017
B: MB990998
C: MB991000

A, B: Front hub

remover and
installer

C: Spacer

• Removal of the hub

• Provisional holding of the wheel

bearing

• Measurement of hub starting torque

• Measurement of wheel bearing axial

play
NOTE: MB991000, which belongs to
MB990998, should be used as a
spacer.

MB990685

Torque wrench

Measurement of hub starting torque

MB990326

MB990326

Preload socket

Tool

Number

Name

Use
