CIGARETTE LIGHTER

CHASSIS ELECTRICAL

54A-77

CLOCK

REMOVAL AND INSTALLATION

M1543005900309

AC211606AC

3

4

2

5

1

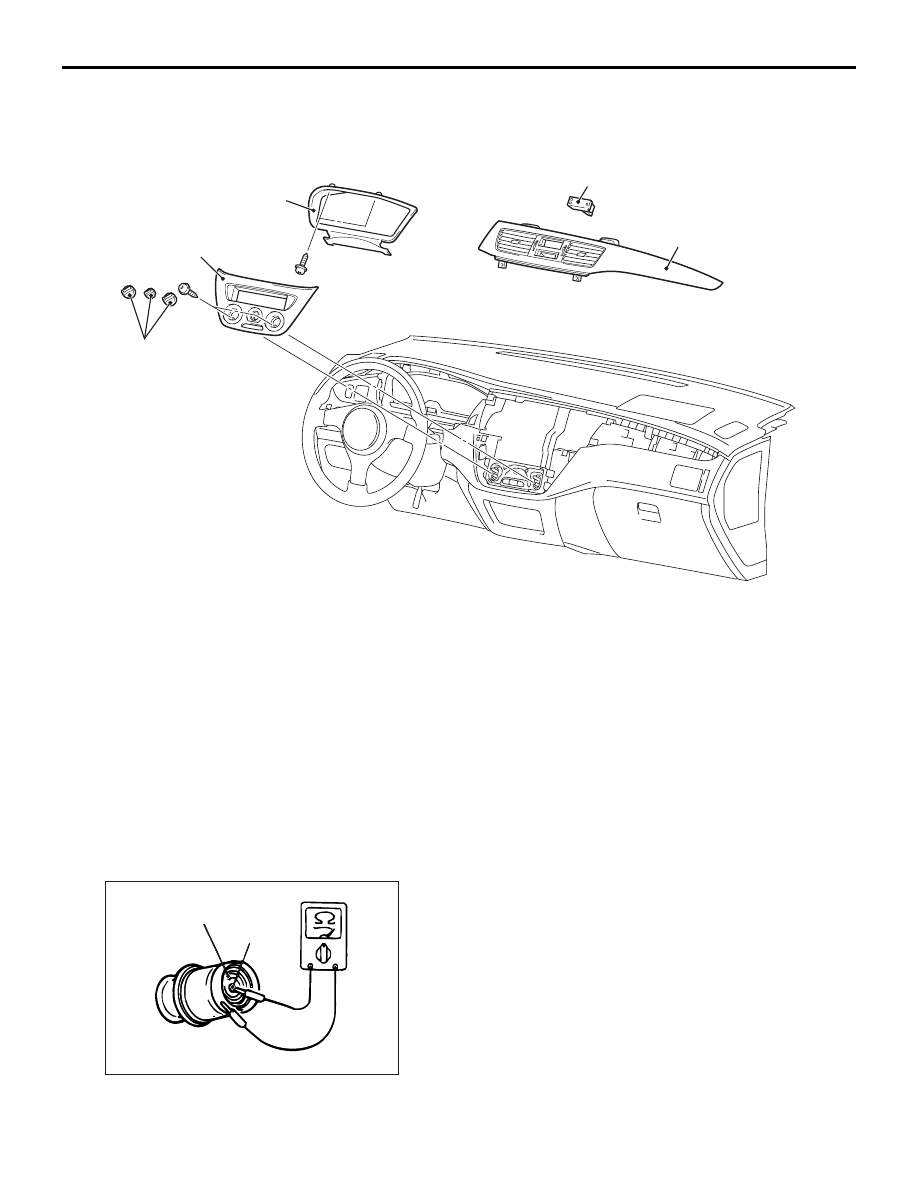

Removal steps

1. Knob
2. Centre panel
3. Meter bezel

4. Centre air outlet panel
5. Clock

CIGARETTE LIGHTER

INSPECTION

M1543005700242

CIGARETTE LIGHTER CHECK

ACX01832AE

Element

Spot

• Take out the plug, and check for a worn edge on

the element spot connection, and for shreds of
tobacco or other material on the element.

• Using an ohmmeter, check that the element

resistance value is 1.7 ohms.

Removal steps (Continued)

SPEAKER

CHASSIS ELECTRICAL

54A-78

SPEAKER

REMOVAL AND INSTALLATION

M1544002600573

AC211402

1

3

2

1.5 ± 0.5 N·m

1.5 ± 0.5 N·m

4

5

<Tweeter>

<Front speaker>

<Rear speaker>

AC

1.5 ± 0.5 N·m

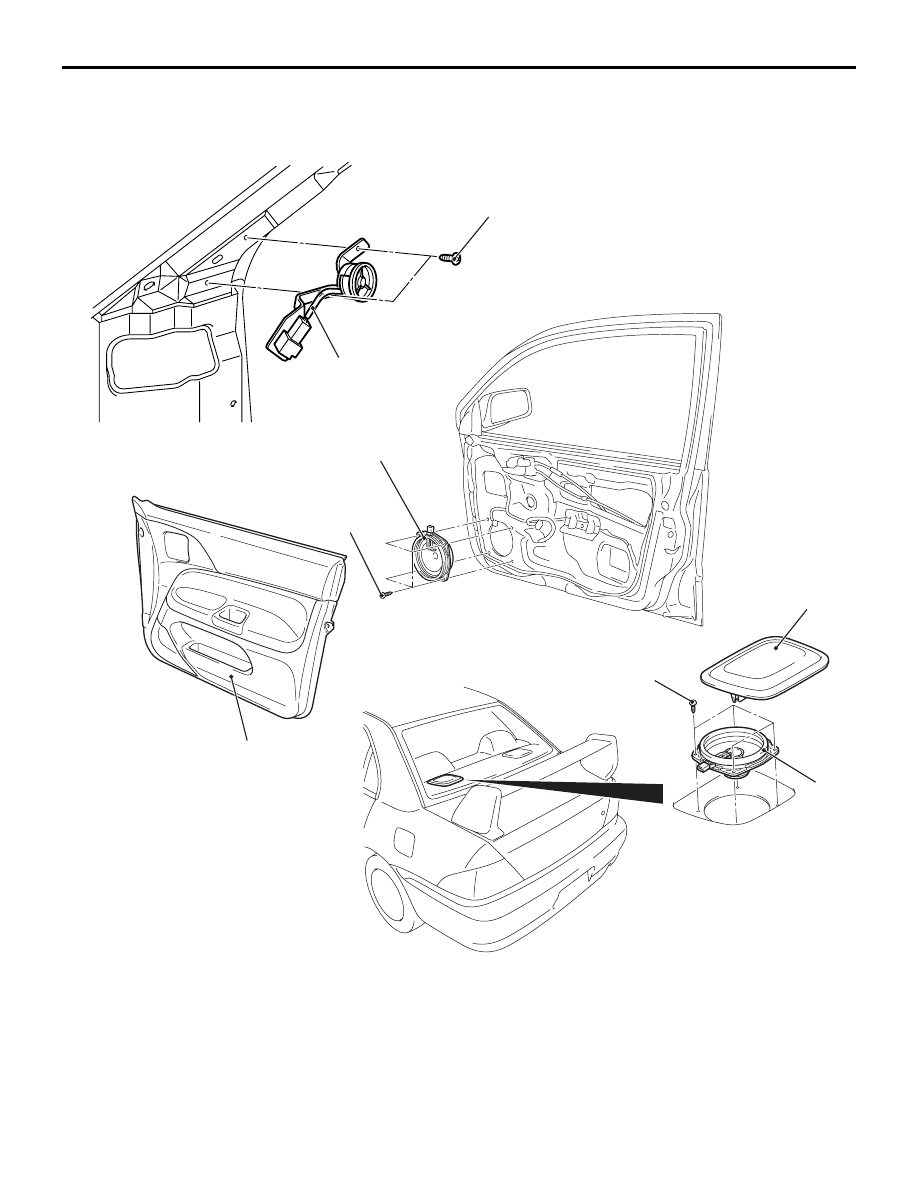

Tweeter removal steps

•

Front pillar trim (Refer to GROUP
52A, Trims

P.52A-10

).

1.

Tweeter

Front speaker removal steps

2.

Front door trim (Refer to GROUP
52A, Door trim

P.52A-12

).

3.

Front speaker
Rear speaker removal steps

4.

Rear speaker garnish

5.

Rear speaker

ANTENNA

CHASSIS ELECTRICAL

54A-79

ANTENNA

REMOVAL AND INSTALLATION

M1544002900648

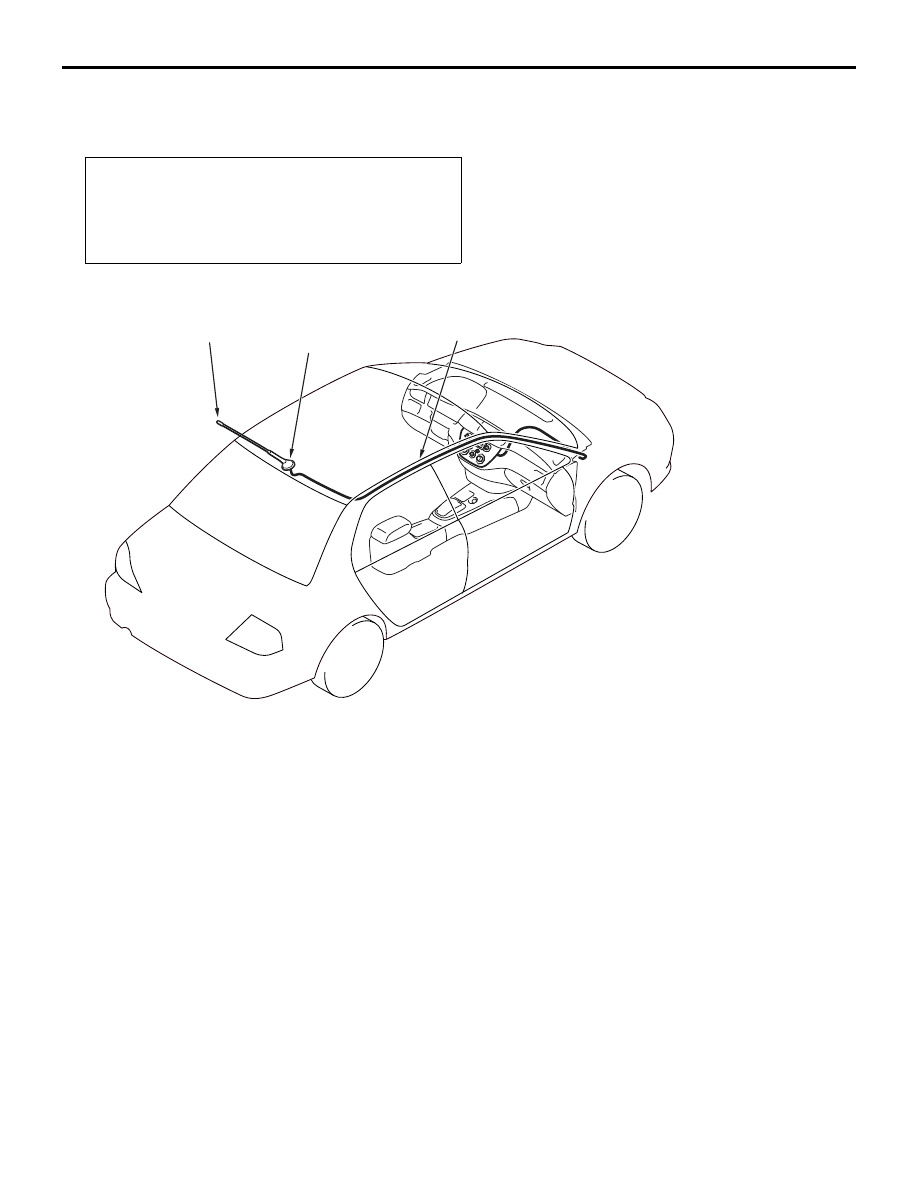

Pre-removal and Post-installation Operation
• Front pillar trim, Rear pillar trim, Centre pillar trim lower,

Centre pillar trim upper (Refer to GROUP 52A, Trims

P.52A-10

).

• Headlining Removal and Installation (Refer to GROUP

52A, Headlining

P.52A-17

).

AC005156AD

1

2

3

1. Roof antenna pole

Antenna feeder cable removal steps

2. Roof antenna base
•

Instrument panel assembly (Refer to
GROUP 52A, Instrument panel assembly

P.52A-2

).

3. Antenna feeder cable

REAR WINDOW DEFOGGER

GENERAL INFORMATION

M1543000100319

Rear Defogger operation

The defogger relay turns ON if the defogger switch
built-in the A/C-ECU is turned ON when the ignition
switch is in the "ON" position. When the defogger
relay turns ON, power is supplied to the defogger
and the defogger is activated. The defogger comes
with a timer function that causes the defogger switch
to automatically turn OFF in about 11 minutes after
the defogger switch is turned ON.

TROUBLESHOOTING

M1543000701552

The rear window defogger is controlled by the
A/C-ECU. For troubleshooting, refer to GROUP 55-
Troubleshooting

P.55-29

.

REAR WINDOW DEFOGGER

CHASSIS ELECTRICAL

54A-80

ON-VEHICLE SERVICE

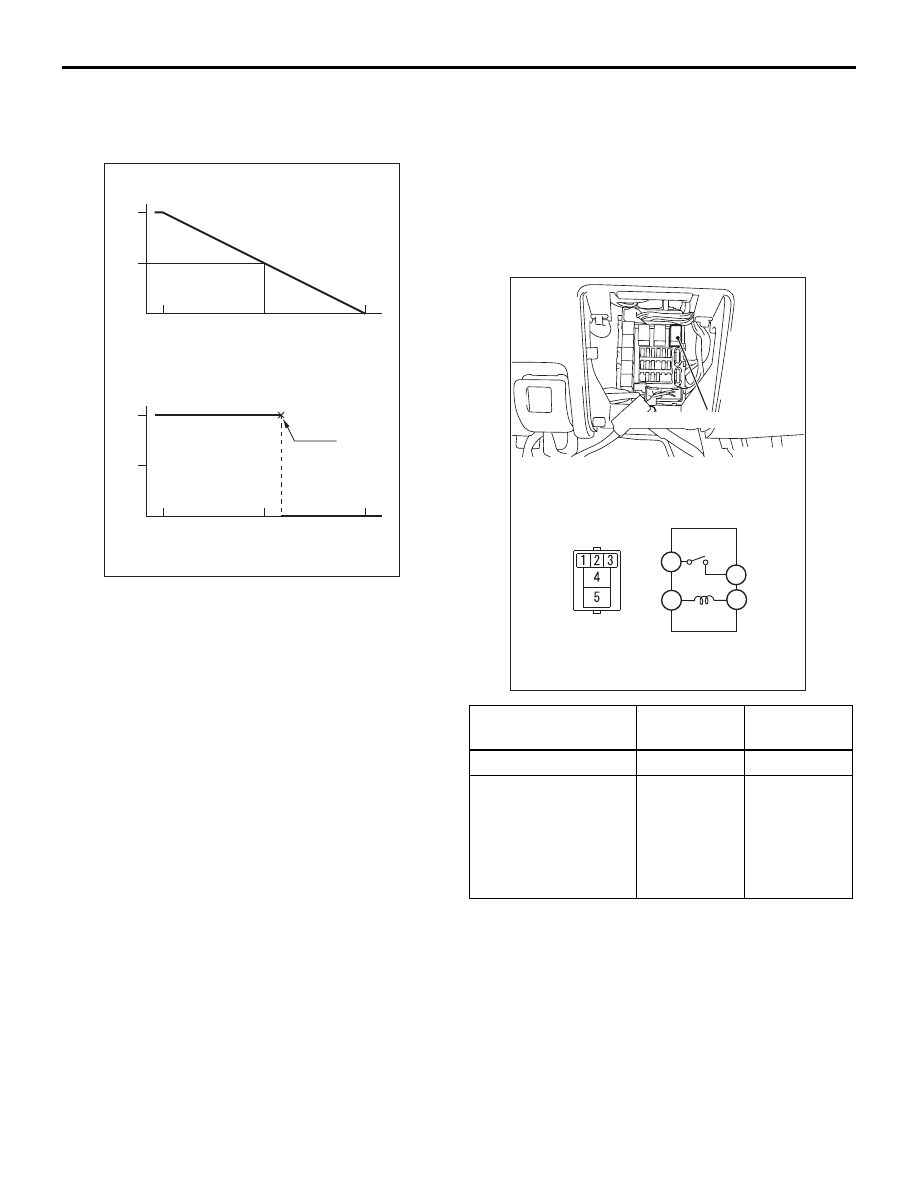

PRINTED HEATER LINES CHECK

M1543001800311

AC407247

Voltage (V)

Voltage (V)

12

6

12

6

Open circuit point

AC

Normal characteristic curve

A (Centre point)

Approximately 6 V

Positive
terminal

Negative
terminal

Print heater line

Positive
terminal

Negative
terminal

Print heater line

Abnormal characteristic curve

1. Run engine at 2,000 r/min. Check heater element

with battery at full.

2. Turn "ON" rear window defogger switch. Measure

heater element voltage with circuit tester at rear
window glass centre A. Condition is good if it
indicates about six volts.

3. If 12 volts is indicated at A, there is a break in the

negative terminals from A. Move test bar slowly to
negative terminal to detect where voltage
changes suddenly (0 volts).

4. If 0 volts is indicated at A, there is a break in the

positive terminals from A. Defect where the
voltage changes suddenly (12 volts) in the same
method described above.

REAR WINDOW DEFOGGER SWITCH

REMOVAL AND INSTALLATION

M1543006200314

Refer to GROUP 55, Heater Control Assembly and
A/C Switch

P.55-108

.

INSPECTION

M1543019502816

DEFOGGER RELAY CHECK

1

5

4

3

AC305319AC

Rear window defogger relay

Battery voltage

Tester
connection

Specified
condition

Not supplied

4

− 5

Open circuit

• Connect terminal

3 to the positive
battery terminal

• Connect terminal

1 to the negative
battery terminal

4

− 5

Less than 2
ohms
