Mitsubishi Lancer Evolution IX. Manual - part 280

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-57

INSPECTION

M1543019502797

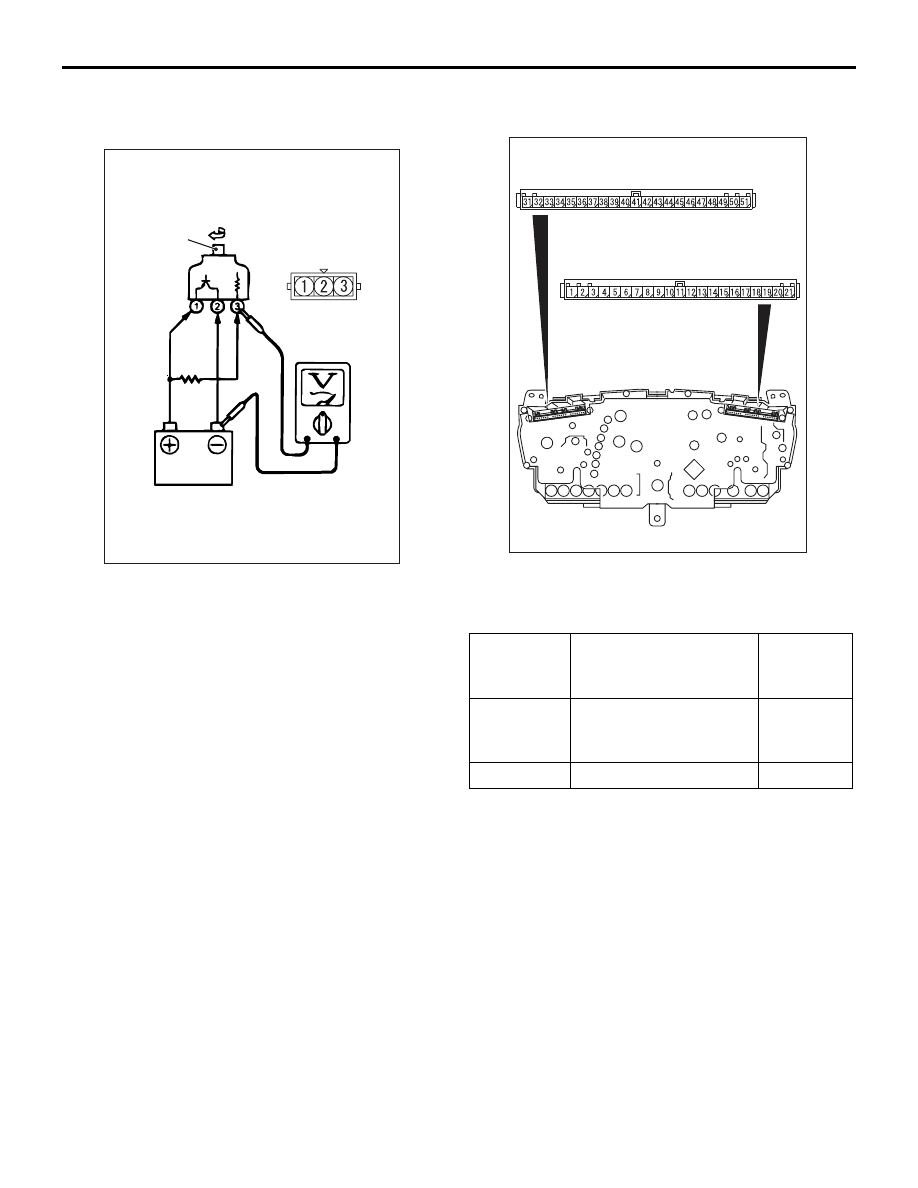

VEHICLE SPEED SENSOR CHECK

AC305188AB

Turn

Shaft

Resistor
3 -10 k ¶

1. Remove the vehicle speed sensor and connect a

− 10 kΩ resistor as shown in the illustration.

2. Turn the shaft of the vehicle speed sensor and

check that there is voltage between terminals 2

−

3. (1 turn = 4 pulses)

3. If within the standard value, the vehicle speed

sensor is OK.
If not within the standard value, replace the
vehicle speed sensor.

Standard value: 0 or System Voltage (1turn =
4pulses)

COMBINATION METER INTERNAL
RESISTANCE CHECK

AC005210AC

Use circuit tester to measure combination meter
internal resistance.

Standard Value:

Measuring
terminal
No.

Terminal name

Standard
value (

Ω)

1-21

Engine coolant
temperature gauge to
earth

233

± 3

31-51

Fuel gauge to earth

181

± 2

HEADLAMP

CHASSIS ELECTRICAL

54A-58

DISASSEMBLY AND REASSEMBLY

M1543003100404

AC211062

Disassembly steps

1. Meter glass
2. Window plate
3. Circuit board cover

4. Indicator plate
5. Bulb
6. Combination meter assembly

HEADLAMP

SERVICE SPECIFICATIONS

M1542000300473

Item

Standard value

Limit

Headlamp aiming

Vertical direction

0.69

° below horizontal (H)

± 0.29° from the
standard value

Measurement of headlamp illiminous intensity cd
{When a screen is set 25 m ahead of the vehicle}

−

30,000 cd or more

SPECIAL TOOL

M1542000601165

Tool

Number

Name

Use

MB990784

MB990784

Ornament remover Removal of switch panel

Disassembly steps (Continued)

HEADLAMP

CHASSIS ELECTRICAL

54A-59

TROUBLESHOOTING

M1542000701281

Features the headlamp automatic shutdown function
to avoid battery drain when the headlamps are left
on. The main features are as follows:

• Extinguishes automatically in three minutes if the

ignition switch is turned off with the lighting switch
on.

• Extinguishes in one second if the driver's door is

opened within that 3-minute period.

• If the headlamps are turned on with the ignition

switch off, the headlamps and tail lamps will
extinguish in three minutes after the driver's door
is opened or closed.

The headlamps are controlled by the Smart Wiring
System (SWS). For troubleshooting, refer to respec-
tive Groups below.

• Not using SWS monitor: GROUP 54B, SWS

Troubleshooting

P.54B-33

• Using SWS monitor: GROUP 54C, SWS Trouble-

shooting

P.54C-20

ON-VEHICLE SERVICE

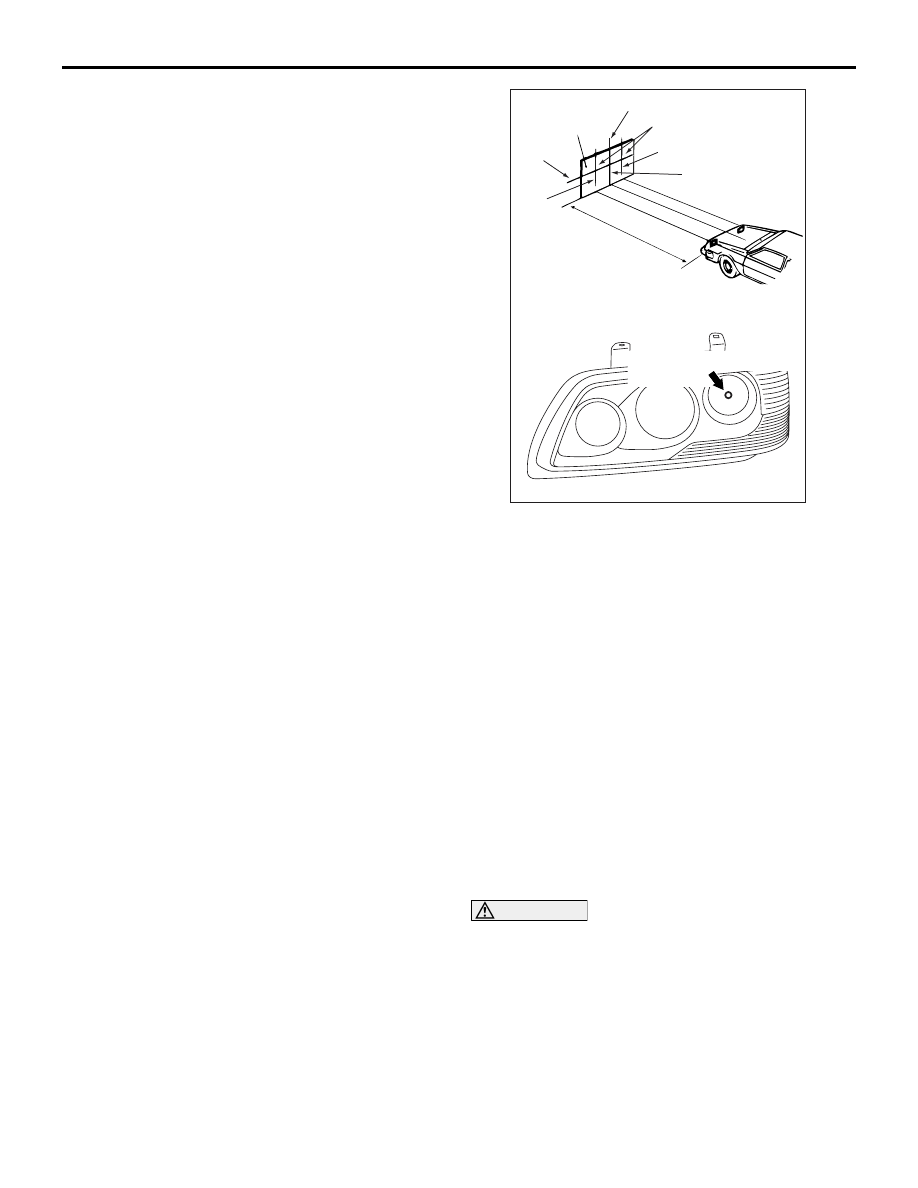

HEADLAMP AIMING

M1542000900613

PRE-AIMING INSTRUCTIONS

1. Inspect for badly rusted or faulty headlamp

assemblies.

2. These conditions must be corrected before a

satisfactory adjustment can be made.

3. Inspect tyre inflation, and adjust if it is necessary.
4. If the fuel tank is not full, place a weight in luggage

room of the vehicle to simulate weight of a full
tank (0.8 kg per litre).

5. There should be no other load in the vehicle other

than driver or substituted weight of approximately
75 kg placed in driver's position.

6. Thoroughly clean the headlamp lenses.
7. Place the vehicle on a level floor, perpendicular to

a flat screen 10 m away from the bulb
centre-marks on the headlamp lens.

8. Rock vehicle sideways to allow vehicle to assume

its normal position.

9. Bounce the front suspension through three

oscillations by applying the body weight to hood
or bumper.

AC211164

In the centre of headlamps
<low-beam>

(1)

(2)

(3)

Headlamp centre line

Vehicle centre line

Screen

(3)

10 m

10.Four lines of adhesive tape (or equivalent

markings) are required on screen or wall:
(1) Position a vertical tape or mark so that it is

aligned with the vehicle centre line.

(2) Measure the distance from the centre-marks

on the headlamp lens to the floor. Transfer the
measurement to the screen. Horizontal tape or
mark on the screen is for reference of vertical
adjustment.

NOTE: Height from the floor to the centre of
the headlamps (Reference value): 840 mm

(3) Measure the distance from the centre line of

the vehicle to the centre of each headlamp.
Transfer the measurement to the screen.
Vertical tape or mark on the screen with
reference to the centre line of each headlamp
bulb.

HEADLAMP ADJUSTMENT

CAUTION

• Do not cover a headlamp for more than three

minutes to prevent the plastic headlamp lens
deformation.

• When adjusting one headlamp beam, make

sure that another headlamp is off by discon-
necting the connector from it. When recon-
necting the connector, make sure that the
headlamp beam is not disturbed accidentally.

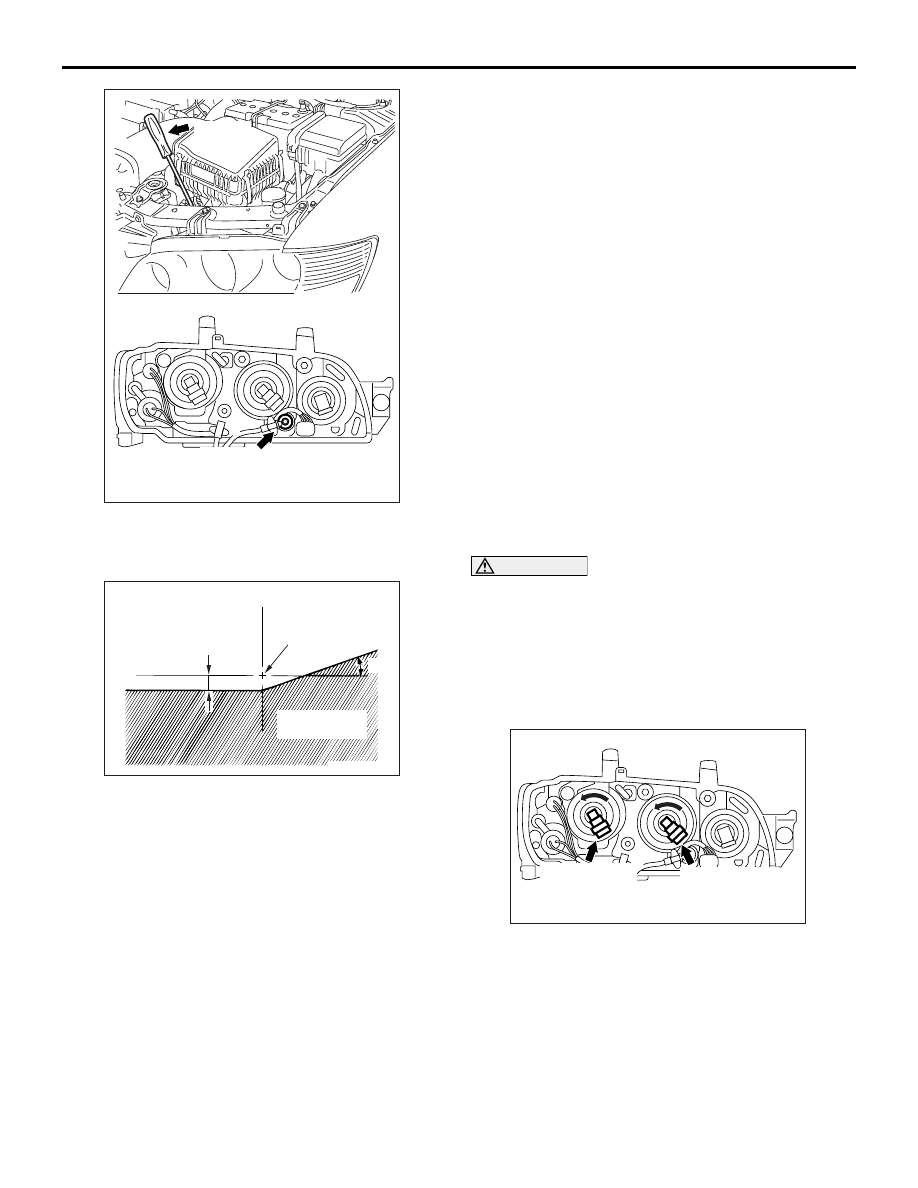

1. The low-beam headlamp should project on the

screen upper edge of the beam (cut-off).

AC310334AB

Vertical
direction

HEADLAMP

CHASSIS ELECTRICAL

54A-60

2. If not the case, turn the adjusting screws to

achieve the specified low-beam cut-off location on
the aiming screen.

AC305155

(H)

(V)

Distance of
vertical direction
[0.69˚]

Headlamp
centre

High intensity

zone

15˚

Standard value:
(Vertical direction) 0.69

° below horizontal (H)

Limit:
Vertical direction;

± 0.29° from the standard

value

LUMINOUS INTENSITY MEASUREMENT

M1542001000538

1. Set the headlamps to high-beam.

2. Using a photometer, and following its

manufacturer's instruction manual, measure the
headlamp centre intensity and check to be sure
that the limit value is satisfied.

Limit: 30,000 cd or more {When a screen is
set 25m ahead of the vehicle}

NOTE: When measuring the intensity, maintain an
engine speed of 2,000 r/min., with the battery fully
charged.
There may be special local regulations pertaining to
headlamp intensity. Be sure to make any adjust-
ments necessary to satisfy such regulations.
If an illuminometer is used to make the measure-
ments, convert its values to photometer values by
using the following formula.

I =E x r

• I = intensity (cd)

• E = illumination (lux)

• r = distance (m) from headlamps to illuminometer

BULB REPLACEMENT

M1542001300788

HEADLAMP BULB

CAUTION

Do not touch the surface of the bulb with hands
or dirty gloves as the bulb may pop after a short
time. If the surface does become dirty, clean it
with alcohol or thinner, and let it dry thoroughly
before installing.
1. Disconnect the battery.
2. Disconnect the connector.

AC310335

Headlamp bulb
<high-beam>

Headlamp bulb
<low-beam>

3. Screw out the headlamp bulb.
4. Replace the bulb, and connect securely the

connector.
