SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-187

Step 3. Resistance measurement at the F-14 <tail
lamp LH> or F-08 <tail lamp RH> rear
combination lamp connector, the A-31 <position
lamp LH> or A-39 <position lamp RH> headlamp
assembly connector, the F-11 <licence plate lamp
LH> or F-10 <licence plate lamp RH> licence
plate lamp connector or C-02 <tail lamp
indicator> combination meter connector

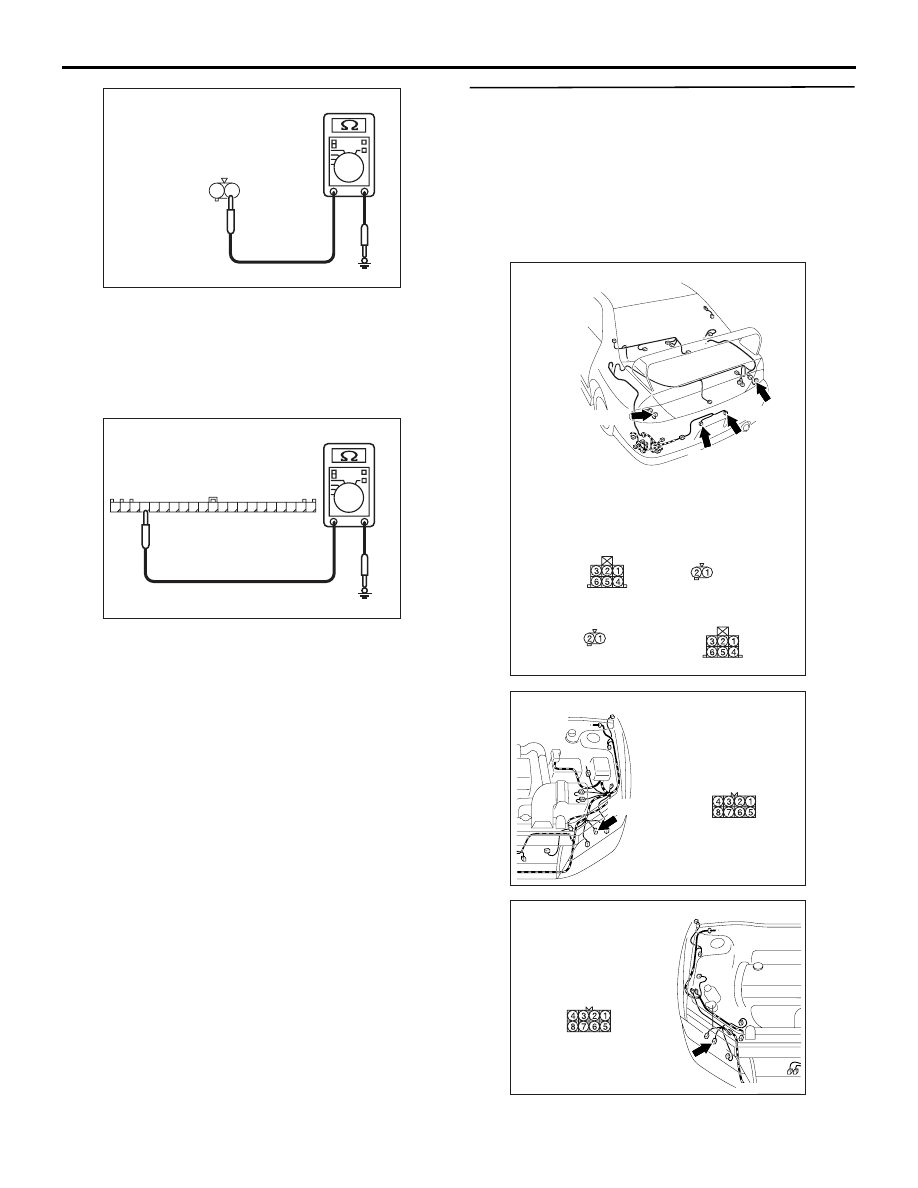

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Check the resistance between the lamp

connector and body earth.

•

Resistance between A-31 <position lamp LH>

headlamp assembly connector terminal No.7
and body earth

• Resistance between A-39 <position lamp

RH> headlamp assembly connector terminal
No.7 and body earth

•

Resistance between F-14 <tail lamp LH> rear

combination lamp connector terminal No.5
and body earth

• Resistance between F-08 <tail lamp RH> rear

combination lamp connector terminal No.5
and body earth

AC310468

Connectors: F-08, F-10, F-11, F-14

<LHD>

AD

F-08(B)

F-10(GR)

F-11(GR)

F-14(B)

Harness side

F-08

Harness side

F-11

Harness side

F-10

Harness side

F-14

AC310542

Connectors: A-31

AD

A-31(B)

Harness side

A-31

<LHD>

AC310431

Connectors: A-39

AE

A-39(B)

Harness side

A-39

<LHD>

AC310446

Connector: C-02
<LHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

AC301541HP

Connector A-31, A-39
(Harness side)

AC301541HN

Connector F-08, F-14
(Harness side)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-188

•

Resistance between F-11 <licence plate lamp

LH> licence plate lamp connector terminal
No.1 and body earth

• Resistance between F-10 <licence plate lamp

RH> licence plate lamp connector terminal
No.1 and body earth

•

Resistance between C-02 <tail lamp indicator>

combination meter connector terminal No.48
and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness from F-14 <tail

lamp LH> or F-08 <tail lamp RH> rear

combination lamp connector terminal No.5, A-31

<position lamp LH> or A-39 <position lamp RH>

headlamp assembly connector terminal No.7,

F-11 <licence plate lamp LH> or F-10 <licence

plate lamp RH> licence plate lamp connector

terminal No.1 or C-02 <tail lamp indicator>

combination meter connector terminal No.48 to

body earth.

AC301541HO

Connector F-10, F-11
(Harness side)

2 1

AC301541HE

Connector C-02
(Harness side)

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

AC310468

Connectors: F-08, F-10, F-11, F-14

<LHD>

AD

F-08(B)

F-10(GR)

F-11(GR)

F-14(B)

Harness side

F-08

Harness side

F-11

Harness side

F-10

Harness side

F-14

AC310542

Connectors: A-31

AD

A-31(B)

Harness side

A-31

<LHD>

AC310431

Connectors: A-39

AE

A-39(B)

Harness side

A-39

<LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-189

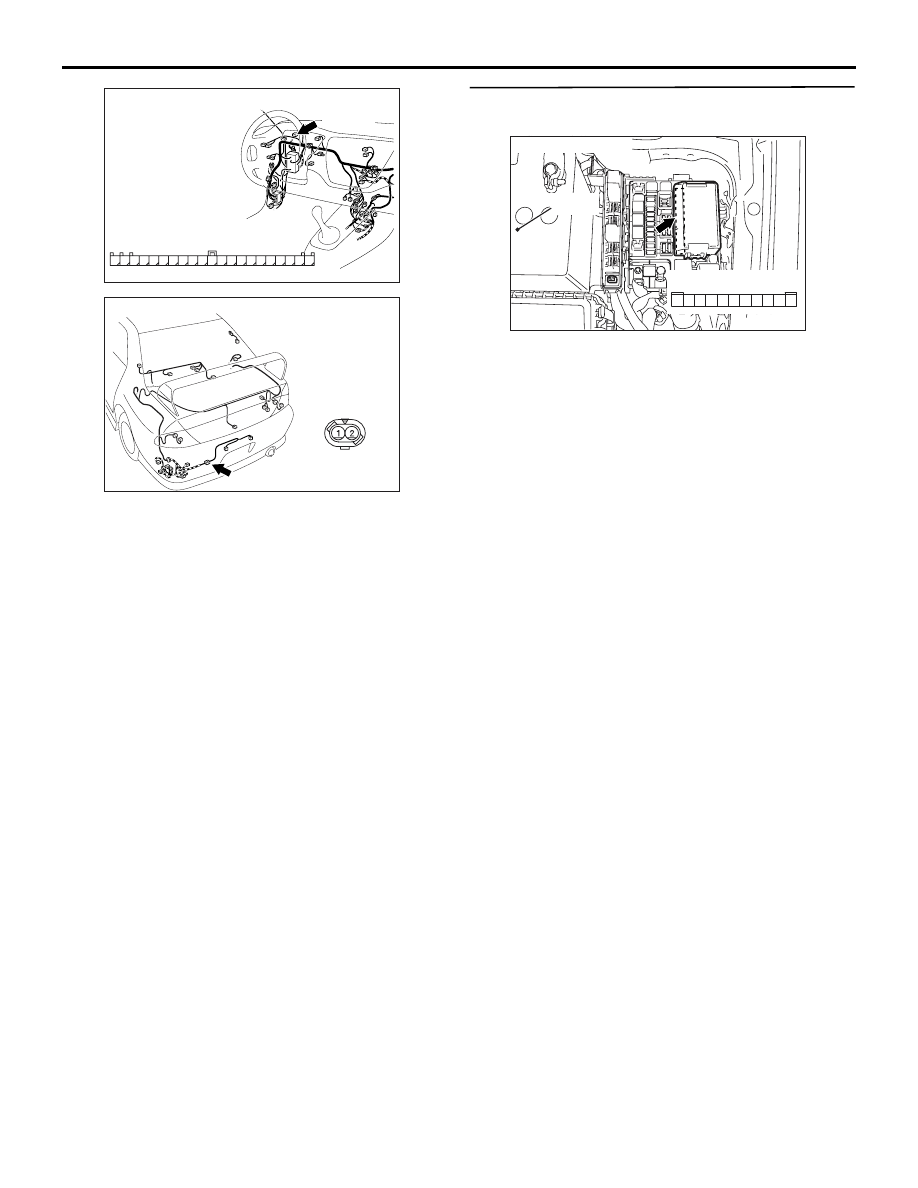

NOTE: Prior to the wiring harness inspection, check
intermediate connector F-12 <licence plate lamp>
and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

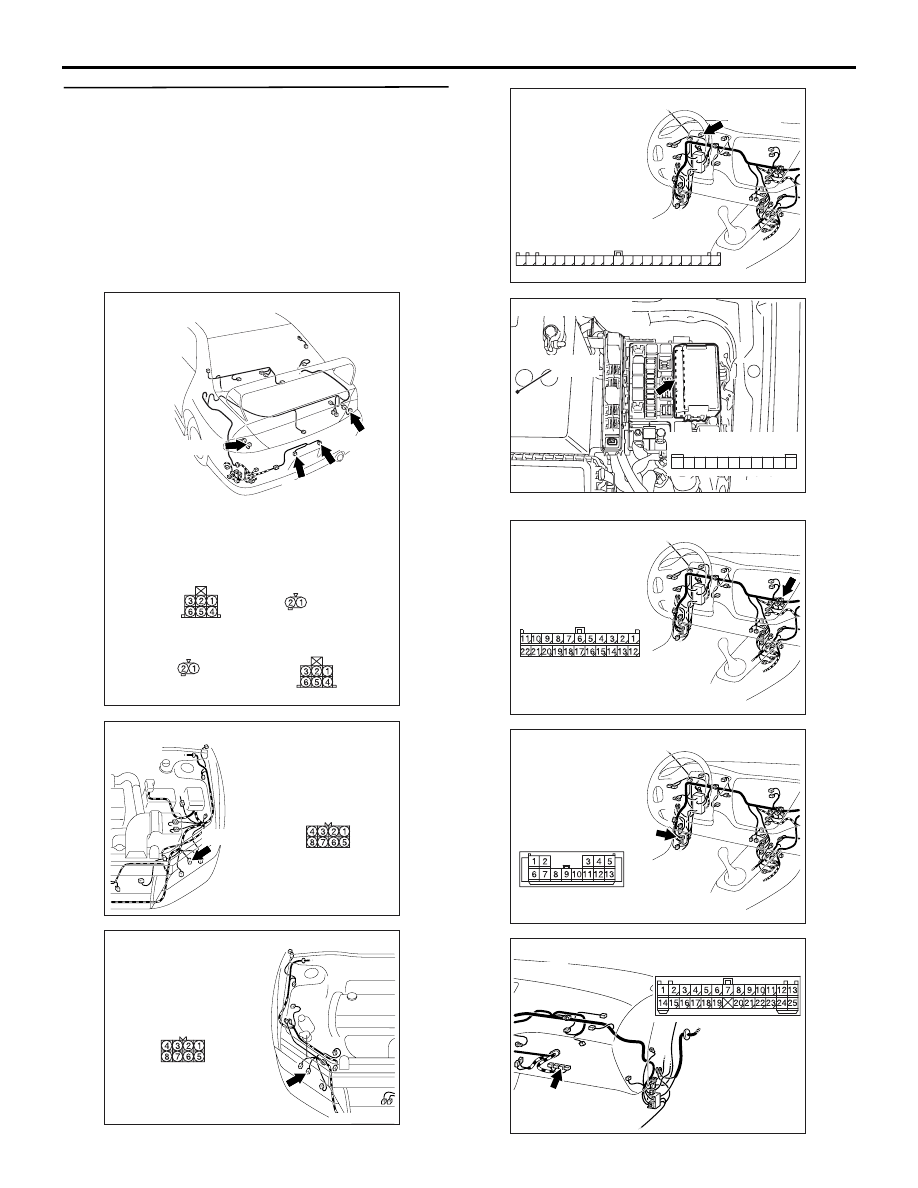

Step 5. Connector check: A-10X front-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC310446

Connector: C-02
<LHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

AC310467AG

Connector: F-12 <LHD>

F-12 (GR)

AC310572AB

Connector: A-10X

Relay box side

10

11

5

9 8 7 6

4 3

1

2

Battery

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-190

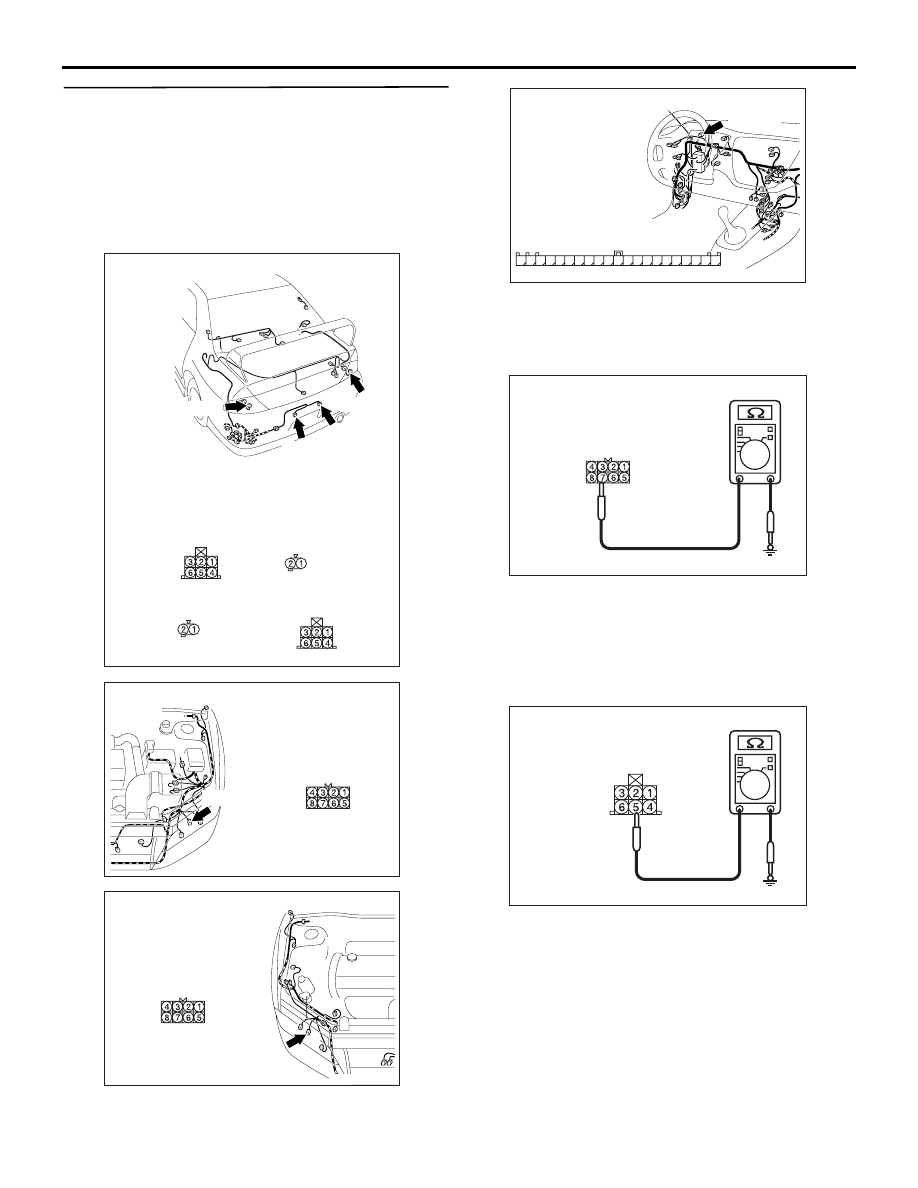

Step 6. Check the wiring harness from F-14 <tail
lamp LH> or F-08 <tail lamp RH> rear
combination lamp connector terminal No.3, A-31
<position lamp LH> or A-39 <position lamp RH>
headlamp assembly connector terminal No.3,
F-11 <licence plate lamp LH> or F-10 <licence
plate lamp RH> licence plate lamp connector
terminal No.2, C-02 <tail lamp indicator>
combination meter connector terminal No.38 to
A-10X front-ECU connector terminal No.8.

NOTE:

AC310468

Connectors: F-08, F-10, F-11, F-14

<LHD>

AD

F-08(B)

F-10(GR)

F-11(GR)

F-14(B)

Harness side

F-08

Harness side

F-11

Harness side

F-10

Harness side

F-14

AC310542

Connectors: A-31

AD

A-31(B)

Harness side

A-31

<LHD>

AC310431

Connectors: A-39

AE

A-39(B)

Harness side

A-39

<LHD>

AC310446

Connector: C-02
<LHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

AC310572AB

Connector: A-10X

Relay box side

10

11

5

9 8 7 6

4 3

1

2

Battery

AC310446

Connector: C-05 <LHD>

AU

Harness side

AC310446

C-129

Connectors: C-129

AP

<LHD>

AC310452

Connector: C-113

AF

<LHD>
