SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-71

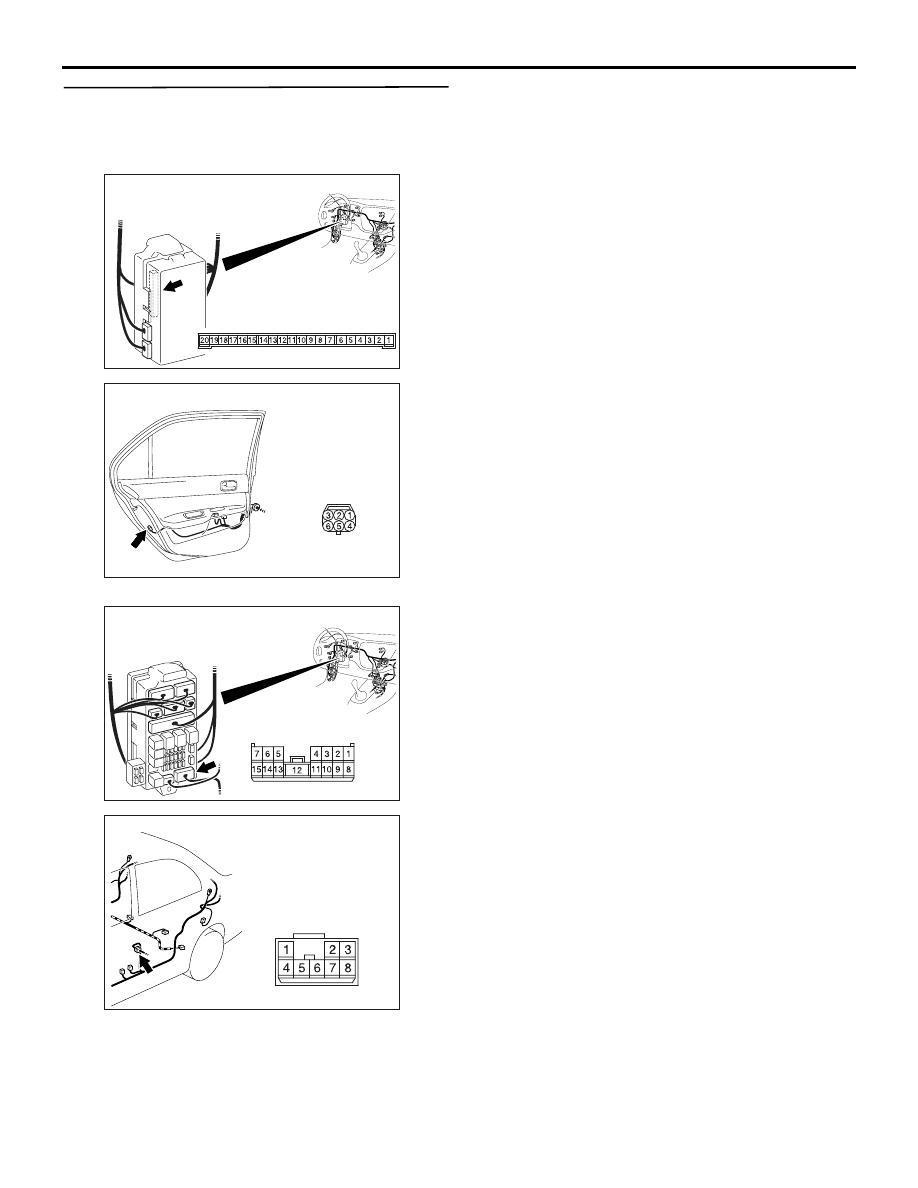

Step 17. Check the wiring harness from C-226
ETACS-ECU connector terminal Nos.12 and 13 to
E-07 rear door lock actuator (LH) connector
terminal Nos.4 and 6.

NOTE:

Prior to the wiring harness inspection, check D-15
intermediate connectors and C-217 junction block
connector, and repair if necessary.

• Check the input and output lines for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC310450

Connector: C-226 <LHD>

AB

Junction block side

Junction block (rear view)

AC310486

Harness side

AC

Connector: E-07

E-07 (B)

Rear door (LH)

AC310448

Harness side

Junction block (front view)

Connector: C-217 <LHD>

AG

AC310465

AC

Connector: D-15 <LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-72

INSPECTION PROCEDURE C-2: A door or a tailgate cannot be locked or unlocked by the central door
locking system. <RH drive vehicles>

DOOR LOCK
ACTUATOR

(

REAR

: RH)

DOOR LOCK
ACTUATOR

(

REAR

: LH)

ETACS-ECU

DOOR
UNLOCK
RELAY

DOOR
LOCK
RELAY

DOOR LOCK
ACTUATOR

(FRONT: LH)

DOOR LOCK
ACTUATOR

(FRONT:RH)

J/B SIDE

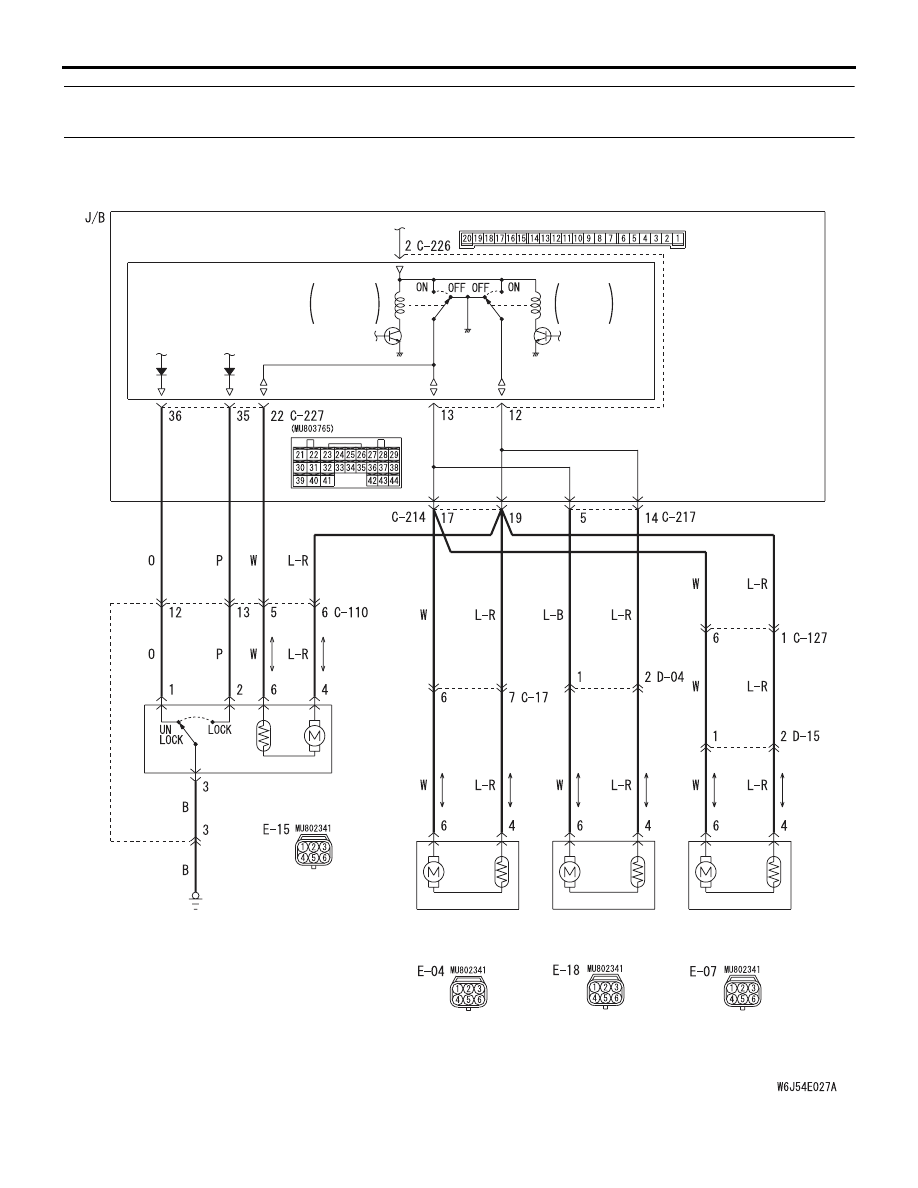

Central Door Lock Circuit <RHD>

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-73

COMMENT ON TROUBLE SYMPTOM

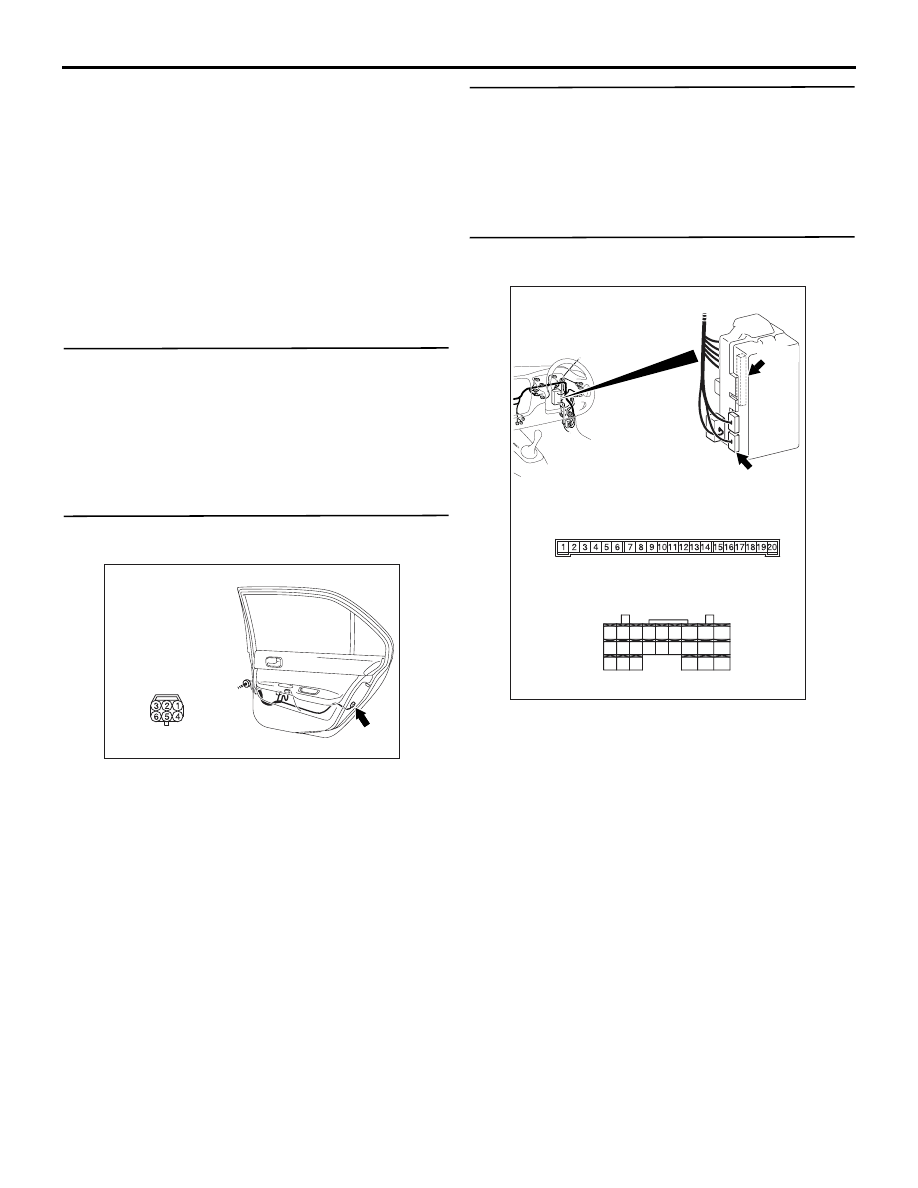

If a door or the tailgate cannot be locked or unlocked
by the central door locking system, the door lock
actuator or the tailgate lock actuator may be defec-
tive.

POSSIBLE CAUSES

• Malfunction of the door lock actuator

• Malfunction of the tailgate lock actuator

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Confirm which door lock actuator is
defective.

Q: Which door fails to lock correctly?

Driver's door :

Go to Step 2.

Front passenger's door :

Go to Step 6.

Rear right door :

Go to Step 10.

Rear left door :

Go to Step 14.

Step 2. Connector check: E-15 front door lock
actuator (RH) connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

Step 3. Check the front door lock actuator (RH)
Check that the front door lock actuator (RH) works
normally. Refer to GROUP 42

− Door

P.42-31

.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the front door lock actuator (RH).

Step 4. Connector check: C-226, C-227
ETACS-ECU connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

AC310495

Harness side

AC

Connector: E-15 <RHD>

E-15(B)

AC310462

Connectors: C-226, C-227 <RHD>

AB

Junction block (rear view)

Junction block side

C-226

C-226

C-227

Harness side

C-227

28

37

43

29

44

38

23

32

41

24

25

26

27

34

42

36 35

33

21

22

30

39

40

31

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-74

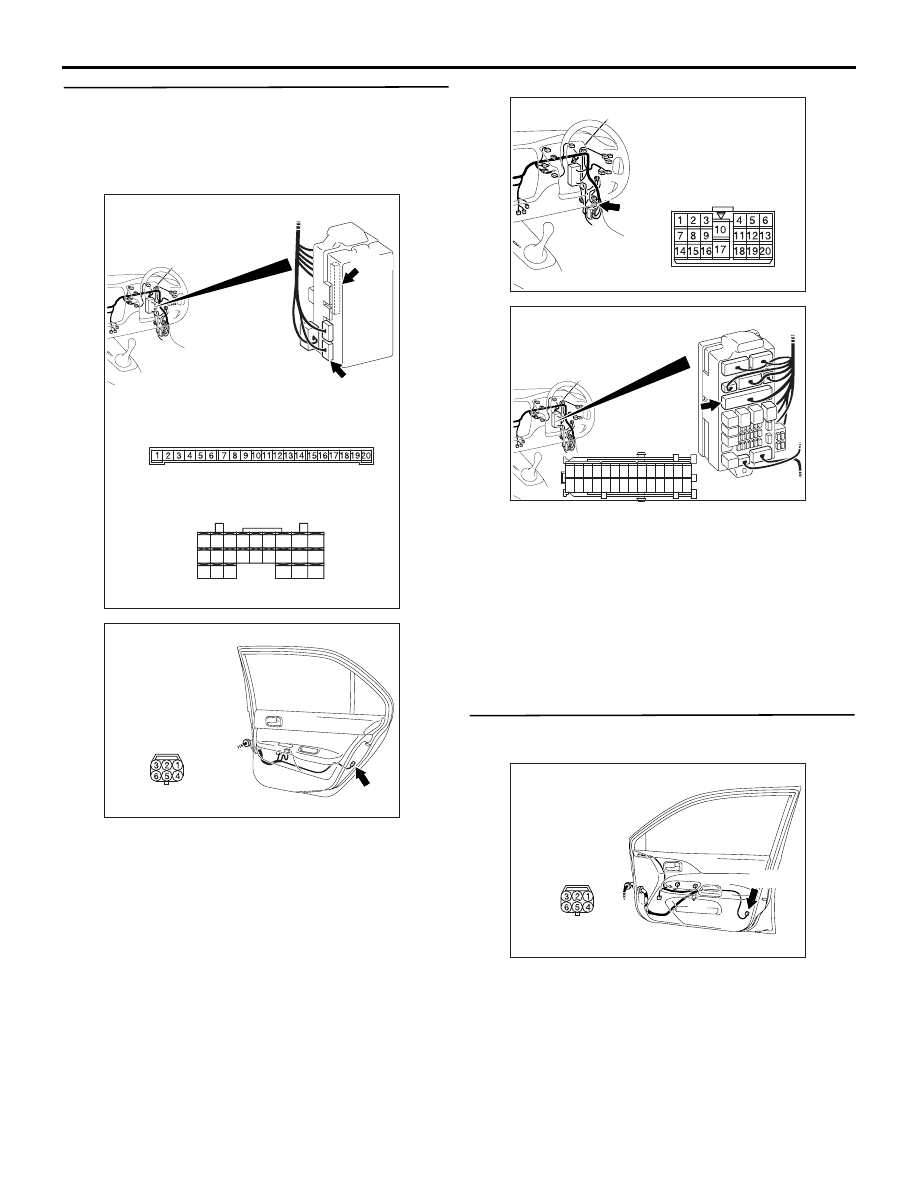

Step 5. Check the wiring harness from C-226
ETACS-ECU connector terminal No.12 and C-227
ETACS-ECU connector terminal No.22 to E-15
front door lock actuator (RH) connector terminal
Nos.4 and 6.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-110 and junction block connector
C-214, and repair if necessary.

• Check the input and output lines for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 6. Connector check: E-04 front door lock
actuator (LH) connector

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the defective connector.

AC310462

Connectors: C-226, C-227 <RHD>

AB

Junction block (rear view)

Junction block side

C-226

C-226

C-227

Harness side

C-227

28

37

43

29

44

38

23

32

41

24

25

26

27

34

42

36 35

33

21

22

30

39

40

31

AC310495

Harness side

AC

Connector: E-15 <RHD>

E-15(B)

AC310456

Connector: C-110 <RHD>

AH

AC310458

Harness side

Junction block (front view)

Connector: C-214 <RHD>

AE

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

AC310493

Harness side

AE

Connector: E-04 <RHD>

E-04(B)
