INSPECTION PROCEDURE A-5: Communication with the power window main switch (power window

module) is not possible.

CAUTION

Whenever the ECU is replaced, ensure that the

power supply circuit, the earthing circuit and the

communication circuit are normal.

POWER
WINDOW RELAY

ETACS-ECU

POWER WINDOW
MAIN SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

FUSIBLE
LINK

5

J/B SIDE

CPU

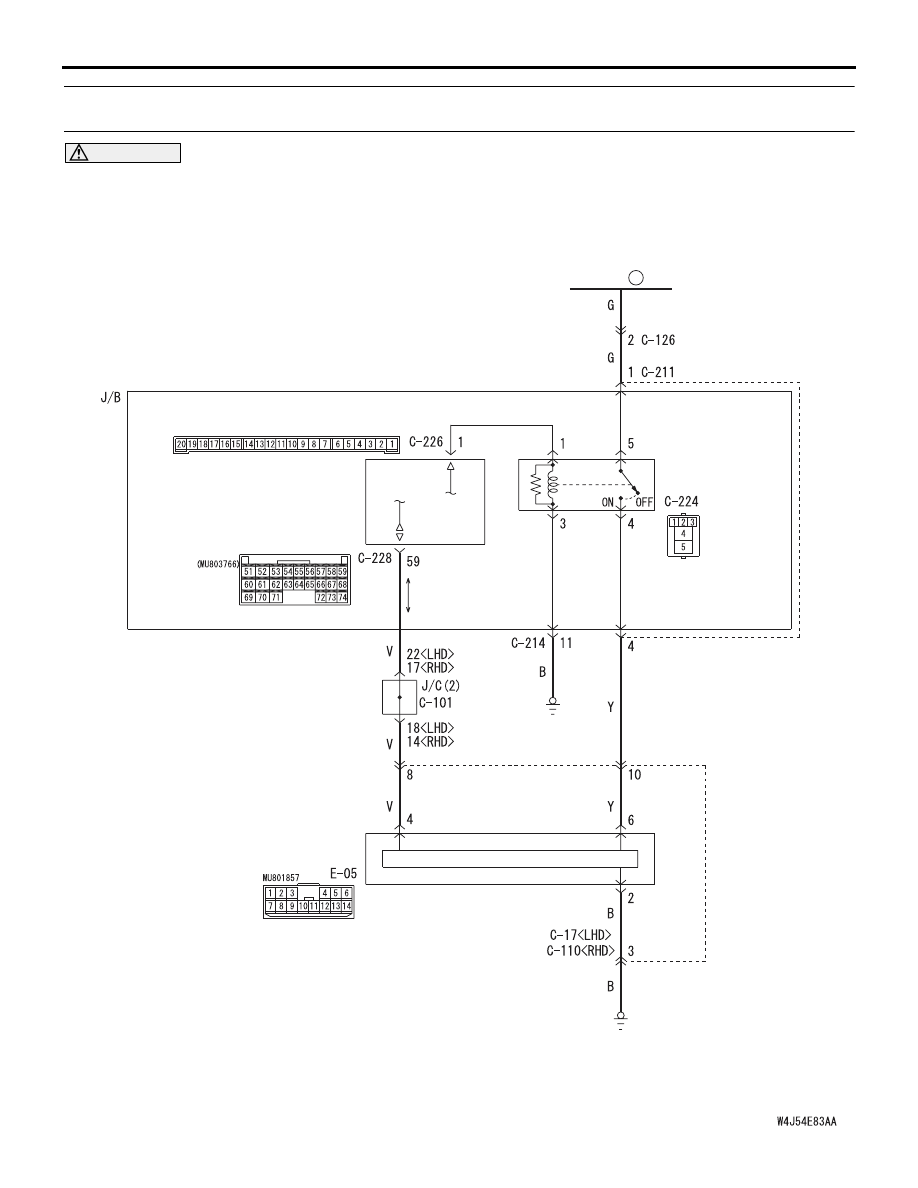

Power Window Main Switch and SWS Communication Circuit

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-48

COMMENTS ON TROUBLE SYMPTOM

The power window main switch, the power supply
circuit (power window relay driving circuit) or commu-
nication circuit for that switch may be defective.

POSSIBLE CAUSES

• Malfunction of the power window main switch

• Malfunction of the power window relay

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. ECU check by using the SWS monitor.
Check that the power supply and earth lines to the
ETACS-ECU and the SWS communication lines are
normal.

• Ignition switch: OFF

ECUS TO BE CHECKED

• ETACS ECU

OK: "OK" is displayed on the "ETACS ECU"
menu.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure A-3
"Communication with the ETACS-ECU is
not possible

P.54C-36

."

Step 2. SWS monitor data list.

<Selected item> ETACS ECU

• Ignition switch: ON

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to Inspection Procedure L-2 "The
ignition switch (IG1) signal is not received

P.54C-261

."

Step 3. Connector check: E-05 power window
main switch connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

Step 4. Voltage measurement at the E-05 power
window main switch connector

(1) Disconnect the connector, and measure at the

wiring harness side.

Item No.

Item name

Normal
condition

Item 30

IG SW(IG1)

ON

AC310484

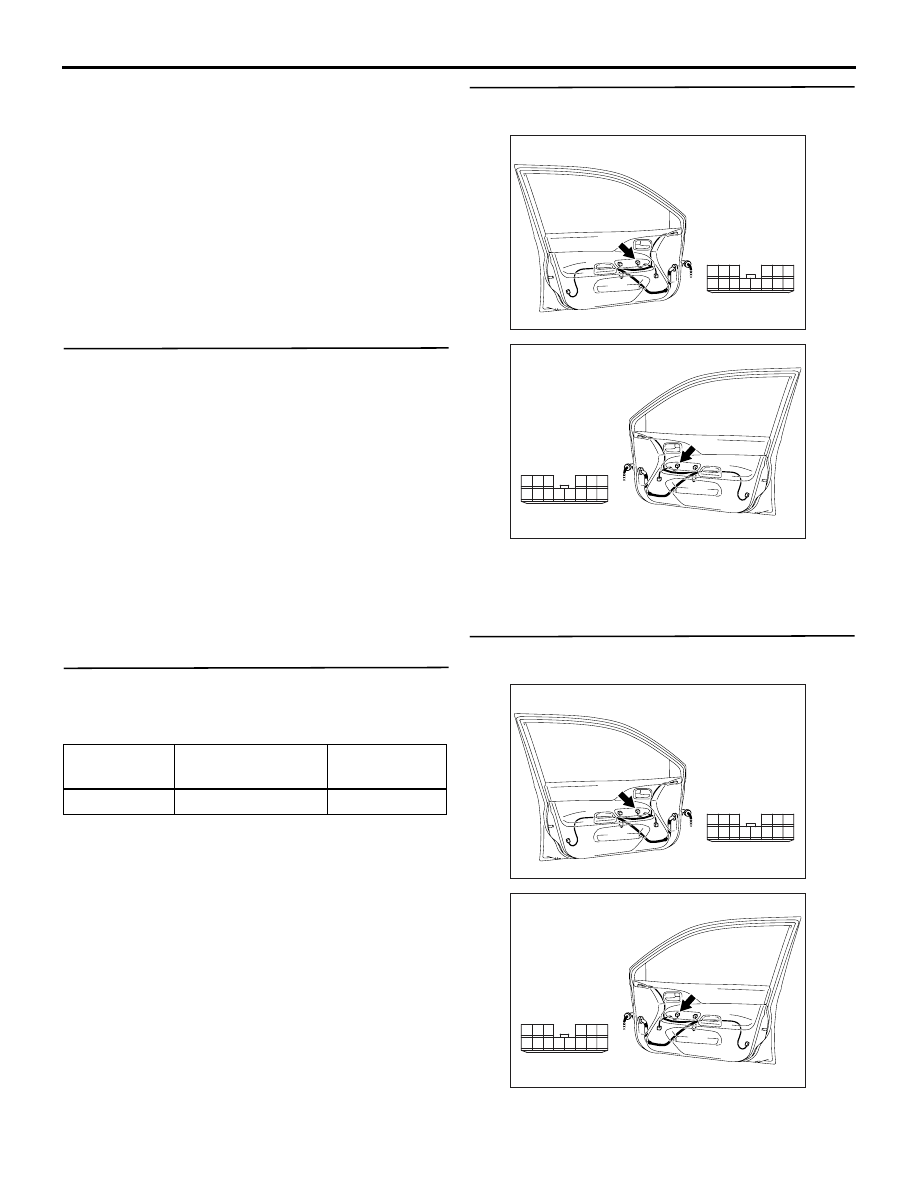

Connector: E-05 <LHD>

AD

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (LH)

AC310493

Connector: E-05 <RHD>

AG

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (RH)

AC310484

Connector: E-05 <LHD>

AD

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (LH)

AC310493

Connector: E-05 <RHD>

AG

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (RH)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-49

(2) Ignition switch: ON

(3) Voltage between E-05 power window main switch

connector terminal No.6 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Go to Step 5.

Step 5. Connector check: C-224 power window
relay connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

Step 6. Check the power window relay.
Refer to GROUP 42

− Door

P.42-24

.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Replace the power window relay.

Step 7. Voltage measurement at C-224 power
window relay connector

(1) Remove the power window relay, and measure at

the junction block side.

(2) Voltage between C-224 power window relay

connector terminal No.5 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Go to Step 8.

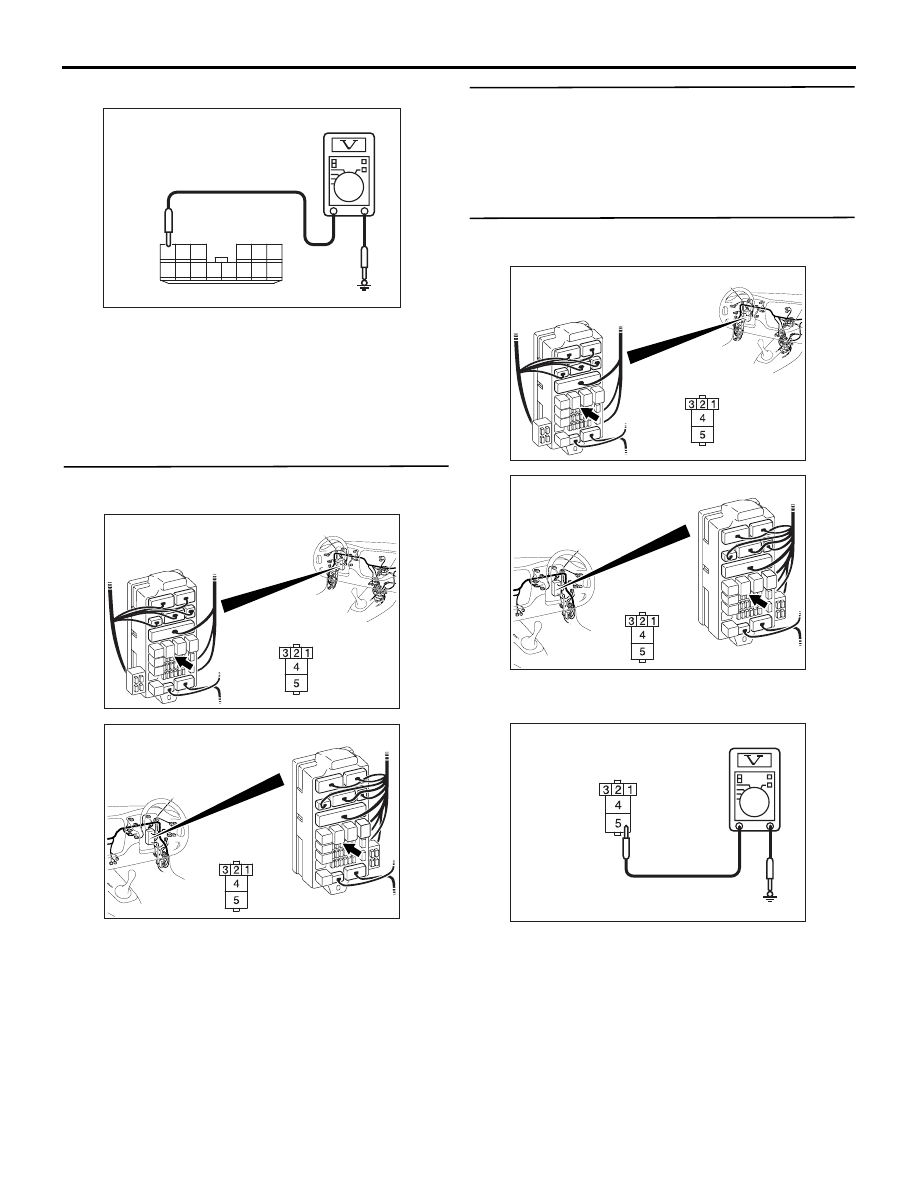

AC301541BH

Connector E-05
(Harness side)

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC310448

AI

Connector: C-224 <LHD>

Junction block (front view)

Junction block side

AC310458

AG

Connector: C-224 <RHD>

Junction block (front view)

Junction block
side

AC310448

AI

Connector: C-224 <LHD>

Junction block (front view)

Junction block side

AC310458

AG

Connector: C-224 <RHD>

Junction block (front view)

Junction block
side

AC310507

Connector C-224
(Junction block side)

AG

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-50

Step 8. Check the wiring harness between C-224
power window relay connector terminal No.5 and
fusible link (5).

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-126 and junction block connector
C-211, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

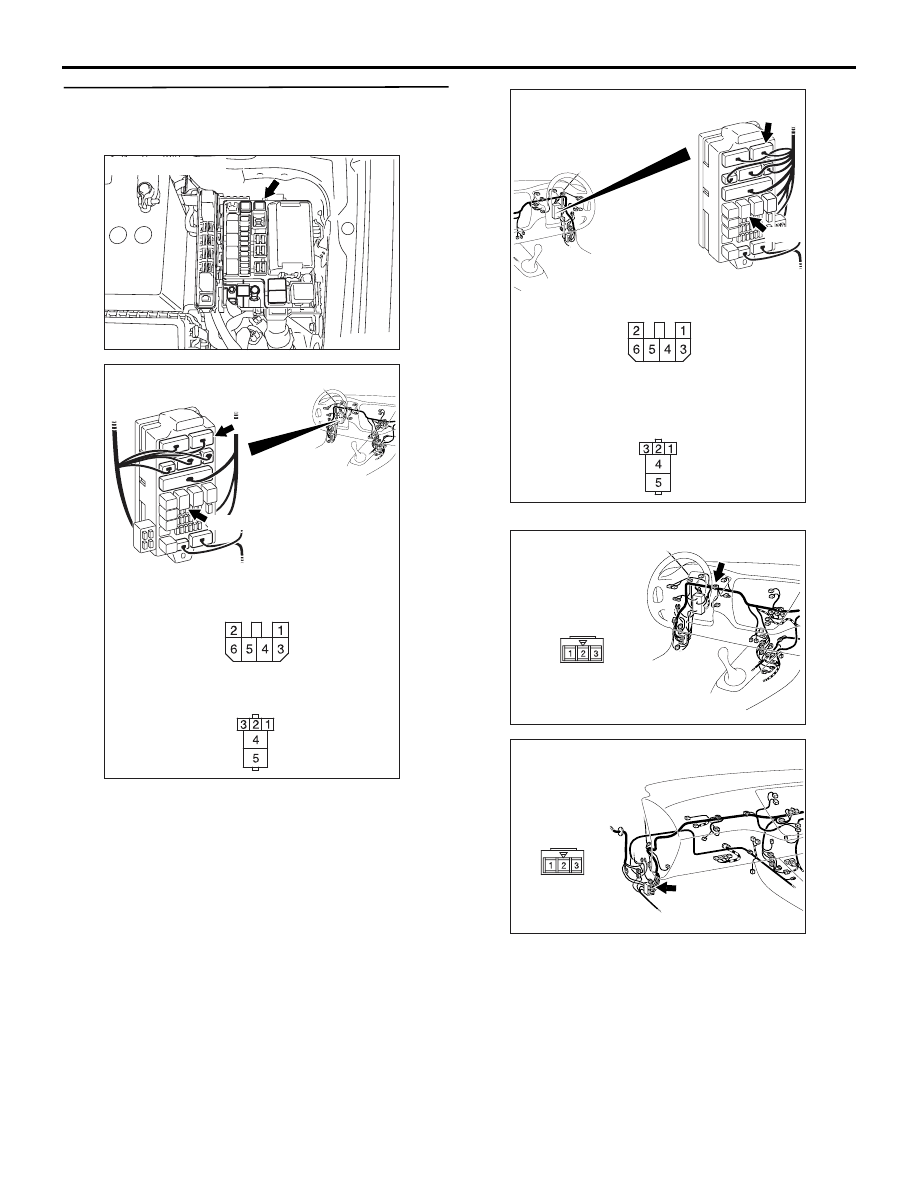

AC310523AC

Fusible link: No.5

AC310449

AD

Connectors: C-211, C-224 <LHD>

Junction block (front view)

Junction block side

C-211

C-224

C-224

Harness side

C-211

AC310459

AD

Connectors: C-211, C-224 <RHD>

Junction block (front view)

Junction block side

C-211

C-224

C-224

Harness side

C-211

AC310446

Connector: C-126 <LHD>

AD

AC310454

Connector: C-126 <RHD>

AF
