SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-191

FLASHER TIMER

INSPECTION PROCEDURE I-1: The turn-signal lamps do not illuminate.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

BATTERY

ETACS-ECU

RELAY
BOX

TURN-SIGNAL
LAMP RELAY: LH

TURN-SIGNAL
LAMP RELAY: RH

· HEADLAMP
  ASSEMBLY (LH)
· SIDE TURN SIGNAL
  LAMP (LH)

REAR
COMBINATION
LAMP (LH)

COMBINATION
METER

· COMBINATION
  METER
· HEADLAMP
  ASSEMBLY (RH)

· SIDE TURN SIGNAL
  LAMP (RH)
· REAR COMBINATION
  LAMP (RH)

J/B SIDE

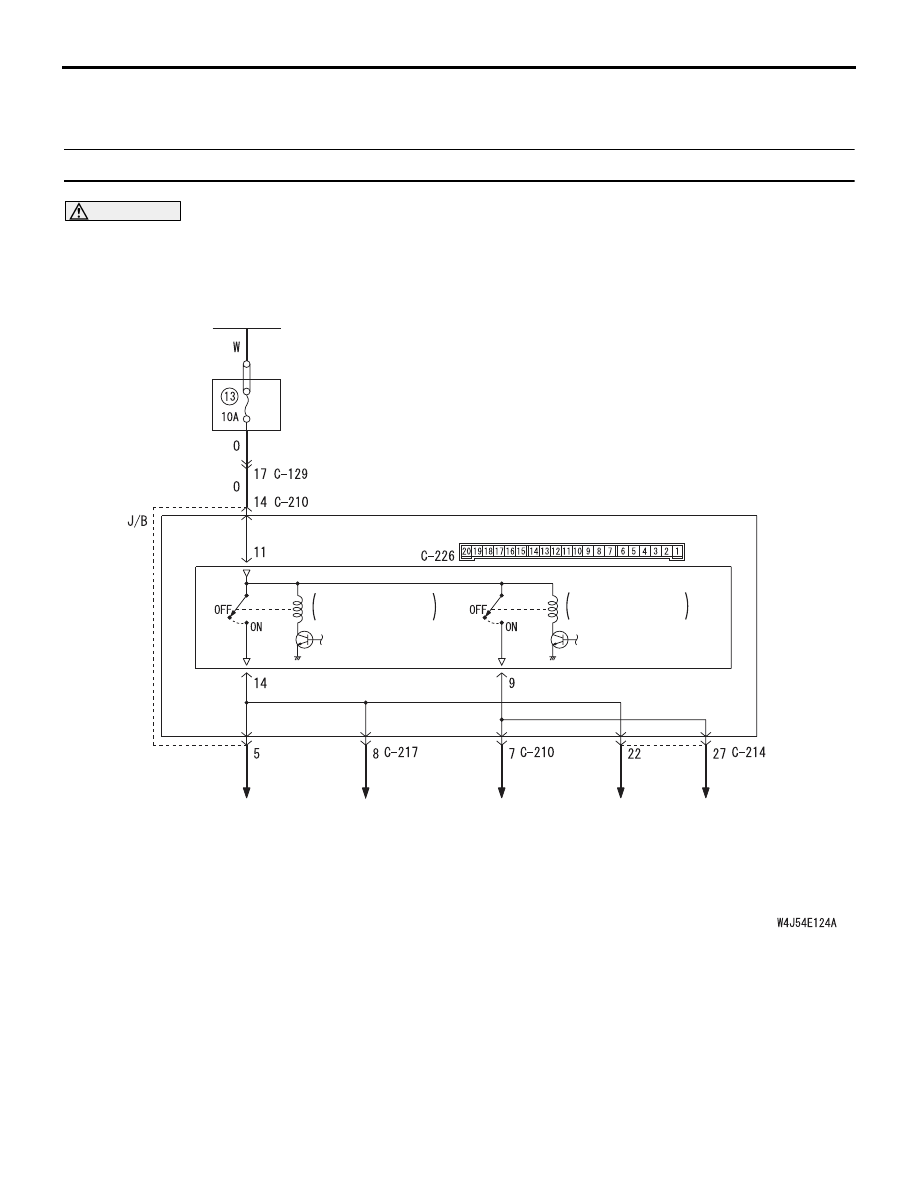

Turn-Signal Lamp Power Supply Circuit <LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-192

COMMENTS ON TROUBLE SYMPTOM

If all the turn-signal lamps do not illuminate, the igni-
tion switch (IG1), the turn-signal lamp switch input
circuit or the ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the column switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Check that the hazard warning lamps
operate.
Check that the hazard warning lamps illuminate nor-
mally.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 2.

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

BATTERY

ETACS-ECU

RELAY
BOX

TURN-SIGNAL
LAMP RELAY: LH

TURN-SIGNAL
LAMP RELAY: RH

· HEADLAMP
  ASSEMBLY (LH)
· SIDE TURN SIGNAL
  LAMP (LH)
· REAR COMBINATION
  LAMP (LH)

REAR
COMBINATION
LAMP (RH)

COMBINATION
METER

· HEADLAMP
  ASSEMBLY (RH)
· SIDE TURN SIGNAL
  LAMP (RH)

J/B SIDE

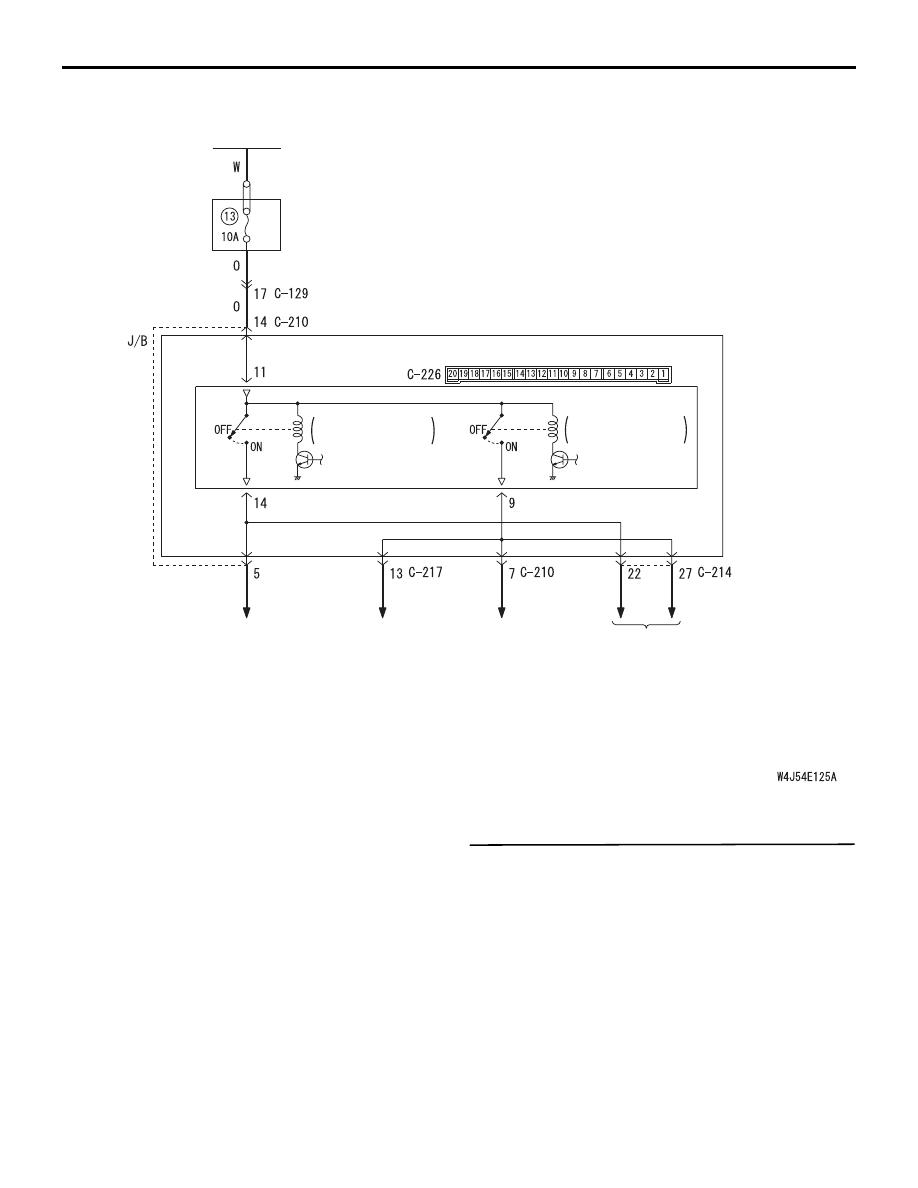

Turn-Signal Lamp Power Supply Circuit <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-193

Step 2. Connector check: C-226 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

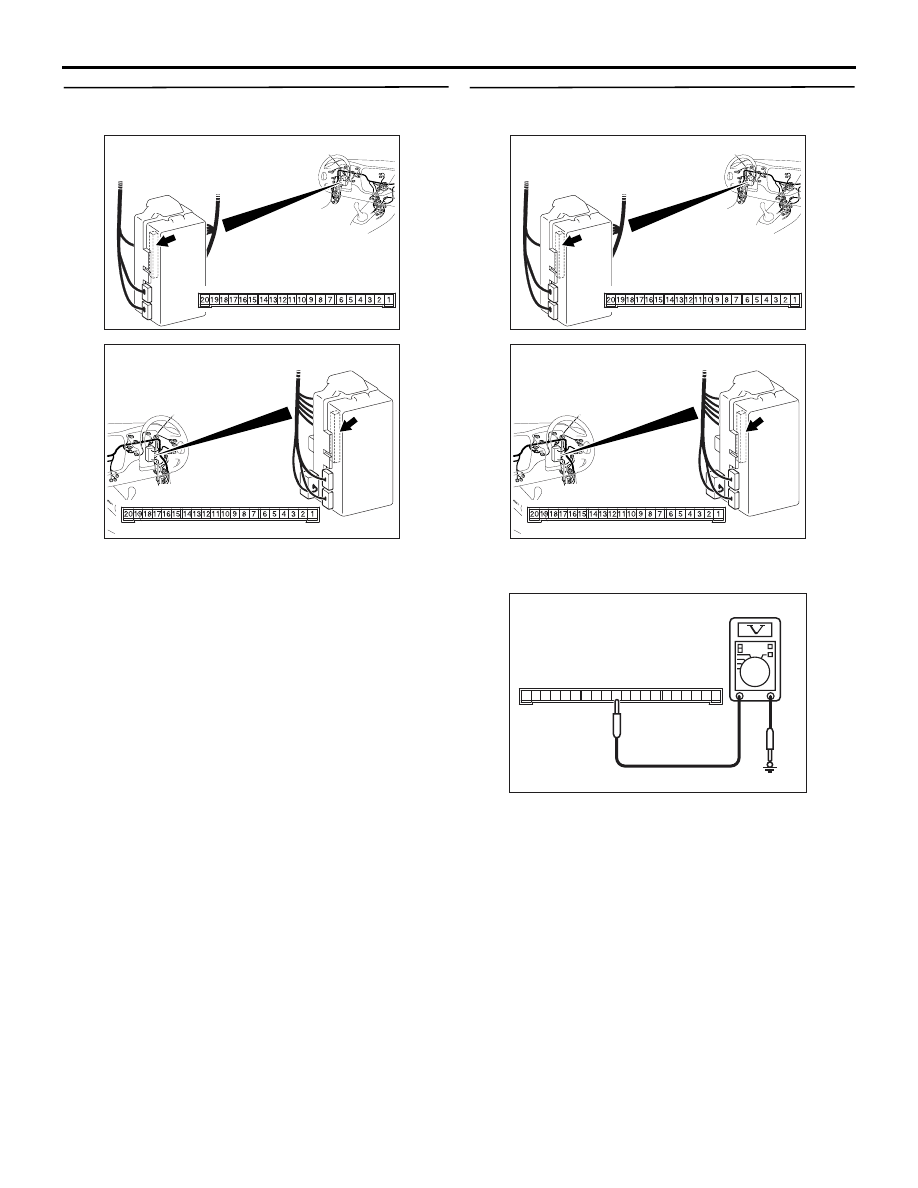

Step 3. Voltage measurement at the C-226
ETACS-ECU connector

(1) Remove the ETACS-ECU, and measure at the

junction block side.

(2) Voltage between C-226 ETACS-ECU connector

terminal No.11 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

AC310450

Connector: C-226

AB

Junction block side

Junction block (rear view)

<LHD>

AC310461

Junction block (rear view)

Connector: C-226

AB

<RHD>

Junction block side

AC310450

Connector: C-226

AB

Junction block side

Junction block (rear view)

<LHD>

AC310461

Junction block (rear view)

Connector: C-226

AB

<RHD>

Junction block side

AC301541HF

Connector C-226
(Junction block side)

2019

7

13

17

18

1615 14

10

11

12

9 8

2

6 5

3

4

1

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-194

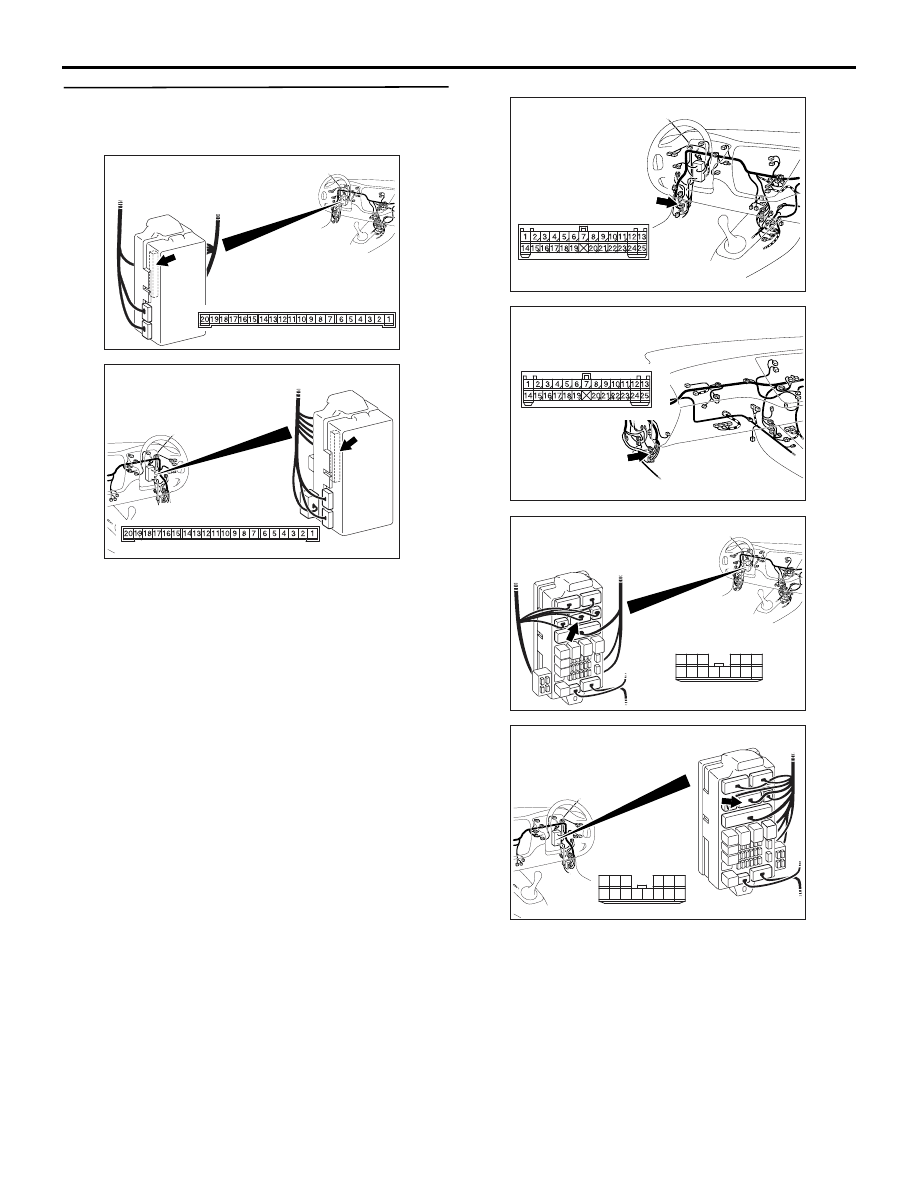

Step 4. Check the wiring harness between C-226
ETACS-ECU connector terminal No.11 and the
battery.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-129 and junction block connector
C-210, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC310450

Connector: C-226

AB

Junction block side

Junction block (rear view)

<LHD>

AC310461

Junction block (rear view)

Connector: C-226

AB

<RHD>

Junction block side

AC310446

Connector: C-129
<LHD>

AI

AC310454

Connector: C-129
<RHD>

AJ

AC310448

Junction block (front view)

Connector: C-210

AK

<LHD>

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC310458

Junction block (front view)

Connector: C-210

AH

<RHD>

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9
