FRONT FLOOR CONSOLE ASSEMBLY

INTERIOR

52A-7

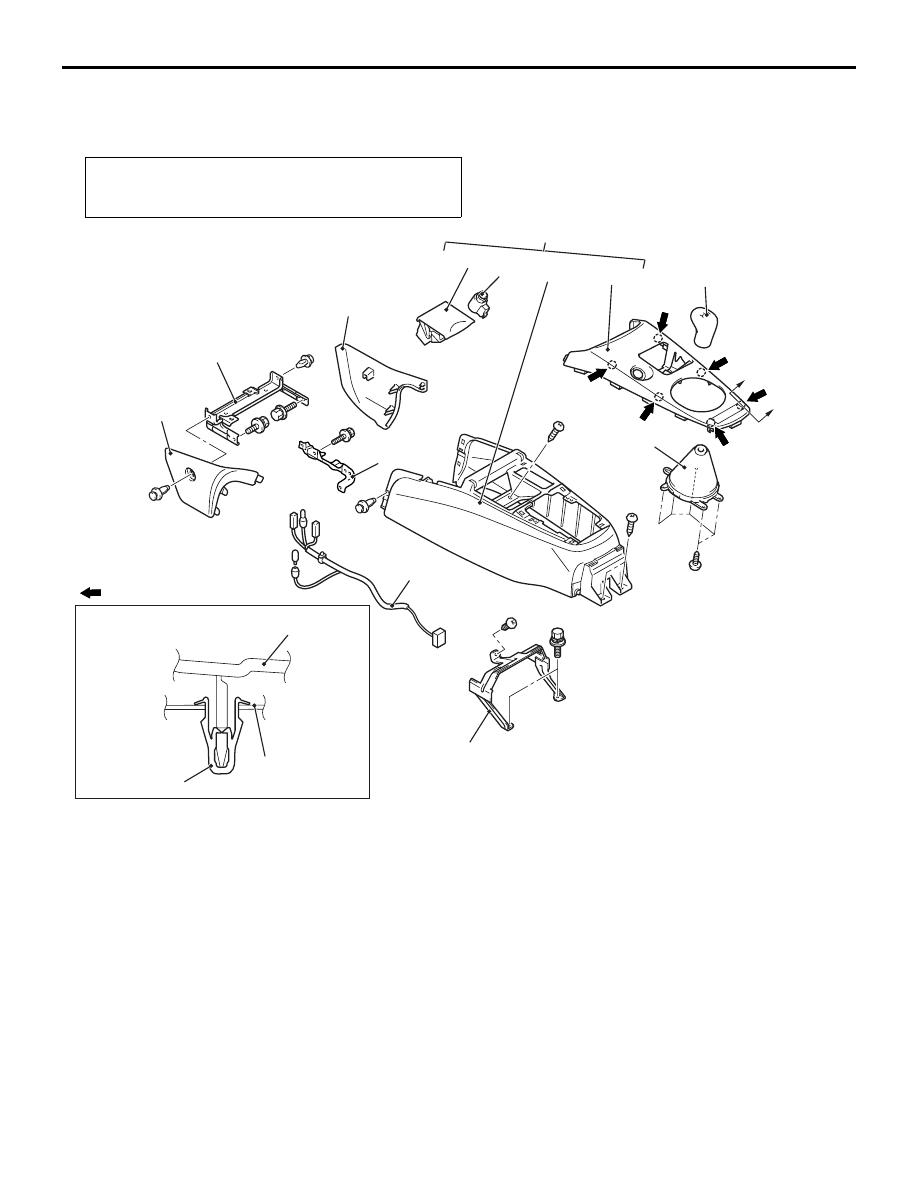

FRONT FLOOR CONSOLE ASSEMBLY

REMOVAL AND INSTALLATION

M1521005200164

Pre-removal and Post-installation Operation
• Removal and Installation of Rear Floor Console (Refer to

P.52A-8

).

AC504404

1

3

4

5

6

7

8

9

10

13

12

AB

11

2

Section A – A

Clip

6

10

A

A

Note
      : Clip positions

Removal steps

1.

Console side cover (LH)

2.

Console side cover bracket <R.H.
drive vehicles>

3.

Console side cover (RH) <L.H.
drive vehicles>

4.

Shift lever knob

5.

Front floor console assembly

6.

Front floor console panel

7.

Shift lever cover

8.

Cigarette lighter

9.

Ashtray

10. Front floor console
11. Front floor console bracket
12. Harness
13. Console side cover bracket <L.H.

drive vehicles>

Removal steps (Continued)

REAR FLOOR CONSOLE ASSEMBLY

INTERIOR

52A-8

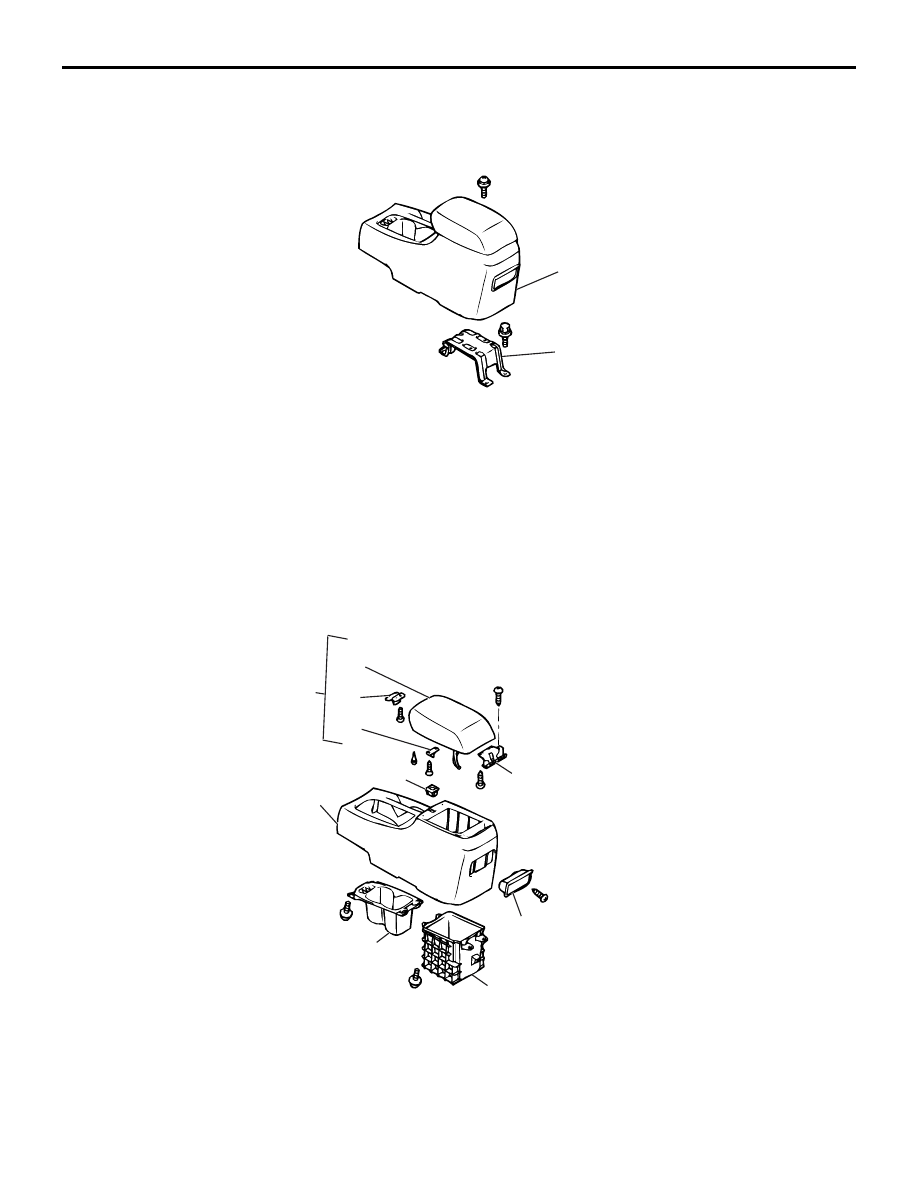

REAR FLOOR CONSOLE ASSEMBLY

REMOVAL AND INSTALLATION

M1521005700084

AC211586

1

2

AB

Removal steps

1.

Rear console assembly

•

Rear seat cushion assembly (refer
to

P.52A-20

).

•

Front scuff plate (refer to

P.52A-10

).

•

Rear scuff plate (refer to

P.52A-10

).

•

Lower centre pillar trim (refer to

P.52A-10

).

•

Floor carpet

2.

Rear console bracket

DISASSEMBLY AND REASSEMBLY

M1521005900118

AC211588

5

6

7

4

10

2

9

3

1

8

AB

Disassembly steps

1.

Ashtray

2.

Cup holder

3.

Hole lock

<<

A

>>

4.

Console lid assembly

5.

Console lid

6.

Upper lid lock

7.

Lower lid striker

8.

Hinge bracket

9.

Box

10. Rear floor console

Removal steps (Continued)

Disassembly steps (Continued)

REAR FLOOR CONSOLE ASSEMBLY

INTERIOR

52A-9

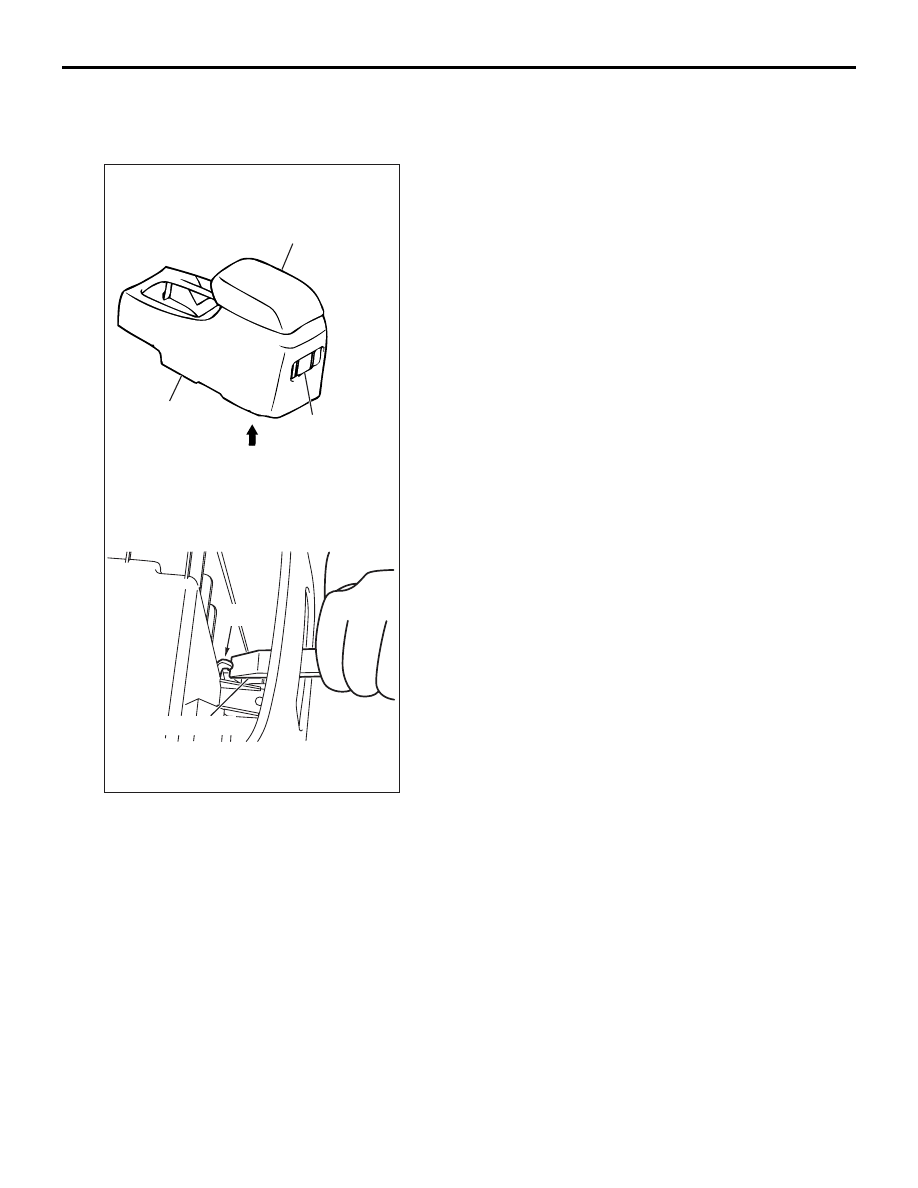

DISASSEMBLY SERVICE POINT
<<A>> CONSOLE LID ASSEMBLY
REMOVAL

AC005508

View A

Rear floor
console

Console lid assembly

Ashtray mounting
hole

MB990784

Hinges

A

AD

Insert the special tool ornament remover
(MB990784) into the hinges of the console lid
assembly and the rear floor console through the ash-
tray mounting hole to pry for removal.

TRIMS

INTERIOR

52A-10

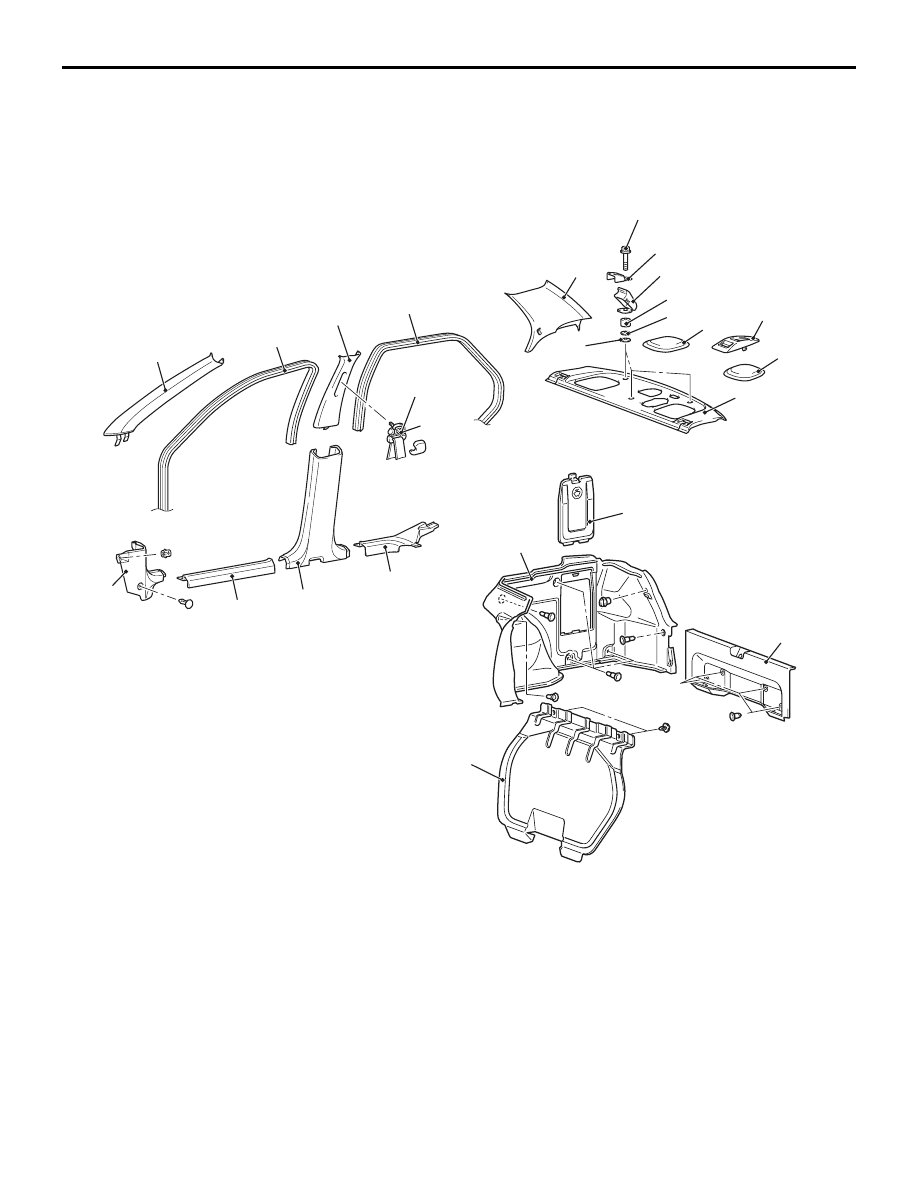

TRIMS

REMOVAL AND INSTALLATION

M1521001100499

AC309857AB

19

21

11

12

18

13

10

12

5

9

8

3

7

4

6

2

1

44 ± 10 N·m

14

15

16

22 ± 4 N·m

20

22

17

1.

Front scuff plate

2.

Cowl side trim

3.

Rear scuff plate

4.

Front door opening trim

5.

Rear door opening trim

<<

A

>>

6.

Front pillar trim

7.

Lower centre pillar trim

8.

Front seat belt connection

9.

Upper centre pillar trim

10. Rear pillar trim
11. Rear shelf trim

12. Speaker garnish
13. Retractor cover
14. Child restraint fitting
15. Cover
16. Spacer
17. Plain washer
18. Fiber washer
19. Rear end trim
20. Trunk room side trim lid
21. Trunk room side trim
22. Trunk room front trim
