ALTERNATOR AND IGNITION SYSTEM

ENGINE OVERHAUL

11B-15

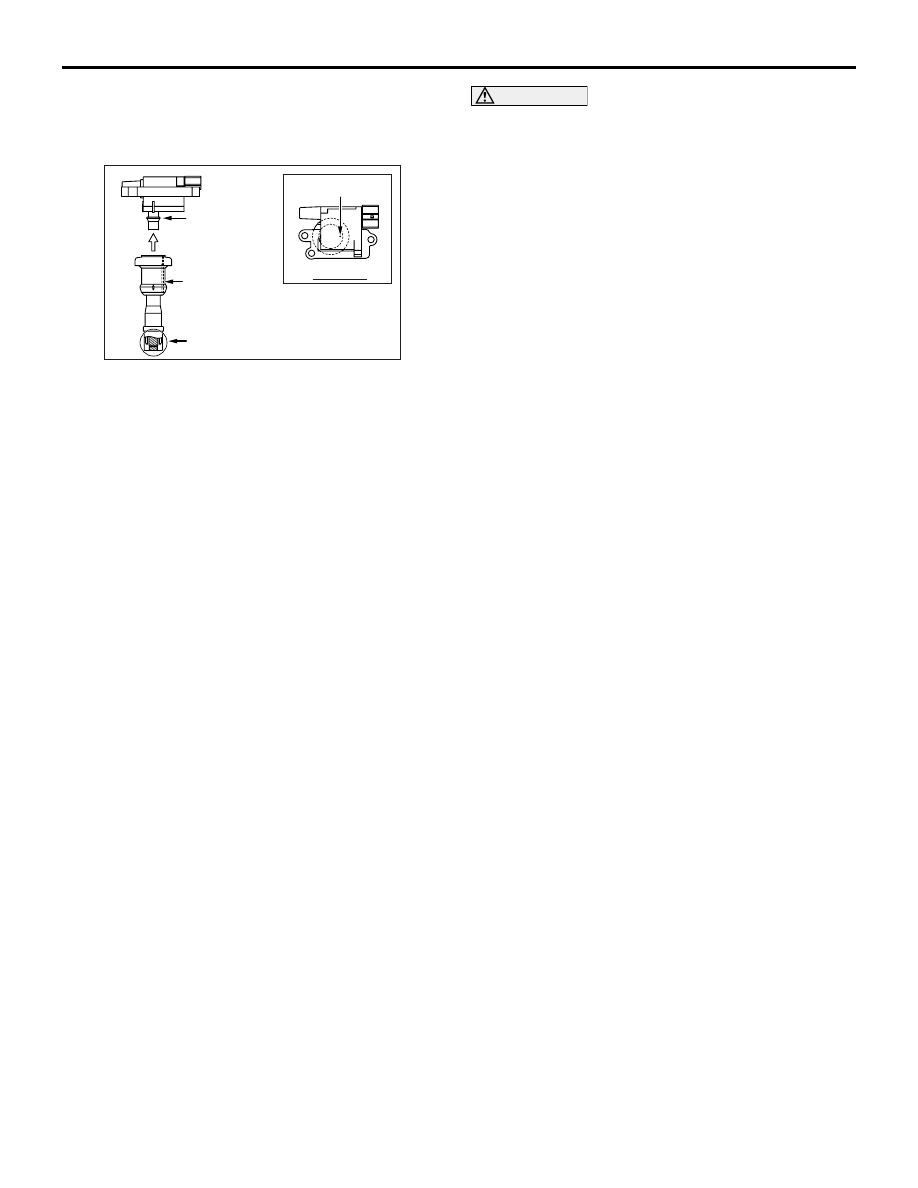

INSTALLATION SERVICE POINTS
>>A<< IGNITION COIL BOOT INSTALLA-
TION

CAUTION

• When the ignition coil boot is not installed as

indicated, realize that it would be possibly the
causes of the malfunctions which lead to an
inappropriate ignition coil operation, a dam-
aged ignition coil, a high voltage leakage
toward the outside and water immersion into
the hole.

• White powders are applied to the fitting area

of the spark plug on the ignition coil boot in
order to prevent the fitting area from baking
onto the spark plug. Do not touch or clean
them.

1. Confirm the spring is attached to the new ignition

coil boot inside.

2. Push and install the new ignition coil boot into the

ignition coil without a clearance, turning the fitting
area twice or three times.

3. After the installation, turn the ignition coil boot so

that the air bleeding hole can be in position
indicated in the illustration.

AK404096 AC

Top view

Air-bleeding
hole

Fitting part

Air-bleeding hole

Do not touch the white powders
applied to the inside

SOLENOID AND VACUUM HOSE

ENGINE OVERHAUL

11B-16

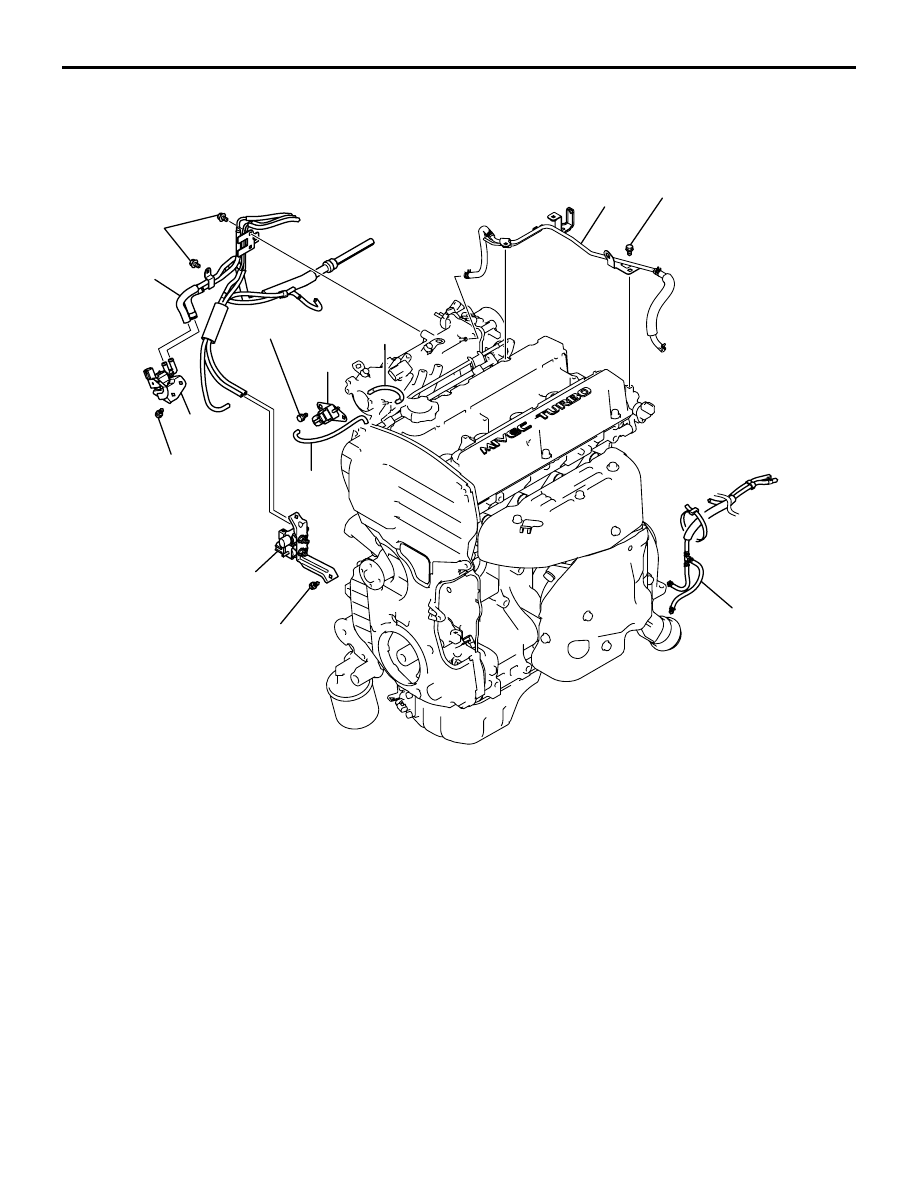

SOLENOID AND VACUUM HOSE

REMOVAL AND INSTALLATION

M1113025300115

AK501688

1

2

3

4

5

6

7

8

9.0 ± 1.0 N·m

11 ± 1 N·m

9.0 ± 1.0 N·m

9.0 ± 1.0 N·m

11 ± 1 N·m

AB

Removal steps

1. Vacuum pipe and hose assembly
2. Solenoid valve
3. Solenoid valve
4. Vacuum hose

5. Vacuum hose
6. Solenoid valve
7. Vacuum pipe and hose assembly
8. Vacuum hose assembly

Removal steps (Continued)

TIMING BELT

ENGINE OVERHAUL

11B-17

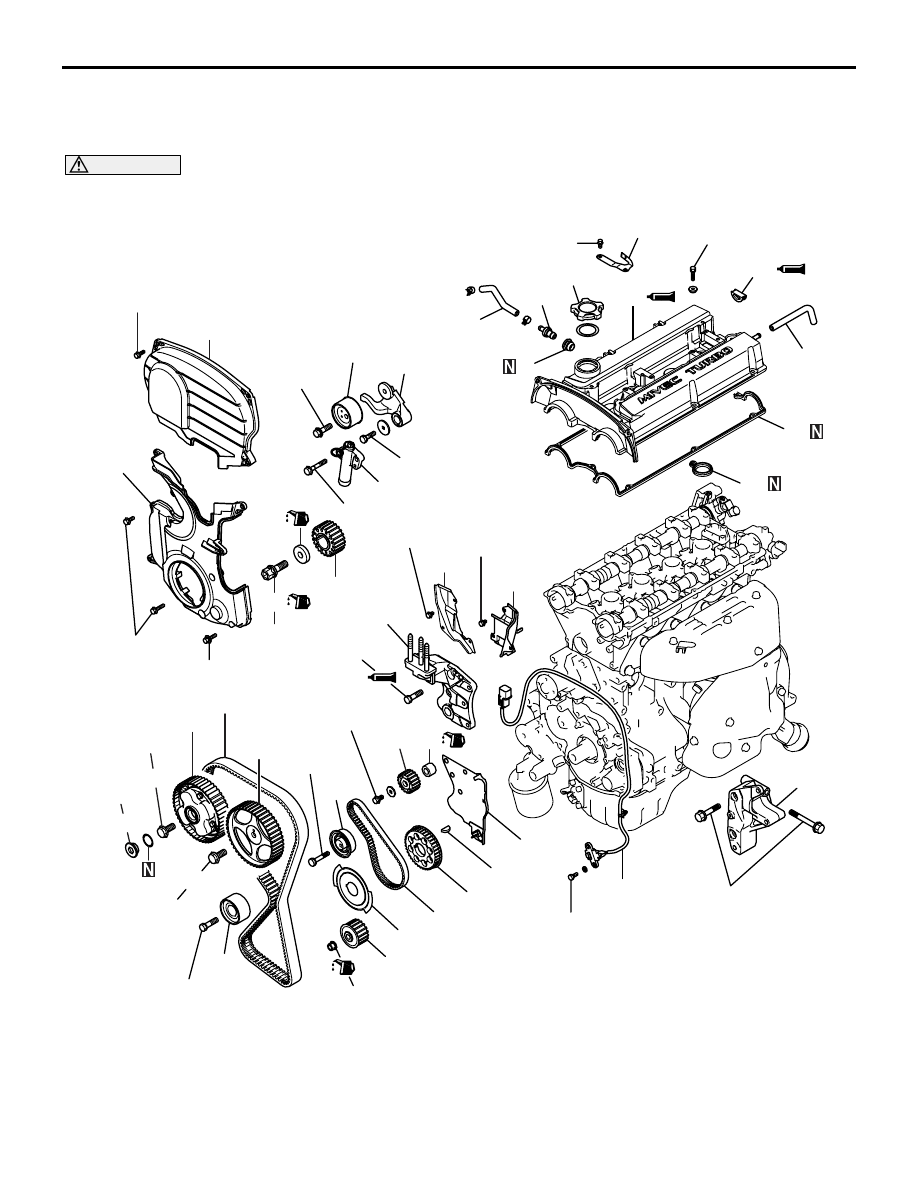

TIMING BELT

REMOVAL AND INSTALLATION

M1113001901138

CAUTION

Never overhaul the V.V.T. sprocket.

AK501689

12

1

2

13

14

15

16

17

18

22

9.0 ± 1.0 N·m

11 ± 1 N·m

AB

3

4

5

6

7

8

9

10

49 ± 9 N·m

11

3.5 ± 0.5 N·m

11 ± 1 N·m

11 ± 1 N·m

11 ± 1 N·m

19

20

8.8 ± 1.0 N·m

21 ± 4 N·m

23 ± 3 N·m

167 N·m

36

37

38

48 ± 5 N·m

32 ± 2 N·m

35 ± 6 N·m

88 ± 10 N·m

65 ± 5 N·m

54 ± 5 N·m

45 ± 3 N·m

19 ± 3 N·m

49 ± 5 N·m

21

24

25

26

27 28

29

30

34

35

32

33

31

23

11 ± 1 N·m

Removal steps

1. Timing belt front upper cover
2. Timing belt front lower cover
3. Power steering pump bracket
4. Breather hose
5. PCV hose
6. PCV valve

7. PCV valve gasket
8. Oil filler cap
9. Connentor bracket

>>

O

<< 10. Rocker cover

>>

O

<< 11. Rocker cover gasket "A"

12. Rocker cover gasket "B"

Removal steps (Continued)

TIMING BELT

ENGINE OVERHAUL

11B-18

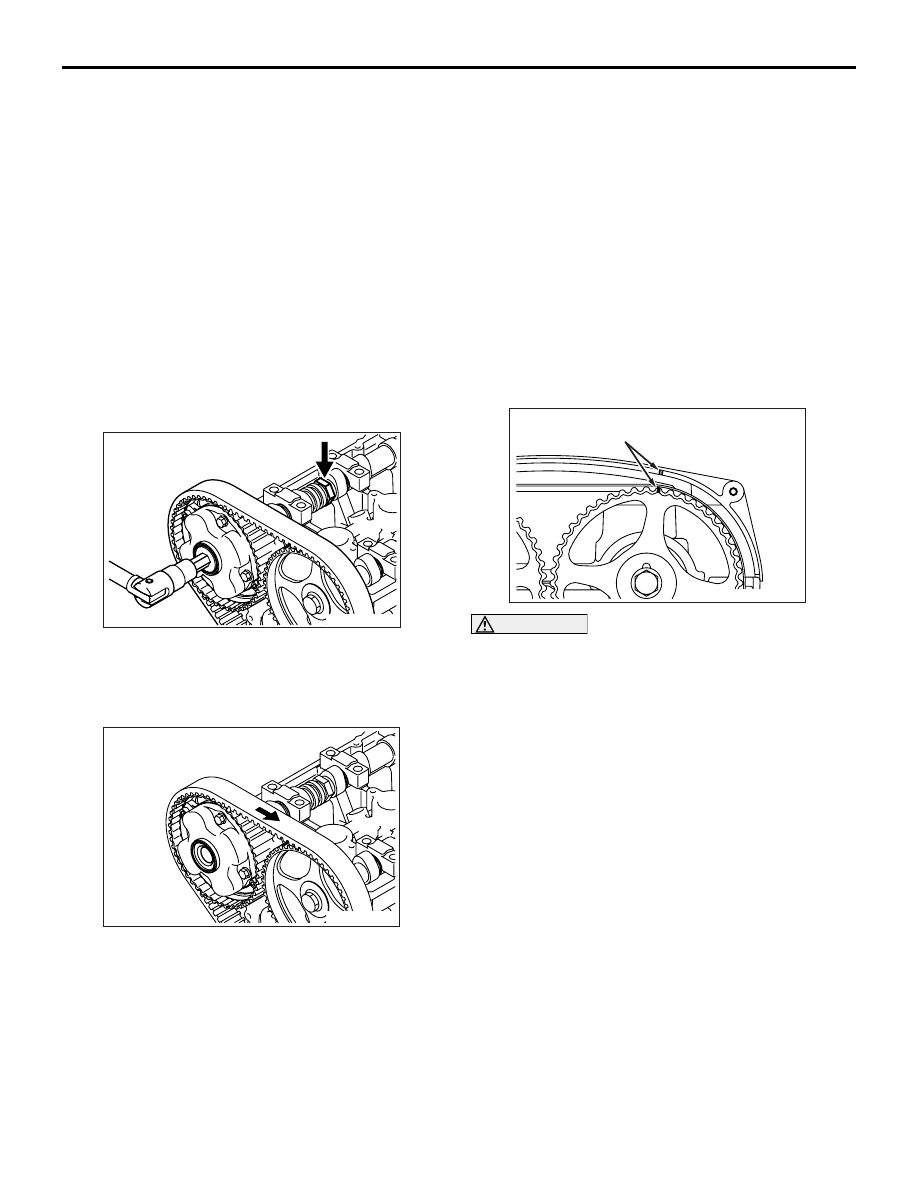

REMOVAL SERVICE POINTS
<<A>> PLUG CAP REMOVAL

Loosen the plug cap, holding the hexagonal portion
of the camshaft with a wrench.

<<B>> TIMING BELT REMOVAL

1. If the timing belt is to be reused, make an arrow

mark with something like chalk on the back of the
belt indicating the direction of rotation so it may be
reinstalled in the same direction.

CAUTION

Never remove the timing belt with any piston at
the top dead centre (TDC). If a piston is at TDC,
the exhaust valves of the cylinder are pushed by
the exhaust cams, compressing the valve
springs. If the belt is removed under this condi-
tion, the sprocket will be turned in the reverse
direction by the force of the springs, incurring
risk of injury.
2. Set the timing mark of the exhaust camshaft

sprocket to a point about one tooth before the
TDC of the No.1 cylinder piston on compression
stroke.

3. Loosen the lock nut of the tensioner pulley, then

remove the timing belt.

>>

N

<< 13. Semicircular packing

<<

A

>> >>

M

<< 14. Plug cap

<<

B

>> >>

L

<< 15. Timing belt

>>

K

<< 16. Tensioner pulley

17. Tensioner arm

>>

J

<< 18. Auto-tensioner

19. Idler pulley
20. Crankshaft angle sensor

<<

C

>> >>

I

<<

21. Oil pump sprocket

<<

D

>> >>

H

<< 22. Crankshaft bolt

<<

E

>> >>

H

<< 23. Crankshaft sprocket

>>

H

<< 24. Crankshaft sensing blade

25. Tensioner "B"

Removal steps (Continued)

<<

F

>> >>

G

<< 26. Timing belt "B"

<<

G

>> >>

F

<< 27. Counterbalancer shaft sprocket

>>

E

<< 28. Spacer

<<

H

>> >>

D

<< 29. Crankshaft sprocket "B"

30. Crankshaft key

>>

C

<< 31. Engine support bracket

<<

I

>>

>>

B

<< 32 V.V.T. sprocket bolt

>>

B

<< 33 V.V.T. sprocket

<<

J

>> >>

A

<< 34 Camshaft sprocket bolt

35 Camshaft sprocket
36. Timing belt rear cover, right
37 Timing belt rear upper cover, left
38 Timing belt rear lower cover, left

Removal steps (Continued)

AK403832

AK501768

AK304440AB

Timing marks
