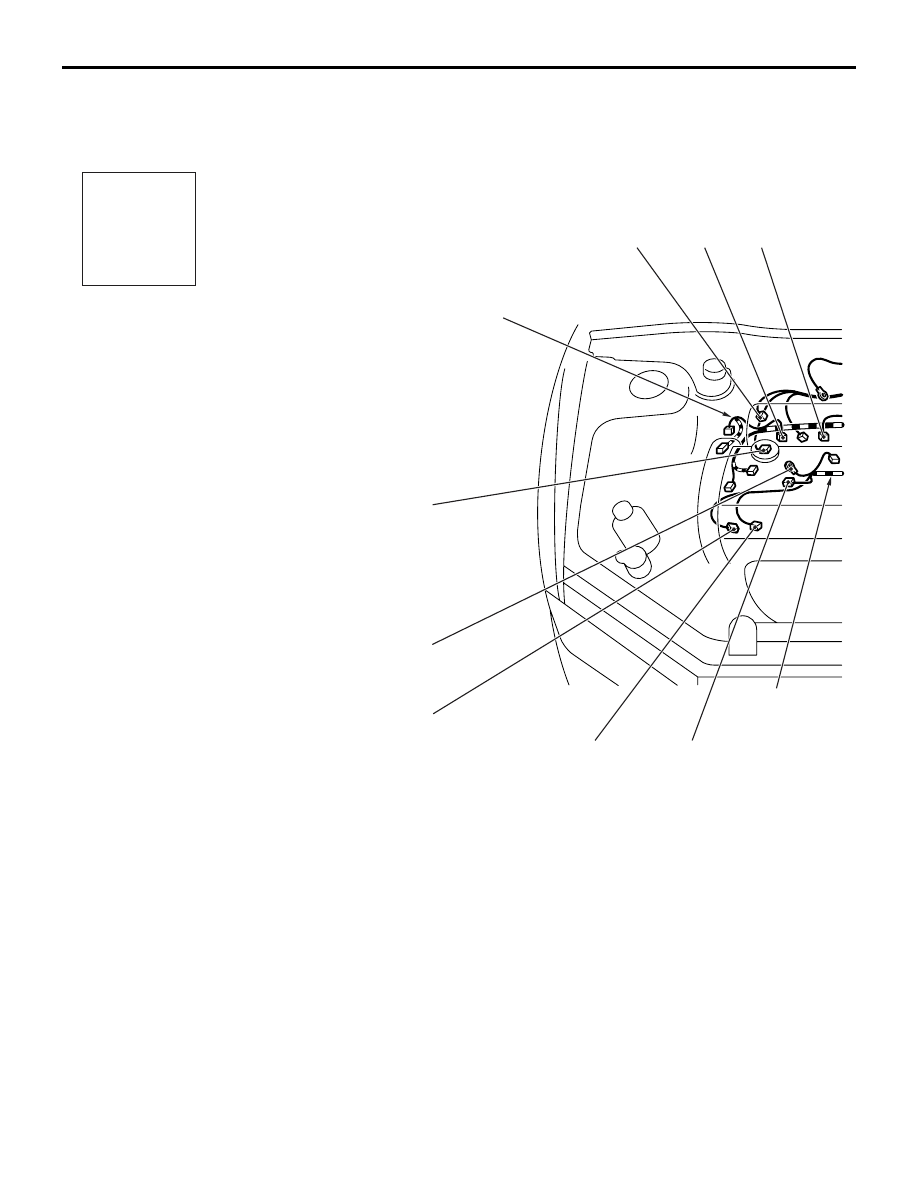

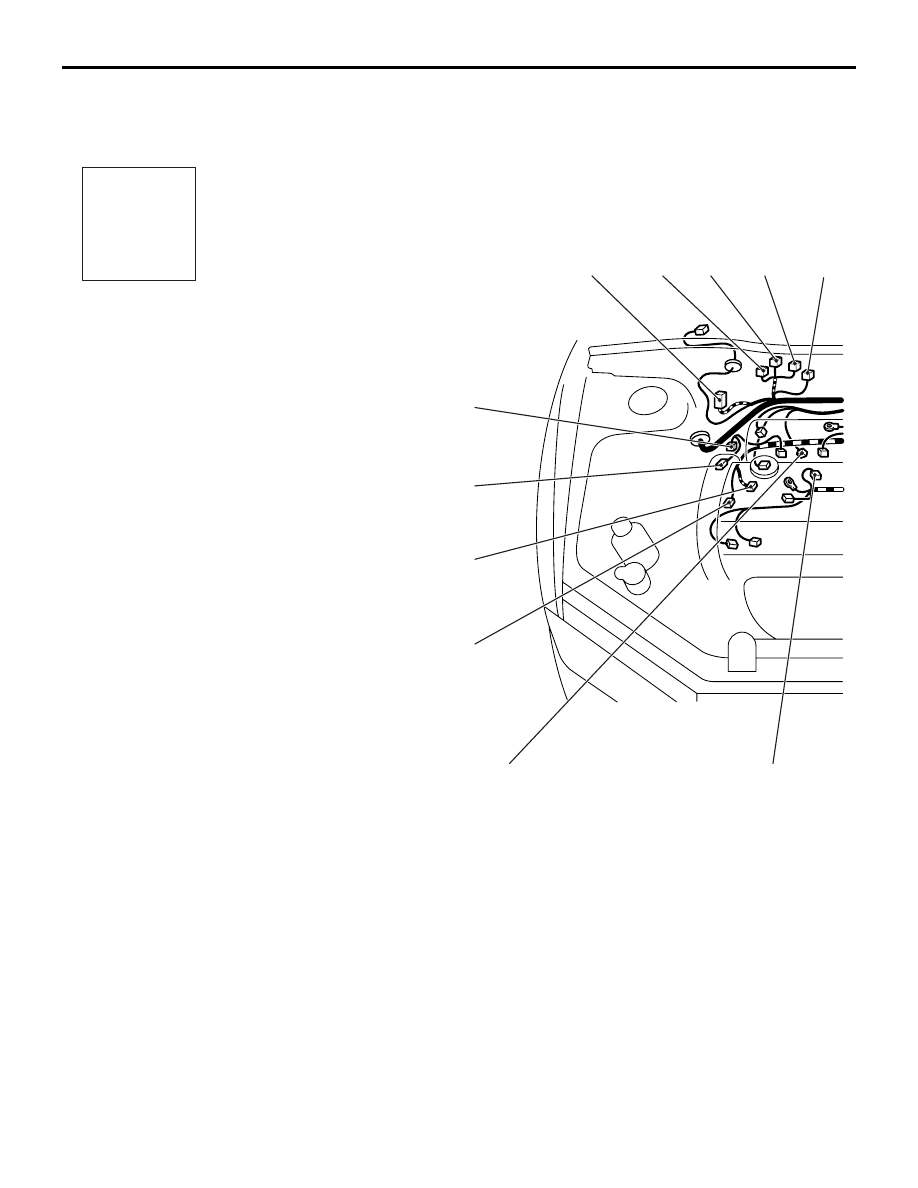

Mitsubishi Lancer Evolution IX. Manual - part 67

AC208204

AC500094

AB

B-14

B-26

B-27

B-19

B-18

B-17

Earth cable

Control wiring
harness

Transmission
wiring harness

Battery wiring
harness

B-03

B-05

B-04

B-21

B-06X
B-12X
B-13X

4

10

11

B-30

B-18

(2-B)

Injector (3)

B-19

(1)

Starter

B-20

(2-B)

Injector (2)

B-21

(1-B)

Starter

B-22

(2-B)

Injector (1)

B-23

(1-B)

Oil pressure switch

B-24

(1)

Alternator

B-25

(4-GR)

Alternator

B-26

(2-GR)

Wastegate solenoid valve

B-27

(8-B)

Control wiring harness and
transmission wiring harness
combination

B-28

(2-B)

Fuel pressure control solenoid valve

B-29

(2-B)

Engine oil level sensor

B-30

(2-B)

Transmission oil temperature sensor

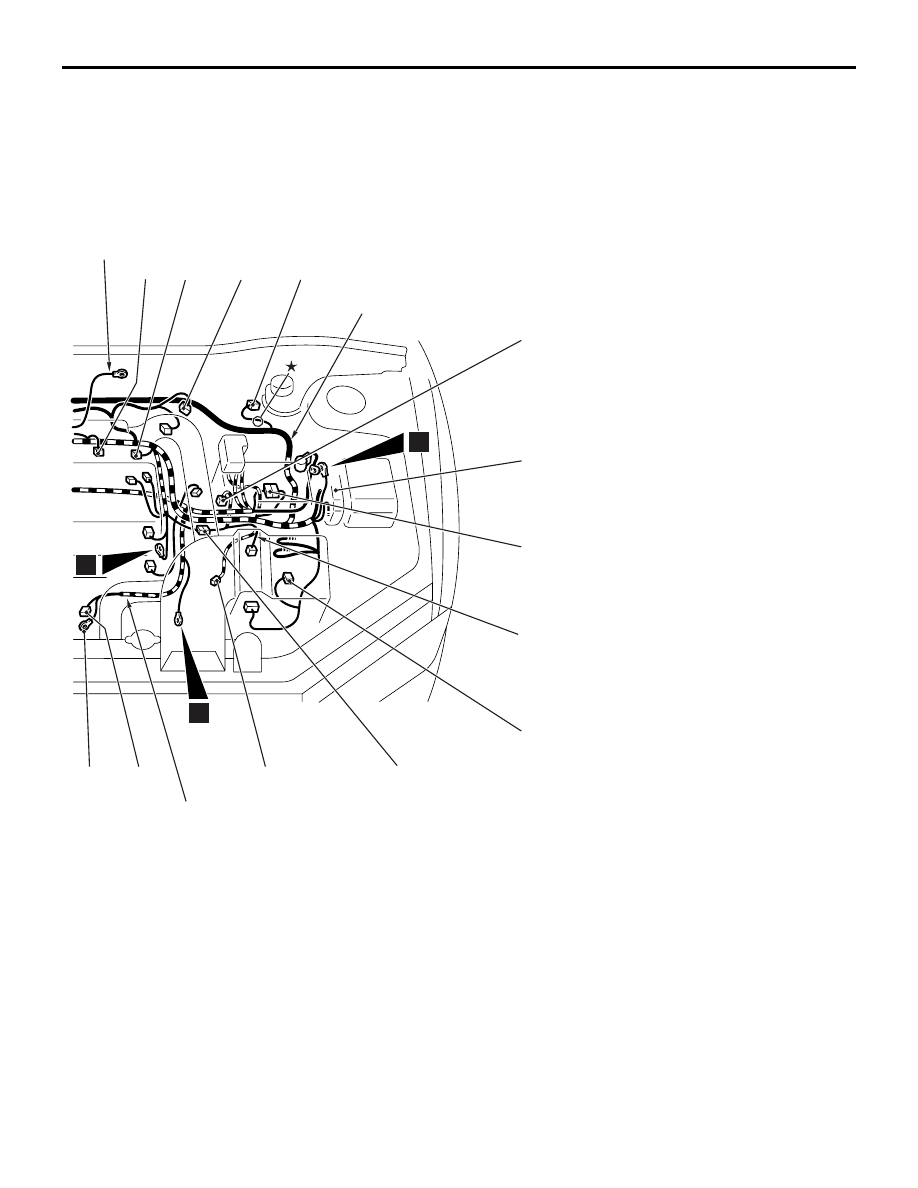

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-9

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-10

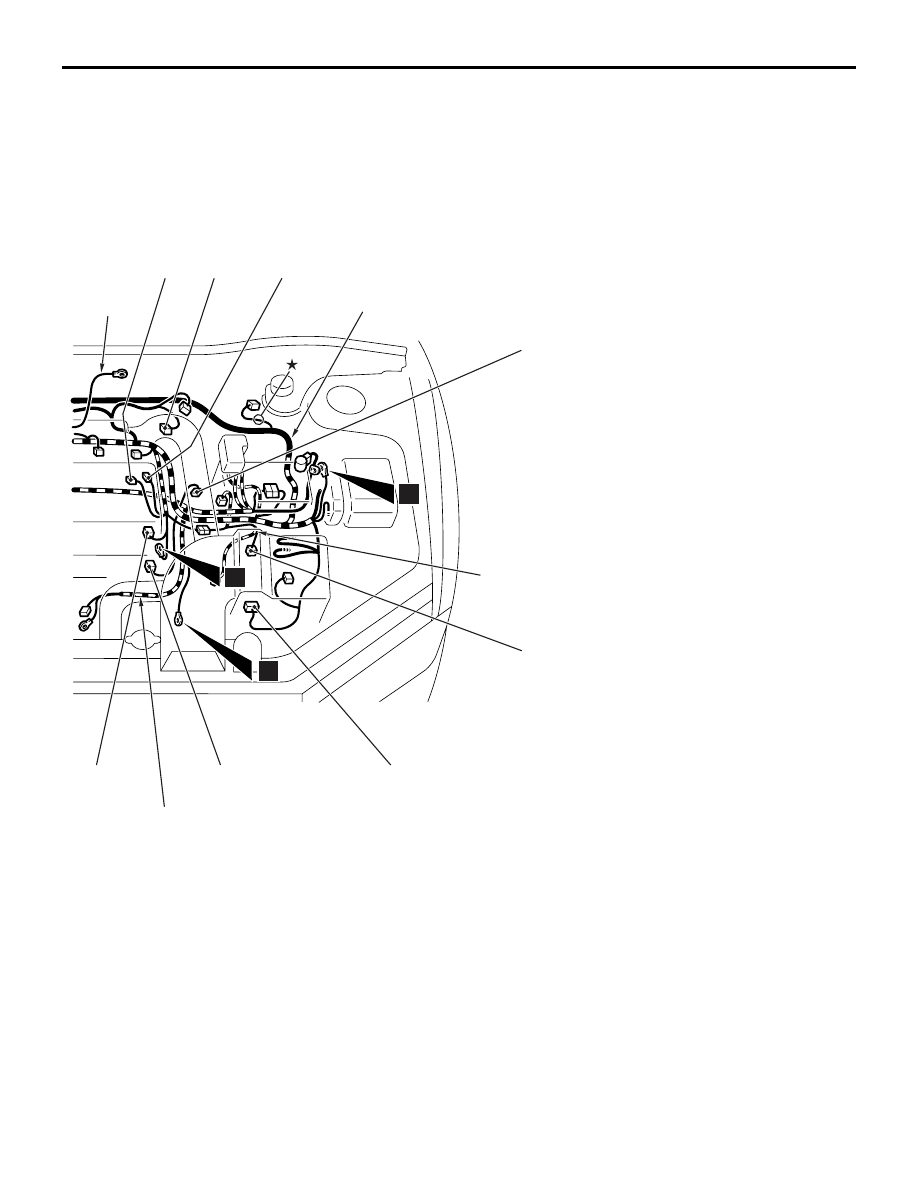

ENGINE AND TRANSMISSION <LH drive vehicles> (CONTINUED)

AC500093

AC

B-122

B-117

B-101

B-118

B-114

B-108

Connector
symbol

-101
thru
-124

B

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

B-113

B-120

B-121

B-119

B-123

B-101 (2-BR)

EGR control solenoid valve

B-103 (3-GR)

Ignition coil (1)

B-104 (6-B)

Idle speed control servo

B-105 (7-B)

Air flow sensor

B-106 (3-B)

Exhaust camshaft position sensor

B-107 (2-B)

Engine coolant temperature sensor

B-108 (2-GR)

Detonation sensor

AC208204

AC500094

AC

B-124

B-111

B-105

B-112

B-106

B-104

B-107

Earth cable

Control wiring
harness

Transmission
wiring harness

Battery wiring
harness

4

10

11

B-103

B-111 (2-B)

Back-up lamp switch

B-112 (1-B)

Engine coolant temperature gauge
unit

B-113 (4-B)

Oxygen sensor (Front)

B-114 (3-GR)

Ignition coil (2)

B-117 (3-B)

Crank angle sensor

B-118 (34-B)

ABS-ECU

B-119 (6-B)

Injector resistor

B-120 (4)

Fuel pump relay (3)

B-121 (2-B)

Fuel pump resistor

B-122 (4)

Electric pump relay

B-123 (2-B)

Oil feeder control valve

B-124 (3-B)

Intake camshaft position sensor

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-11

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-12

ENGINE AND TRANSMISSION <RH drive vehicles>

M1801000401701

AC500096

AB

Battery wiring
harness

B-22

B-28

B-20

B-02

B-29

B-24

B-25

Control wiring
harness

Connector
symbol

-01
thru
-29

B

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

B-23

B-01

(5-GR)

Windshield wiper motor

B-02

(2-B)

Purge control solenoid valve

B-03

(4-B)

Throttle position sensor

B-04

(3-B)

Vehicle speed sensor

B-06X (1)

Engine speed detection connector

B-10X (4)

Ignition coil relay

B-12X (4)

Engine control relay

B-13X (4)

A/C compressor relay

B-14

(10-B)

Control wiring harness and battery
wiring harness combination

B-17

(2-B)

Injector (4)
